Specification:

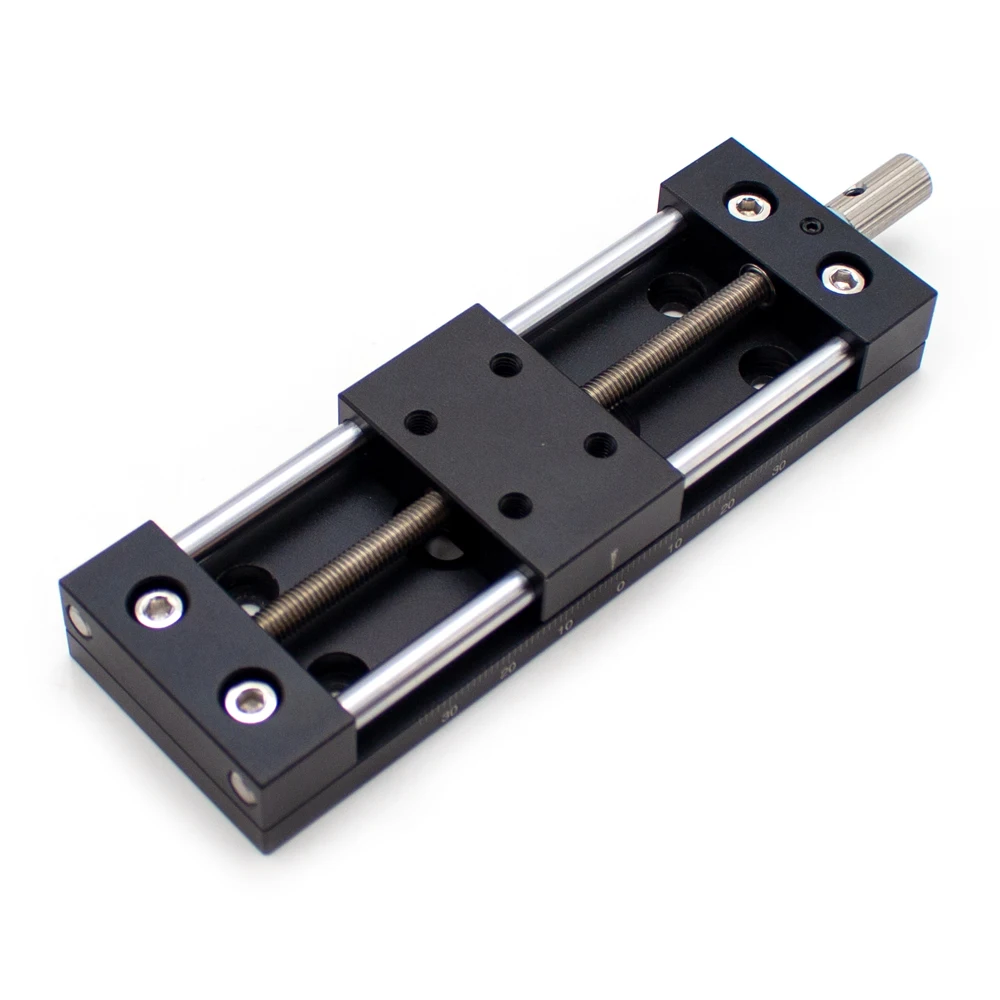

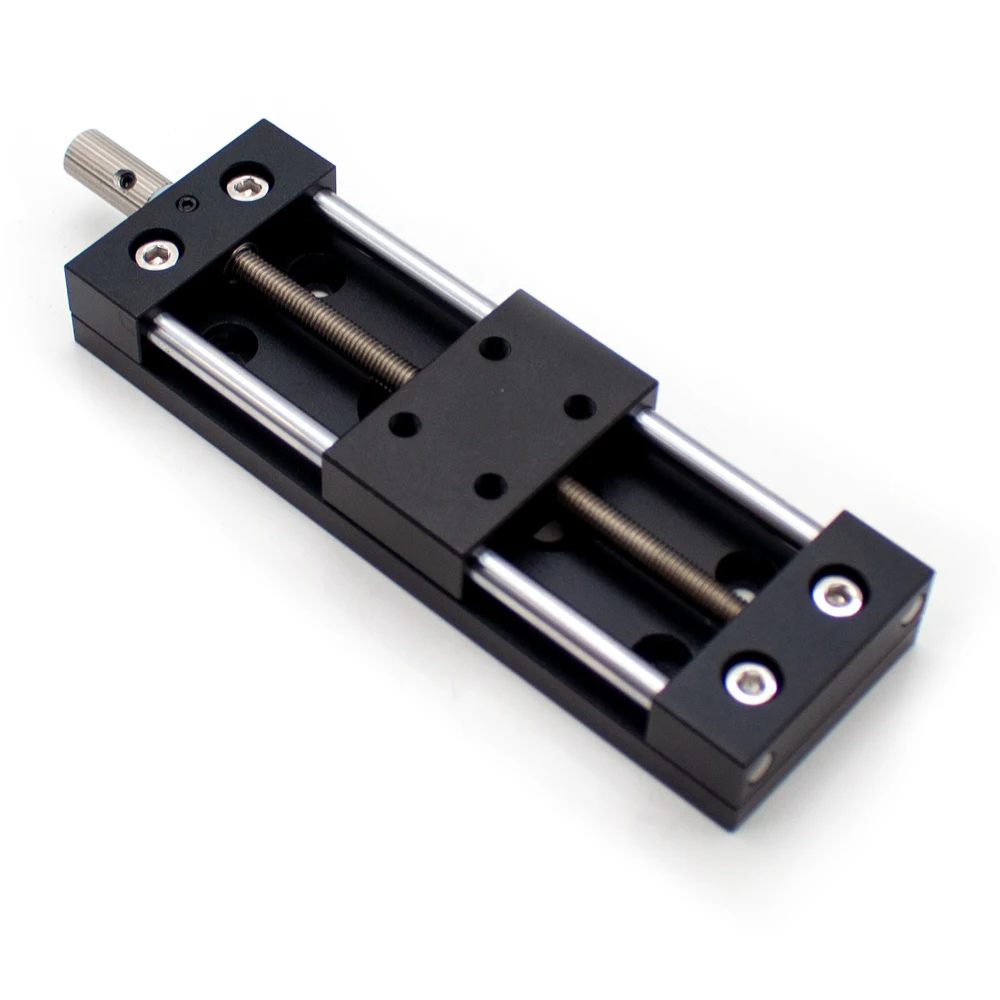

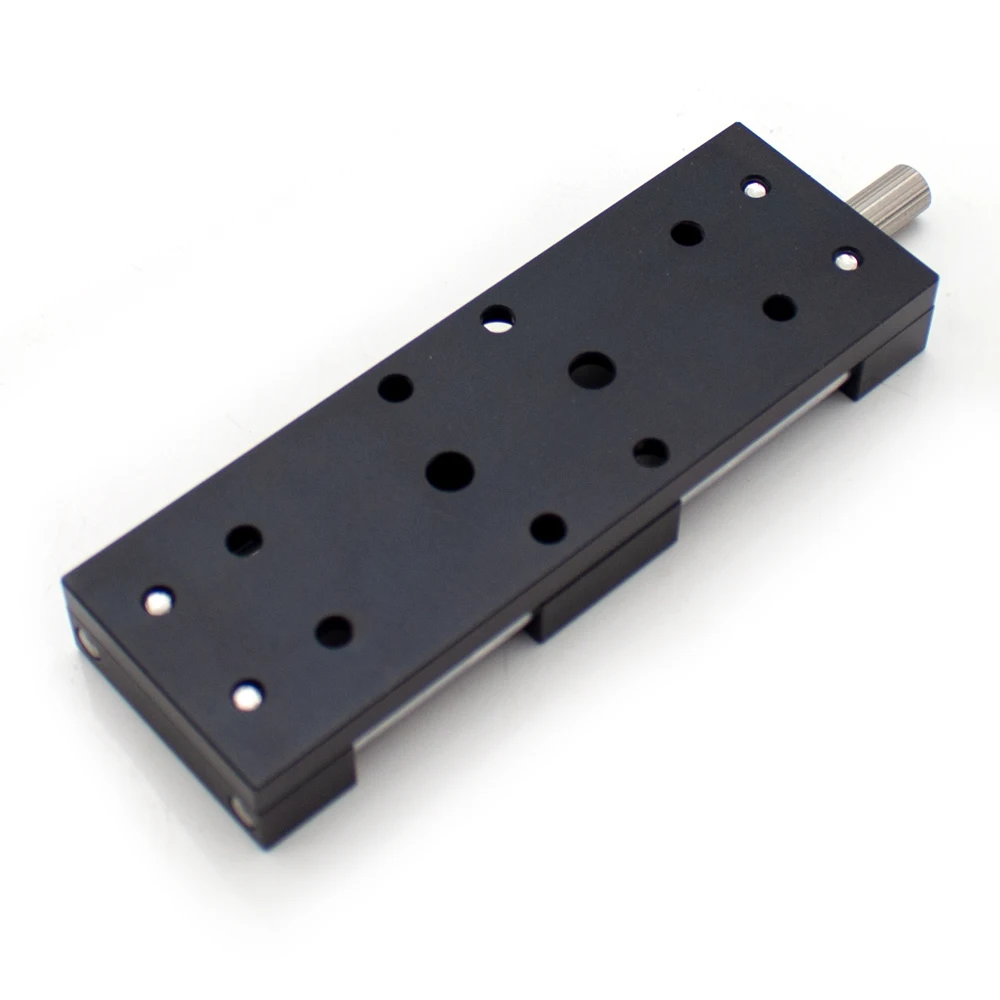

Product name: Manual precision X-axis slide

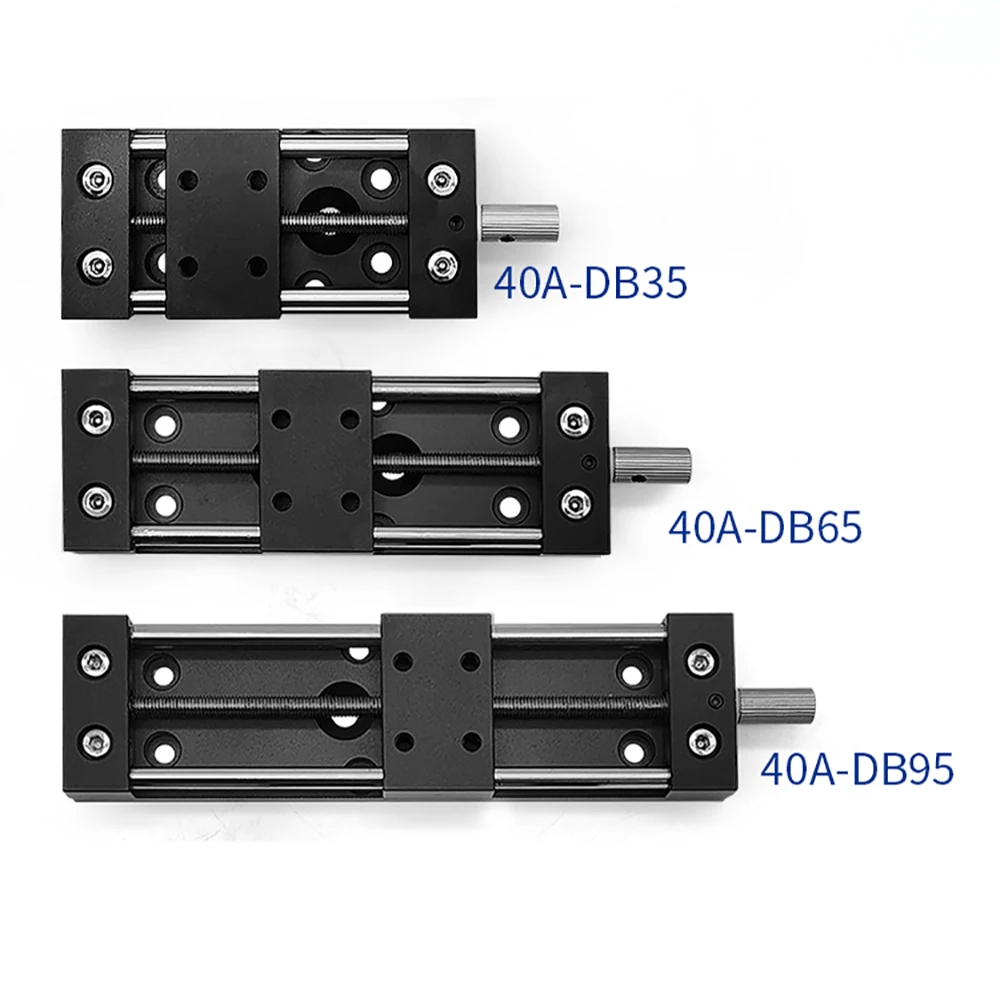

Model: HYHT40A-DB35/HYHT40A-DB65/HYHT40A-DB95
Main body material: AI6063
Body Finish: Black Anodized
Guide shaft material: GCr15 bearing steel
Guide shaft hardness: HRC56
Surface treatment of guide shaft: hard chrome plating
Spring material: OCr18Ni9 304 stainless steel
Feed screw material: OCr18Ni9 304 stainless steel
Table size: 40x25MM
Maximum stroke: 35MM/65MM/95MM
Horizontal load: 39.2N/39.2N/29.4N
Weight: 160G/180G/240G

Feature:

1.The main body is made of aluminum alloy, light weight and strong, friction-resistant, quiet, scratch-resistant, drop-proof and corrosion-resistant.
2.Gear rotation handle control, bring high accuracy, smoothness, high load resistance, stable movement.
3.Fine‑tuning X‑axis sliding table have stable structure, excellent performance and long service life.
4.Suitable for optical equipment, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, and photographic equipment.Can also be used for handling machines, processing machines, printing machines and others.
