Details

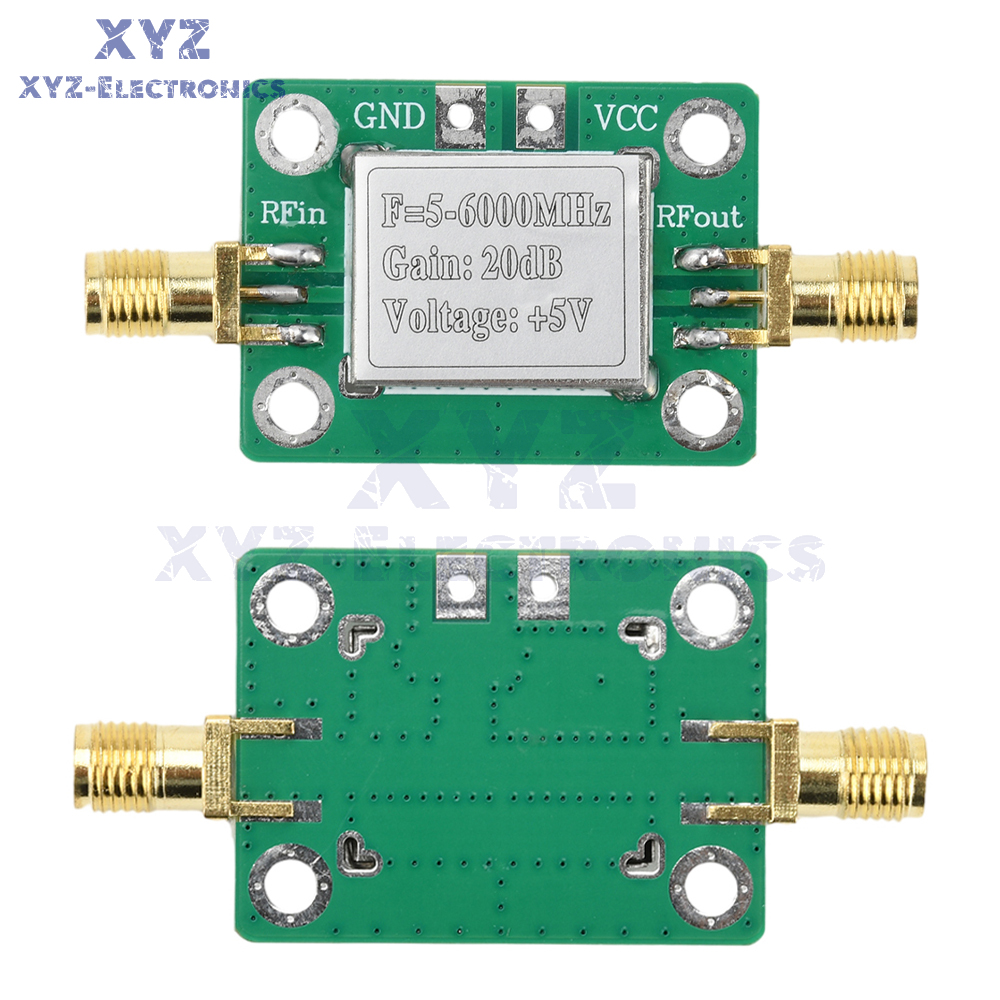

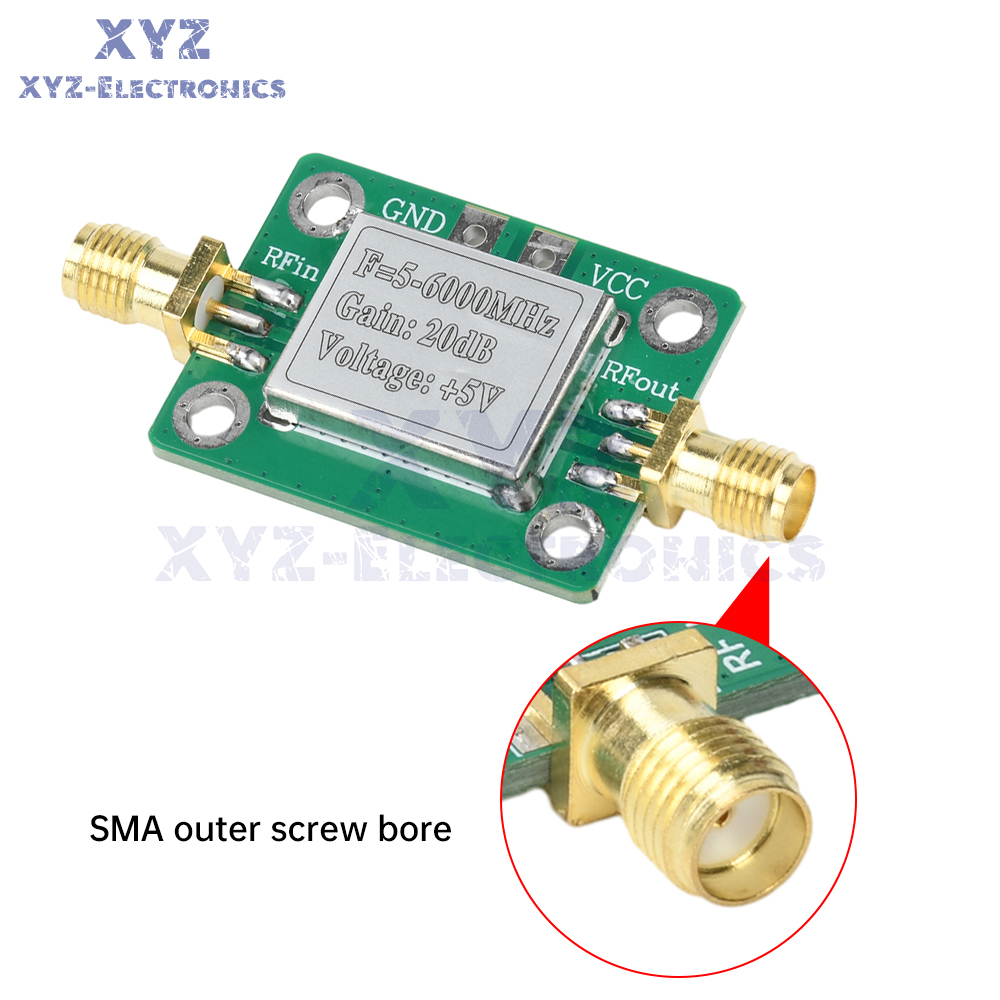

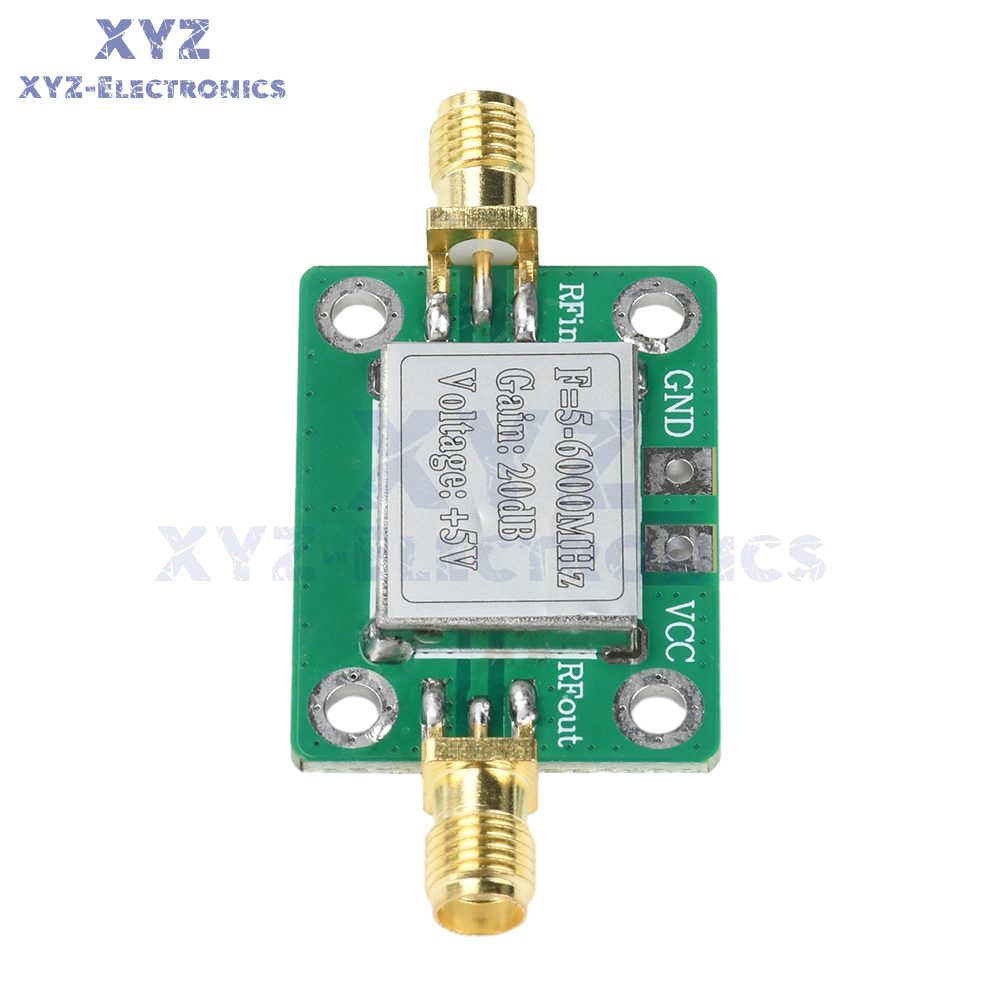

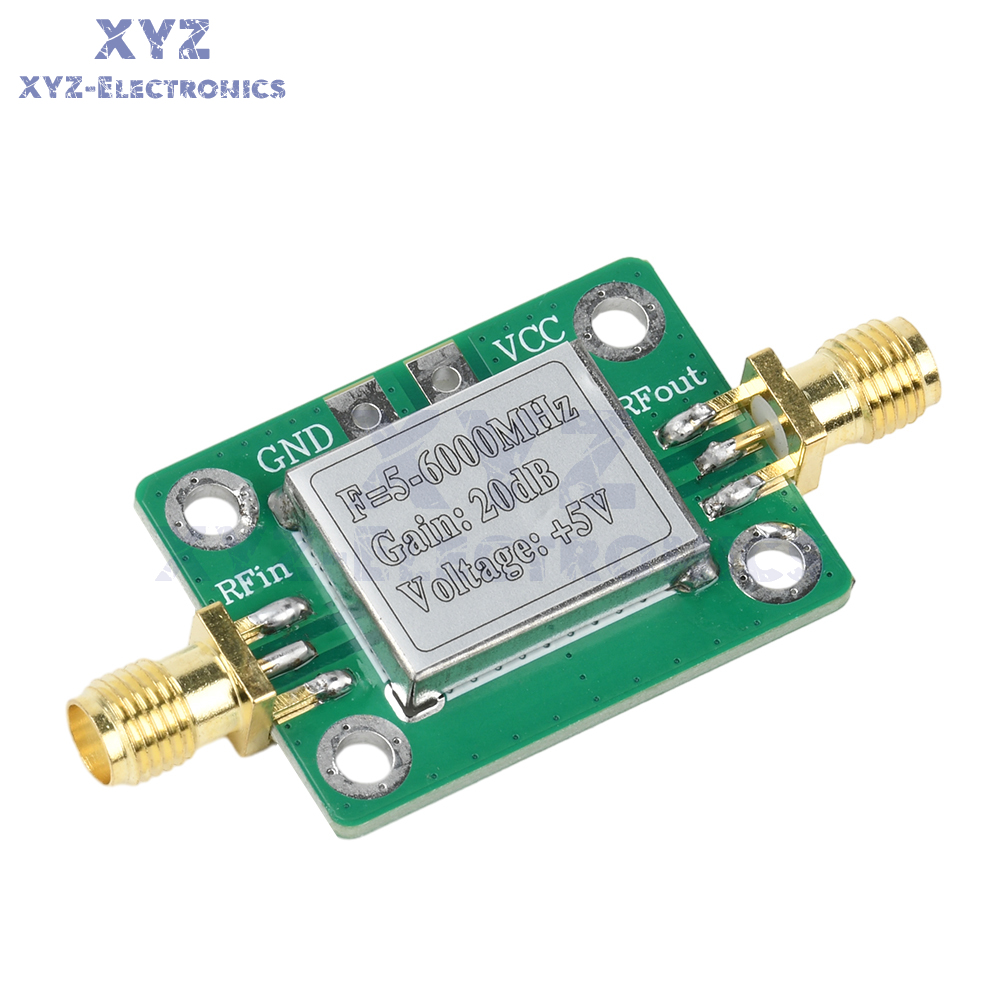

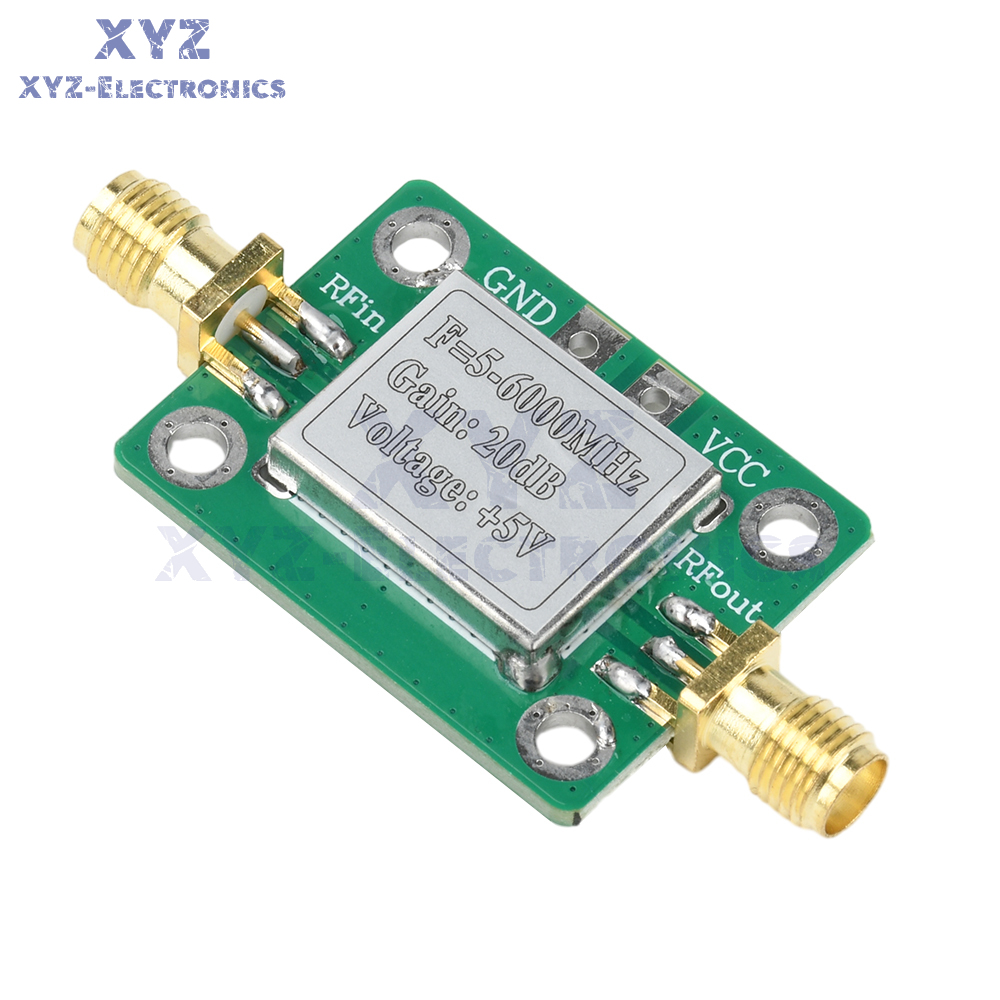

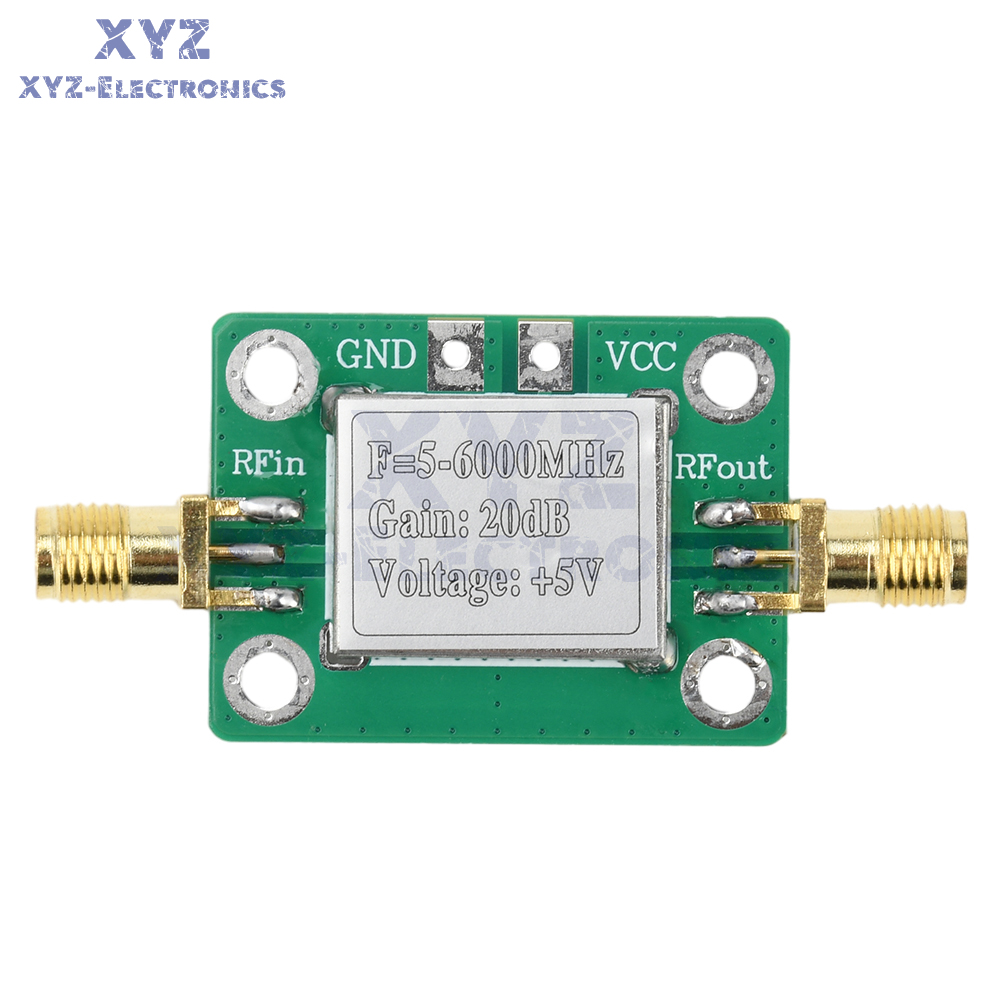

1.This is 5--6000MHz RF signal power amplifier with 20dB gain.
2. It has a large dynamic range and a wide operating frequency range.
3. The supply voltage is 5VDC and the operating current is 85mA.
4. The maximum output power is + 21dBm (100mW) @ 1dB compression point.
5. It is suitable for fixed gain amplification of all types of RF signals.
Operating frequency: 5--6000MHz
Amplifier Gain: 20dB
Maximum
Output power: + 21dBm (100mW) @ 1dB compression point
Operating Current: 85mA (5V)
Supply Voltage: 5VDC
System Impedance: 50ohm
Dimensions: 34 * 25mm / 1.33 * 0.98in
Note: The relevant principles of RF and microwave circuit layout should be followed in use.
