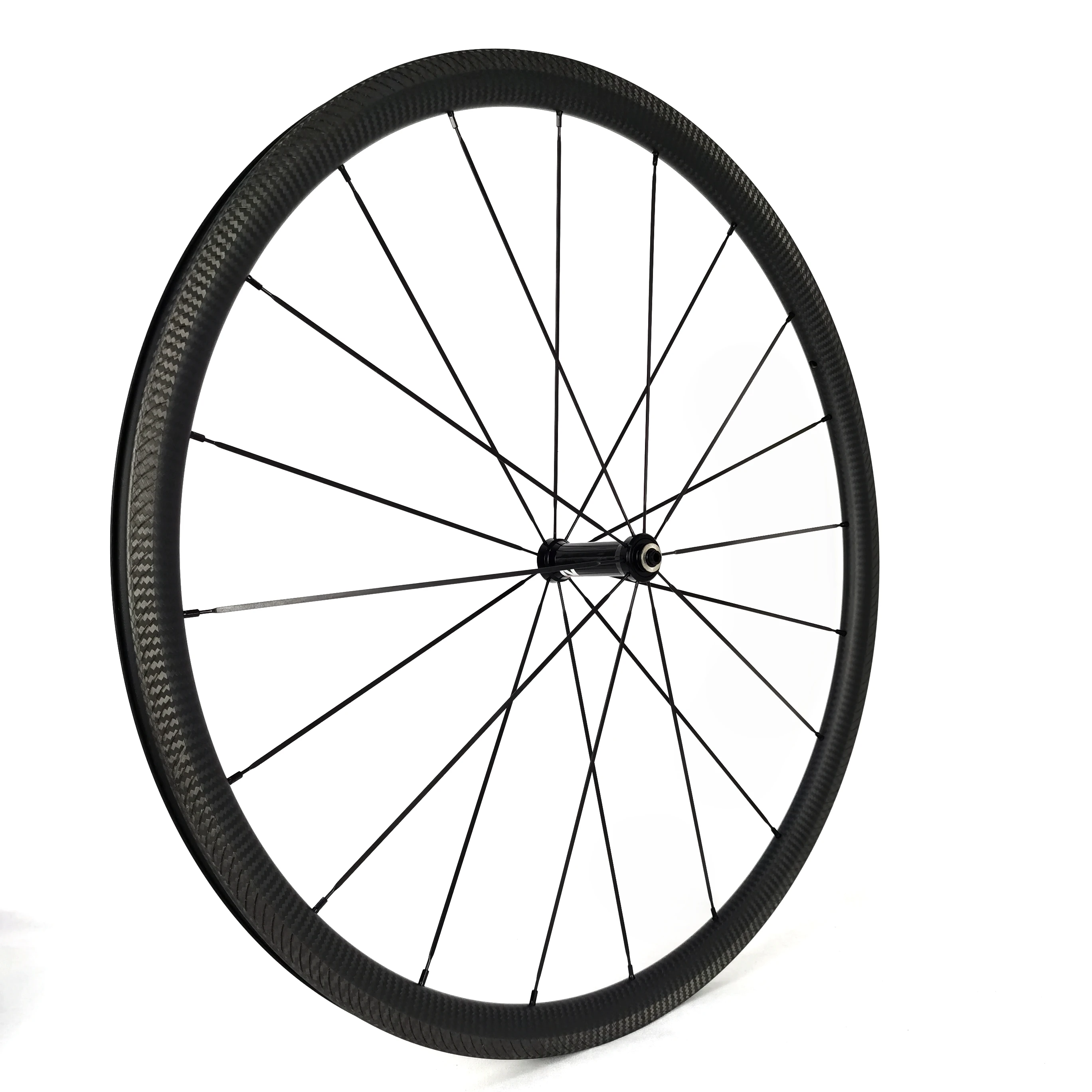

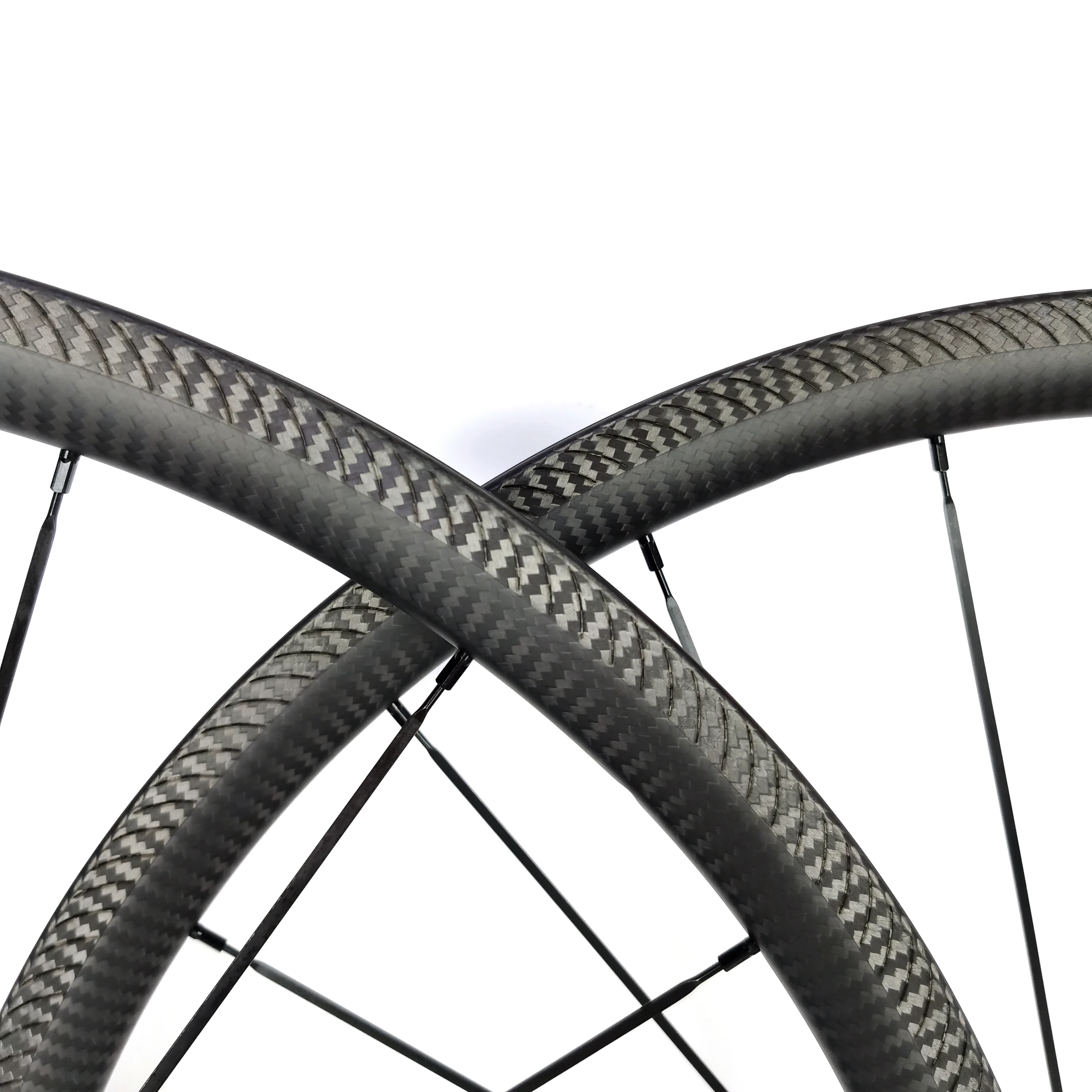

Rim:

Material: Toray T700 carbon fiber

Size: 700C

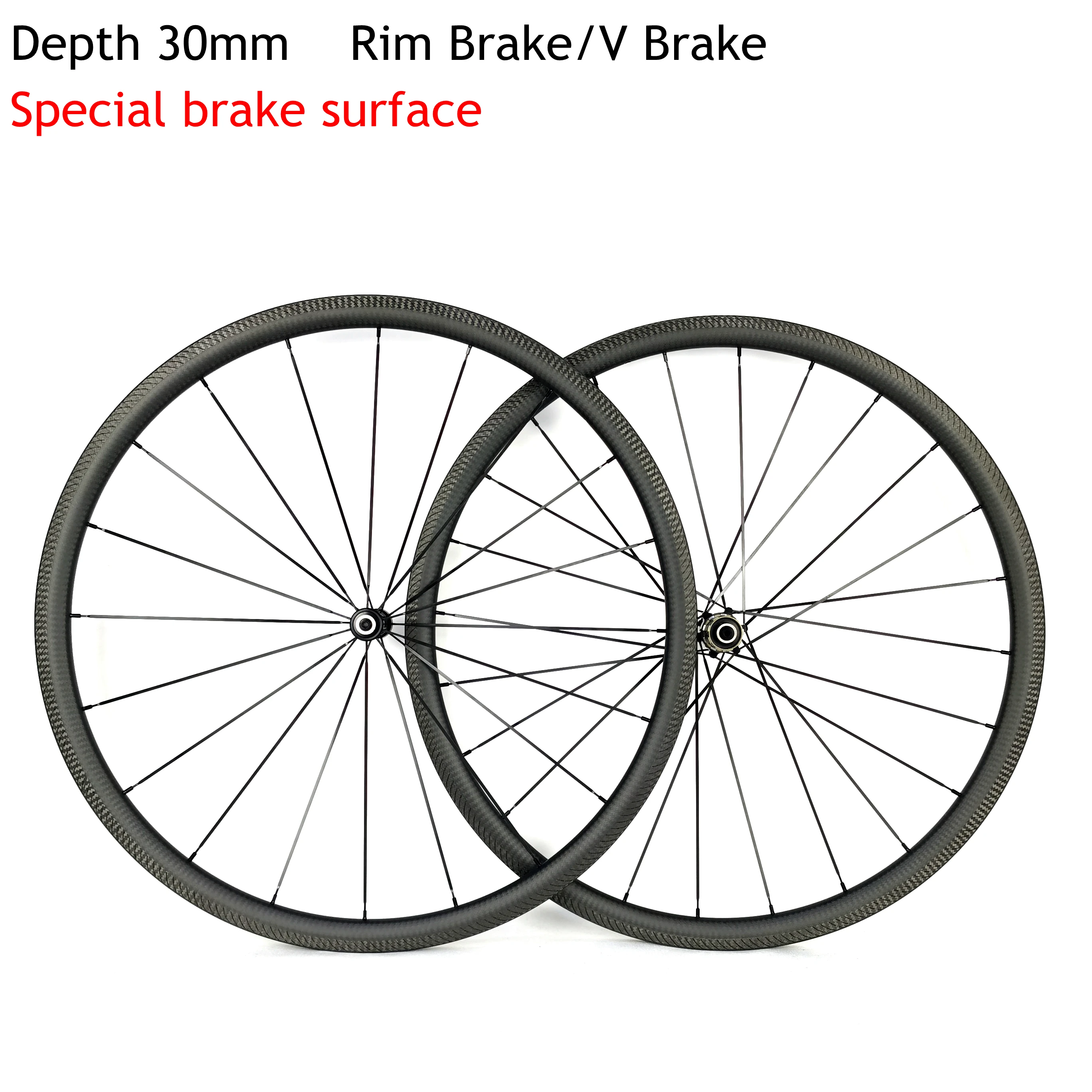

Depth: 30 mm

Width:External width 25mm, internal width 18mm, U shape

          External width 23mm, internal width 16mm, V shape

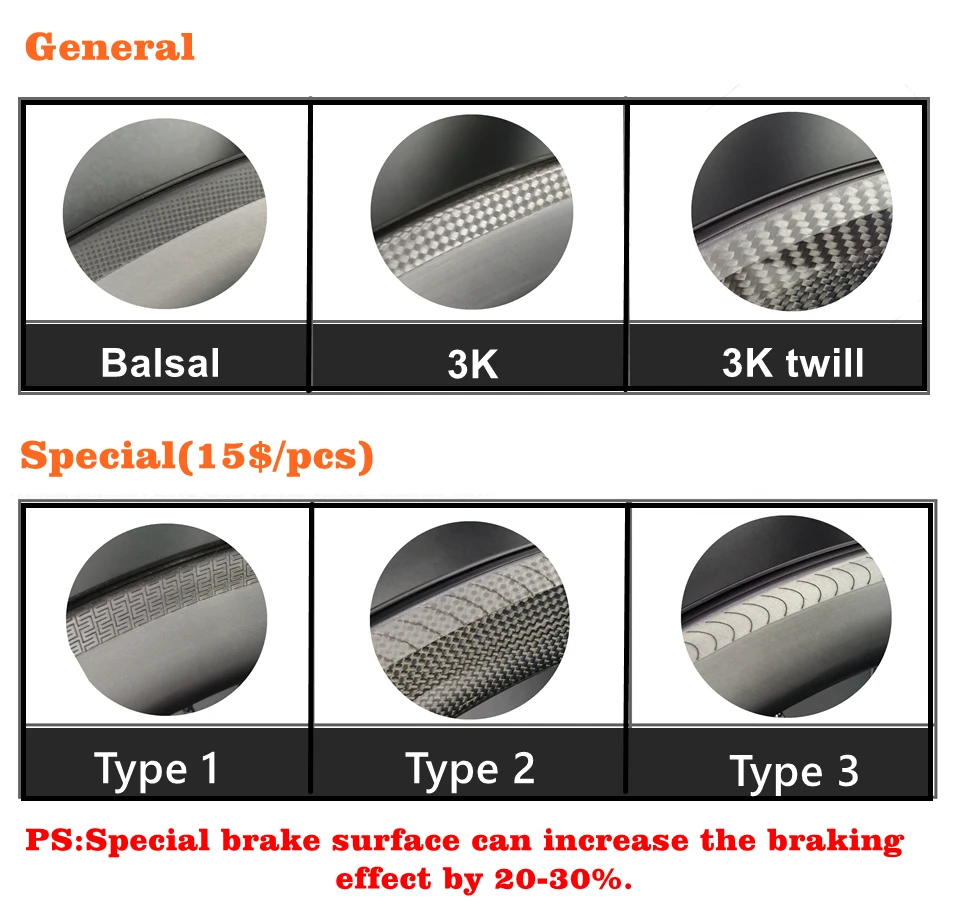

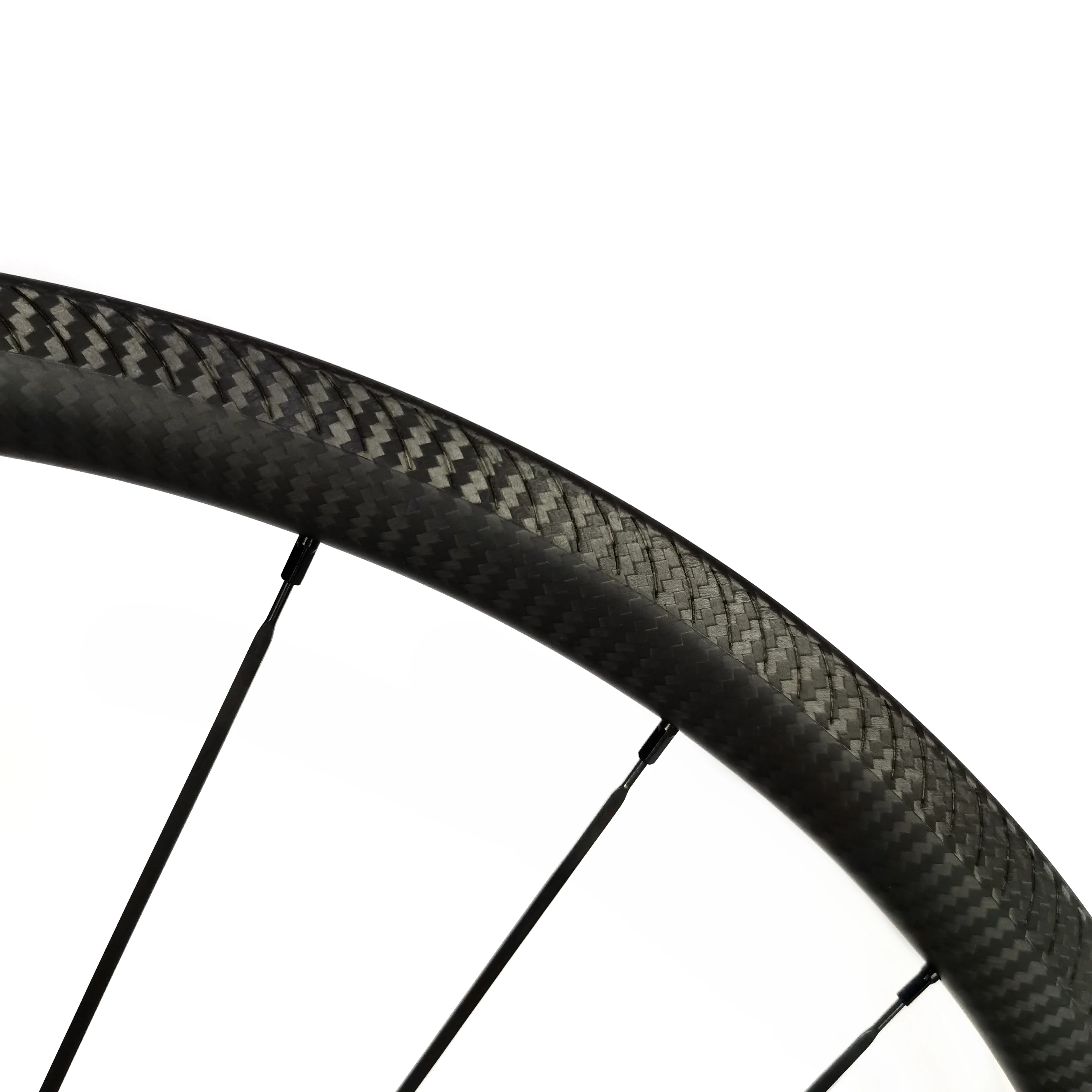

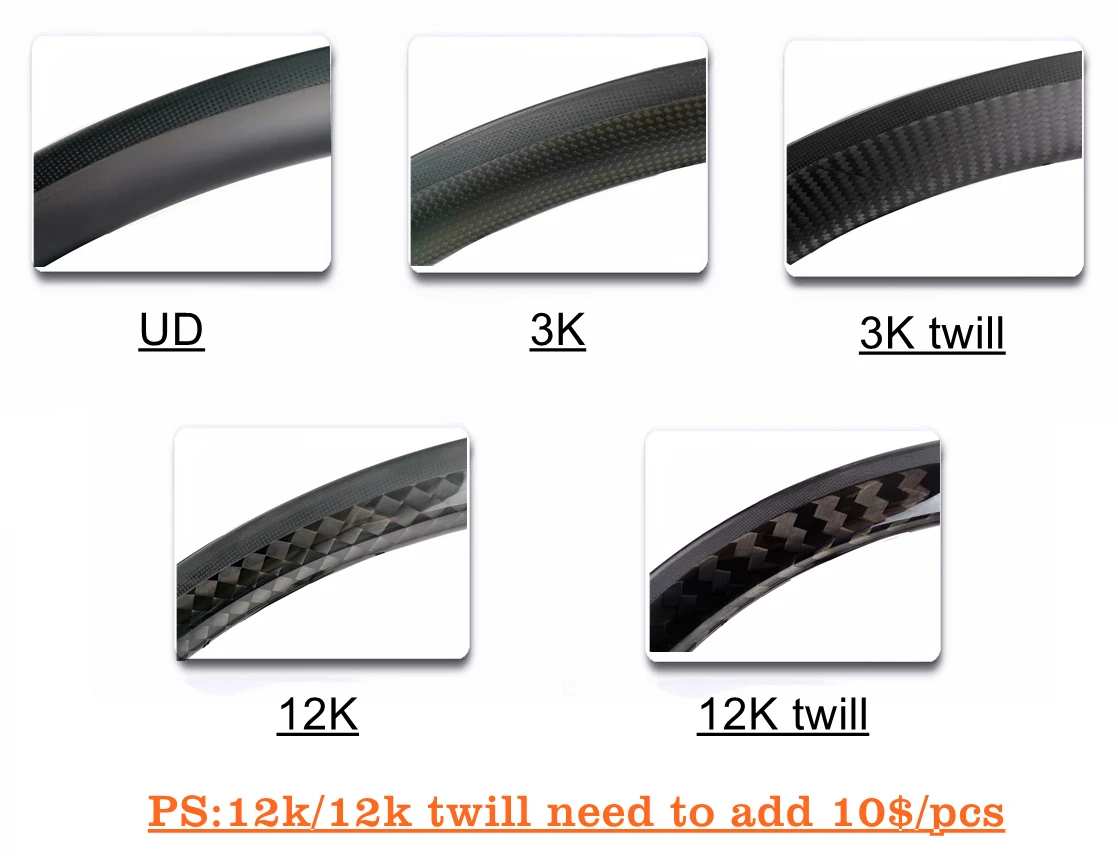

Weave: UD / 3K / 3K Twill / 12K / 12K Twill
Finish: Matte / Glossy

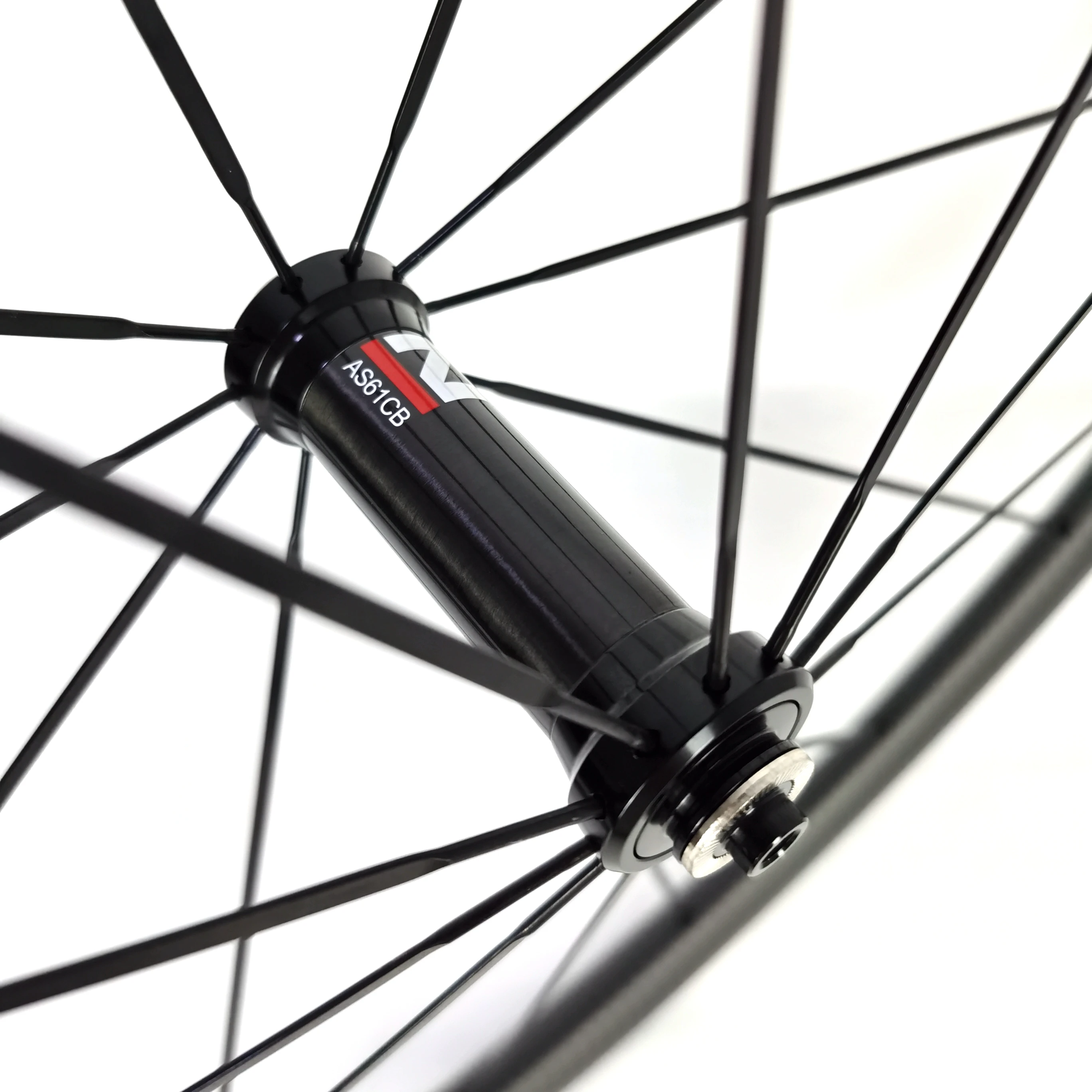

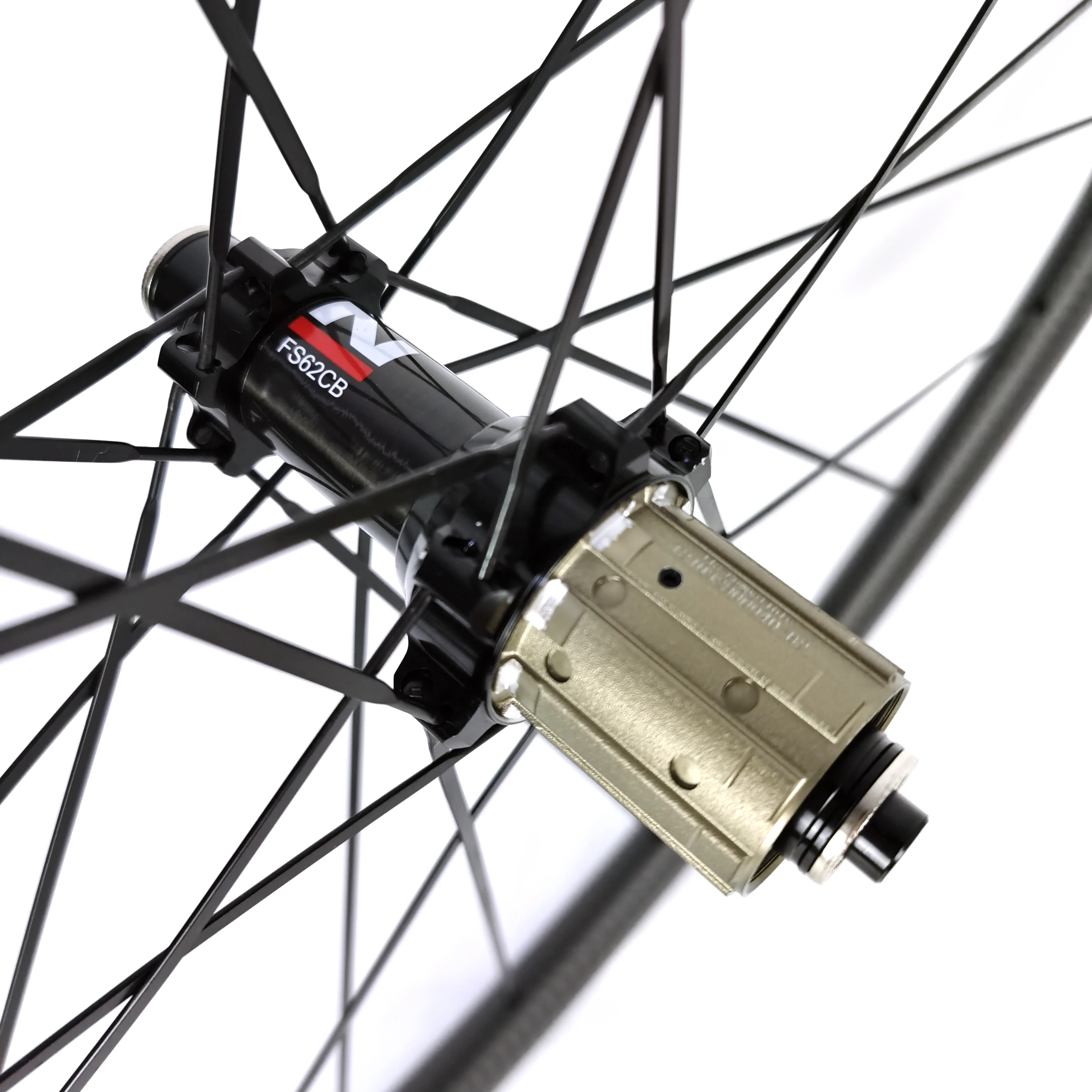

Hub:

Axle: Front 12x100mm, Rear 12x142mm (If you need other axle specifications, please contact us)

Compatible: Shimano 8/9/10/11 speed (If you need Campagnolo and Sram XD/XDR,please contact us)

Spoke:

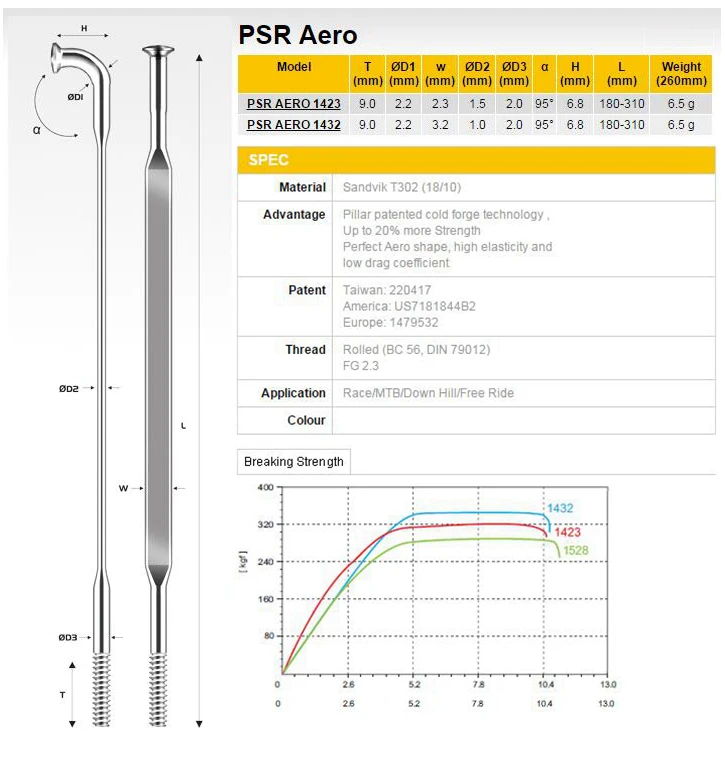

Model: Pillar 1432/1423 (If you need to upgrade to lighter 1420 or sapim cx-ray,please contact us)

Weight:

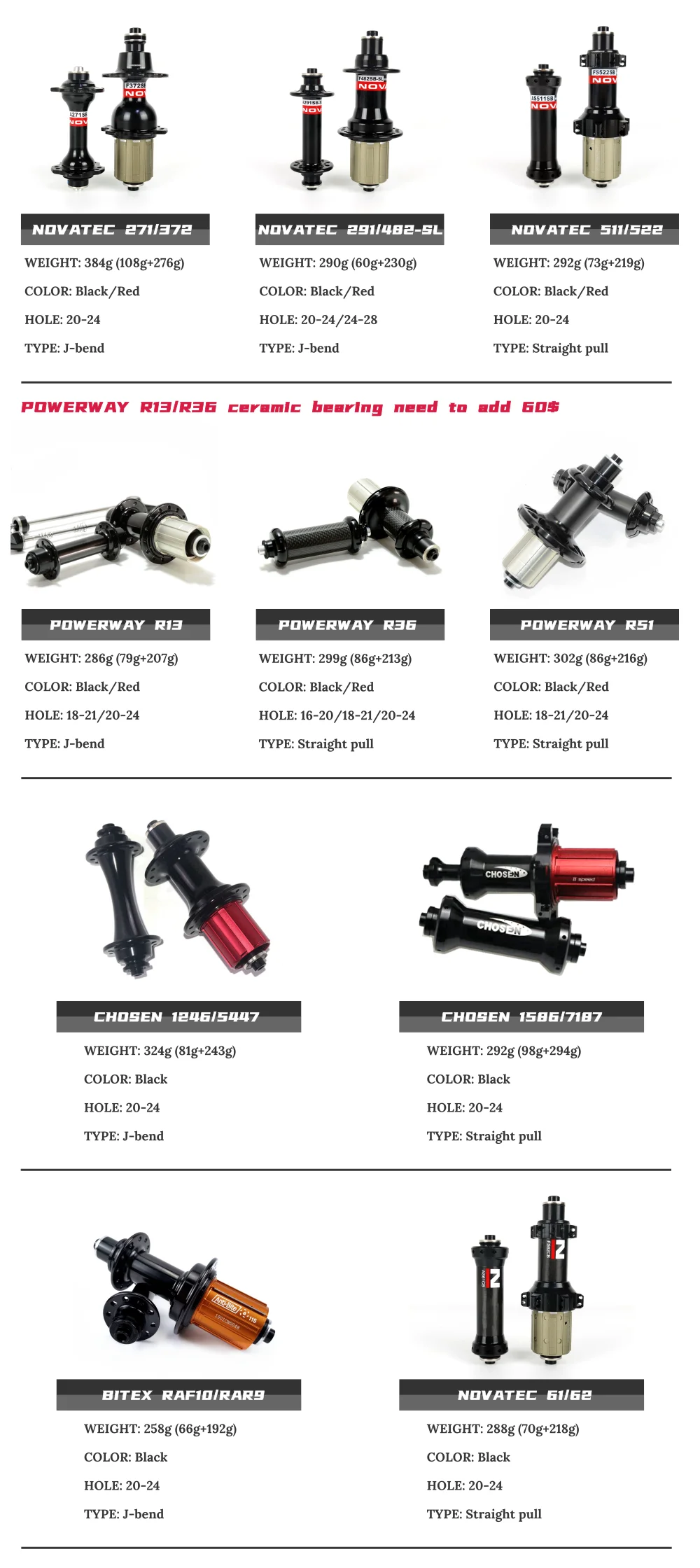

1562±30g For Clincher/Tubeless, 1380±30g For Tubular, with Novatec 271/372 hub

1468±30g For Clincher/Tubeless, 1286±30g For Tubular, with Novatec 291/482-SL hub

1470±30g For Clincher/Tubeless, 1288±30g For Tubular, with Novatec 511/522 hub

1466±30g For Clincher/Tubeless, 1284±30g For Tubular, with Novatec 61/62 hub

1464±30g For Clincher/Tubeless, 1282±30g For Tubular, with Powerway R13 hub

1477±30g For Clincher/Tubeless, 1295±30g For Tubular, with Powerway R36 hub

1480±30g For Clincher/Tubeless, 1298±30g For Tubular, with Powerway R51 hub

1436±30g For Clincher/Tubeless, 1254±30g For Tubular, with Bitex RAF10/RAR9 hub

1518±30g For Clincher/Tubeless, 1336±30g For Tubular, with NEW DT 350-SL hub

1477±30g For Clincher/Tubeless, 1295±30g For Tubular, with DT240-EXP hub

(If you need to upgrade the light version of the rim, please contact us)

Gift:

3 pcs spare spokes

2 pcs rim tapes (Only clincher has)

NOTE：

WHen you order,please note the specifications you need and confirm with us.If not,we will make and ship it for you according to the following default specifications.

RIM WEVAE:3K Twill

FINISHING:Matte

HUB COLOR:Black

HOLE COUNTS:20/24

HUB COMPATIBILITY:Shimano 11 speed

HUB AXLE SPECIFICATION:Front:9×100mm,Rear:10×130mm

SPOKES:Black Pillar 1432/1423

NIPPLES:Black Aluminum
