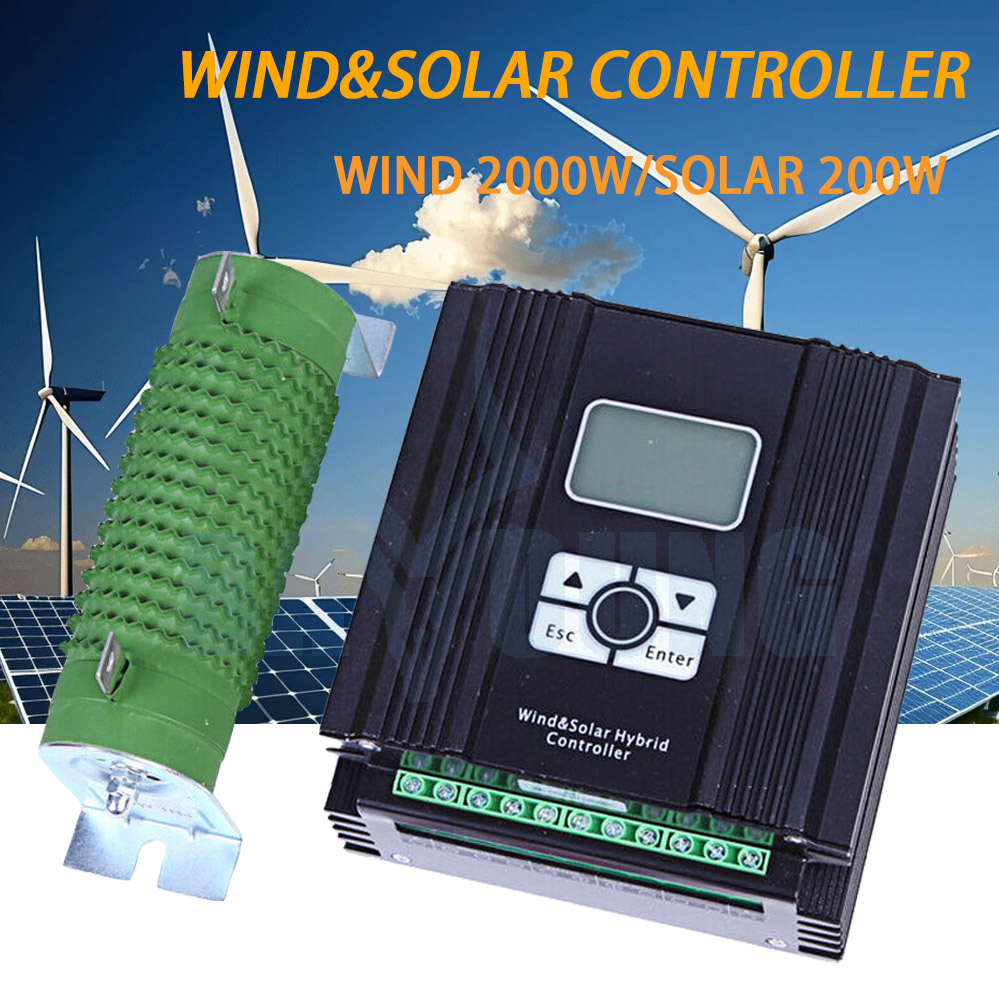

Wind Solar Hybrid Controller Digital Intelligent Control Wind Solar Regulator

Product Description

Piacking list

1.MPPT controller 1 piece.

                        Wind :2000W  Solar:200W

Battery parameters

Applied battery voltage

 12v/24v/48v

Battery protect method

Reverse connection protection (do not burn any components, with voice prompt); over voltage protection, under voltage protection (for street light and such kind of load)

Wind turbines input parameters

Rated power of applied Wind turbines

2000W/

Rated power of the terminal

30A/25A dc (after rectification)

Max. input current of the terminal

40A/30A dc (after rectification)

The default speed of the Wind turbines generation with limited speed

500 Rpm (settable)

The default current of the Wind turbines generation with limited current

30A/25A (settable)

Wind turbines protection method

over rev protection, over current protection, induction lightening protection

Unloading method

outer unloading device

MPPT function

Boost MPPT model ( automatic tracking or 5 segments curve tracking)

Input current of MPPT channel

12A

PV input parameters

Rated input current of applied PV

200W/

Rated input current of terminal

15Astandard

Charging voltage drop

<0.2V

PV protection methods

Reverse connection protection (voice prompt)

Unloading method

Open circuit unloading

Others

Auxiliary function

Monitor of air temperature inside controller, temperature of unloading parts and Wind turbines MPPT components, and also the monitor of control terminals installed on the inversion (with voice prompt)

Display mode

Liquid crystal (LCD) display





Displayed parameters

Wind turbines input voltage/current/power/generated energy/rev/unloading current

PV input voltage/current/power/generated energy

Battery voltage/charging current/power/total charging capacity/battery status information

Power consumption in standby mode(screen backlight closed)

About 20ma

Operating mode

  3M foil key operation (4 keys)

Working temperature / humidity range (environment)

   -40~+80/20~85%RHnon condensing

Protection grade

   IP41

Controller size (L*W*H)

   235mm*148mm *84mm

    Net weight

   2.5KG
