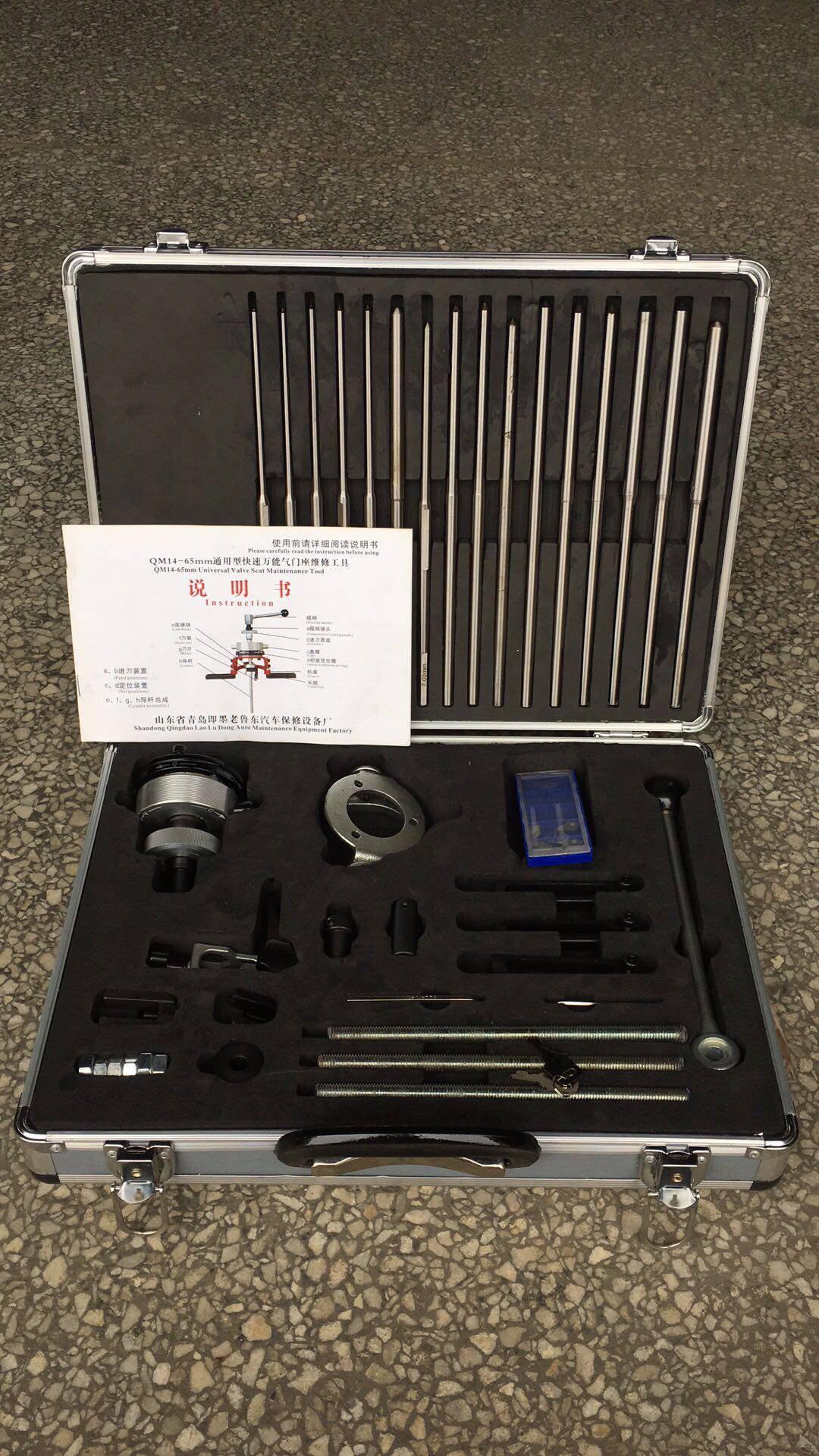

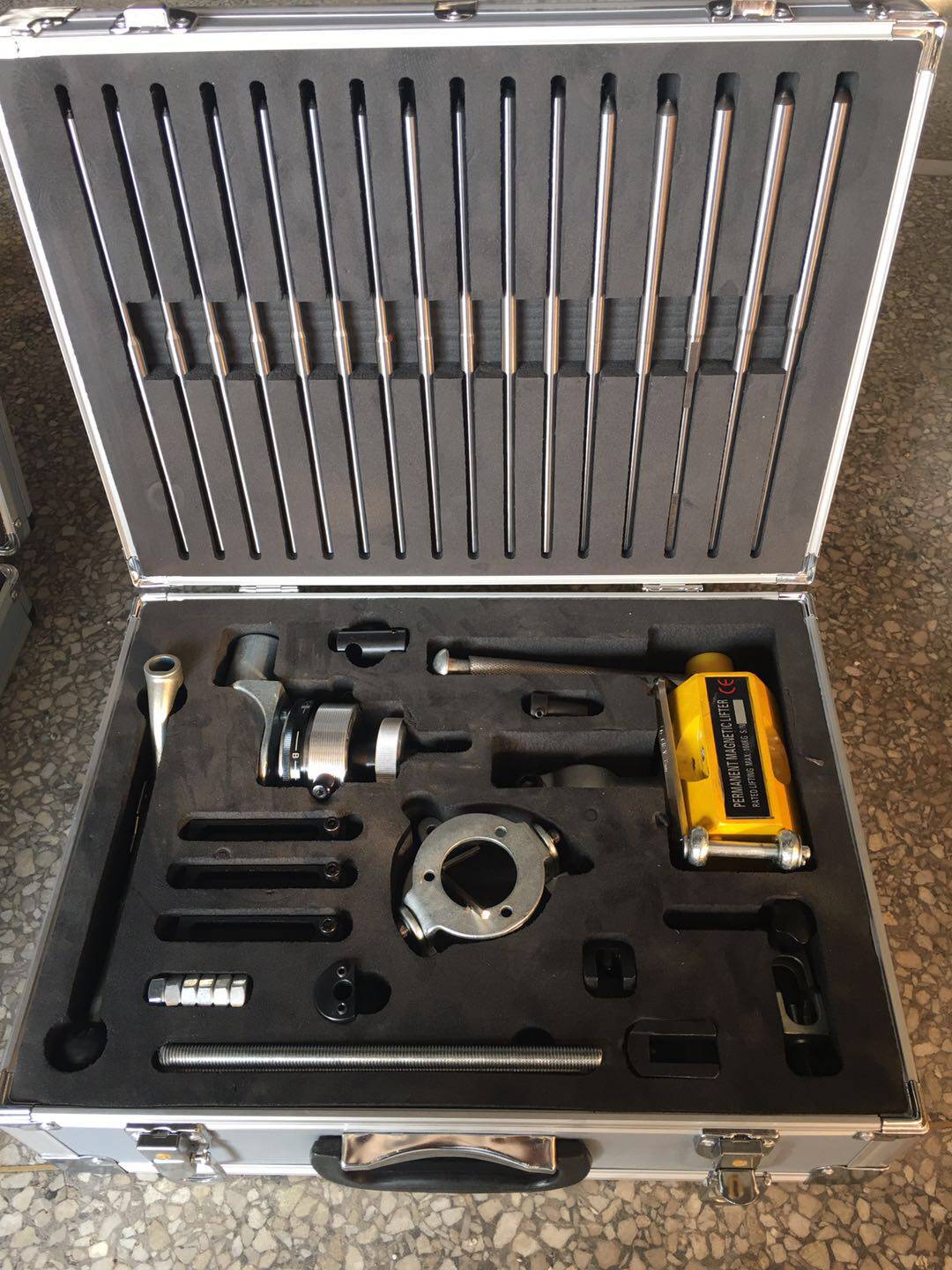

New 18-62mm Valve Seat Cutters Valve Seat Boring Machine (bolted fixed)

Parameter:

Body assembly 1PC
Adustable seat 1PC
18-40mm blade rest 2PC
40-60mm blade rest 1 PC
Tool presetter 1PC
Long leg 3PC
Fixed bolt 3PC
Rocking Handle 1PC
Grinding Wheel Sleeve 1set
Inner hexagon spanner 2PC

Leader dia. : 5.00mm ,   5.48mm,  5.98mm,   6.00mm,   6.58mm,  6.97mm,    7.00mm,   7.99mm,    8.03mm,    8.97mm,   9.00mm,  9.43mm,   9.50mm,   11.00mm,  11.97mm, 12.00mm

Blade type:45°-1.2,45°-0.8,55°-1.5,60°-1.2
1、One time moulding: the working surface and the upper and lower chamfers are processed at one time.
2、No need to grind: the processed valve seat generally do not need to grind, and can be used directly with the new valve.
3, precise positioning: can accurately ensure the angle of the valve seat working surface, the position of the upper and lower chamfer, width and coaxiality with the valve guide.
4、Permanent use: the reamer blade can be worn and replaced after bluntness, the whole reamer can be used permanently.
The whole reamer can be used permanently.
5, can process special hard seat ring: blade for carbide material, can process special hard seat ring.
6、Special function: it can ream off the valve seat ring and process the valve seat ring hole.
7、Improve work efficiency: Compared with the old reamer, it can improve work efficiency more than 10 times.
Packing size:42*33*18cm
Magnetic seat weight: 11.5KG ordinary models weight 7KG
