SV4401A vector network analyzer 50KHz-4.4GHz 7 inch large screen nanovna


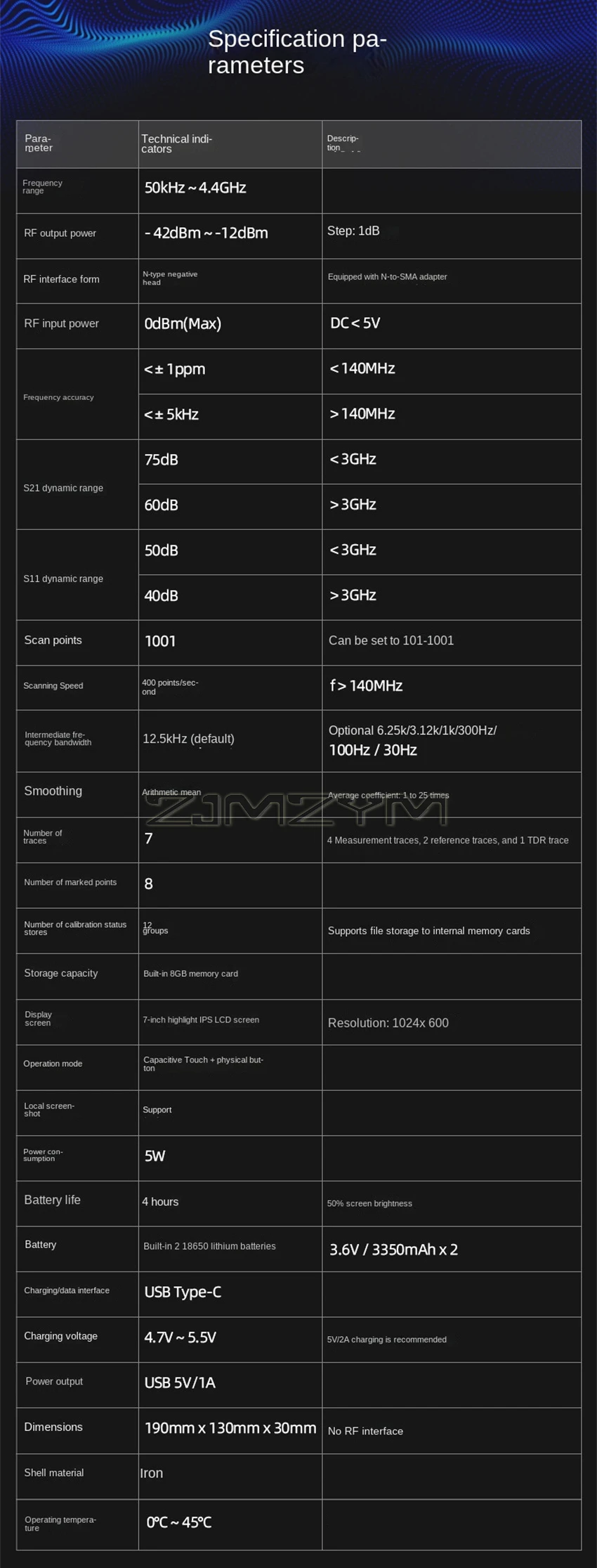

Product performance:
1. Measurement frequency range: 50KHz-4400MHz;

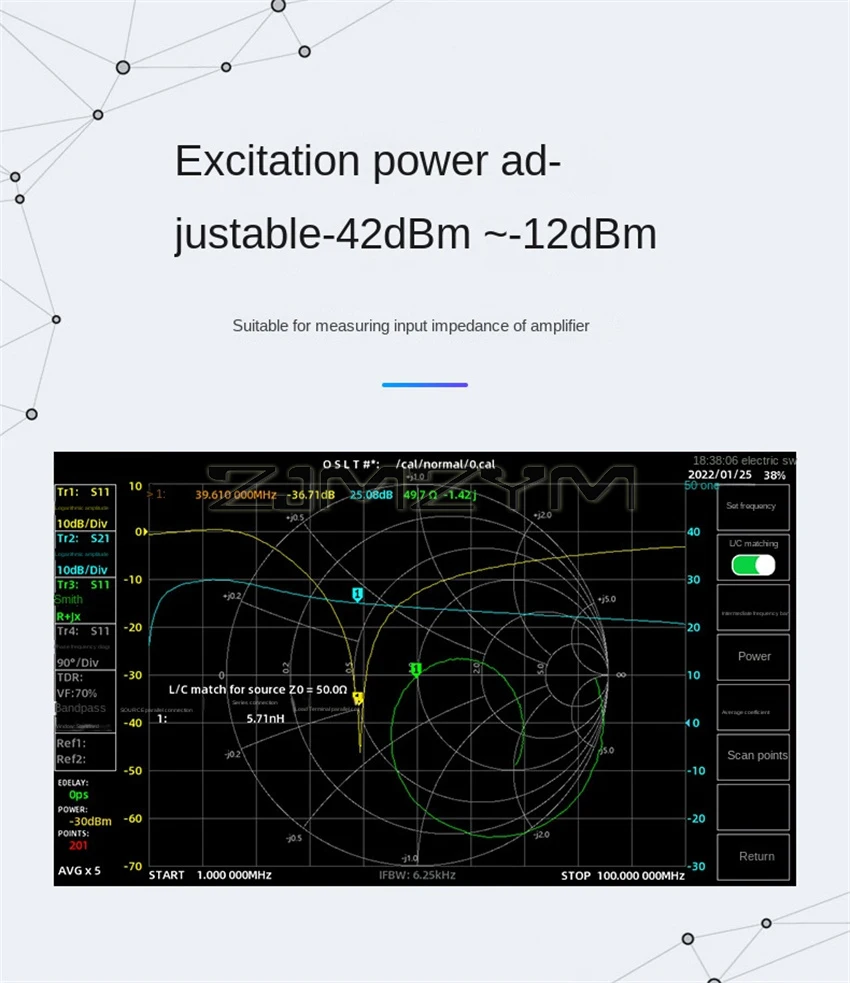

2. Rf output power: -12dbm to -42dbm adjustable (step 1db) (error in the whole band: plus or minus 1db);
3. Frequency accuracy: ± 1ppm <140MHz, ±5KHz >140MHz
4.S21 dynamic range: 90dB (below 2GHz), 75dB (4.4GHz) (open 25x average and 100Hz intermediate frequency), if open if 100Hz and 25x average, below 1.3GHz can achieve 100db dynamic.
5.S11 dynamic range: Better than 50db
6.2 Port return loss: 30dB typ (1.5GHz), 20dB min (4.4GHz)
7.USB interface: USB Type-C communication mode: CDC (serial)
8. Number of calibration points: 101-1001 points

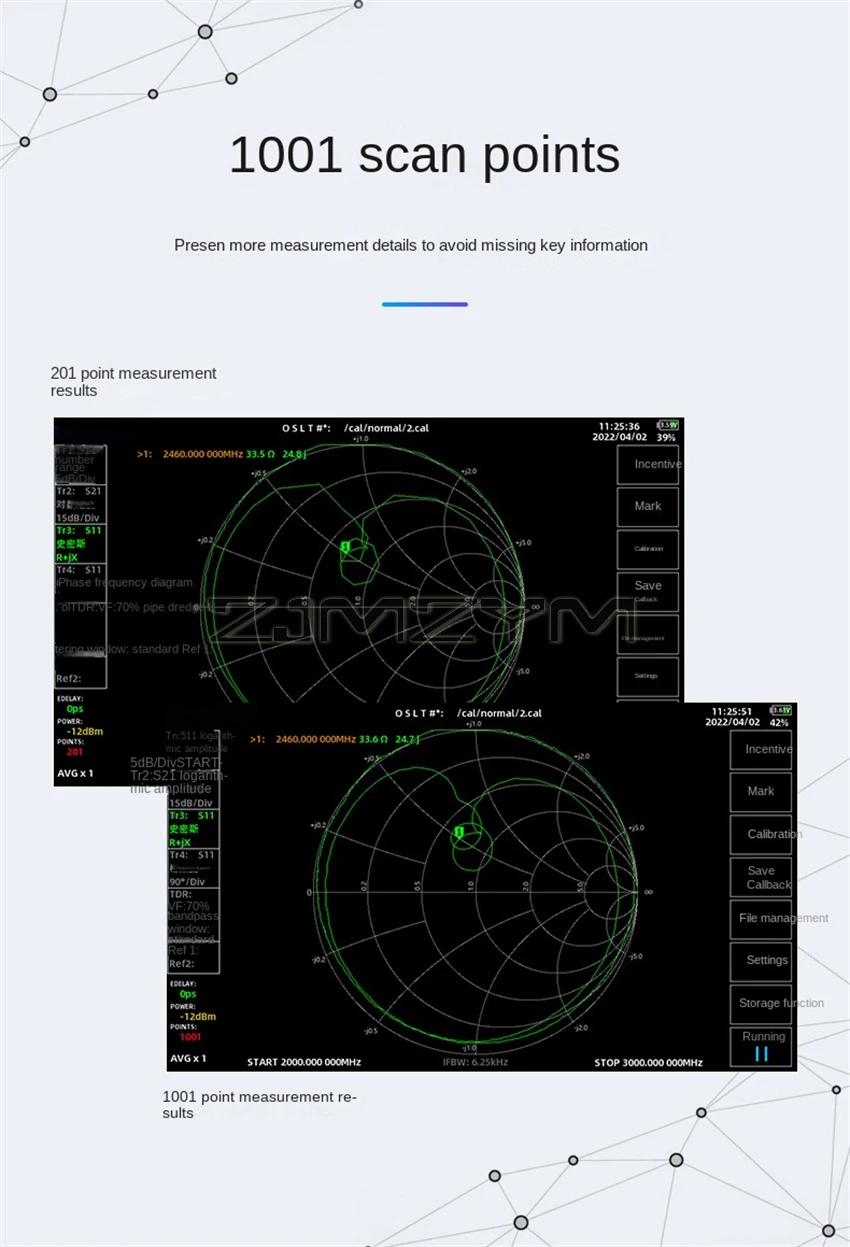

9. Number of scanning points: 101-1001 points
10. Show trace: 7 trace
11. mark: 8 mark points (mark bar can be moved anywhere on the screen)

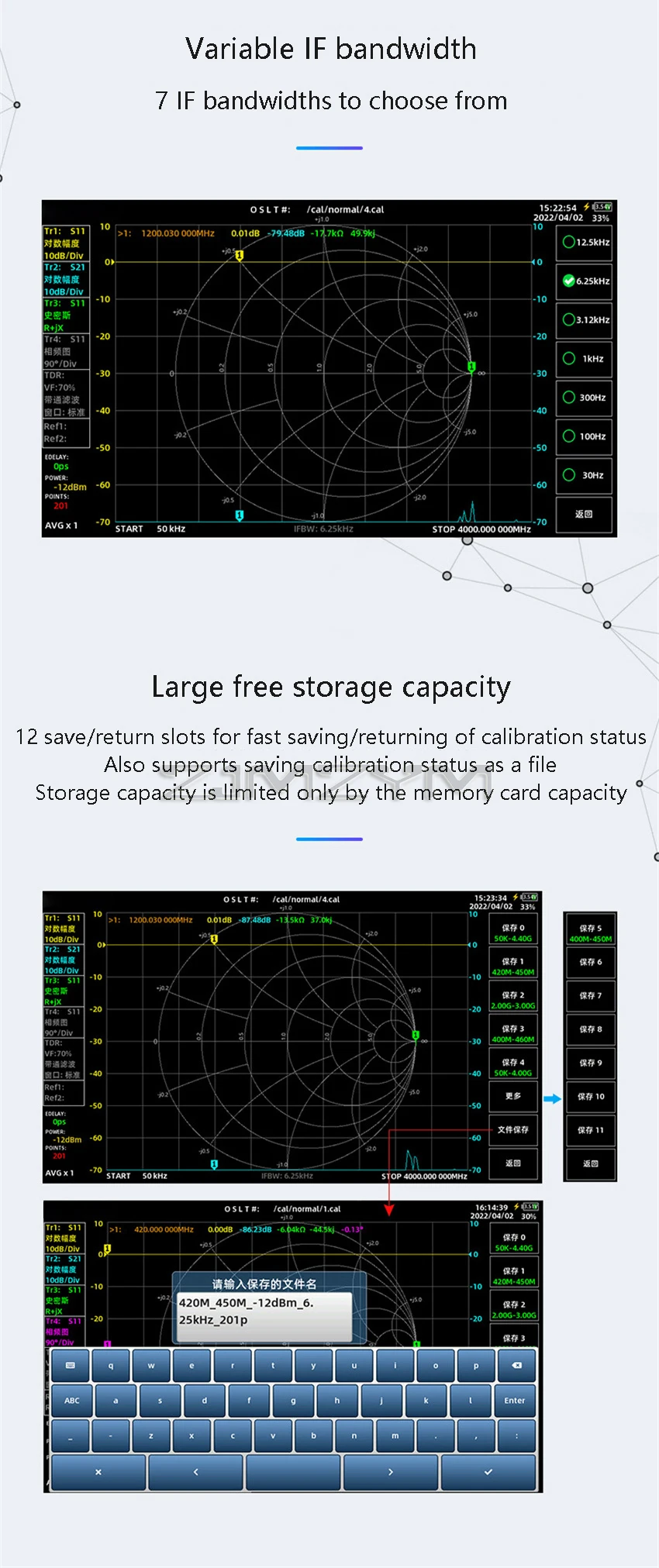

12. Settings save: 12 (shortcut menu) (after saving, it can be directly called when the next boot is used, without re-calibration, automatically call the save parameters before the last shutdown when the next boot, and increase the function of automatic storage start and stop frequency, convenient for next call) built-in file saving, in principle, can save unlimited storage units, according to the capacity of the TF card.
13. Scanning speed: about 400 points/second

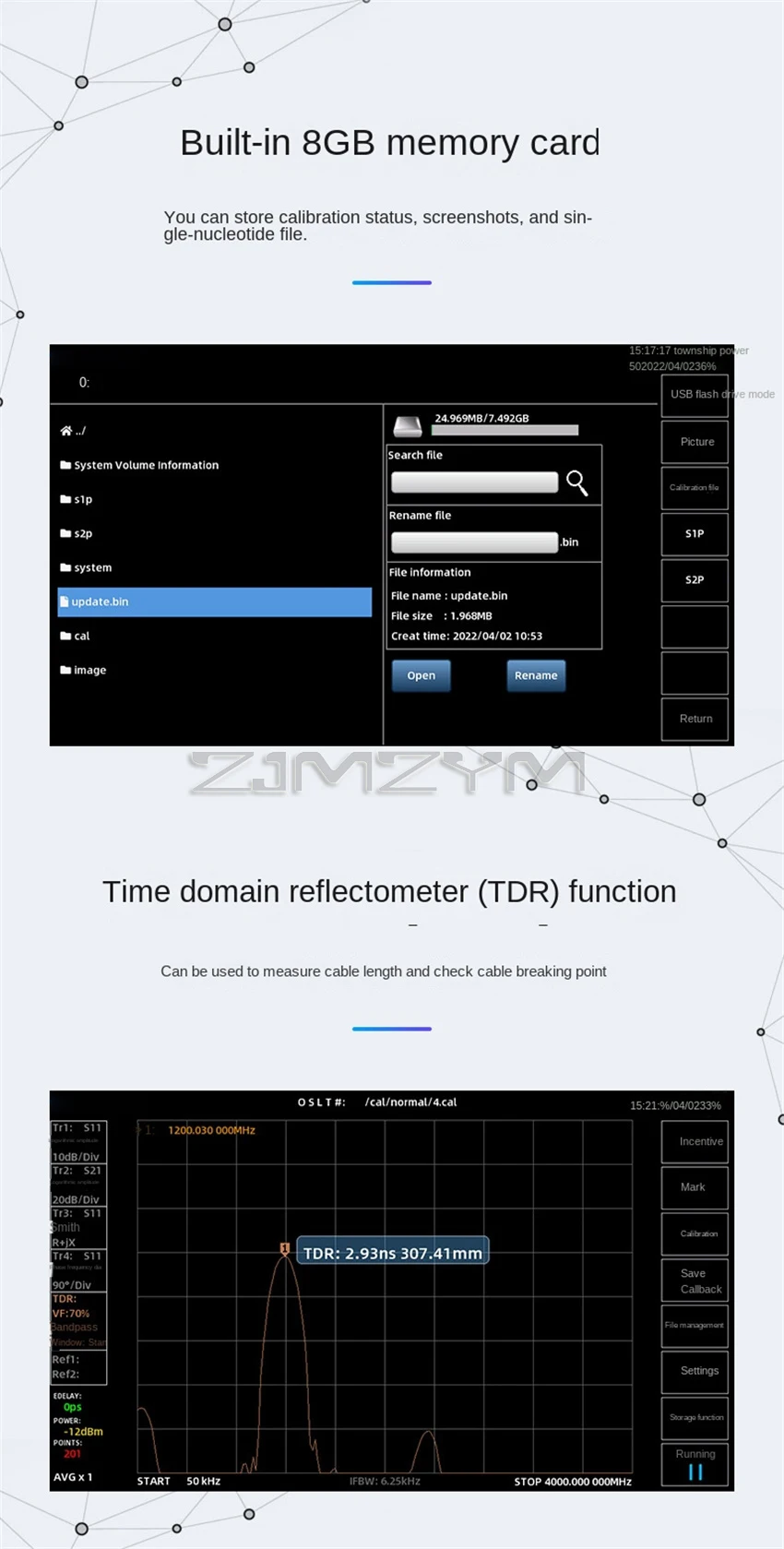

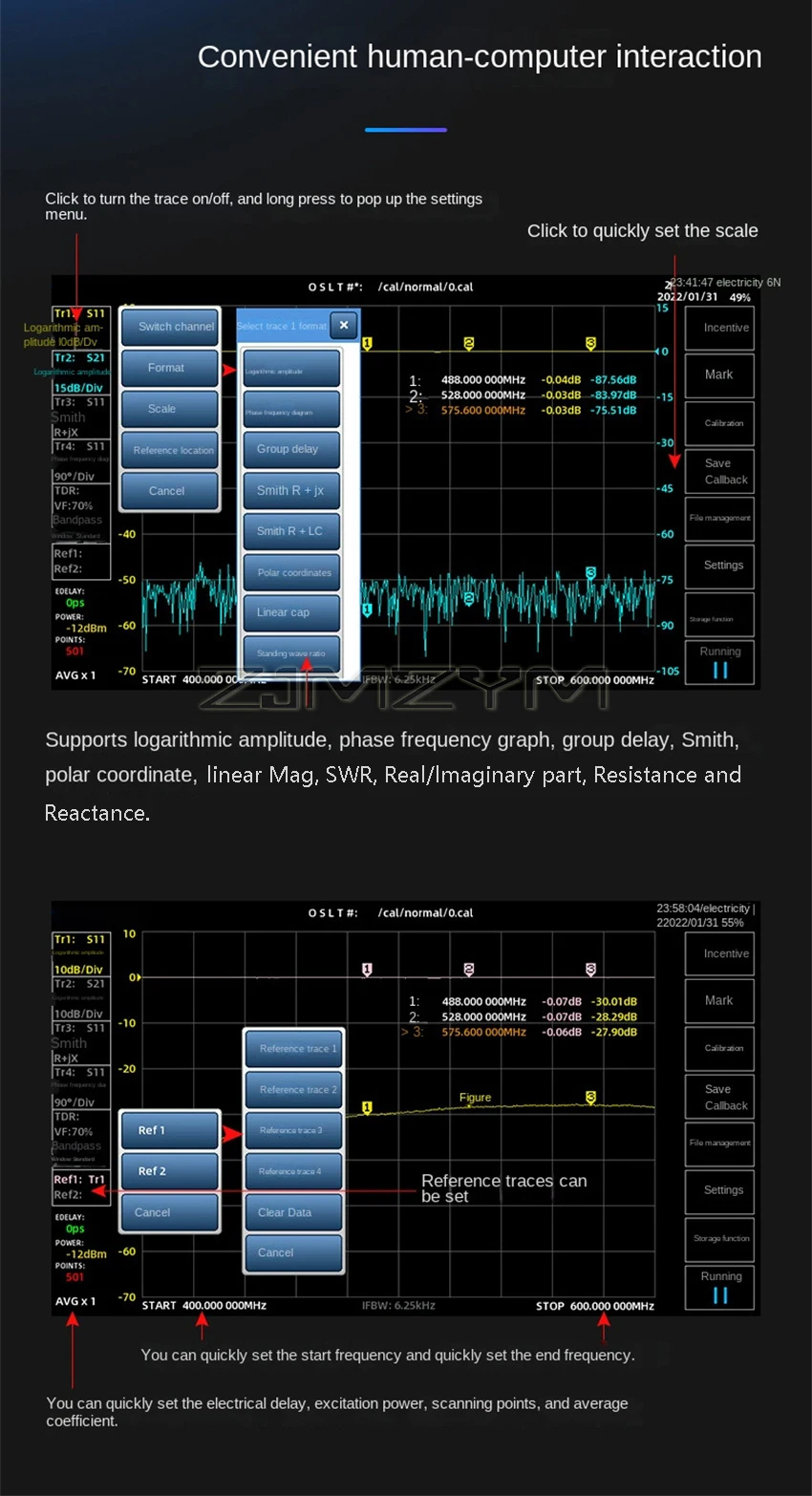

14. Can measure S parameters, voltage standing wave ratio SWR Smith circle diagram Phase diagram, group delay, TDR function...... ;

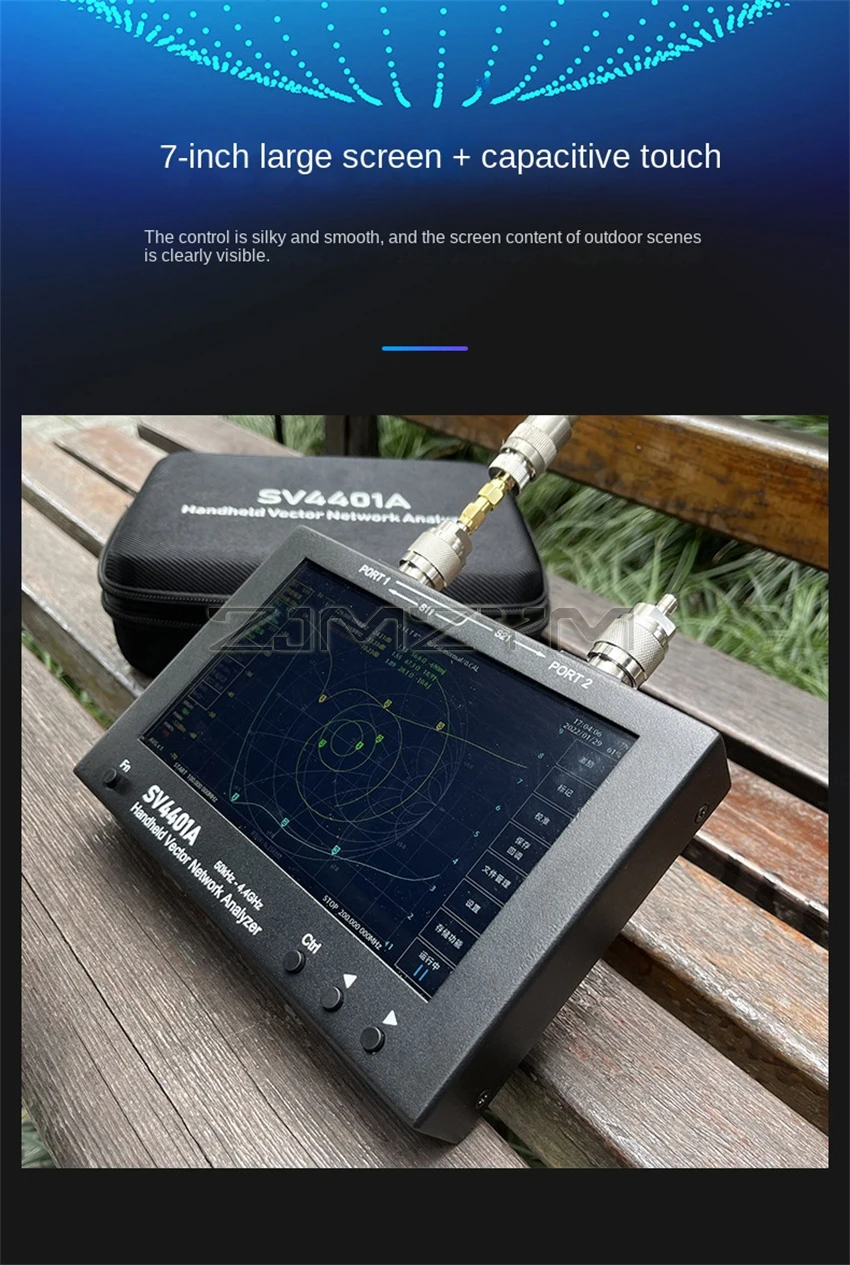

15. Use 7-inch high-light IPS capacitive touch screen, the viewing Angle of IPS TFT (1024x600) is close to 180°, long-term use will not hurt eyes; (The curve can be seen outdoors, and the screen brightness is higher in this kind of hand-held vector net at present)

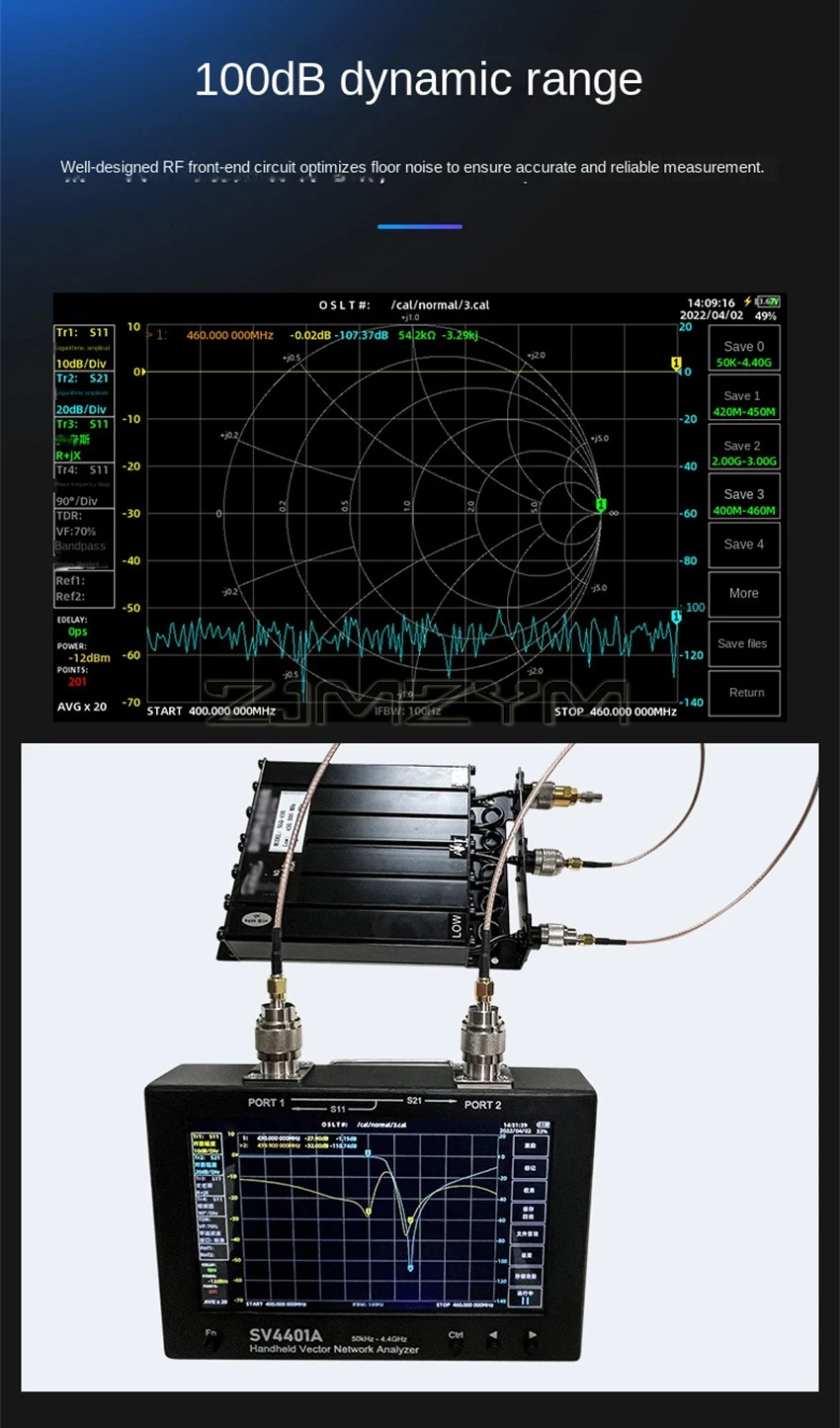

16. The metal case effectively shields electromagnetic interference, making the S21 better than 100dB dynamic range in 2GHz

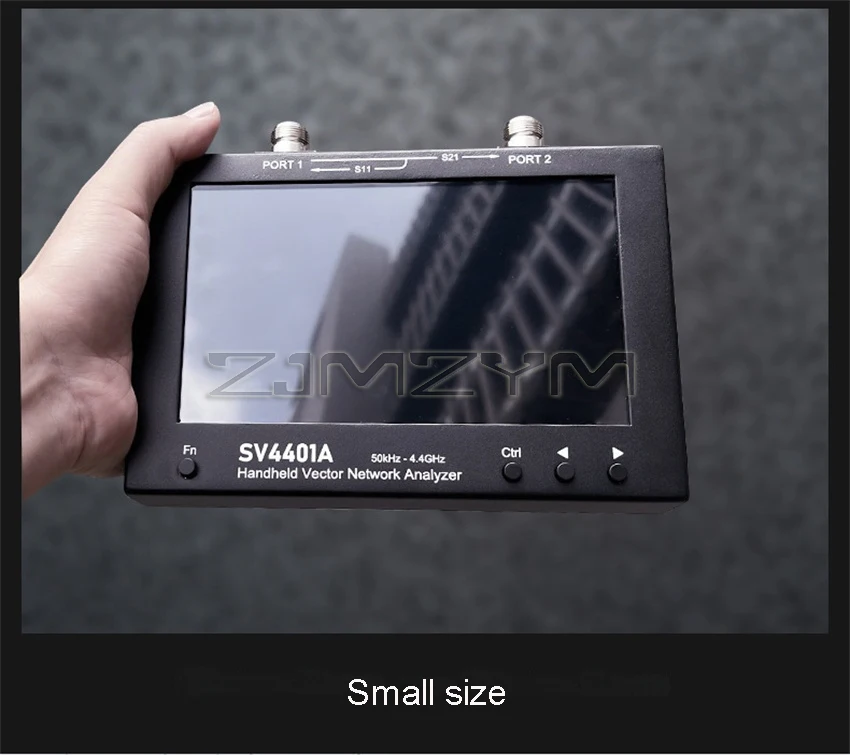

17. Compact design, body size 195mm*150mm*35mm, compact and portable; Outer packing size: 300*200*90mm

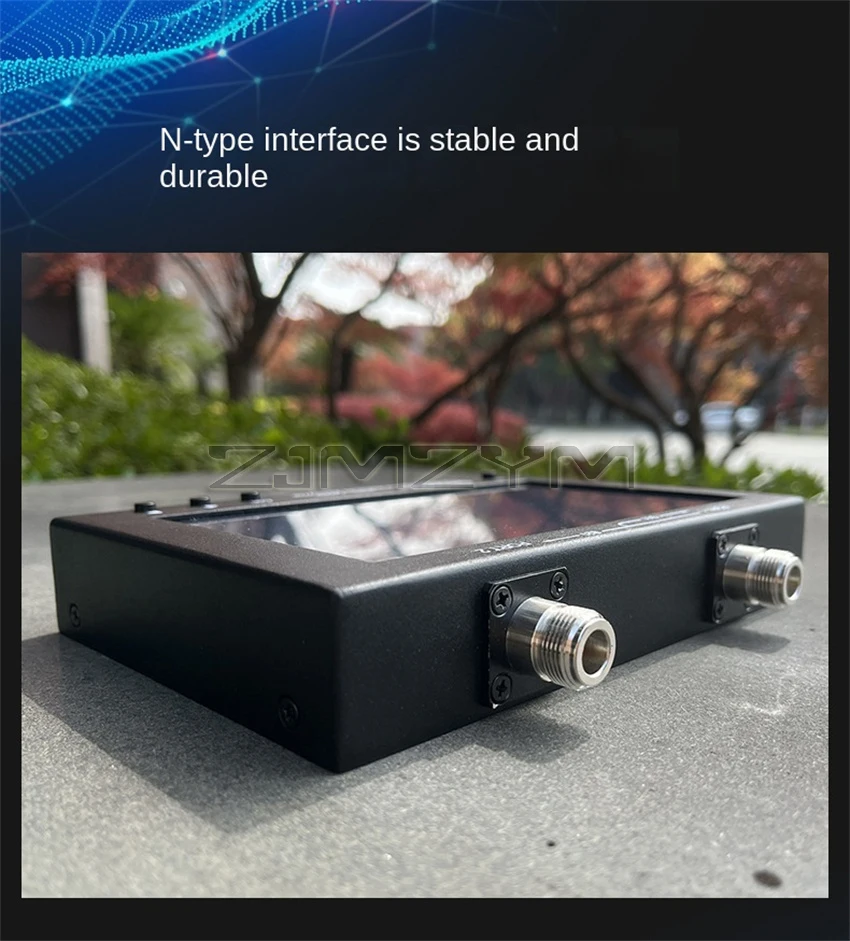

18. The RF interface is L16-F (N bus), which is convenient to connect all kinds of tested parts;

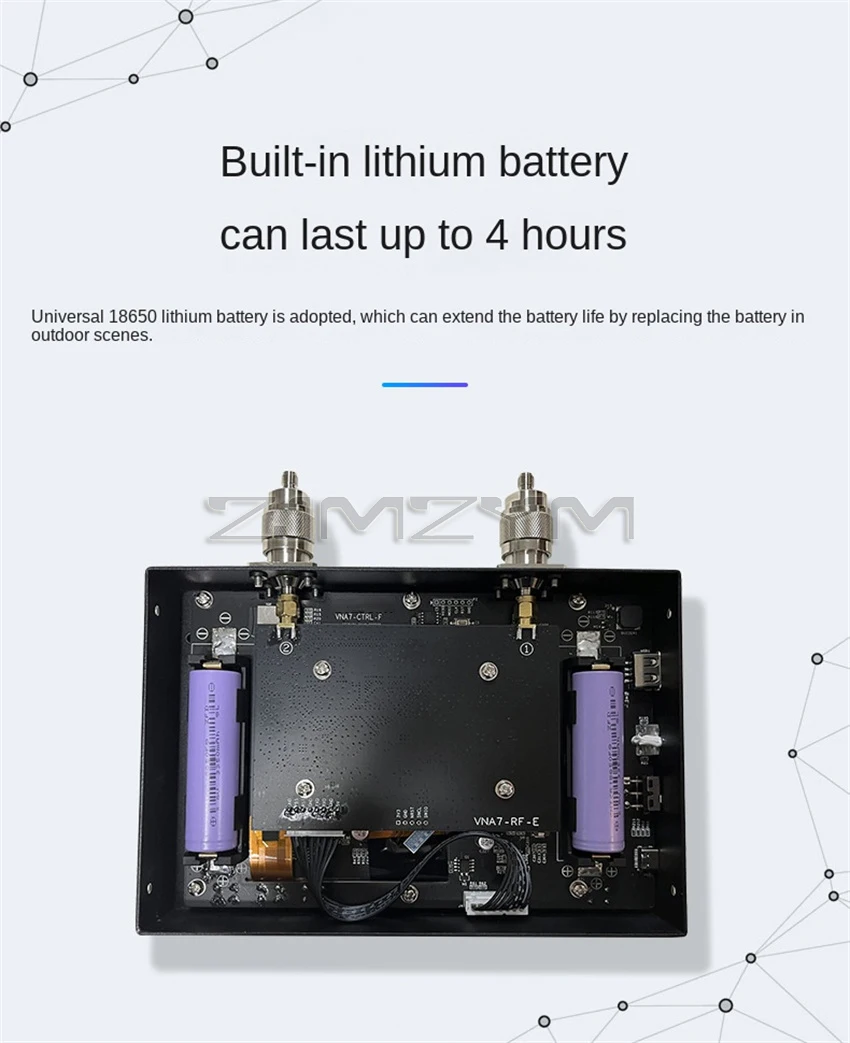

19. The standard use of two 18650 batteries with a total capacity of 6600mAh, battery life of up to 4 hours; (They can be modified to install two 21700 battery holders, the capacity can reach 10000mAH, and the battery life can reach about 6 hours.

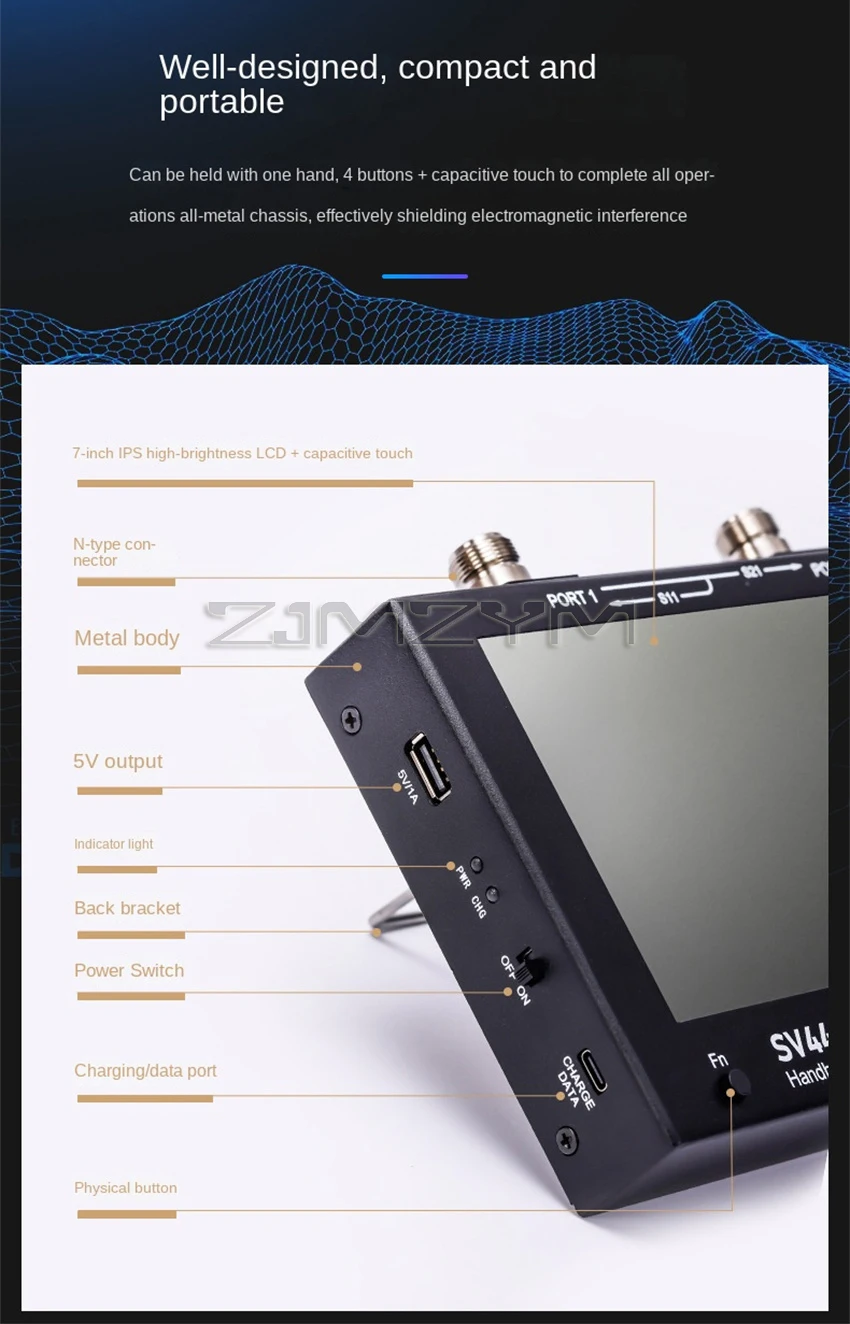

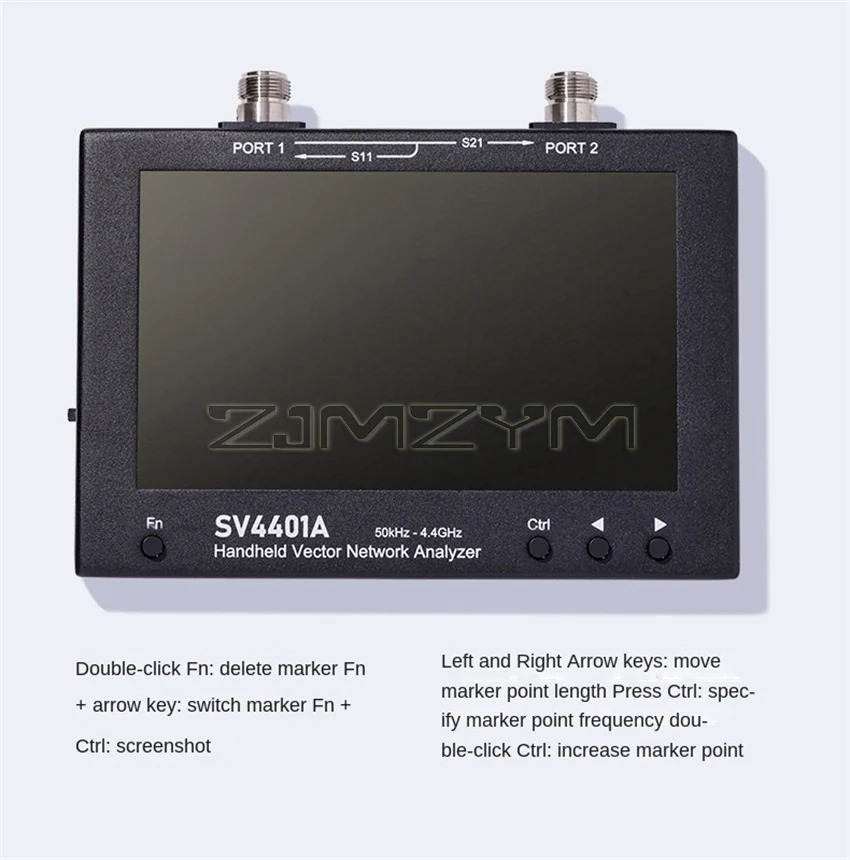

20. Full touch screen design, while supporting 4 front panel buttons, flexible and convenient operation;
21. Support Chinese menu;
22. Support screen brightness adjustment;
23. Upgrade firmware through virtual U disk, no programmer required, only a USB cable can upgrade firmware;
22. Extend a USB power output interface, 5V/1A output (can be used as a charging bank);

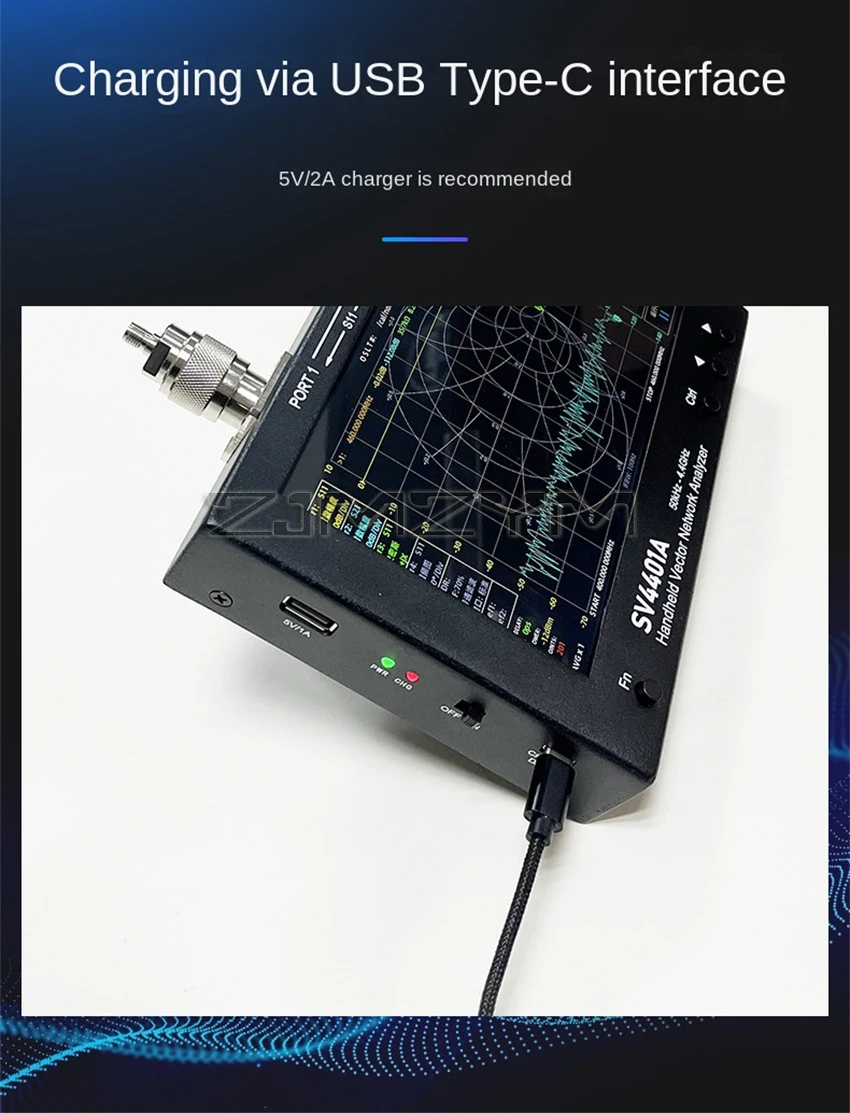

24. Using high current 2A charging IC, the charging time is shorter;
25. Support the host computer, can use the computer as the display operation interface;
26. Net weight: 1160 grams,
27. Total packing weight: 2000 grams.
28. Support screenshots, support screenshots uploaded to the computer.
