■ EU/UK/RU/US/AU/CA : NO TAX

Other countries: You can indicate the tax requirements on the order or leave me a message.

■ PAS, Throttle, and E-brake in the kit are optional. If you need to replace it, please see the link to make up the difference at the bottom of the details page, or please contact us.

■ Please refer to the list form for packaging products.

【Product Features】

●1. This product is suitable for snow bike fat tire bike.

●2. This product can easily convert your ordinary bike into an electric bike.It's hundreds of doller cheaper than buying a new electric bike.

●3. It takes one person 1-2 hours to successfully convert it.We will put the installation manual in the box.

●4. I am the source manufacturer, if there is after-sale, you will contact the factory directly, it is very convenient.

●5. We work hard to ensure that you are satisfied with our services and products.

●6. And we will give you a controller bag as a gift !!!

●7. The color of the rim can be selected at the time of purchase!(Black/Blue/Green/Red)

【Attention】【Attention】

This snowmobile conversion kit has certain requirements for the bicycle frame. The rear fork of the bicycle frame is required to be 170mm or 190mm open. Please measure the size of your rear fork before purchase. If you cannot install it due to your purchase error, we will refuse to pay, please understand, thank you！

【E-bike Conversion Kit Paramater】

Motor：

●Type:Brushless gearless hub motor

●Installation location:Rear wheel

●Spokedwith double-wall Aluminum alloy rim with 36 eyelets,stainless steel spokes

●Brake Type:●Brake Type:Disc brake available

●Rated speed:45-50 KM/H.

●Load≤200KG

●Motor cable length:200mm

●Wheel size:20inch 26 inch wheel

●Rear fork:170mm or 190mm

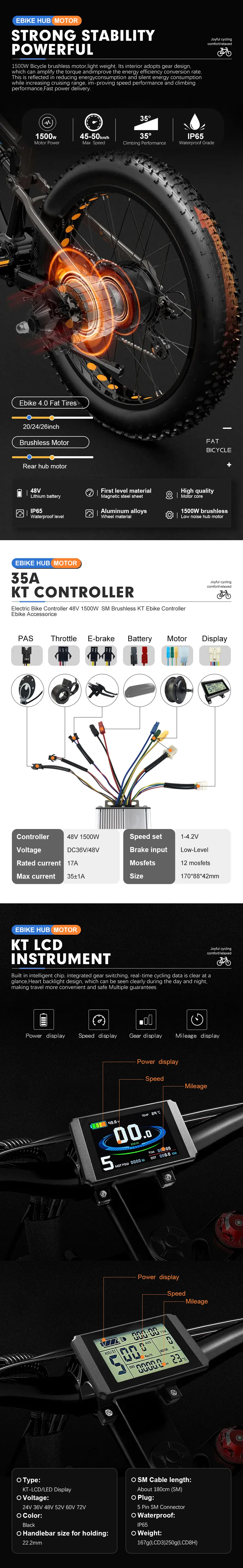

Controller：

●Dimension:190* 82 * 41 mm

●Weight:550g

●Cable length :all about 13-15cm

●Mosfets :12 mosfets

●Maximum current:35±1A

●Rated voltage:DC36V/48V

●Speed set:1-4.2V

●Rated current:17A

●Brake input :Low-Level

●Low voltage protection:DC30/40±0.5V

Display（Opition):

●Type :KT LCD/LED/Colourful Display

●Color :Black

●Voltage :24V 36V 48V universal

●Cable length :About 180cm(SM)

●Plug :5 Pin SM plug

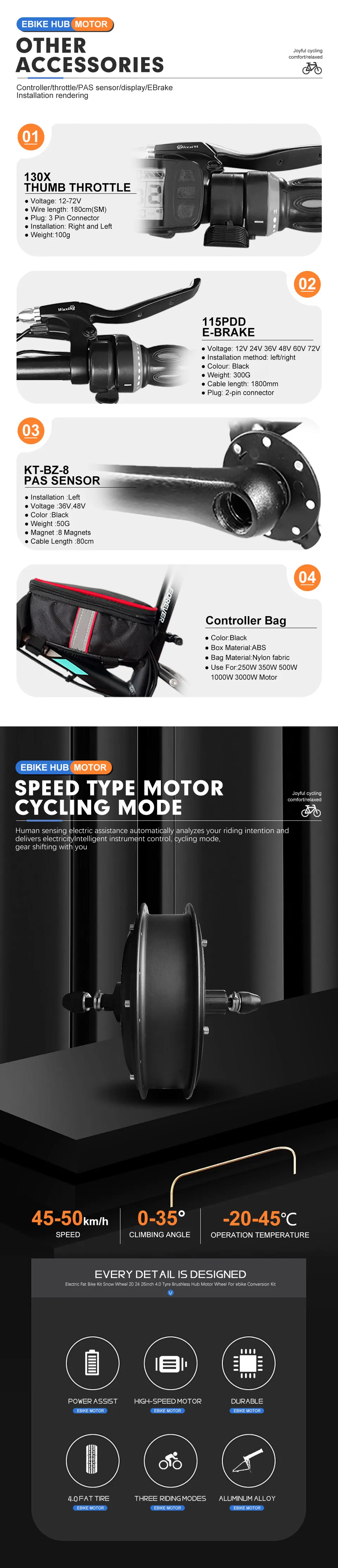

130X Throttle (Default):

●Type:130X Thumb Throttle

●Voltage:12V 24V 36V 48V 52V 60V 72V

●Wire length:180cm(SM)

●Weight :100g

●Waterproof :IP76

●Plug Type:3 Pin SM plug

●Color :Black

●Installation:Right

●Apply to:E-bike, E-Scooter, Ebike Conversion Kit

●Function:E-bike accelerator Finger Thumb Throttle

115PDD E-Brake (Default):

●Type:●Type:115PDD E-brake Cut Off Power

●Voltage:12V 24V 36V 48V 60V 72V

●Cable Length:180cm (SM)

●Weight :●Weight :300g

●Waterproof :IP76

●Material:●Material:Aluminum Alloy

●Installation:●Installation:Left/Right

●Size:●Size:L156mm W105mm H34mm

●Plug :2 pin SM plug

PAS KT-BZ-8(Default):PAS KT-BZ-8(Default):

●Type:●Type:●Type:●Type:KT-BZ-4 (8) Pulse assist sensor

●Voltage:36V/48V

●Cable Length:●Cable Length:180cm including the connector

●Magnet :●Magnet :8 Magnets

●Weight :100 g

●Plug Type:3 Pin SM plug

●Color :●Color :As pictures shown

● Material:Plastic

●Installation:Left

●Adaptation:Ebike Electric Bike Bicycle

【Packing List】

(1) 48V 1500W rear Wheel x1 (without tire)

(2) 35A controller x1

(3) Display and manual x1

(4) Throttle x1

(5) Power Cut-off Brake x1

(6) PAS sensor x1

(7) Zip ties and Protection line x1

(8) Gift! controller bag x1
