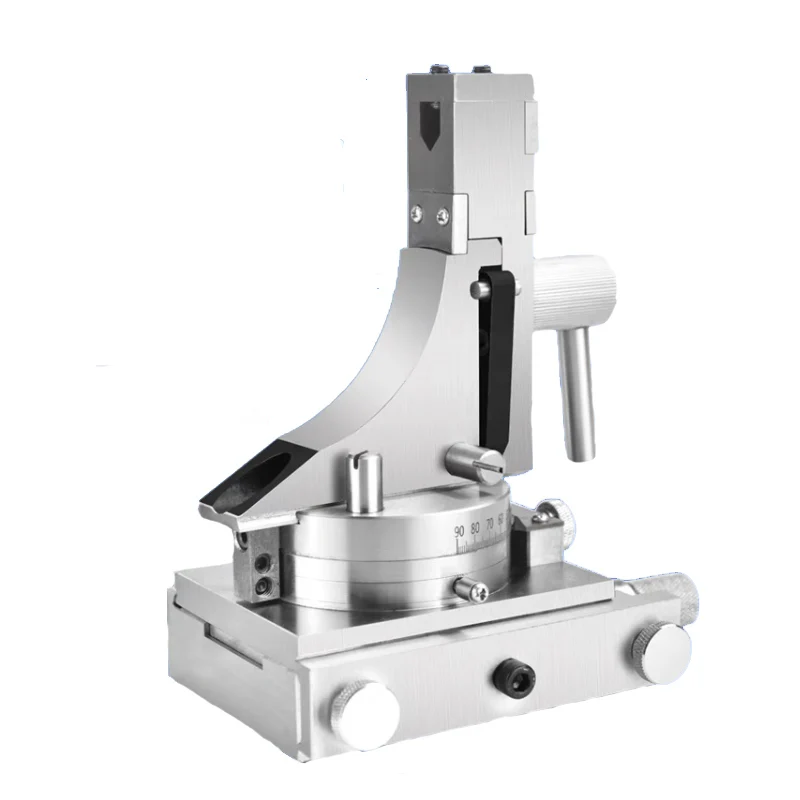

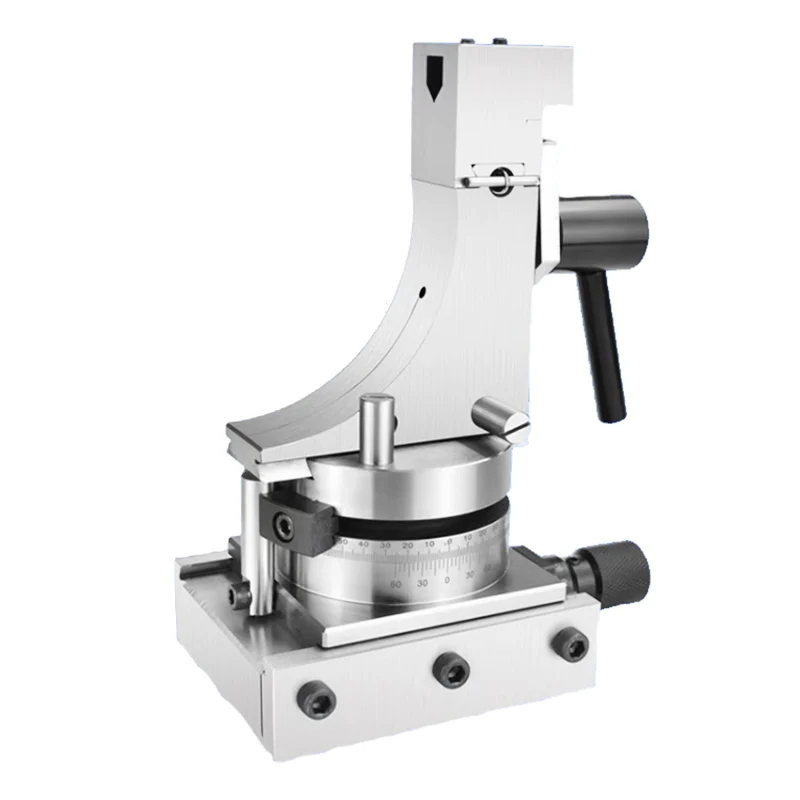

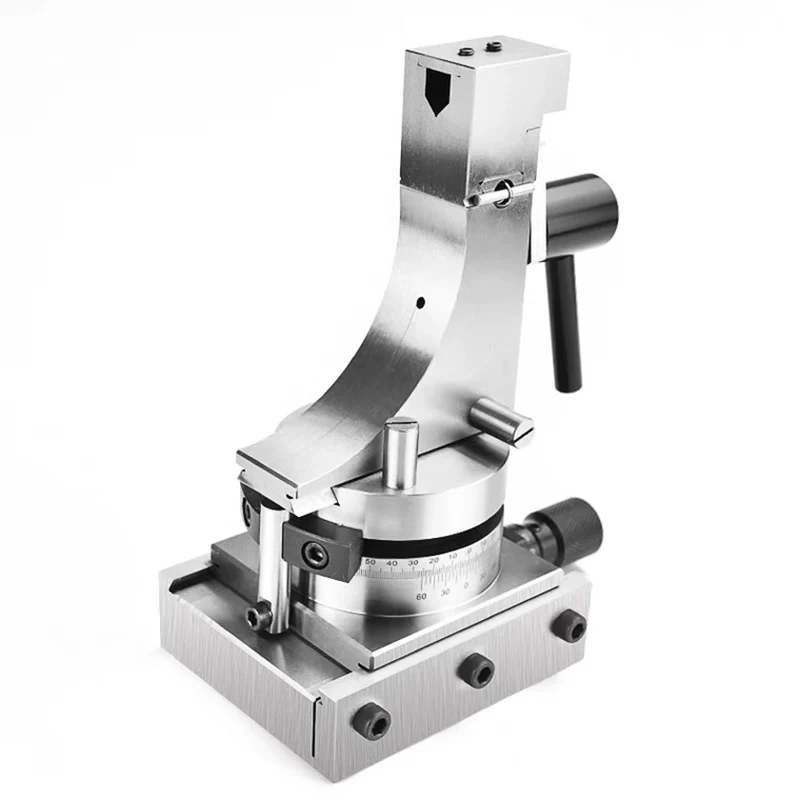

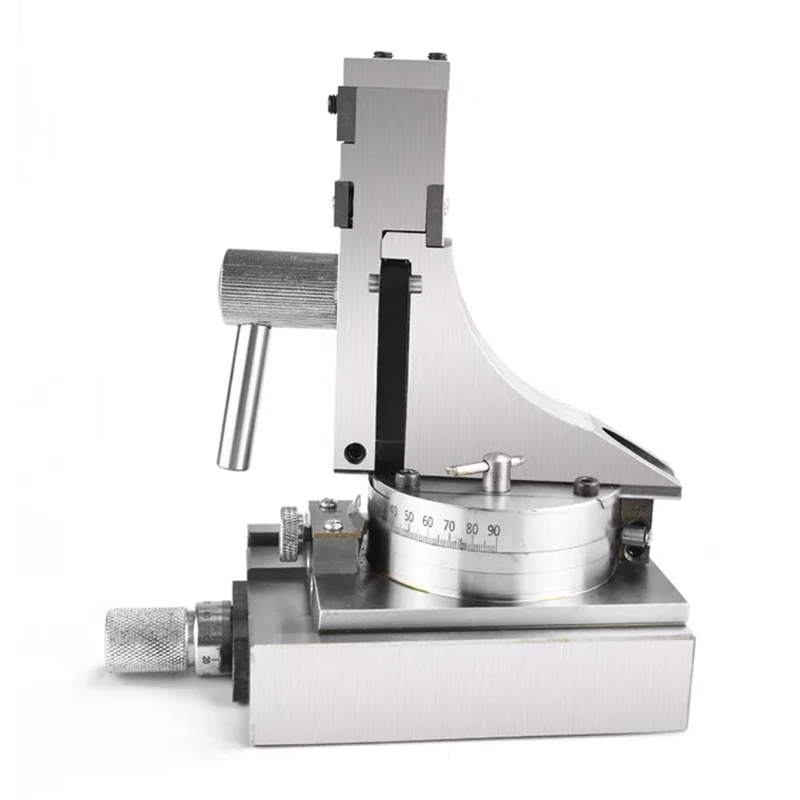

Universal grinding wheel dresser precision vertical angle grinding wheel dresser grinding wheel dressing
Accuracy:0.01
Center height 165MM
Measuring pin diameter 10MM
Maximum swinging distance of diamond tool ±14MM
Maximum diameter of correction grinding wheel 205MM
Maximum travel of feed 25MM
Turntable scale value (per frame) 5

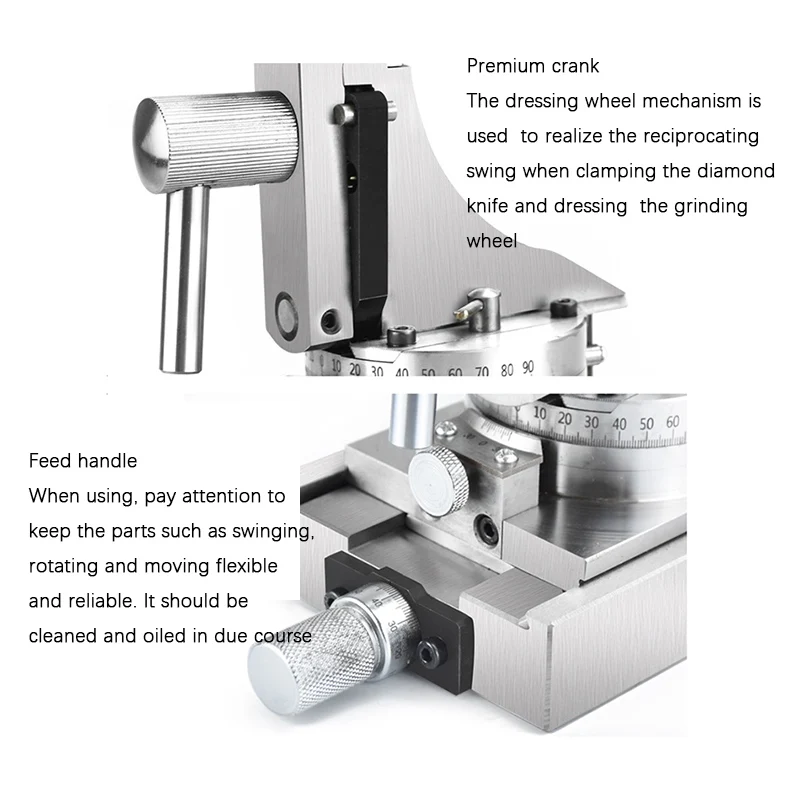

Push handle scale 0.01MM per division
Maximum dressing arc 50R
Convex correction range 0-100
