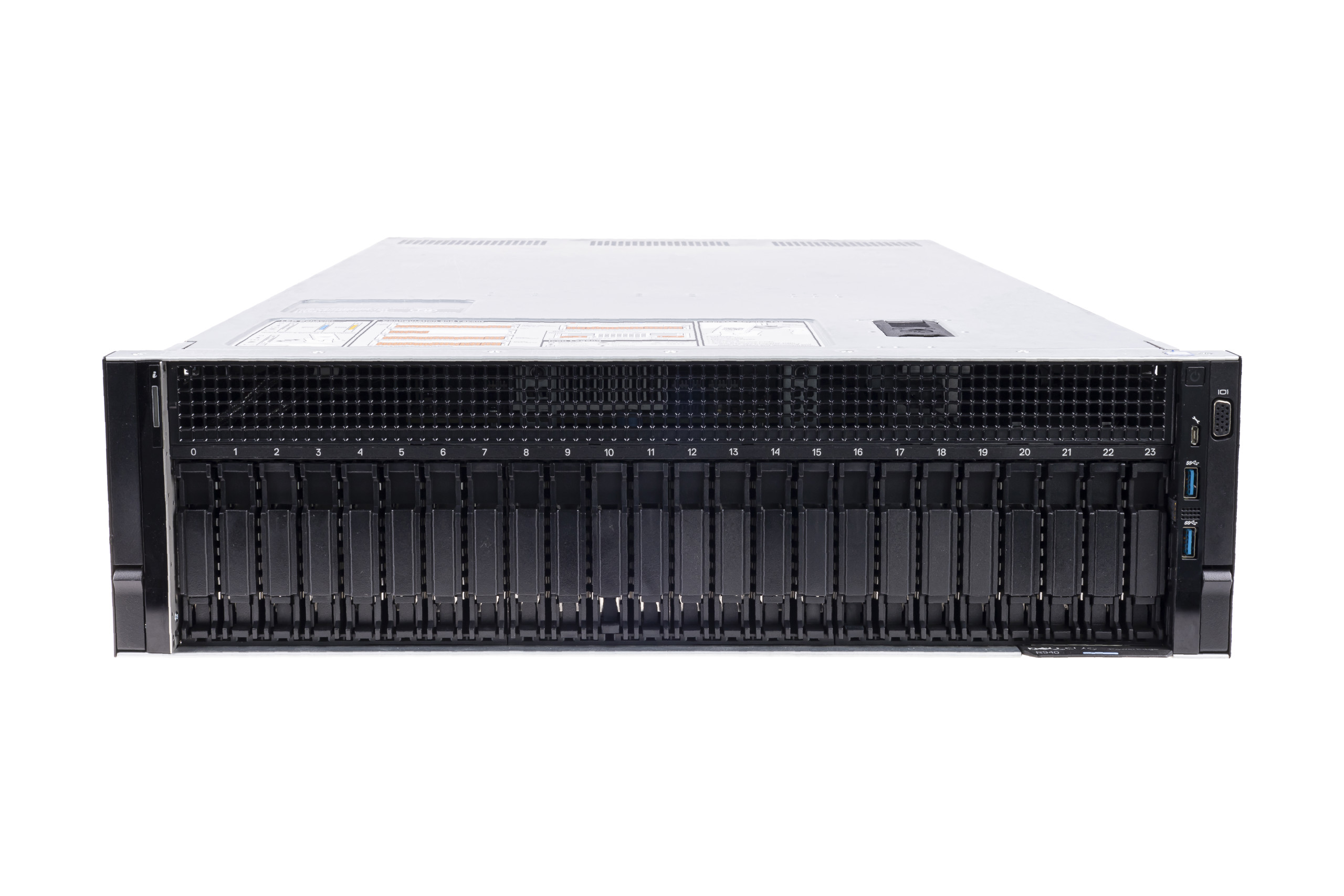

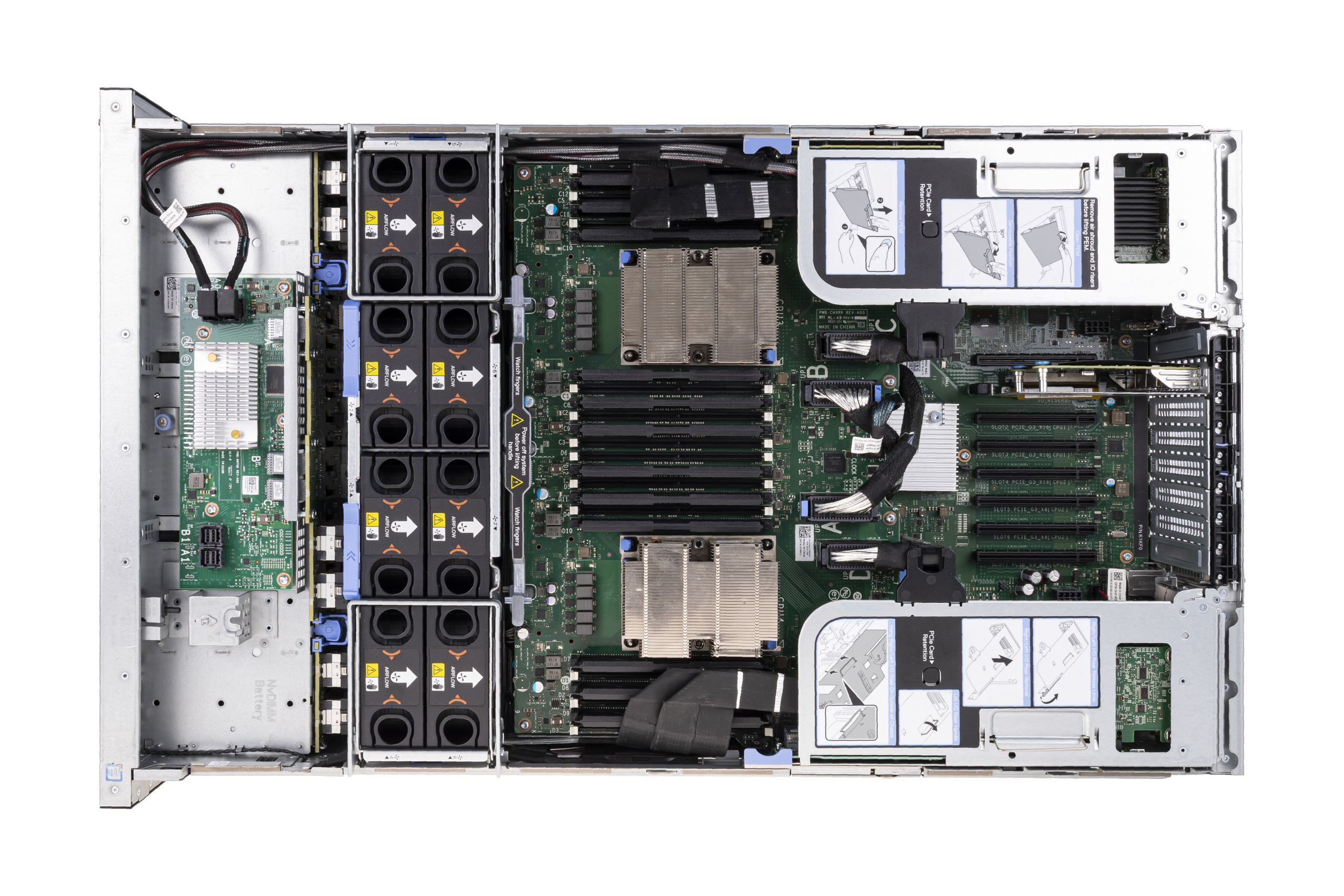

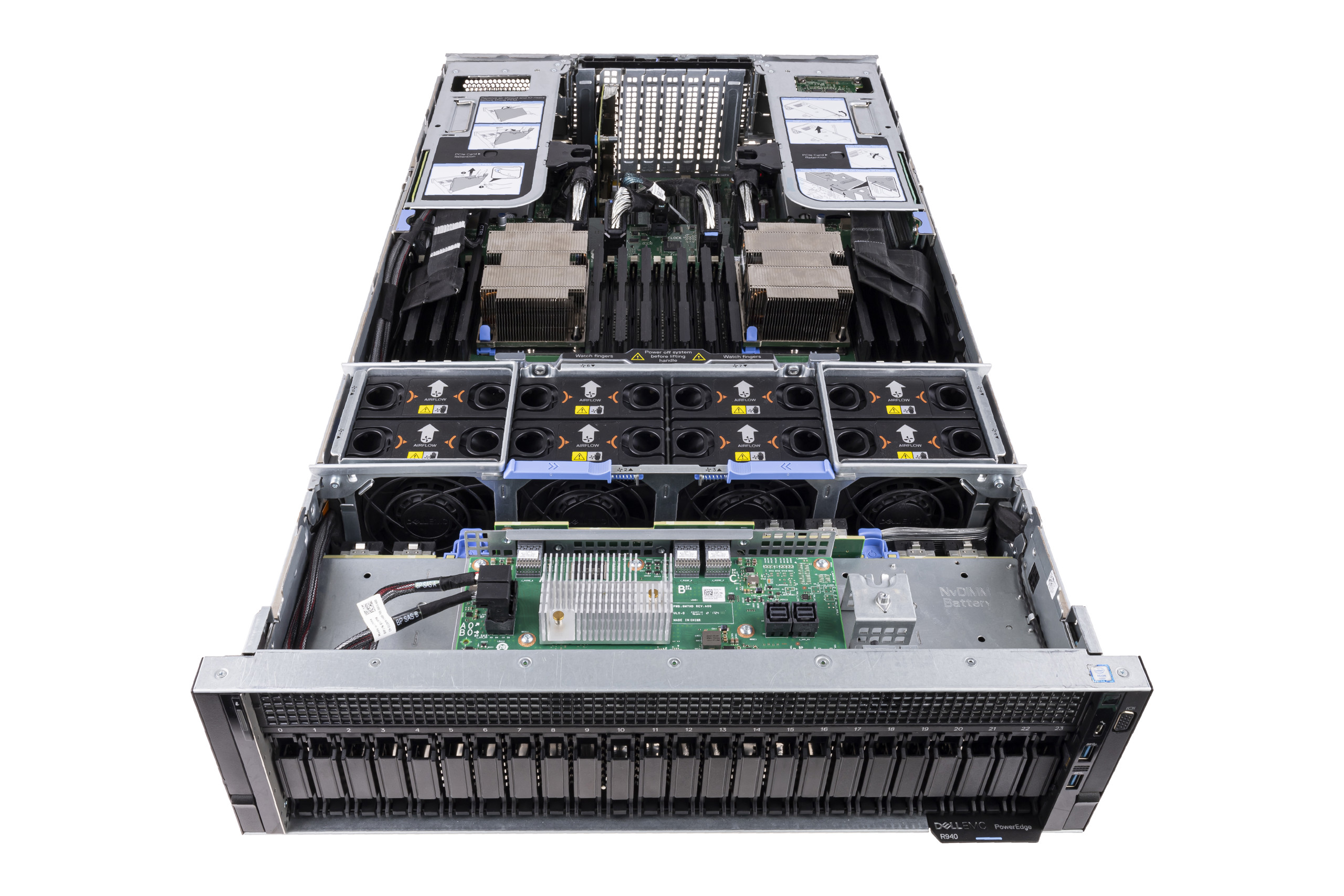

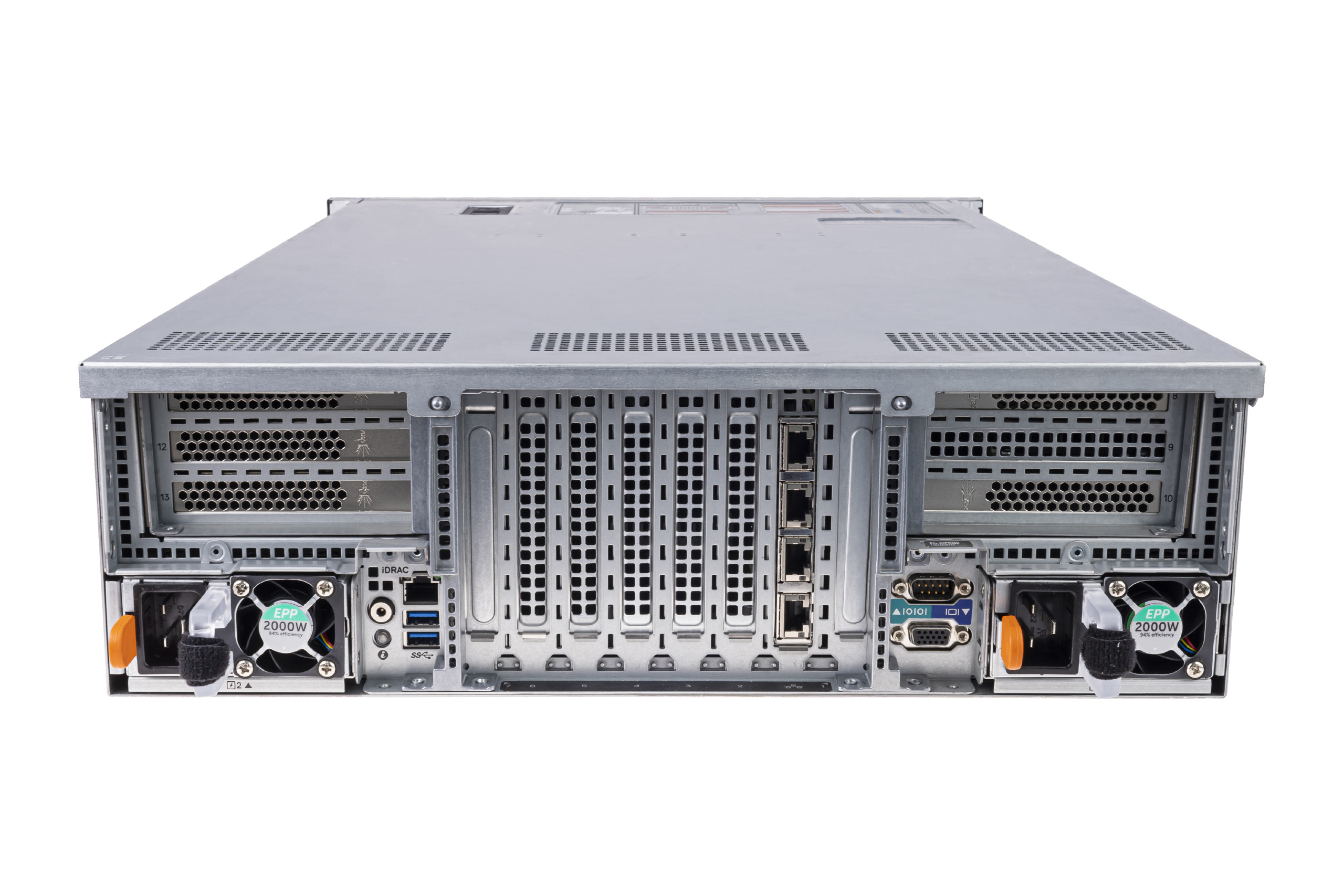

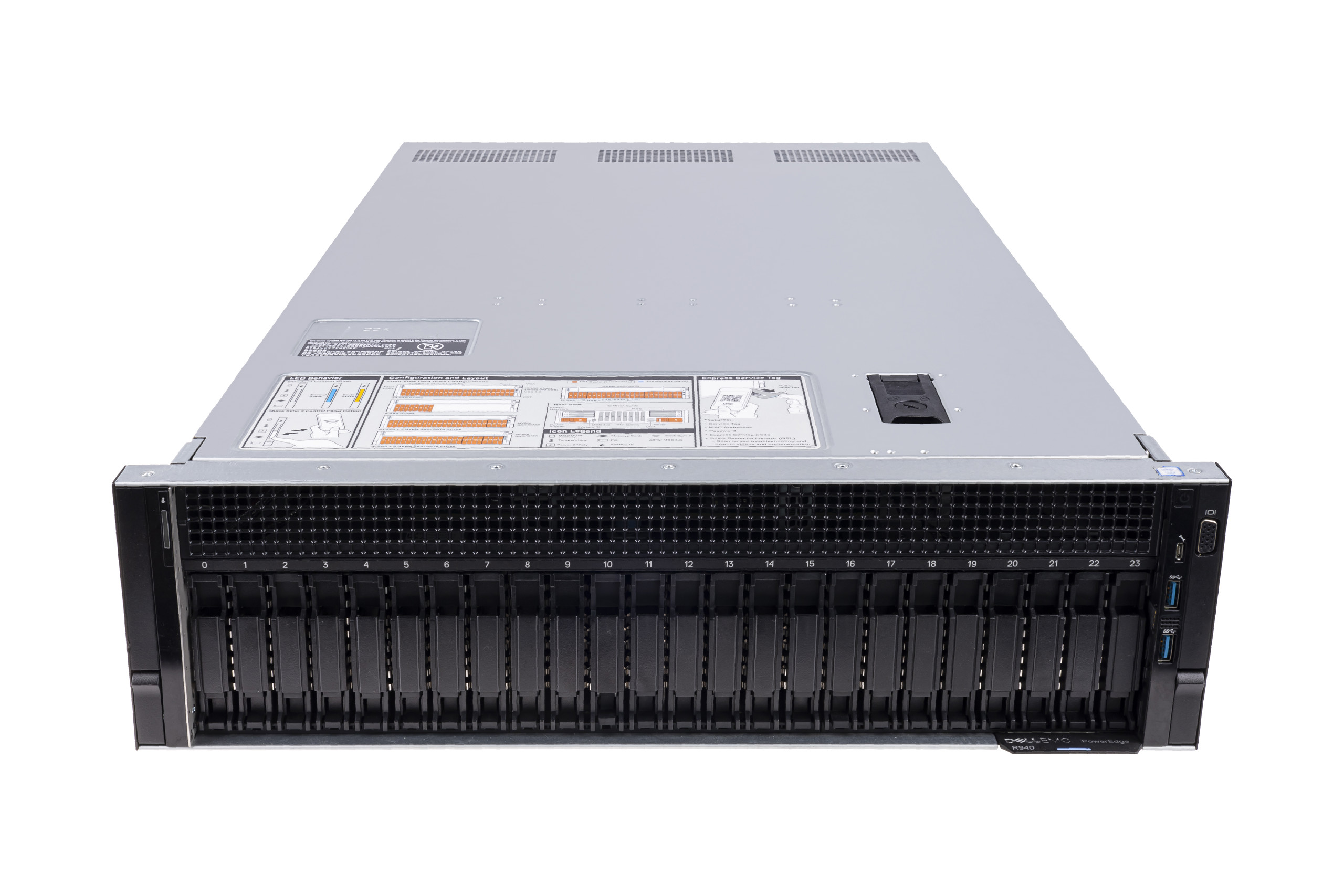

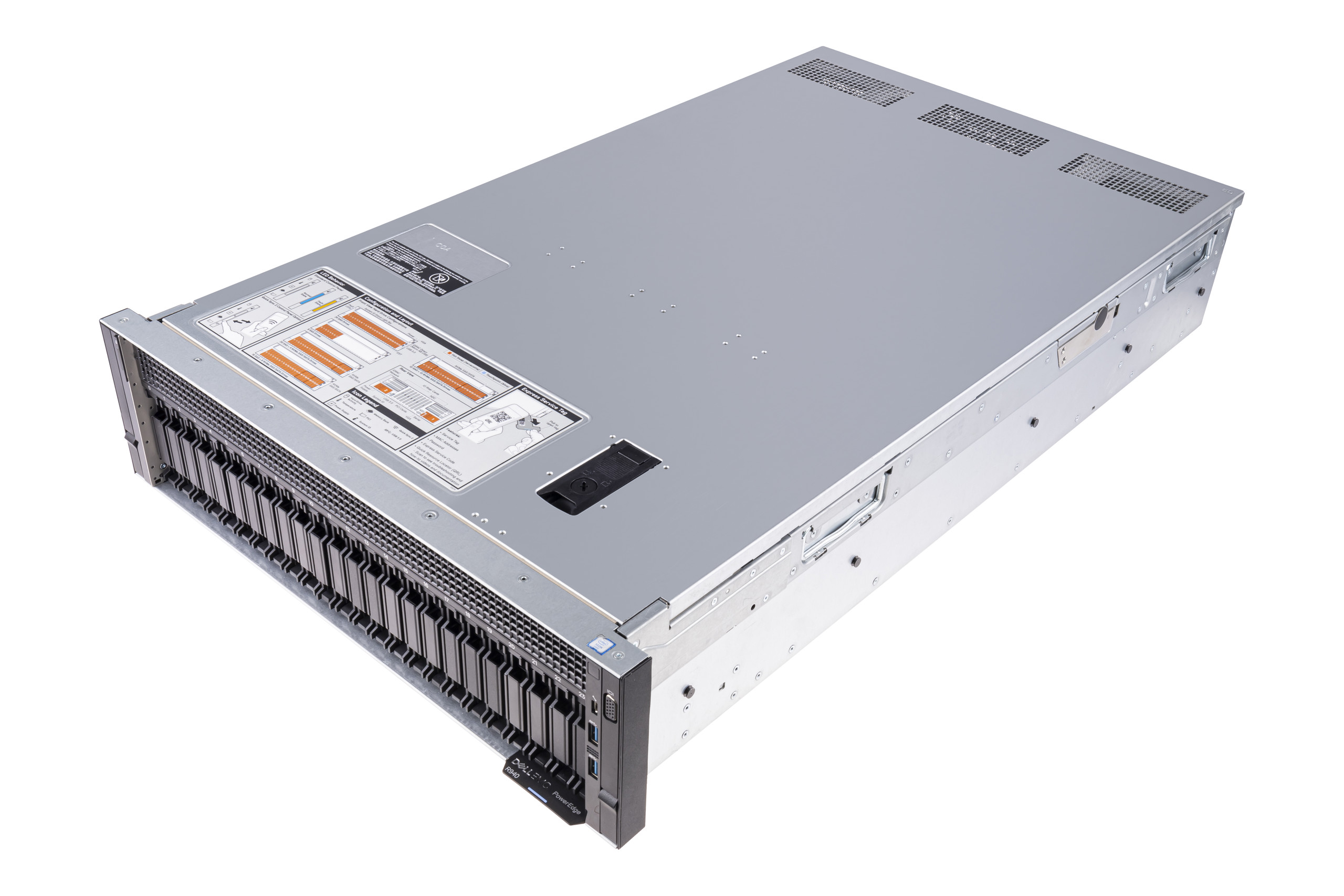

Technical information about the R940 server model line.

• Server height: 3U
• Server depth: 79cm
• Server weight: 50kg
• Chassis types: 24x2.5"
• Number of processors: up to 4 x CPU 2nd Generation Intel Xeon Scalable processors
• Maximum number of CPU cores: 4x 28-core / 56-thread CPU total 112-core / 224-thread
• Number of RAM banks: 48 DDR4
• Maximum RAM size: 48x128GB DDR4 RDIMM total 6TB
• Number of drive bays: 24x3.5"
• Motherboard chipset: Intel C610
• Number of USB ports: 5 (2x front, 2x back, 1x inside)
• Number of PCI-E slots: up to 13x PCIe Gen 3
• Maximum number of power supplies: 2
• Supported power supplies: 1100W, 1600W, 2000W or 2400W
• Remote management: iDRAC 9
• Supported internal RAID controllers: H330, PERC H730P, PERC H740P, HBA330, S140 and BOSS cards

Optional accessories for the R940 server

The server can be further equipped with optional accessories:

• Cable organizer
• Empty hard drive bays
• Front panel / bezel / bezel
• Power cables
• PCI-E expansion cards

All additional accessories you will find in our offer.

Together with the server it is possible to purchase the operating system

• Windows Server Standard
• Windows Server Essentials
• Windows Server Data Center
• VMWare (ESXi, vSphere, vSAN)
• other software such as SQL Server

When you buy this server from Hardware Direct, you can rest assured that:

• The server is thoroughly tested, 100% operational and ready for continued long term operation
• The server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
• You are buying the server from an official Dell partner with professional server hardware service
• The server is sold with a premium Next Business Day service contract. In case of failure, we are the first to deliver the replacement hardware to you. More details in the corresponding tab.

ATTENTION!

Photos are for reference only, some elements of the server configuration such as risers may differ from those shown in the photos.

ATTENTION!
Our product images are carefully prepared to present the items as accurately as possible. In rare cases, images may be for illustrative purposes only.

If you have any questions or need additional information, feel free to contact us — we respond promptly and are always happy to help.
