CHONGYTTUO®

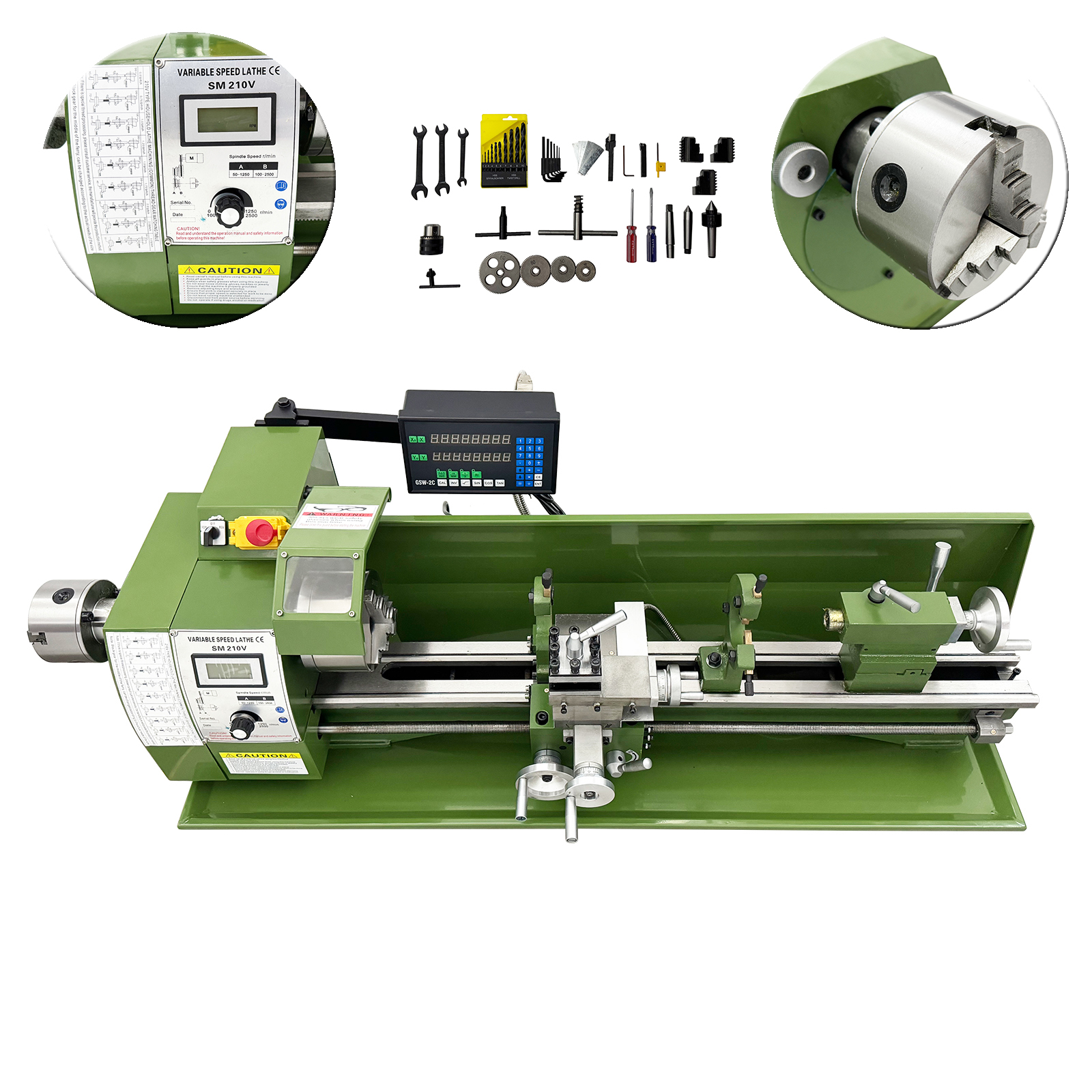

8"*29.5" Double Head Double Chuck Metal

Bench Lathe With Grating Ruler 110V

Miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies. For example, turning inside and outside cylindrical surface, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used inch thread.
The design of this new lathe is a great innovation, it solves many disadvantages of other lathes in the past, High precision concentricity can help you better complete the shaft and tube processing! choose it you will not regret!!

Voltage:	AC110V (Brushless Motor)
Power:	1100W(1.5HP)
Swing Over Bed:	8.27"(210mm)
Concentricity tolerance:	0.03mm-0.05mm
Rotary diameter of tool rest:	5.51"(140mm)
Spindle bore:	Right side:1.50"(38mm) Left side:1.26"(32mm)
Max clamping diameter of right chuck:	4.92"(125mm)
Max clamping diameter of left chuck:	3.94"(100mm)
Width of lathe bed:	3.94"(100mm)
Thread standard:	Inch screw thread
Number of Spindle Speeds:	Infinitely variable speeds
Range of Inch Threads:	8-44T.P.I
Range of metric threads:	0.5mm-3mm
Spindle taper:	MT3
Knife rest labour:	Horizontal four-station
Spindle rotation speed:	50-2500rpm
Precision of the spindle:	0.02mm
Automatic feed range:	0.1mm-0.2mm
Tail frame taper:	MT2
Maximum stroke of tool rest plate:	2.16"(55mm)
Maximum stroke of middle plate:	2.95"(75mm)
Maximum stroke of bottom plate:	26.77"(680mm)
Maximum stroke of tailstock sleeve:	2.36"(60mm)
Package size:	52"24"22"(132cm61cm56cm)
Net weight/Gross weight:	165.3lbs(75kg)/218.3lbs(99kg)


Double Chuck The left side of the lathe is equipped with two chucks, the concentricity of 0.03-0.05mm, can be processed longer objects, especially in the processing of shaft and pipe part processing accuracy is higher!	4-Way Tool Post The adjustable 4-way tool post on the lathe allows you to easily change your cutting tools. The 8 screws allow you to better grip the tool and finish the machining efficiently.	Follower Rest The follower rest plays a crucial role in providing support and stability in double chuck metal lathes, particularly suitable for machining slender workpieces or those requiring high precision.

Steady Rest The steady rest is designed to support long workpieces, ensuring high precision and stability during the machining process, while reducing tool wear and machining errors.	Accurate Tailstock The tailstock is both movable and fixed, with a maximum center distance of 27.5" at the far right. Equipped with an MT#2 taper in the tailstock spindle, this lathe is capable of precise operation by adjusting the set screws.	Grating Ruler Equipped with a two-axis digital display grating ruler, it enables the measurement and control of angles or lengths. With an accuracy of up to 0.005mm, it significantly improves work efficiency and machining precision.

Control Panel Spindle rotation speed is divided into two adjustable gears: 50-1250rpm and 1250-2500rpm. Panel can observe the rotation speed in rea time, which is convenient and flexible.	Safety Switch The lathe is designed with a forward / reverse switch and a start & emergency stop switch on the top, providing convenient operation. In case of an emergency, the power can be immediately cut off to ensure personal safety.	Metric Scale Precise metric are provided on the saddle handle, the tailstock handle and the movable center, allowing for more accurate and professional work.

- This lathe AC motor torque is large, rigidity is very good, turning diameter is larger, processing range is wider!
- The processing range is wider, metric thread range 0.5-3mm, inch thread range 8-44TPI, to meet your more needs!
- This lathe is exquisitely manufactured with robust materials. The gears in the headstock are quenched, providing excellent rigidity. High-quality bearings are used, ensuring higher precision.
- The bed is treated by quenching process, which greatly improves the strength, toughness and fatigue strength of the bed, thus improving the accuracy of the lathe.
- A wider range of applications, in addition to home DIY, more suitable for maintenance workshops, factory workshops, teaching and other aspects.

https://topseller365.com/data/prd/028/374/31.jpg

Item Included(028374)

Miniature lathe *1	Fork wrench *3	Twist drill set *1
Hexagon wrench *7	Washer *1	Lathe tool *2
Oil needle *1	Chuck jaw *3	Drill chuck set *1
Chuck key *2	Taper shank *1	Fixed center *1
Rotating center *1	Screwdriver *2	Metal gear *4 (40/50/60/80)
