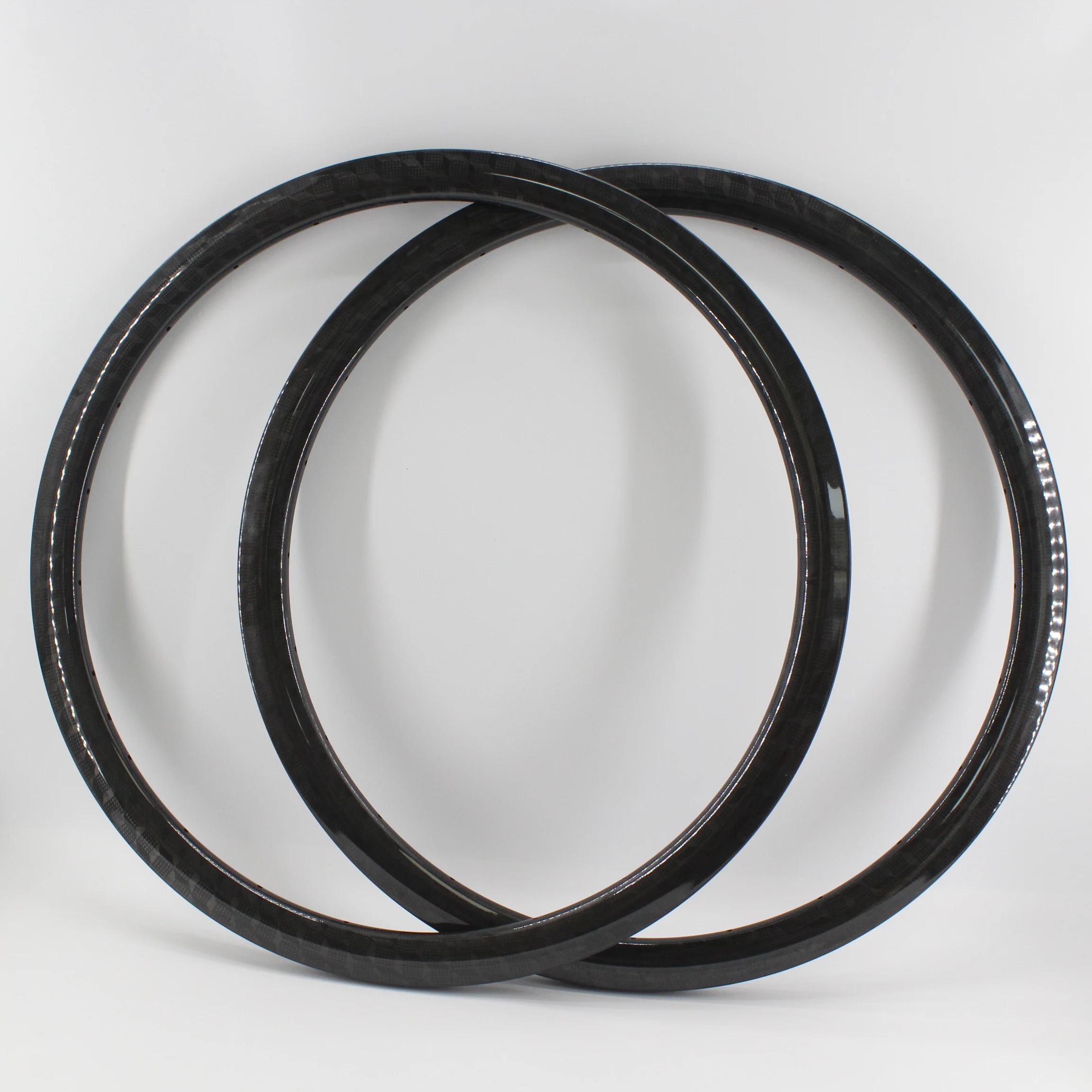

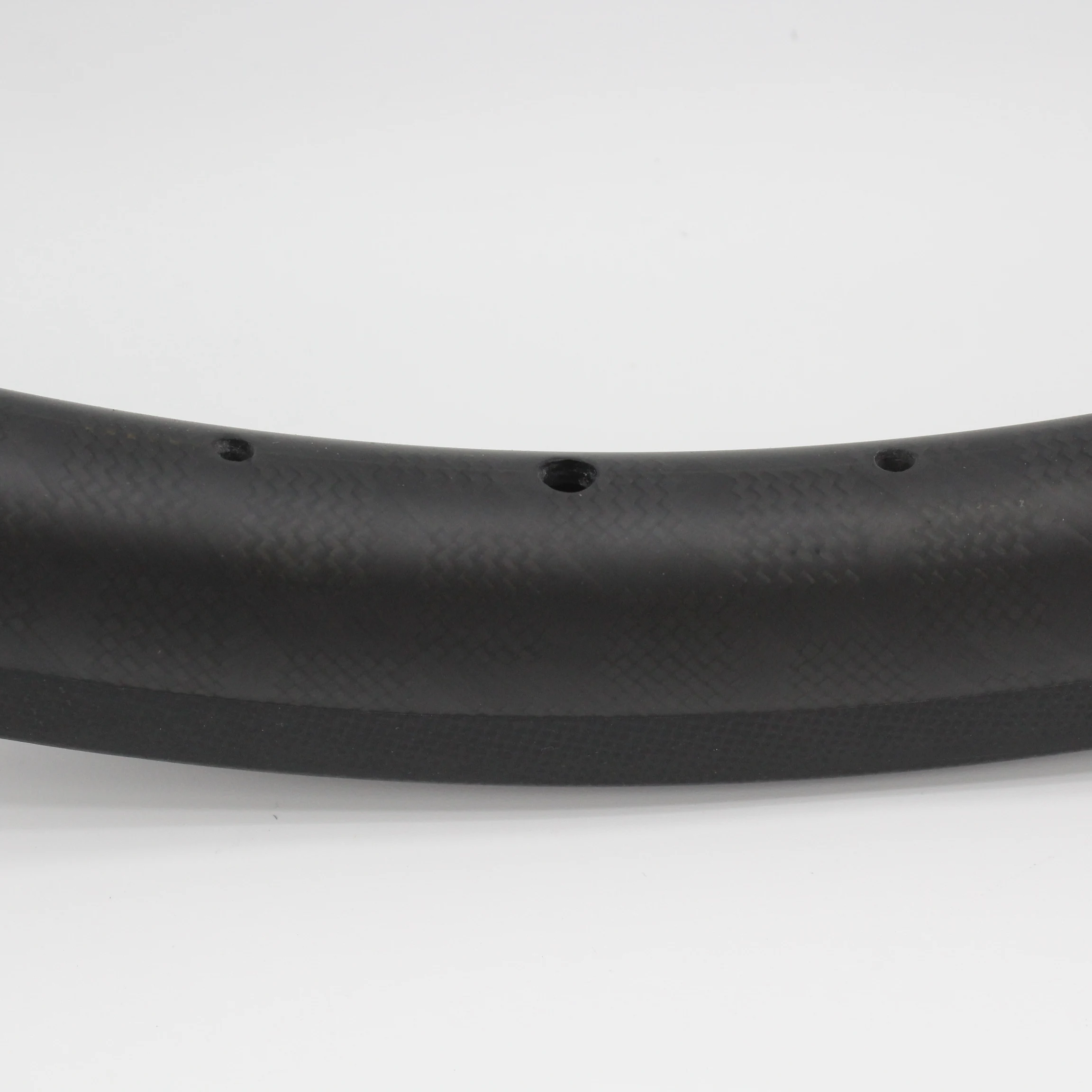

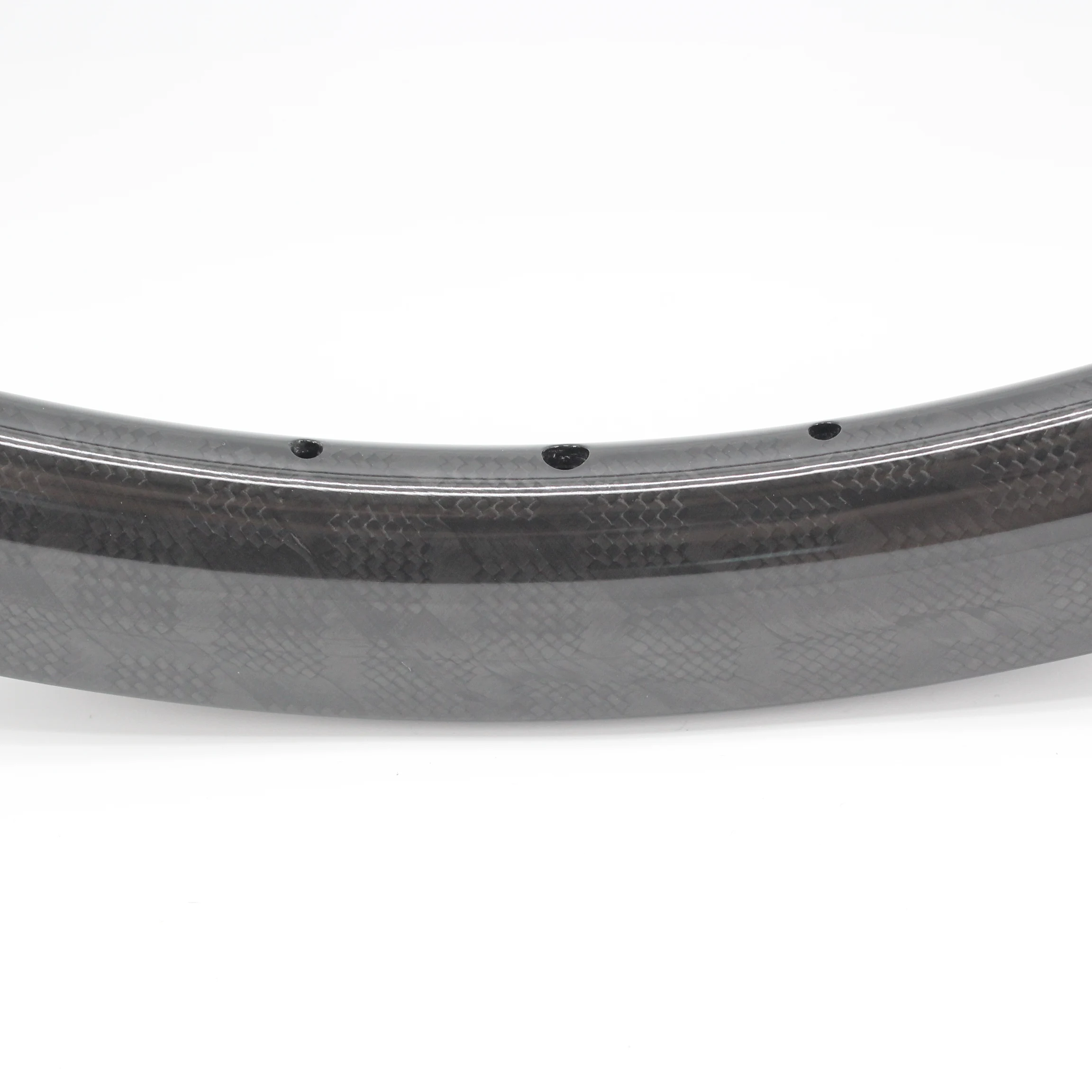

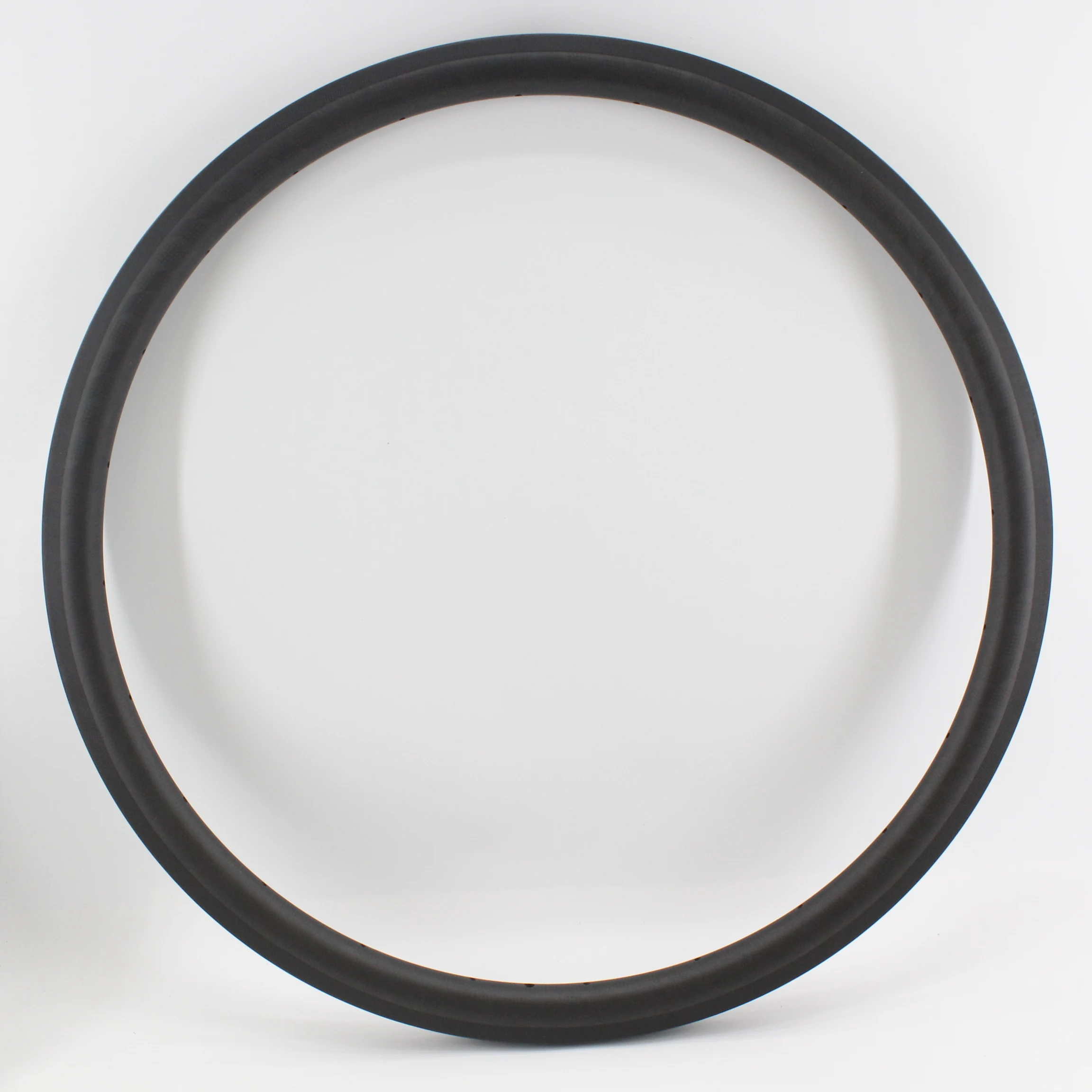

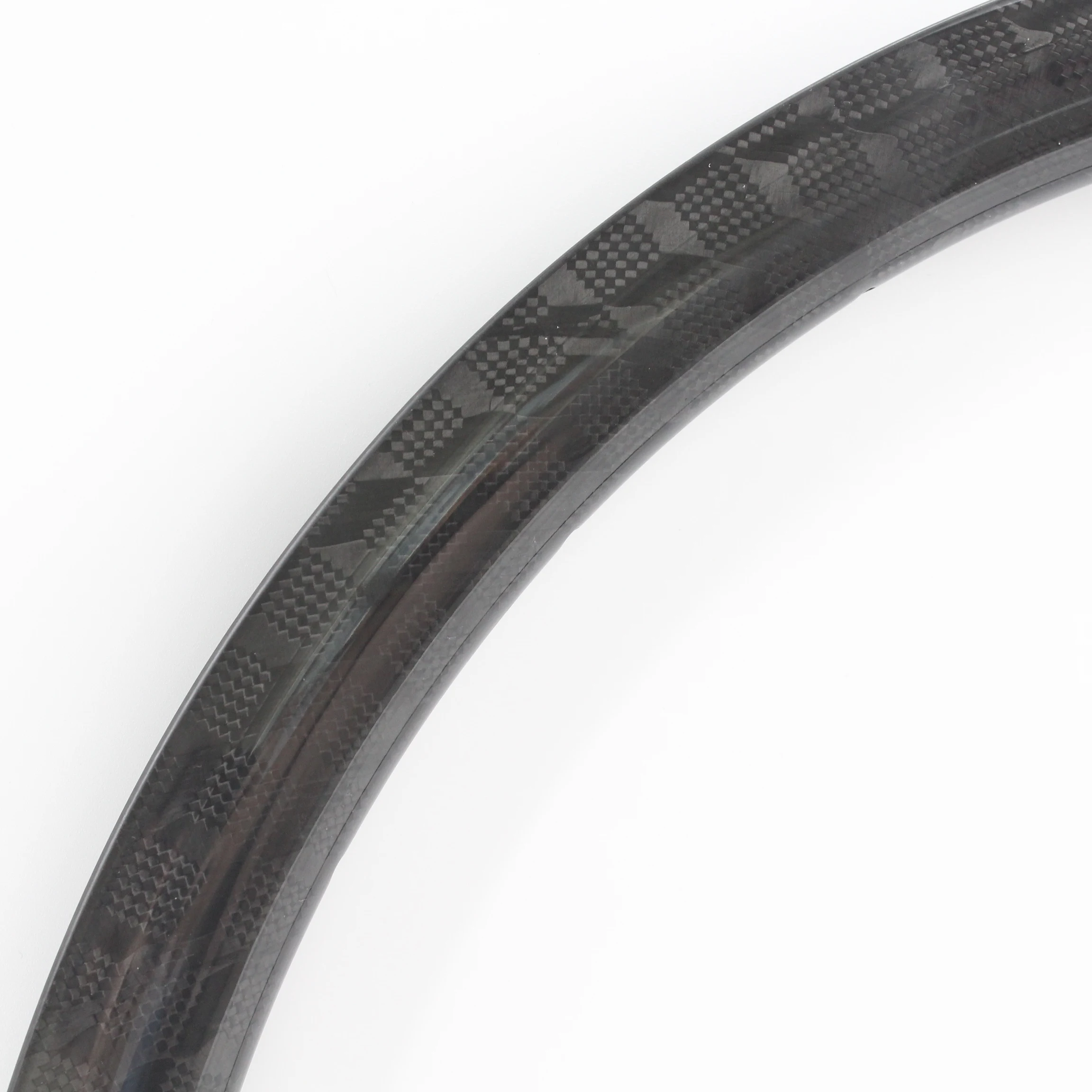

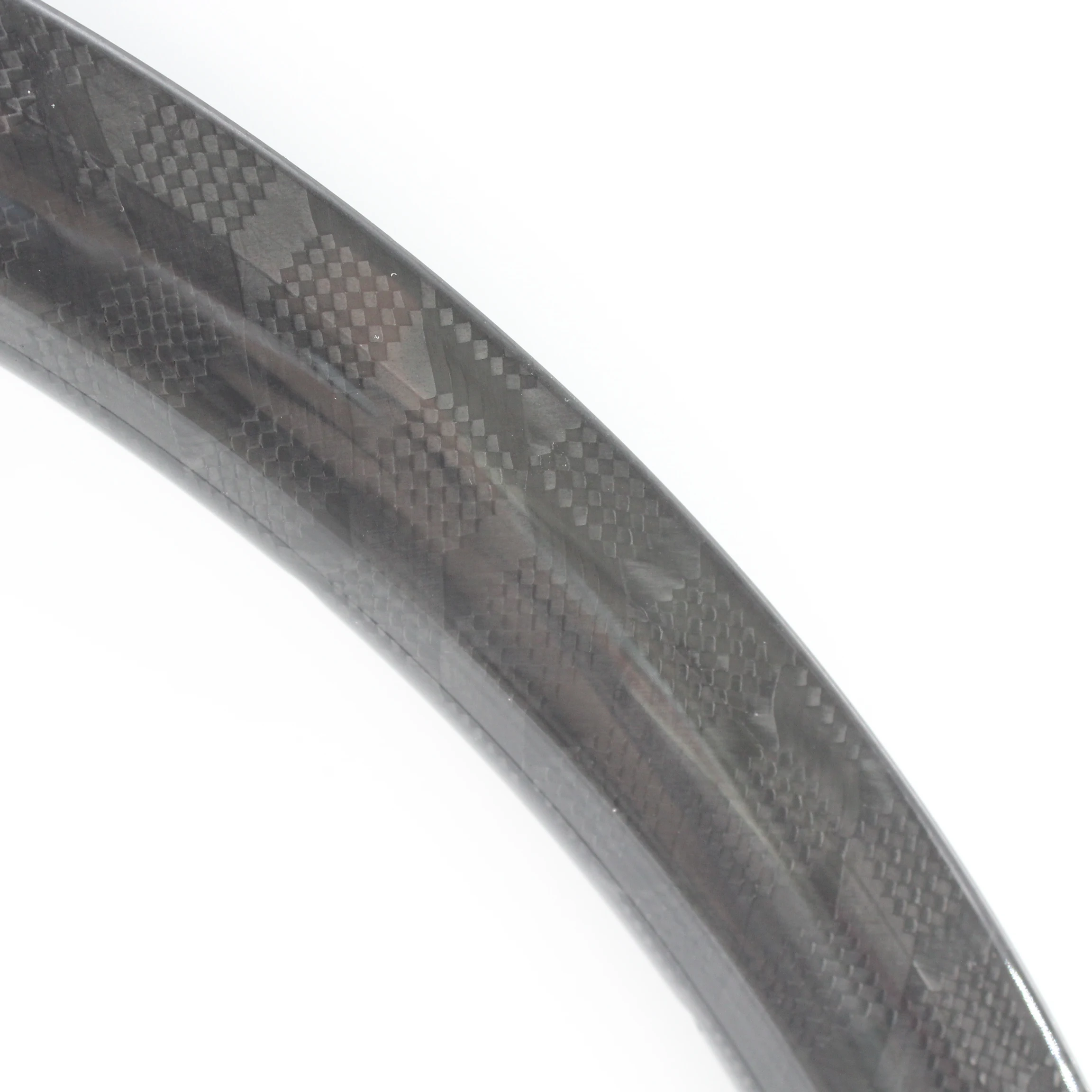

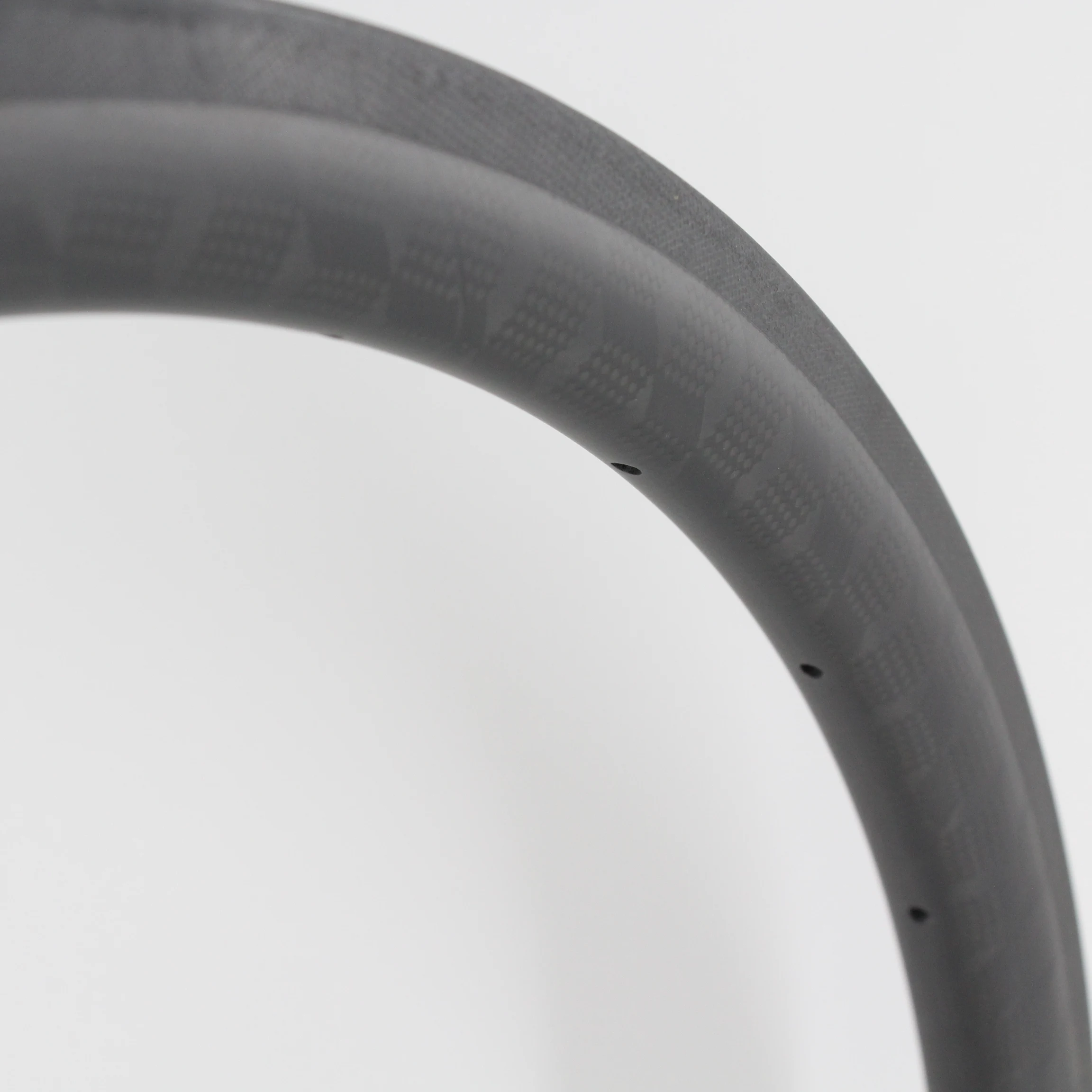

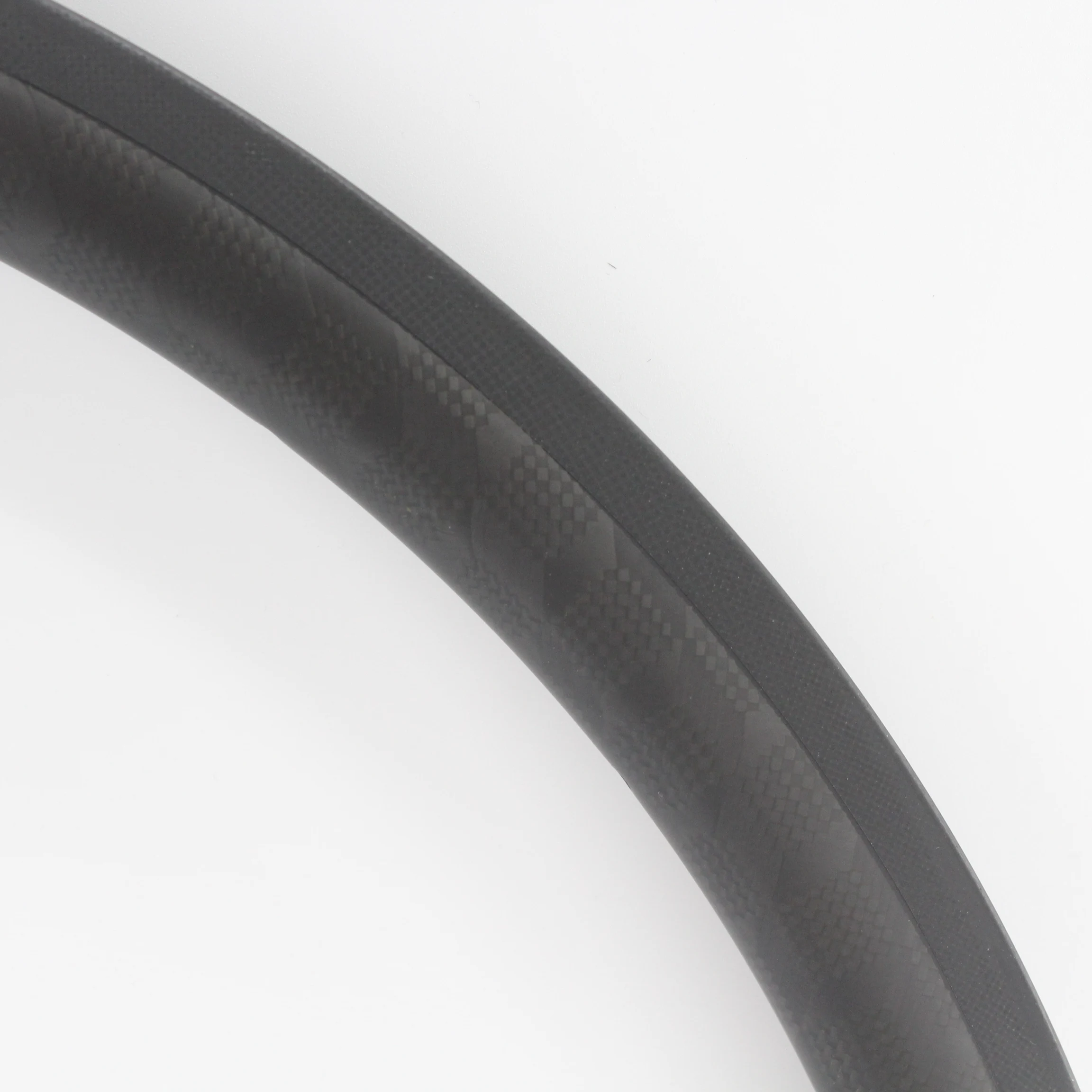

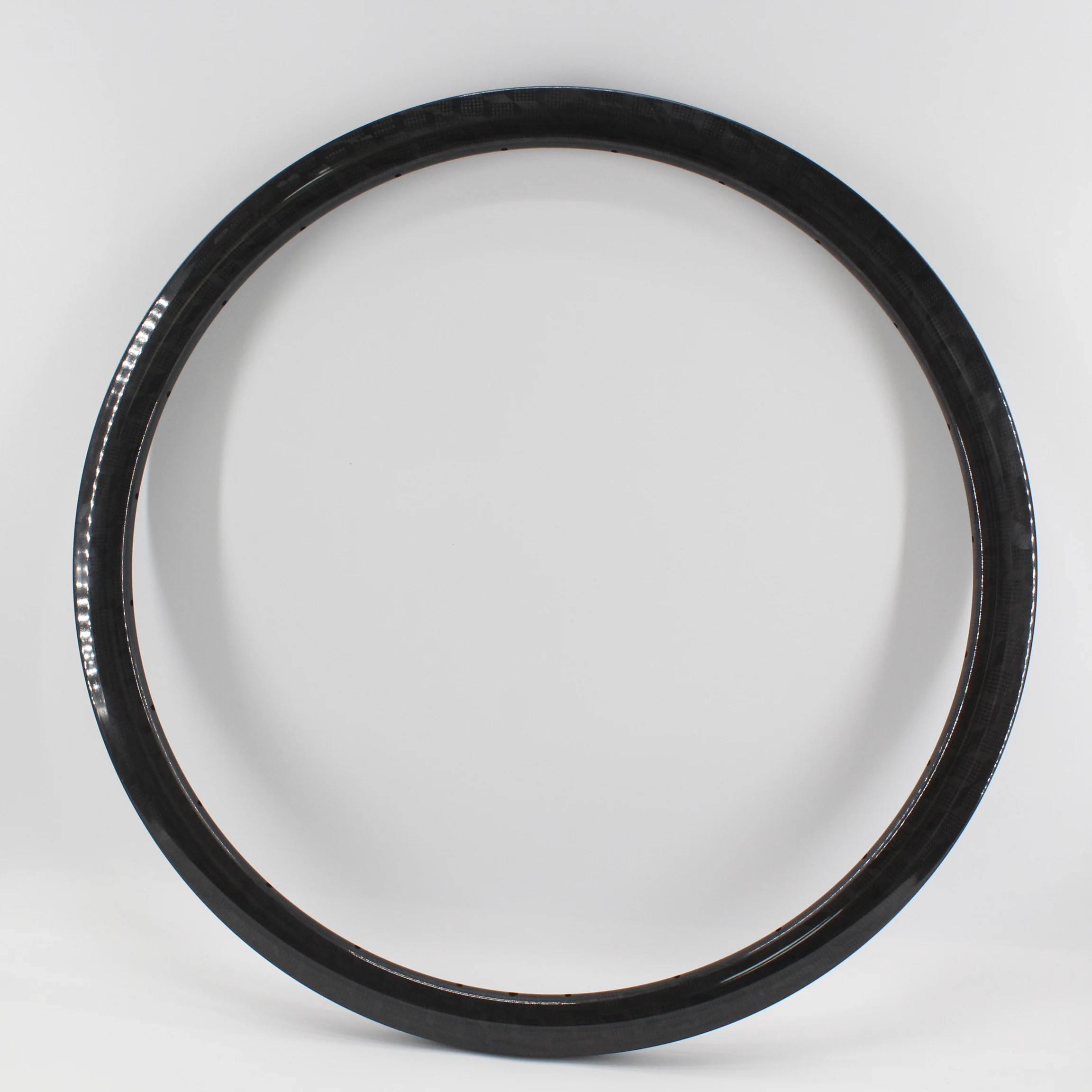

38mm depth ,gloss finish rim picture: 35mm depth ,matt finish rim picture:
DESCRIPTION & MATERIALS
  • Size: 700C

  • Model: 38/50/60/88mm tubular or clincher or tubeless rim-(please choose your favorite)

  • Rim width: (38/50/60/88mm rim) with 23 / 25mm width(default 23mm,tubeless rim only have 25mm width); 35mm rim only have 28mm width

  • Finish: matt ; gloss(default gloss)

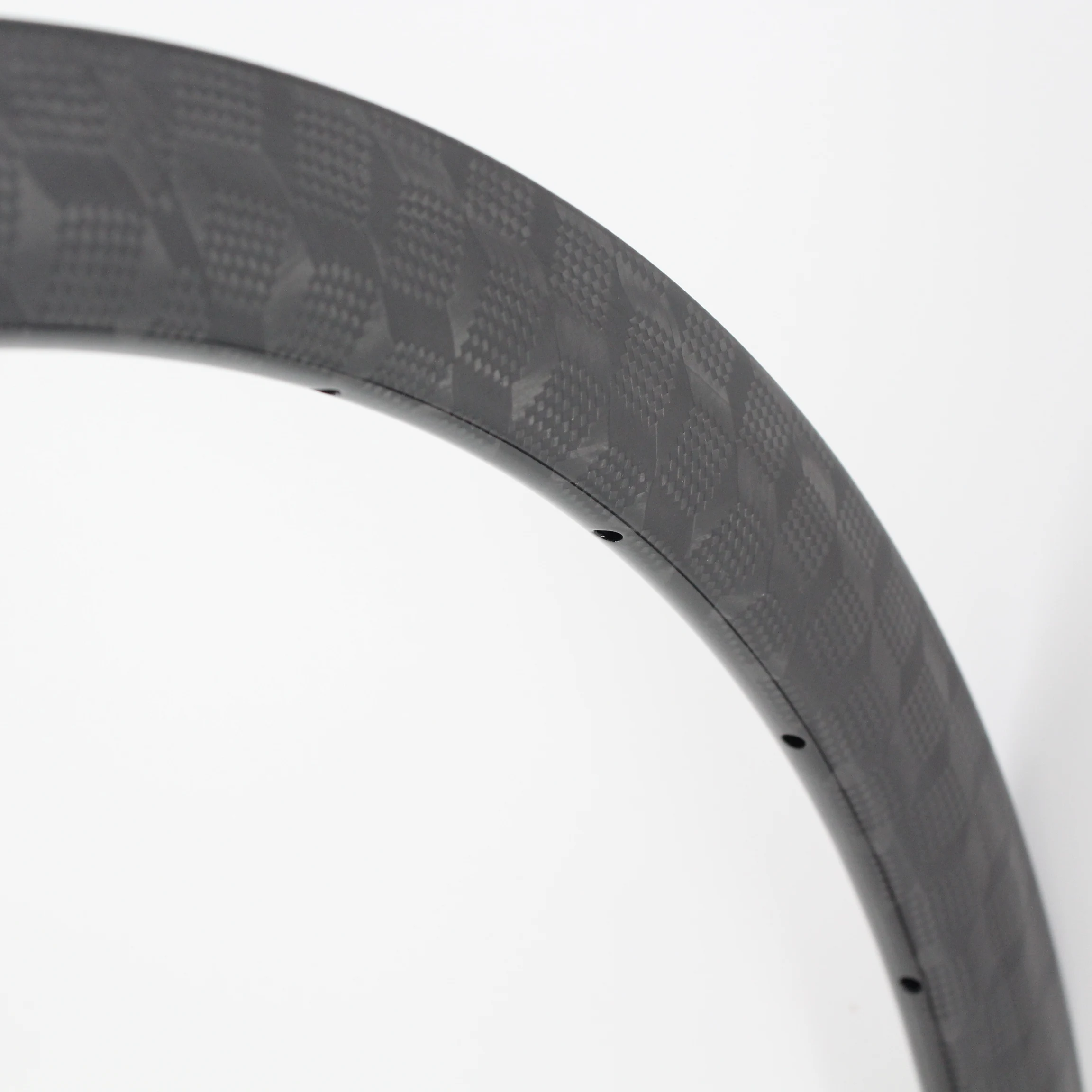

  • Material: 3D 3K texture

  • Hole count: 16/18/18 G3/20/21/21 G3/24/28/32/36 holes, (Please choose your need of the holes)

  • Note:"20 and 24 holes / 18 and 21G3 holes "  default is do with brake surface for V brake

  • 2Pcs wheel rim(the price is for 1 pair rim)

  • Without brake surface(default is do without brake surface, we also can do with basalt brake surface,if you need with brake suface ,when you place order please in order "note" tell me.)

  • Weight: approx 395g(tubular 50mm)

  • Bike Type: Road Bike / Track / Fixed Gear Bike

  • Passed Europe EN14781 Standards and the JAPAN JIS Standards.

  • One year quality warranty

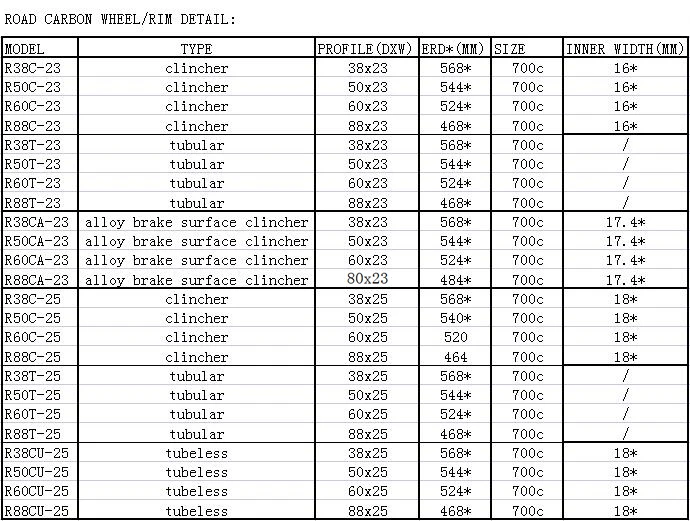

Important parameters of the wheelset:

Max recommend rider weight: 150KG

Max recommend tyre pressure: clincher-120PSI ; tubular-220PSI

Rim outer diameter: approx 633mm

Front wheel spokes tension: approx 80-100kg

Rear wheel spokes tension: approx 80-100 / 100-120kg

Flatness and Yaw: <0.2mm

Roundness: <0.5mm
