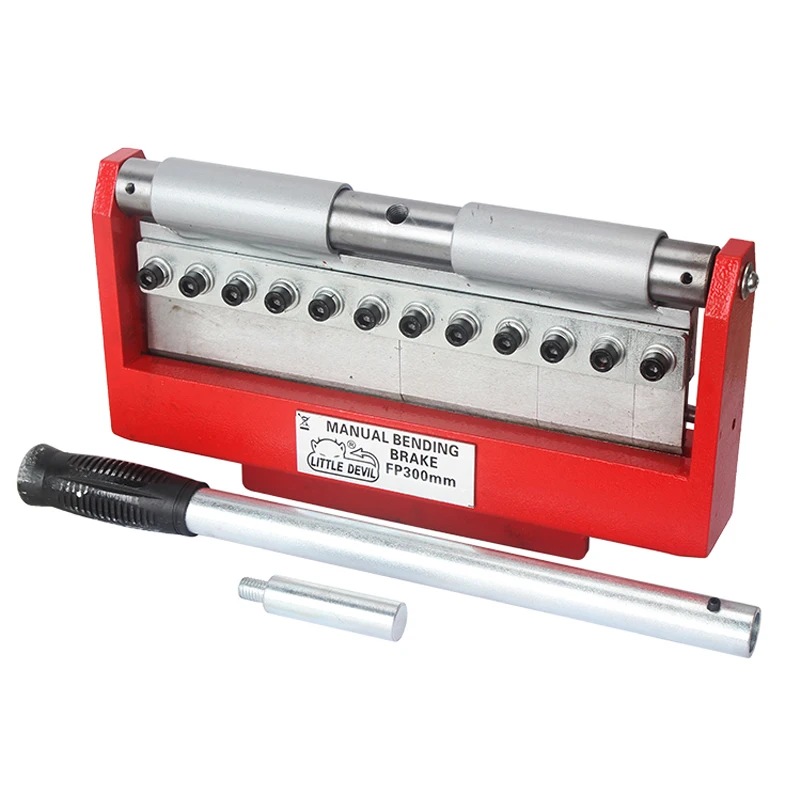

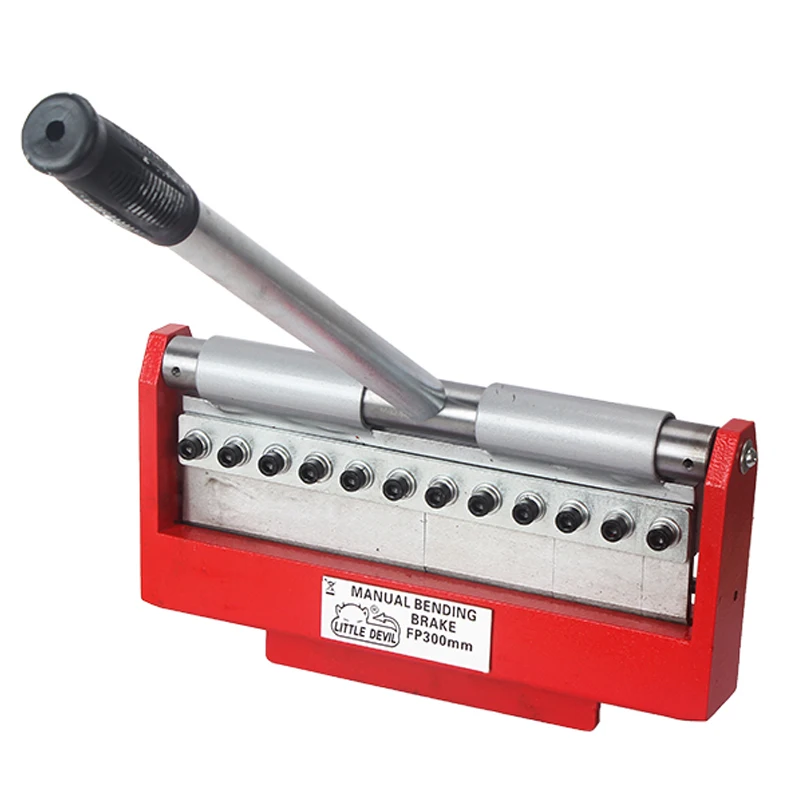

Name: MANUAL BENDING BRAKE
 Size: 355*50*285mm
Handle size: 25*400mm
Net weight: 10Kg
 Package weight: 12Kg
Blade size: 25mm, 50mm, 75mm, 150mm
Machinable thickness: depending on size and material, such as processing galvanized sheet, the maximum processing thickness cannot exceed 2.5mm The processing width is 300mm, and the thickness of the plate cannot exceed 1mm The processing width is 150mm, and the thickness of the plate should not exceed 1.5mm The processing width is 75mm, and the thickness of the plate cannot exceed 2mm The processing width is 50mm, and the thickness of the plate should not exceed 2.5mm
Bending angle: 90 degrees; the minimum folding width of the board at 90 degrees should not be less than 12mm
Uses: used to process thin plates of various materials, such as steel plates; aluminum plates; copper plates, galvanized plates; (note: stainless steel plates must not exceed 0.8MM), etc., folding, folding boxes, etc.
 Fixing method: This product needs to be clamped and fixed on various bench vices for use, and a heavy and stable workbench is also required.
