Features:
l Made of high quality material, durable and wear-resistant
l Replace the original damaged parts to ensure long lifetime and better work performance
l 100% Brand new and professional use
l High precision machining, stable and reliable
Specifications:
l Output Current: 1A
l Quantity: 1 PCS
Package:

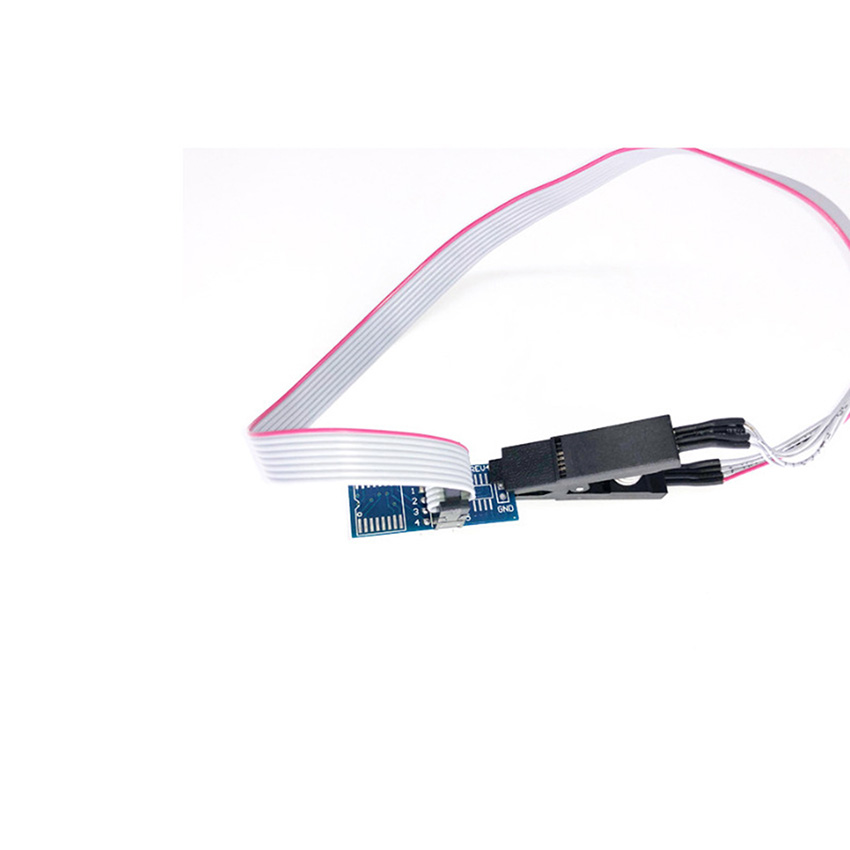

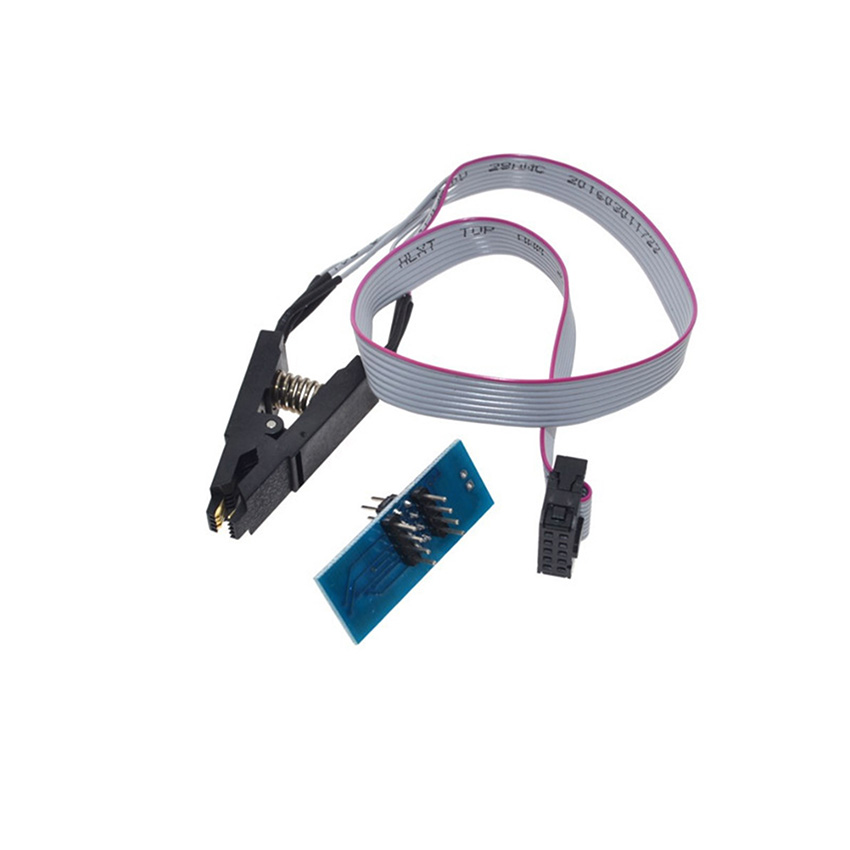

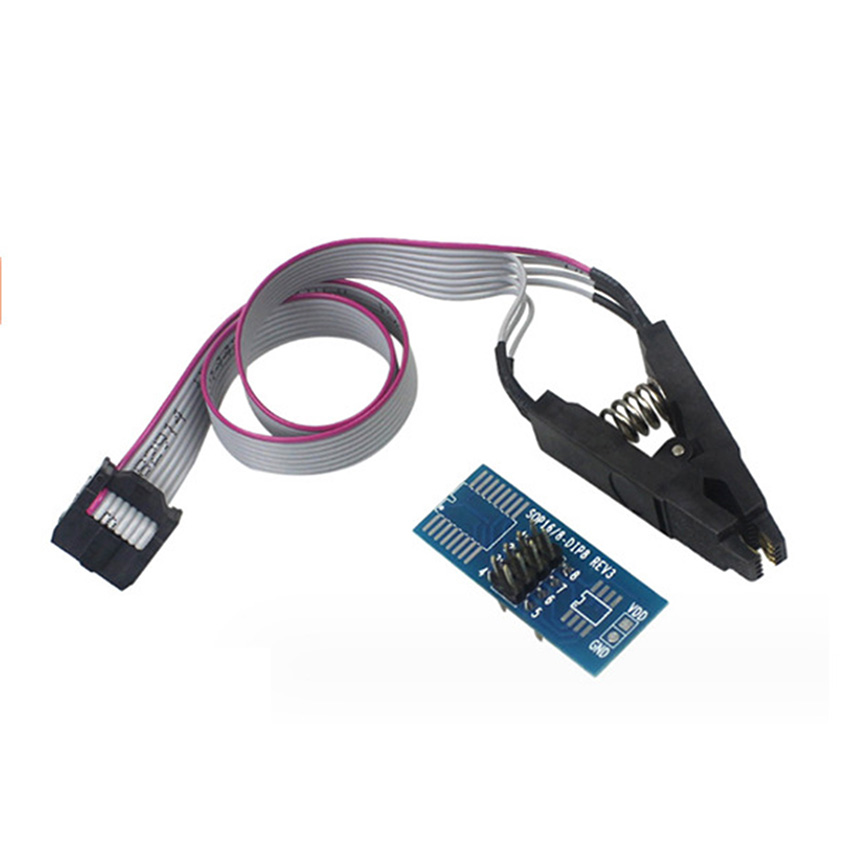

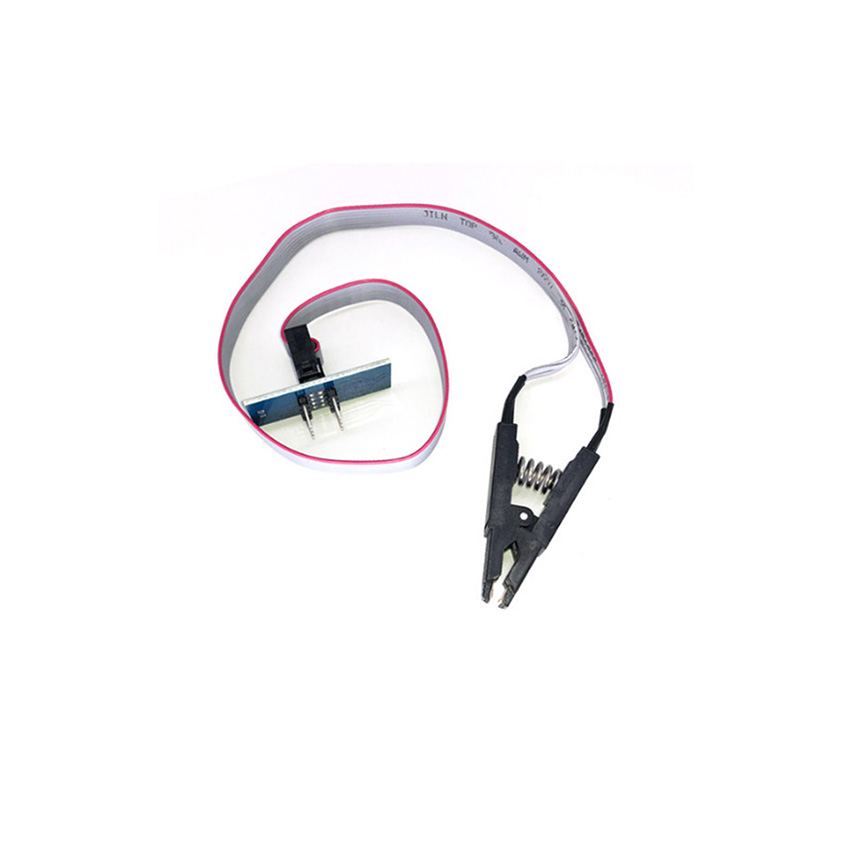

l 1x BIOS Clip
Note:
l Instructions for use: The total length of the clip is 42cm, the clip chip can be opened, the red side corresponds to the clip chip's foot 1, the basket color board mark 1 that is inserted into the programmer's foot 1, these two points are correct on it.
l Know before you buy: some boards can directly clip the chip, but some boards can not be operated in this way, because the chip on the board will be affected by the peripheral electric tickle, please know before you shoot〉 lest you buy back can not be used, but the chip welded down to a universal connectors like the same can be used directly, and wide-body, narrow-body are universal.
l A lot of big power car programmer basically can be used normally!
l When encountered with the protected function of the programmer, the clip in the normal voltage is not read out, this time you need to add a 3.3V voltage, the method is: clip the chip, the chip pin 8 corresponding to the clip pin plus a 3.3V voltage. General 3.3V power supply has two lines, then the VCC corresponding to connect the clip, another line directly to ground on it!
