This product is a small power induction heating machine with AC110V-220V power supply. It can be used for heating and quenching of small iron metal materials. It can be used with 70mL graphite crucible to reach a maximum temperature of 1600 degrees Celsius. It can easily melt iron, gold, silver and aluminum. metal.

Feature：

1. It adopts integrated metal shell design, which is convenient to use and carry, and has good heat

dissipation;

2. Integrated power supply to avoid complicated wiring;

3. The heating ring is wrapped with high temperature insulation material to prevent short circuit

during heating, and the heating ring can be removed and replaced to customize a specific heating

ring;

4. Integrate the internal water cooling circulation system to prevent the heating coil from

overheating;

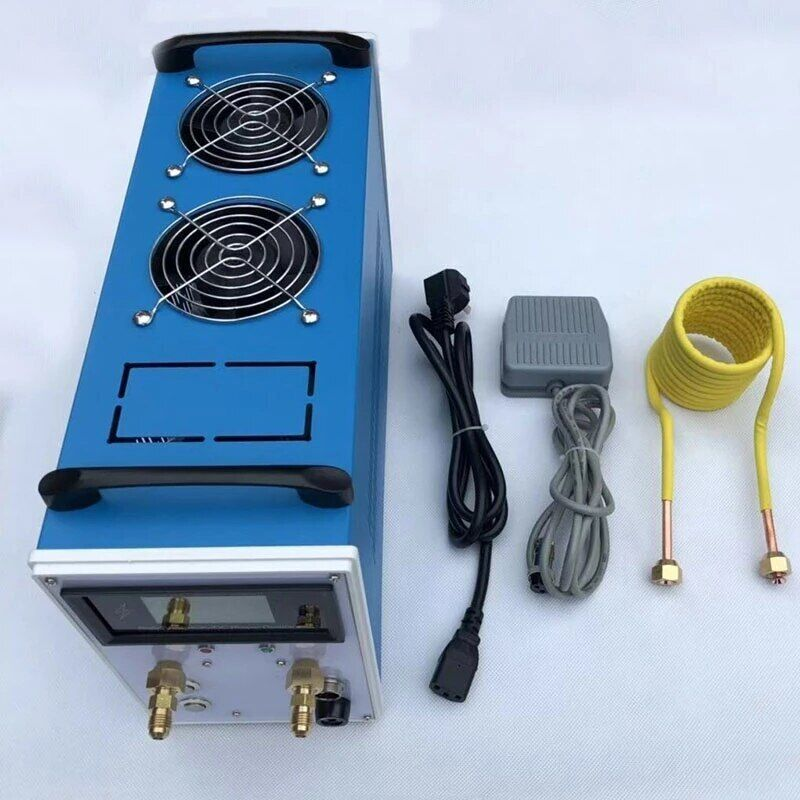

5. The top two high-power fans are used for heat dissipation;

6. Add a current overload protection switch to trip the protection circuit in case of overload;

7. Large LCD screen display system's various operating parameters, including voltage, current,

power, motherboard temperature, etc., and can be easily switched in Chinese and English.

Parameter:

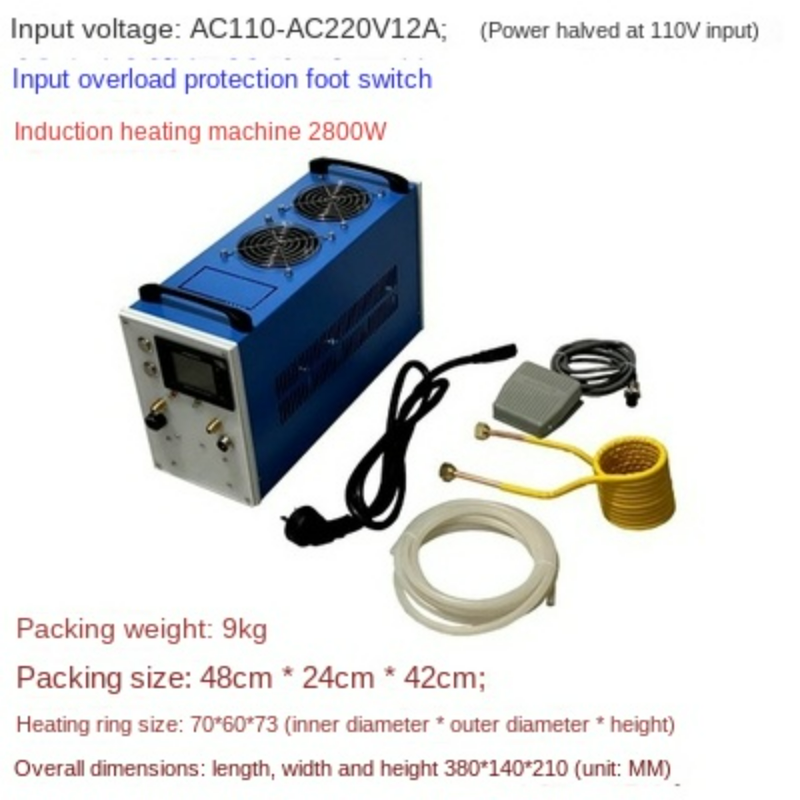

Dimensions: 380*140*210mm;

Heating ring size: 60*70*73 (inner* outer* high);

Input voltage: AC110-220V;Maximum output power 3000W, but need to pay attention to 110V maximum output power will be reduced by half, please know, thank you

DC working voltage: 48V (internal power supply voltage is the apparent voltage);

Maximum DC operating current: 50A

Direct heating of metal iron up to 800-900 degrees Celsius

Use crucible maximum temperature 1600 degrees Celsius

Packing：
Host weight: 6kg
Packing weight: 9Kg

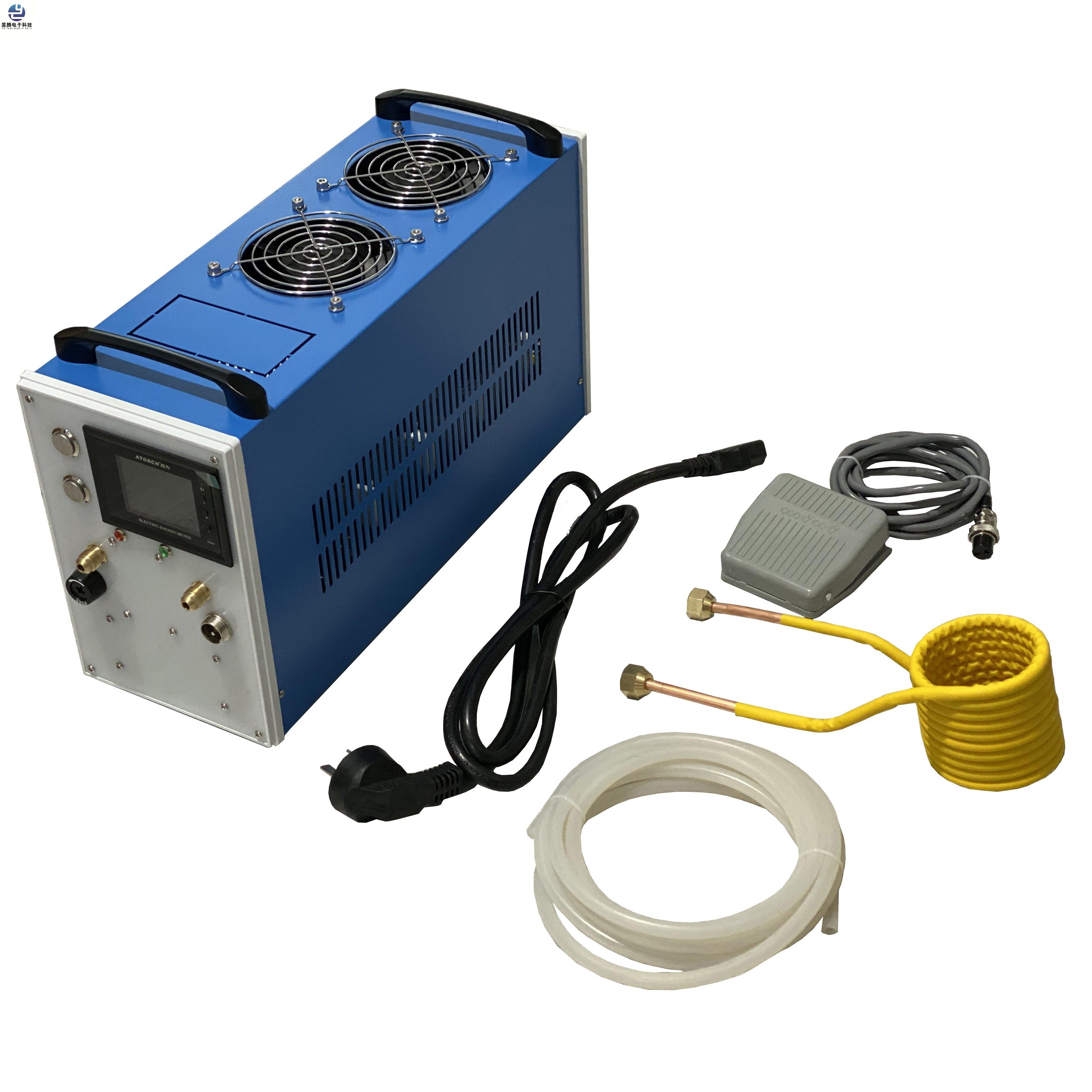

machine 1pcs

Heating copper tube 1pcs

Foot switch

Precautions:

1. The boot sequence should follow the first turn on the main power switch on the back, wait a few

seconds to see the fan and pump work normally, and then see the voltage and voltage display as

48V or 53.5 before you can turn on the induction heating switch on the panel. Do not operate

incorrectly, otherwise it will be directly Burn out the motherboard and no protection. Turn off the

heating switch and then turn off the power switch when shutting down. If the shutdown is not used

for a period of time, the total power supply should be turned off after the heating switch is turned

off for one minute, so that the cooling system will cool the system and increase the service life;

2. Work must be water-cooled and air-cooled at the same time. If any one of them does not work,

immediately disconnect the power supply and contact the manufacturer for a solution;

3. If the conditional water cooling can be directly discharged by using cold water and hot water, the

circulation method is not adopted, so that the heat dissipation effect is better;

4. Long-term use of antimony should be prepared, graphite high-temperature heating will react

with oxygen to form carbon dioxide and gradually consume it;

5. Always pay attention to the changes of various parameters of the display, especially the voltage

and current and the temperature of the motherboard. Whenever an abnormality is found, the

power must be disconnected immediately.

6. When using at high power, it is normal for the operating noise of the heat dissipation system to

be relatively large.
