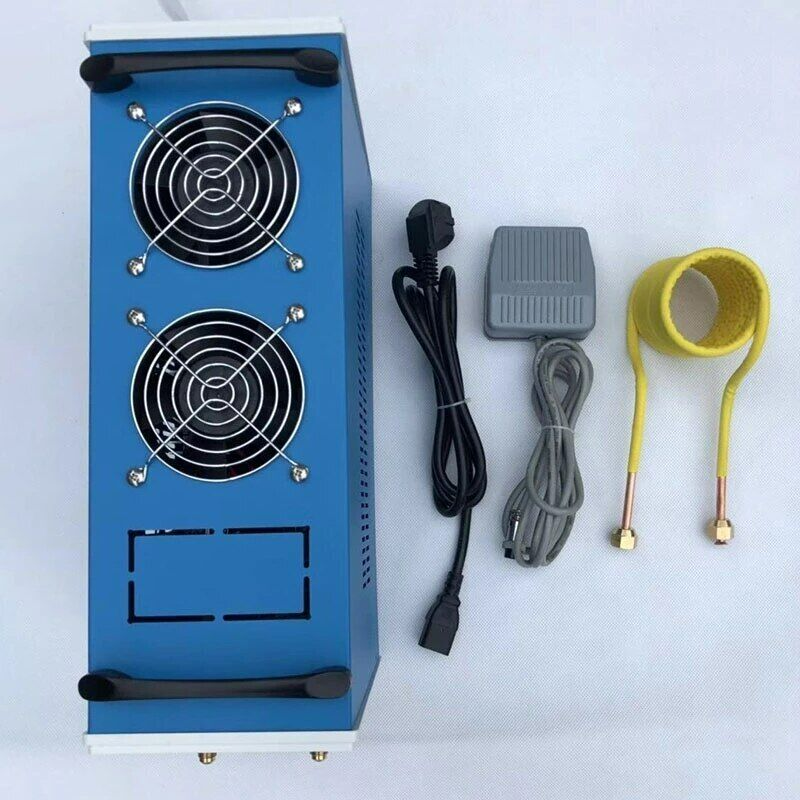

Induction heating machine 2800W infrared temperature control copper tube welding 110-220V input overload protection foot switch

This product can be directly plugged into the AC110V-220V power supply small power induction heating machine, mainly for small iron metal materials heating quenching, with supporting 70mL graphite crucible maximum temperature up to 1600 degrees Celsius. Easy to melt iron, copper, gold, silver, aluminum and other metals. The use of customized heating rings can be forged and quenched on steel within 10mm in diameter.

I:Product Features and Functions
1. one-piece metal shell design, easy to use and carry, good heat dissipation.
2. integrated power supply, avoiding complicated wiring; 3.
3. heating ring using high temperature insulation material package to prevent short circuit in the heating process, and the heating ring can be disassembled and replaced, customized specific heating ring; 4. integrated internal water-cooling circulatory system to prevent the heating process.
4. integrated internal water-cooling circulation system to prevent overheating of the heating coil; (through the water pipe external water-cooling)
5. two powerful fans on the top for heat dissipation.
6. adding digital current overload protection switch, once overloaded in time to trip the protection circuit.
7. large LCD color screen display system of the various operating parameters, including voltage, current, power, temperature of the motherboard, etc., and can be easily switched between Chinese and English, can be set through the power table allows the work of the maximum power, the work of more than the maximum operating current immediately enter the overload protection mode.
8. Provide 0-600 degrees or 0-1000 degrees infrared temperature controllable version.
9. Metal key switch, and add foot control, convenient for different scenes.
10. Water-cooling system water shortage protection.
  Product Parameters
1. Overall dimensions: length, width and height 380 * 140 * 210 (unit: mm);
2. heating circle size: 70 * 60 * 73 (inner diameter * outer diameter * high);
3. Input voltage: AC110-AC220V 12A; (110V input power halved). 4;
4. DC working voltage: 53.5V or 48V (internal power supply voltage is the voltage shown on the meter);
5. Maximum DC working current: 58A;
6. 20mm diameter within the metal iron directly heated to a maximum temperature of 1200 degrees Celsius, the use of standard 60mm diameter heating ring heating iron maximum temperature of about 1000 degrees Celsius;
7. Use the crucible maximum temperature of 1600 degrees Celsius, can melt iron, gold, silver, aluminum, copper and other metals;
8. Packing weight: 9KG;
9. Net weight of the host: 6KG;
10 Packing size:48cm*24cm*42cm;

Panel Description
① power meter
② heating on
③Reset
④Alarm signal lamp
⑤Heating indicator
⑥Heating coil interface
⑦Fuse
⑧Foot switch interface
⑧Total power switch
⑩AC1100V-220V input interface
⑪Infrared temperature sensor interface
⑫ water-cooling input
Water-cooling output
⑭DC48V50A power supply
⑮Temperature controller
⑯Cooling fan
