100% Brand New and High Quality.
Shape/Color: Same as the picture show

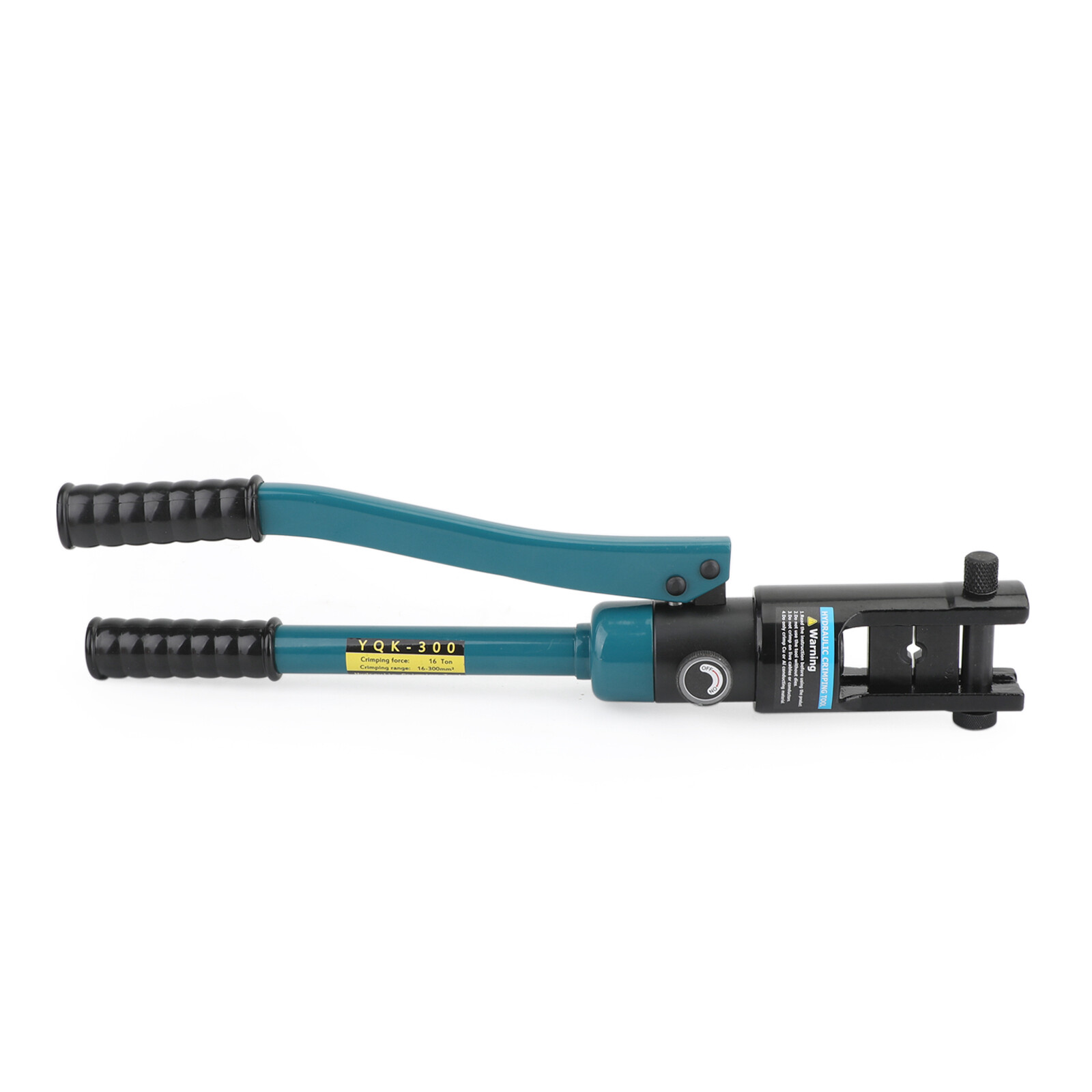

16T Hydraulic Wire Cable Battery Lug Crimper Terminal Crimping Tool with 11 Black Dies
Note:
1. In response to customer needs, the product has been improved:
The Black Dies is thickened and upgraded,,high hardness and more durable.After heat treatment and blackening process, the Dies comes with steel stamp, which has higher hardness and can easily identify the Dies model.
2. Pressing without contact mould is strictly prohibited to avoid damaging the components.
Specification:
1. Crimping Range: 16-300mm2
2. Max Pressure: 16 Ton
3. Crimping Type: Hexagon Crimping
4. Max Travel: 22mm
5. Length: Approx. 45cm/18"
6. Weight: Approx. 3.7kg/8.5 lbs Crimper; Total 6.3kg/13.8 lbs with Case and 11 pairs of dies.
7. Package:High Quality Plastic Carrying Case 53*20*9cm( 20.8"L x 8"W x 3.5"H)

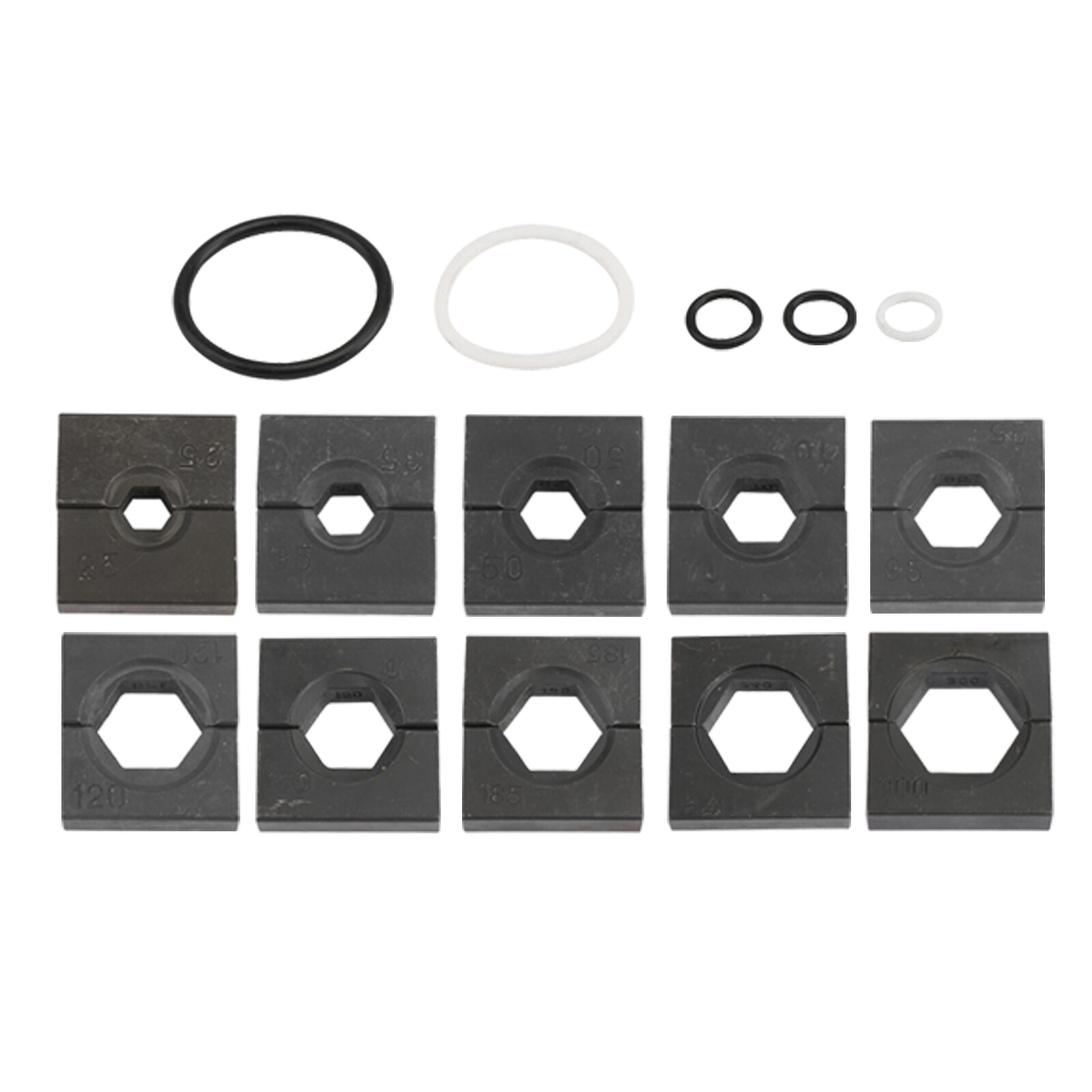

8. Standard Accessories: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2(After heat treatment and blackening process, the Black Dies comes with steel stamp, which has higher hardness and can easily identify the Dies model)
Product Features:
1. The tool pressure could be automatically adjusted in any direction.
2. Stable crimping in low resistance and high efficiency. It is ideal for compression of Cu/Al terminals in the end and middle of power wiring line.

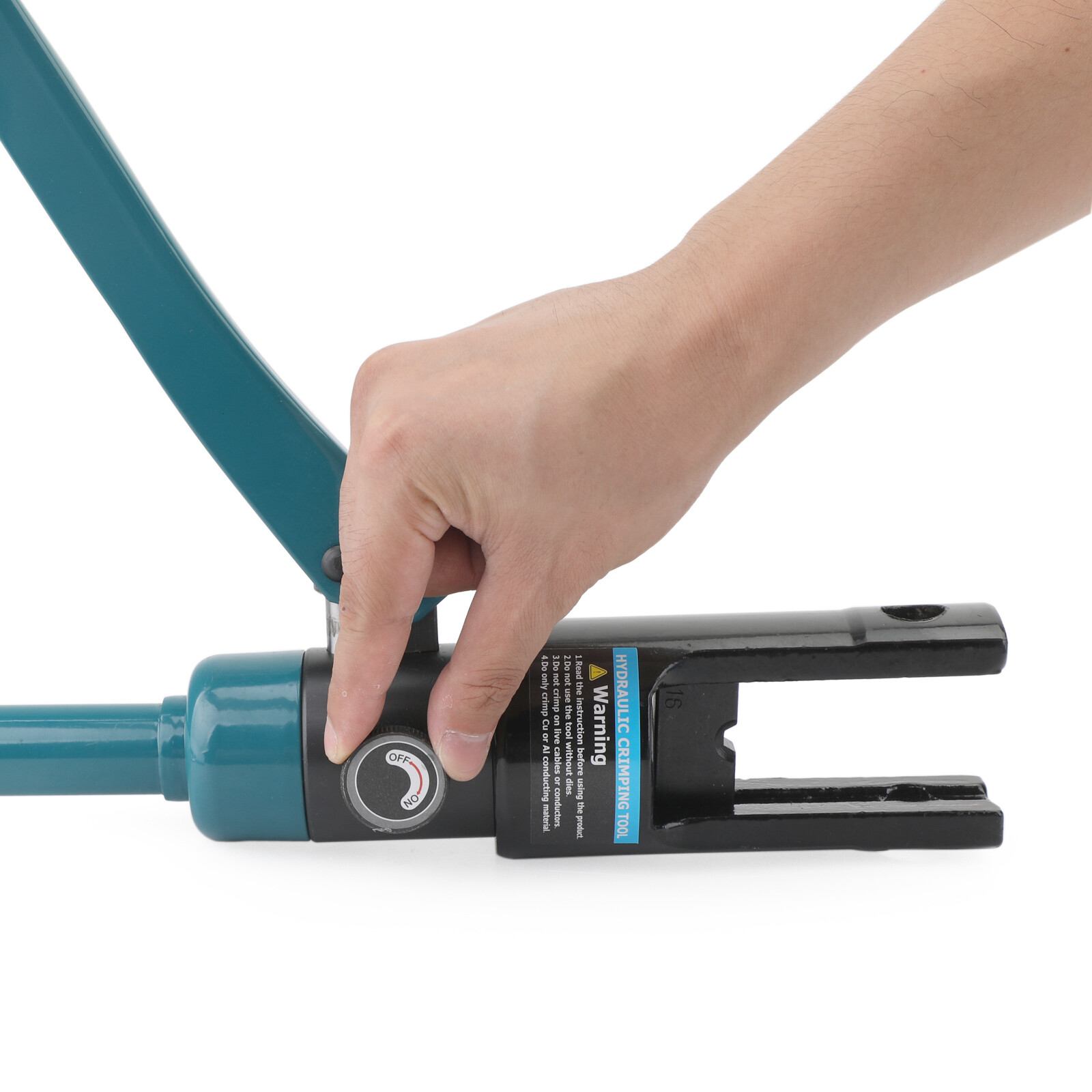

3. Easy to use On-Off control for fast operation
4. Maximum 16 tons crimping power
5. Crimper head can be rotated for adjustable directions
6. 11 sets of different size hexagon dies with black finish。
7. Long comfortable ergonomic cushioned handle make it asy to hold and use (13.5")
8. Crimps AWG 6 to 600 MCM size aluminum and copper wire
9. High quality plastic carrying case
10. Great for battery, welding cables, power wires and electrical cables etc.
11. This hydraulic crimping plier is a very professional tool for crimping aluminum and cooper or other types of metal .
12. Total weight is 13.8 lbs with useful carrying case, nearly 18 inch long and comes with 11 sets of hexagon dies.
13. The crimping range is from 16 to 300 mm2 to suit for different size demands.
Operation Manual

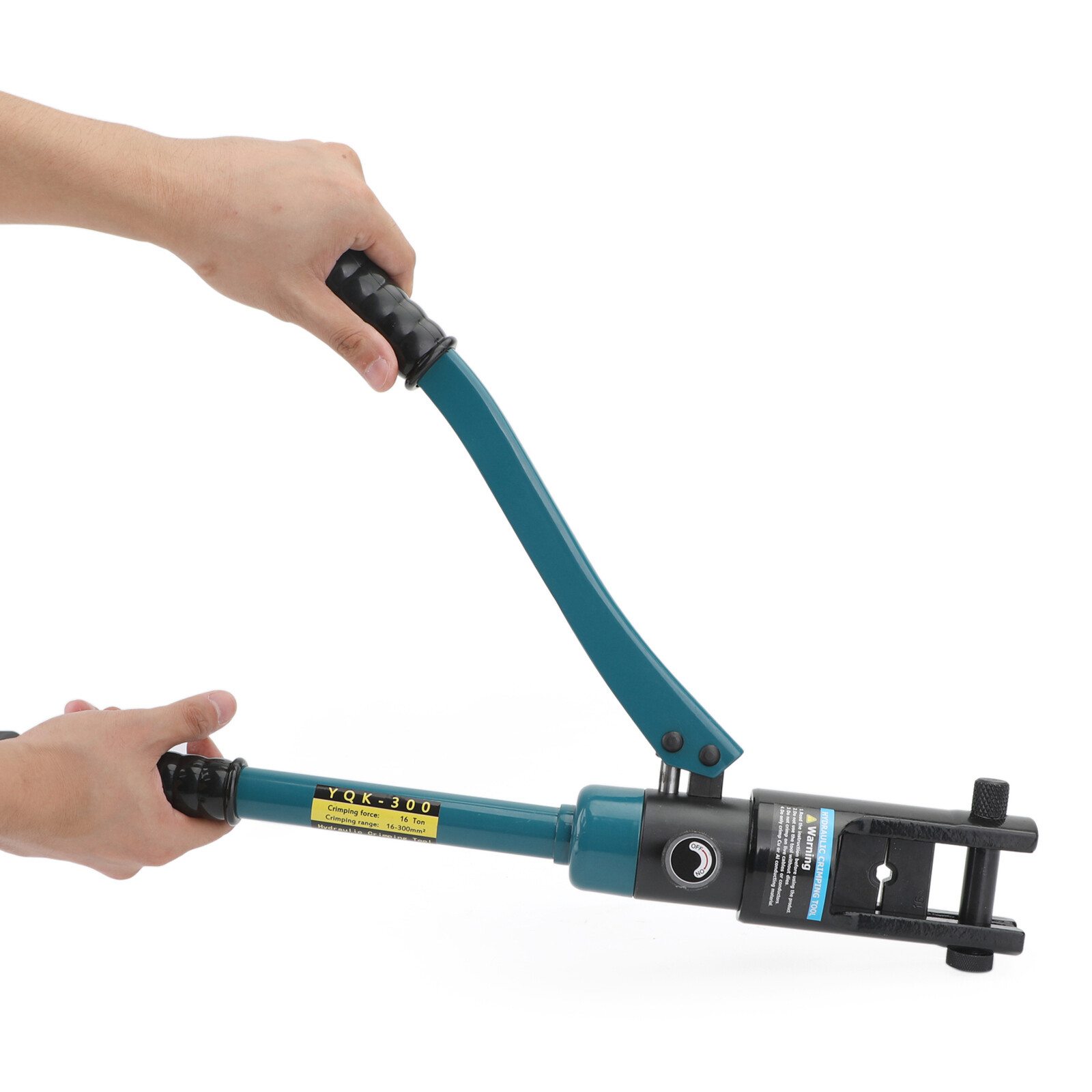

Turn moveable handle to drive plunger work. Then oil pressure lifts,Big plunger push slightly crimping die ahead until two pieces of dies touch(Don't impose more pressure. Otherwise parts inside would be damaged.).If fitted with safety unit,the safe unit inside would release pressure automatically.when pressure reach to preset limit. Then undo oil return switch. The piston automatically reset. The step 1 finishes. The step 2 is by analogy with Step1. It is normal that there is little oil appearing from plunger and big piston in Operation.

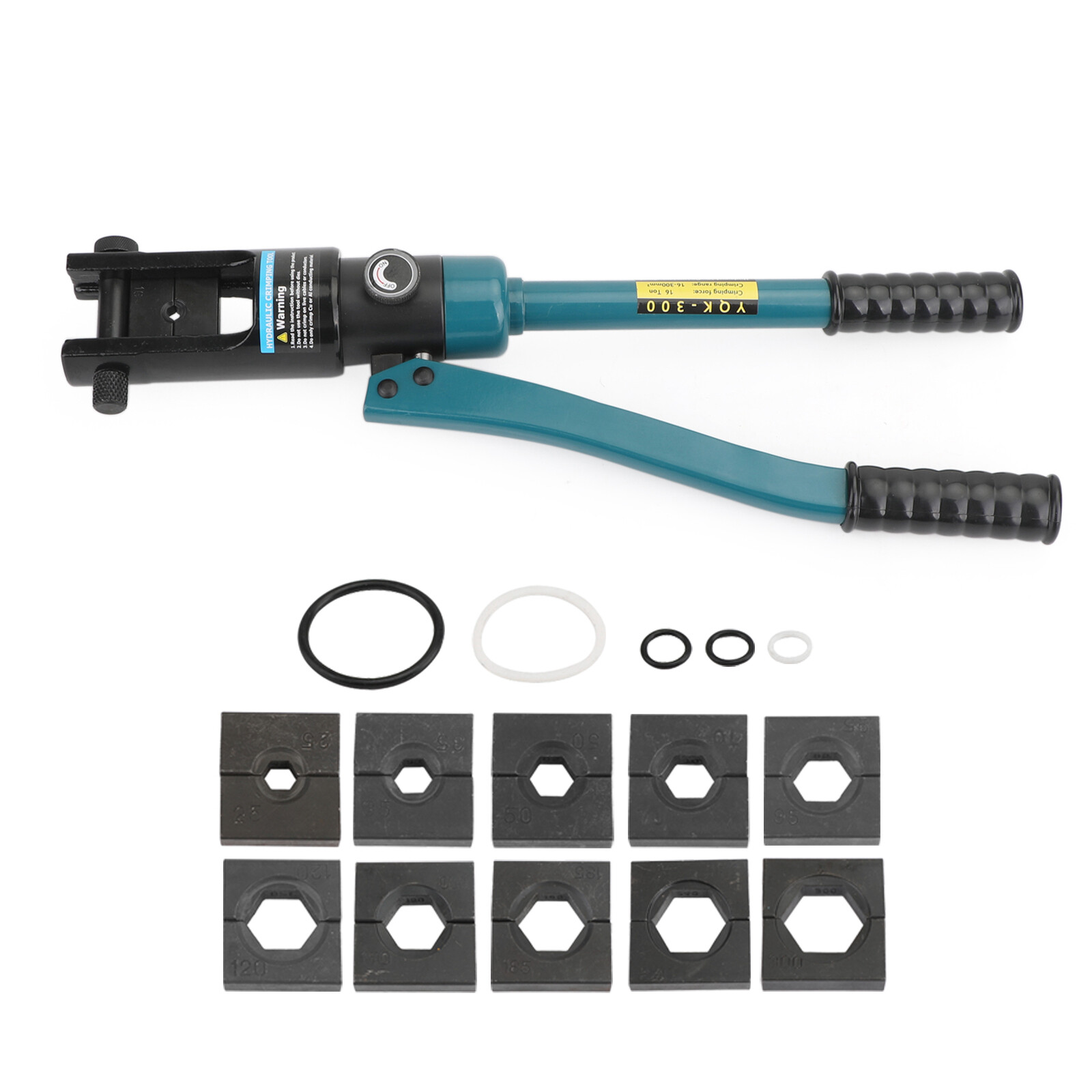

Package Includes:
1 x Hydraulic Crimper
1 x Positive Die Positioning Pin
1 x Strong Protective Storage Carry Case
11 x Pairs of Dies（The product has been improved: Black Dies is thickened and upgraded,high hardness and more durable）
1 x Sealing Ring
