Style A

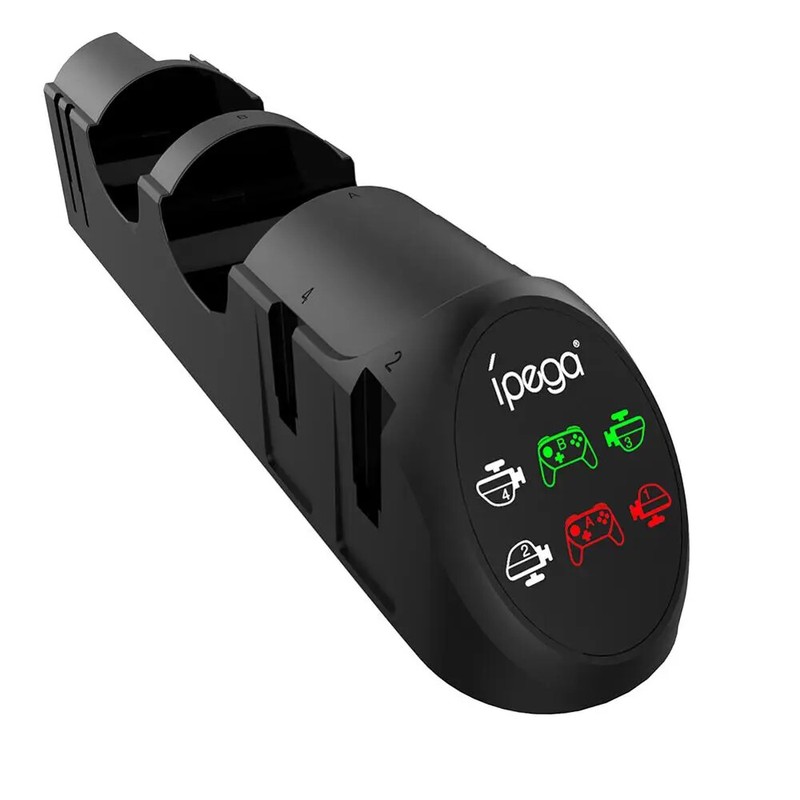

PG-9187 6 in 1 Charging Dock Stand Base Fit for Nintend Switch Joy-Con Pro
Feature:
1. This product is a charging stand used for N-Switch Dock base, which is used for charging joycon and two Pro handles.
2. This product supports the simultaneous charging of four joy con handles and two Pro handles.
3. Equipped with USB2.0 male plug interface, supporting the original dock base for N-Switch to provide power input for the product.
4. The 2 extended USB2.0 female seat supports the communication function, and the extended joycon handle wrist strap socket is convenient for storage.
5. The product is exquisite and simple, with colorful indicating pattern, simple operation and real-time display of the charging state of the handle.

Specification:
Brand: iPega
Model: PG-9187
Input voltage: DC5V
Input current: 2.0A
Charging time of Joy-Con handle: about 3 hours
Charging time of Pro handle: about 4.5 hours
Application: 4pcs joy con for N-Switch left and right small handles, 2 Pro handles, for N-Switch dock base charging
Product size: 243mm * 58mm * 57mm/9.56*2.28*2.24''

Operation:
1. Connect the product to the original dock base for N-Switch to provide power input for the product.
2. After the product is powered on, the "ipega" logo indicator is always on in white, and the handle charging indicator is always on in green.
3. Insert joy con handle or pro handle into the socket for charging. When charging, the corresponding indicator diagram is always on in red and always on in full charge green.
4. The product extends out of two USB2.0 female bases on the base to support communication, and extends two joycon handle wristband sockets for easy storage.

Difference between PG-9186 & PG-9187
PG-9186
Application: Charging for 4 JoyCon handles
USB Interface: 1 x Extended USB2.0 female socket
PG-9187
Application: Charging for 4 JoyCon handles and 2 Pro handles
USB Interface: 1 x Extended USB2.0 female socket

Note:
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

Packing:
1 X Charging Dock Station
1 X Manual

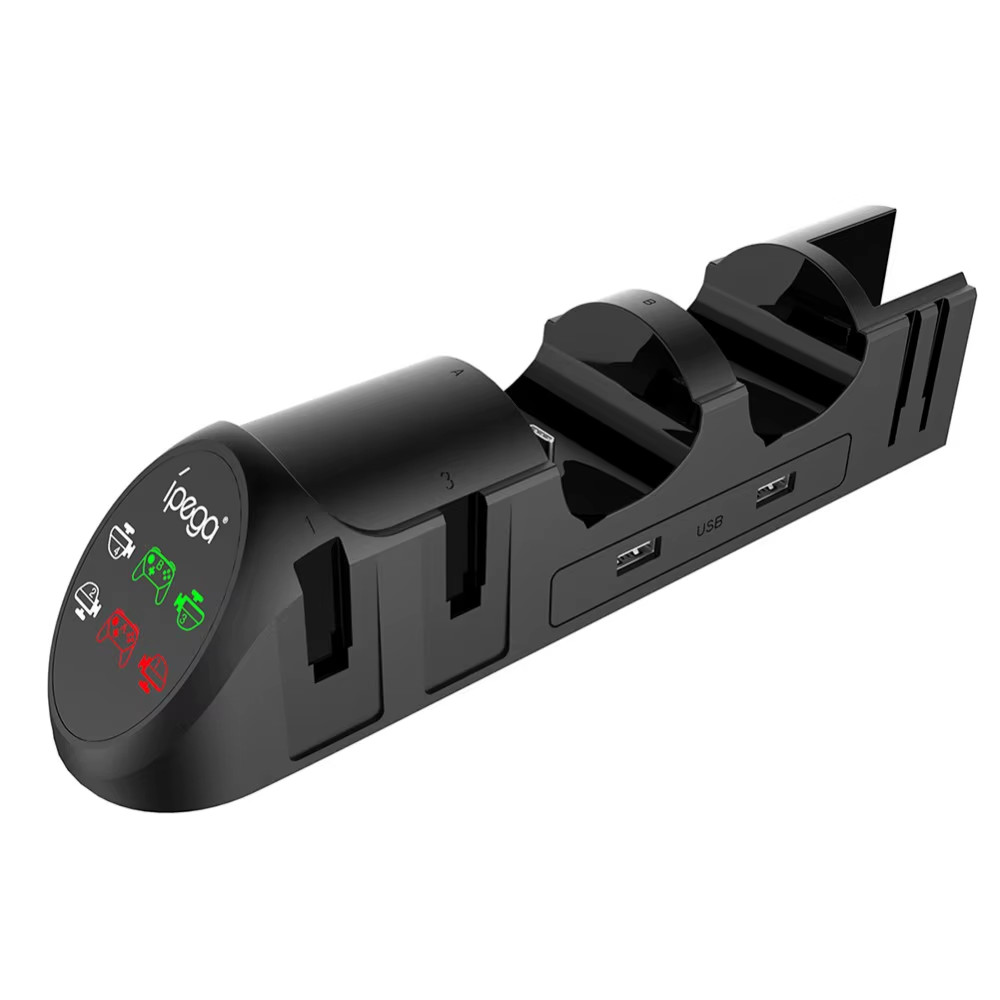

Support communication function

No pressure at the same time
It can charge 4 joy con handles and 2 Pro handles at the same time, and expand 2 joycon handle wristband sockets for easy storage

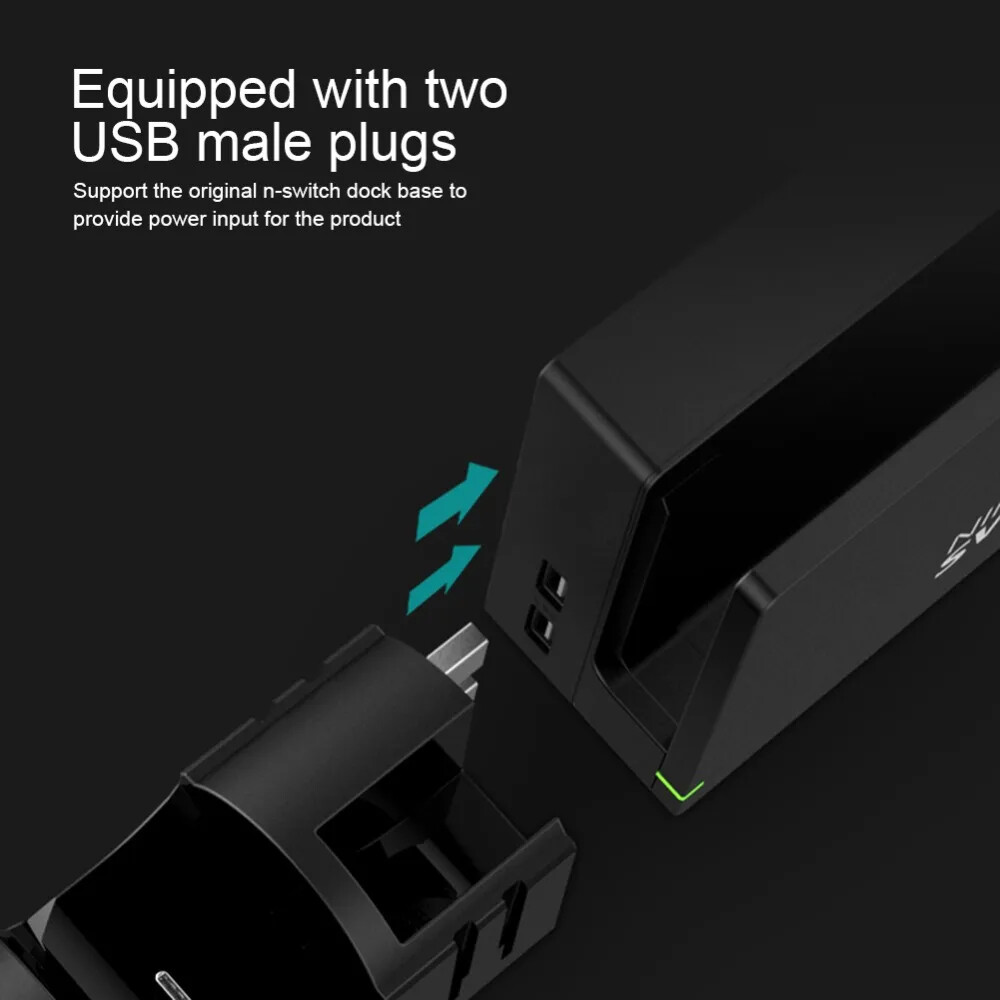

Equipped with two USB male plugs
Support the original n-switch dock base to provide power input for the product

6-in-1 switch charging base

Integrated storage design
This product supports the charging of 4 joy con handles and 2 Pro handles at the same time, and the storage of 2 joycon=handle wristband sockets, which can not only charge but also neatly store the handles

The red light is always on Charging

The green light is always on Complete charging

Charging mode 1
USB connection n-switch base 2. Connect the power supply

Style B

PG-9186 Controller Charger Charging Dock Stand Station Holder for Nintendo Switch Joy-Con Game Console with Indicator
Features:
1. The item is a charging stand for use with the original stand of the N-Switch Dock for N-Switch JoyCon.
2. The item has 4 charging slots of ABCD, which supports charging for 1 to 4 JoyCon handles at the same time.
3. Equipped with USB2.0 male plug interface, support for N-Switch Dock original stand to provide power input for the product.
4. Extended USB2.0 female socket, support DC 5V power output, support communication function. 5. Product compact and simple, easy to operate, real-time display controller charging status.

Specifications:
Input voltage/current: DC 5V/1.0A
Working current: 840±20mA
Charging voltage: 4.5V~5.25V
Single controller charging current: 220±10mA
Input current: 1.0A
Product power: 4.2W
Charging time: 3~3.5h
Product size: 182mm*65mm*28mm/7.17*2.56*1.10"
Package weight: 100g

Instructions for use:
1. Connect the item to the original stand of the N-Switch Dock to provide power input for the product.
2. After the product is powered on, the charging indicators of the four controller slots are steady blue.
3. Insert the controller into any slot for charging. When charging, the corresponding indicator light is always on, and the corresponding indicator light is steady blue when fully charged.
4. Equipped with double-sided adhesive tape, the product can be effectively fixed on the original base of N-Switch Dock.
