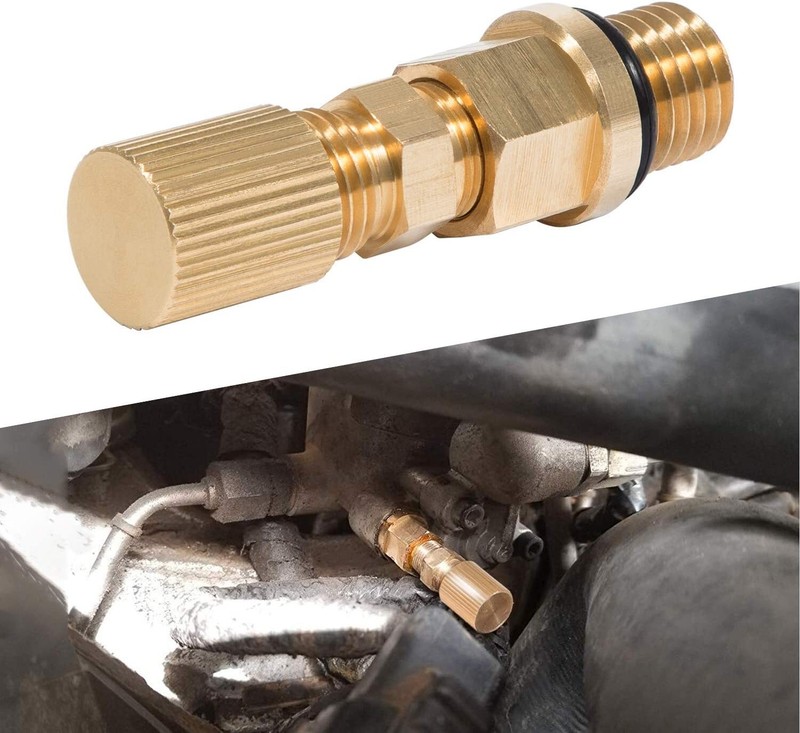

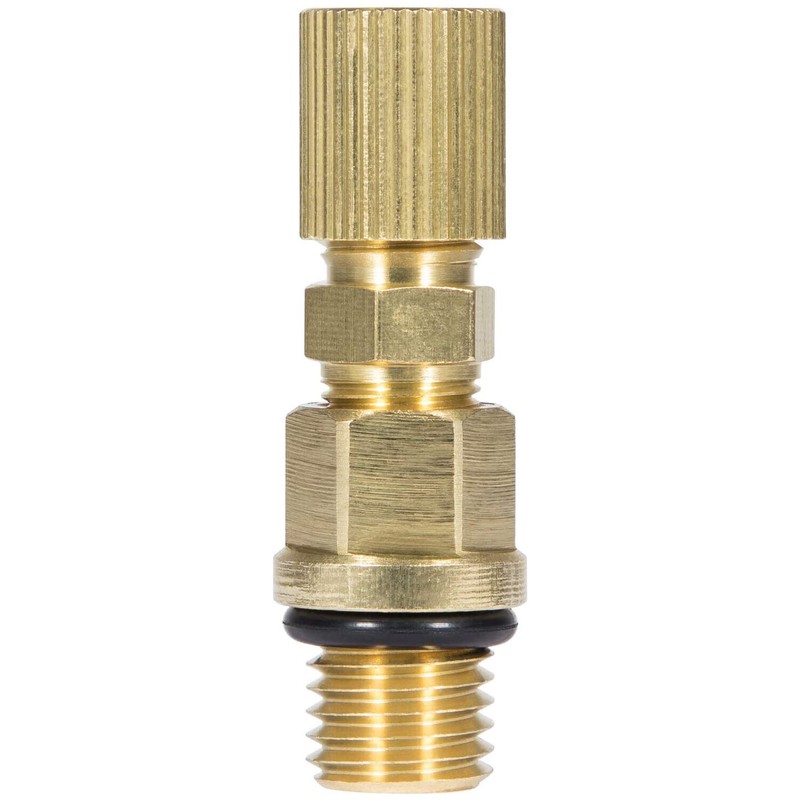

6.0L Powerstroke Fuel Pressure Test Fitting Fit for 2003-2010 Ford Diesel Engine
Fitment
Perfectly fit for 2003-2010 Ford 6.0L diesel engine.
Application
This proper fitting will help you easily connect a standard fuel pressure gauge to fit for 6.0L Ford Powerstroke Diesel.
High Quality
High Quality CNC Machined from Brass with excellent mechanical and physical properties, this adapter fitting shows its high tightness, corrosion resistance and durability.
Hoe to Use:
1. Remove the factory fuel pressure test plug (Allen head) located on the secondary fuel filter housing on top of the engine
(Note: Always were safety glasses when working with pressurized fuel!)
2. Screw in the adapter fitting and tighten lightly with a wrench to seat the O ring
3. Attach your fuel pressure gauge to the Schrader fitting and finger tighten
4. Start the engine and carefully check for leaks
5. When finished, remove the fuel pressure gauge and adapter fitting and re-install the factory Allen plug
(Tips: 1. It is suggested to check fuel pressure any time new injectors are installed. 2. lube the o ring before installation
(Note: Always were safety glasses when working with pressurized fuel!)
2. Screw in the adapter fitting and tighten lightly with a wrench to seat the O ring
3. Attach your fuel pressure gauge to the Schrader fitting and finger tighten
4. Start the engine and carefully check for leaks
5. When finished, remove the fuel pressure gauge and adapter fitting and re-install the factory Allen plug
(Tips: 1. It is suggested to check fuel pressure any time new injectors are installed. 2. lube the o ring before installation
Note
Always wear safety glasses when working with pressurized fuel!
Please don't forget to lube the o ring before installation.
Do not leave the fitting installed. The valve will leak and kill your injectors
