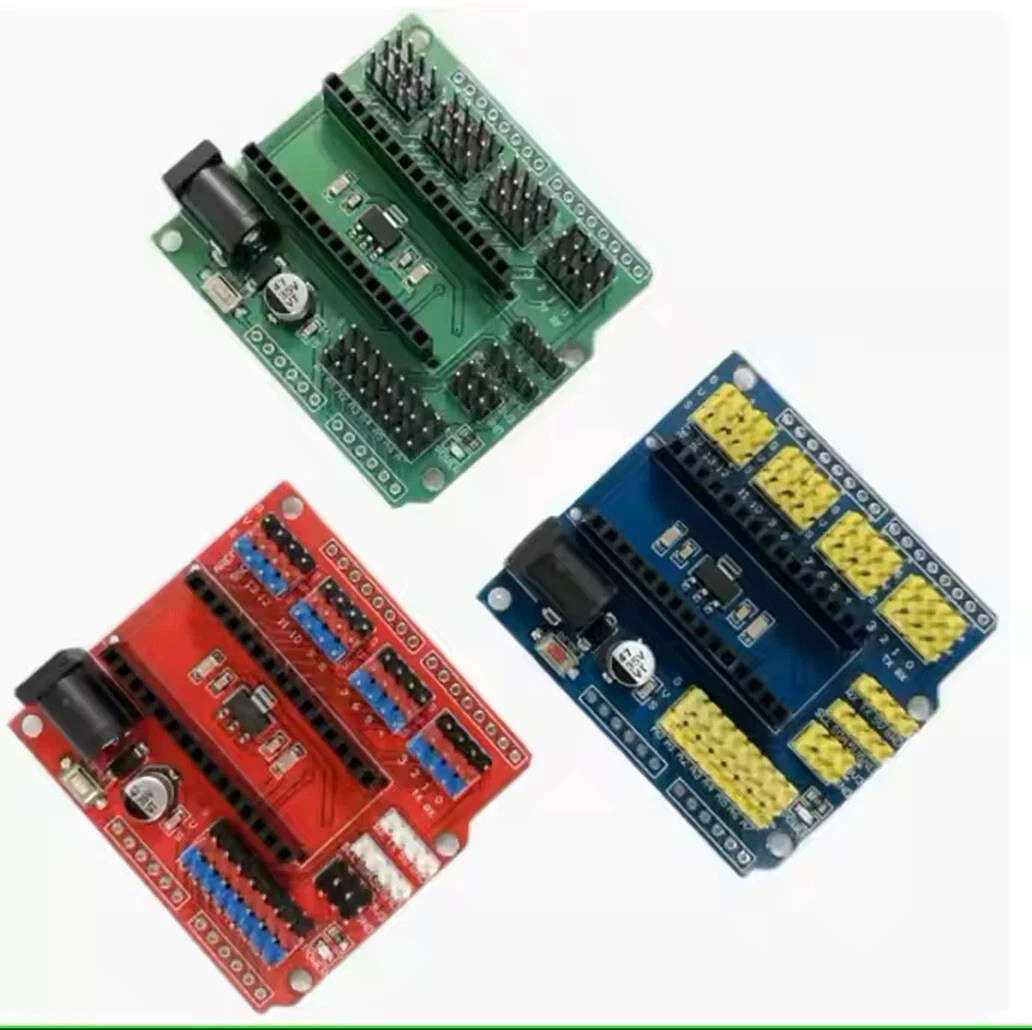

Arduino Nano V3.0 Prototype Shield I/O Extension Board

The Arduino Nano V3.0 Prototype Shield is a versatile I/O expansion board designed to simplify prototyping with the Arduino Nano. It offers seamless integration for connecting various sensors, modules, and other peripherals, allowing you to extend the functionality of your projects effortlessly.

Features:

• Compatible with Arduino Nano V3.0 and similar boards
• Breakout all I/O pins for easy connection
• Onboard reset button for added convenience
• Integrated power and GND rails for efficient wiring
• Supports additional power input for enhanced functionality
• Simplifies prototyping with a compact and user-friendly design

Technical Specifications:

• Dimensions: 60mm x 18mm
• Compatible Board: Arduino Nano V3.0
• Operating Voltage: 3.3V / 5V
• Power Supply Pins: Multiple GND and VCC pins
• Pinout: Breakout for all Nano pins (D0-D13, A0-A7)
• Mounting: Standard Nano socket with additional soldering pads

Applications:

• Rapid prototyping of Arduino Nano-based projects
• IoT and robotics development
• Sensor and module integration
• Educational electronics experiments

Package Includes:

• 1/3/5/(3-RGB) x Arduino Nano V3.0 Prototype Shield I/O Extension Board

Note: This shield is the perfect companion for Arduino Nano, streamlining the prototyping process while offering flexibility and ease of use. Whether you're a beginner or an expert, this module helps bring your ideas to life.
