The Following Items Are Included:

Fluke BT521 Advance Battery Analyzer : (BC# -L/T*)
BTL10 Test Leads
AC Adapter/Charger
USB PC Interface Cable
User Manual On Cd-ROM
Soft Carrying Case(G)

BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS!

This Item Has A Current Calibration!

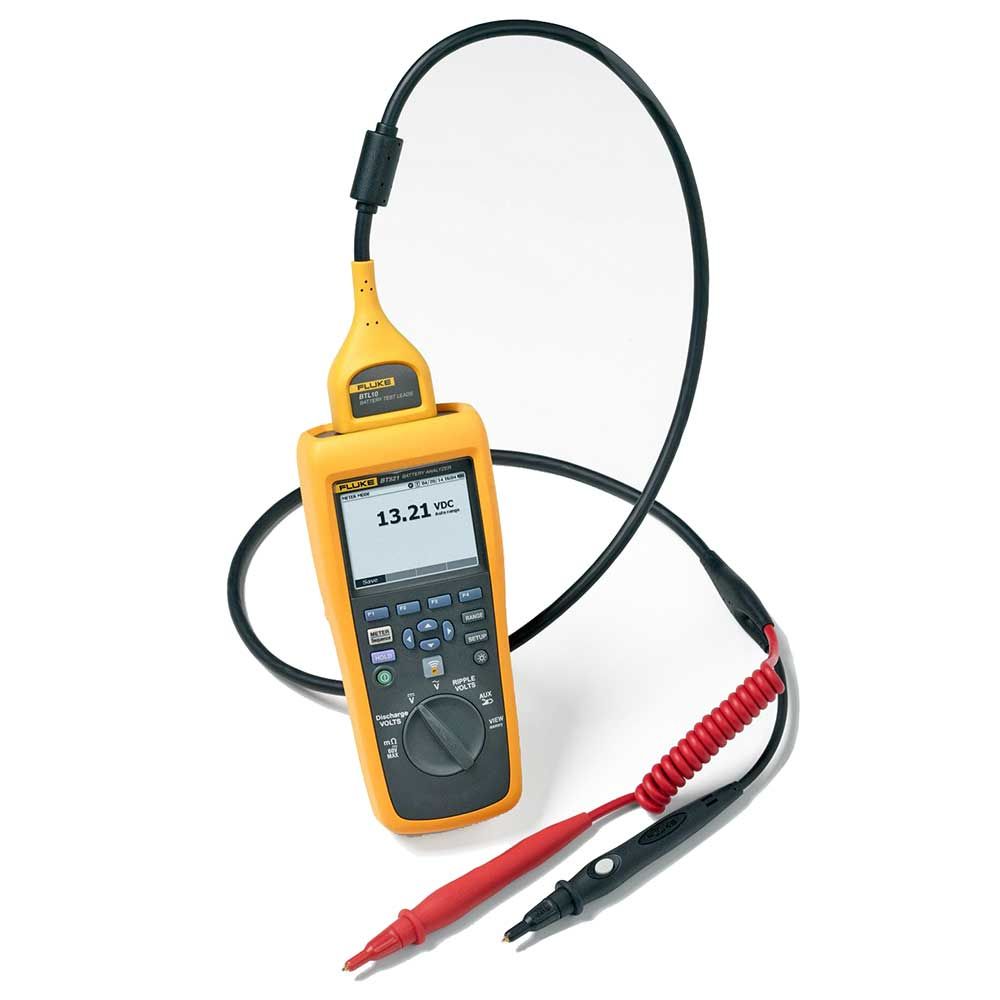

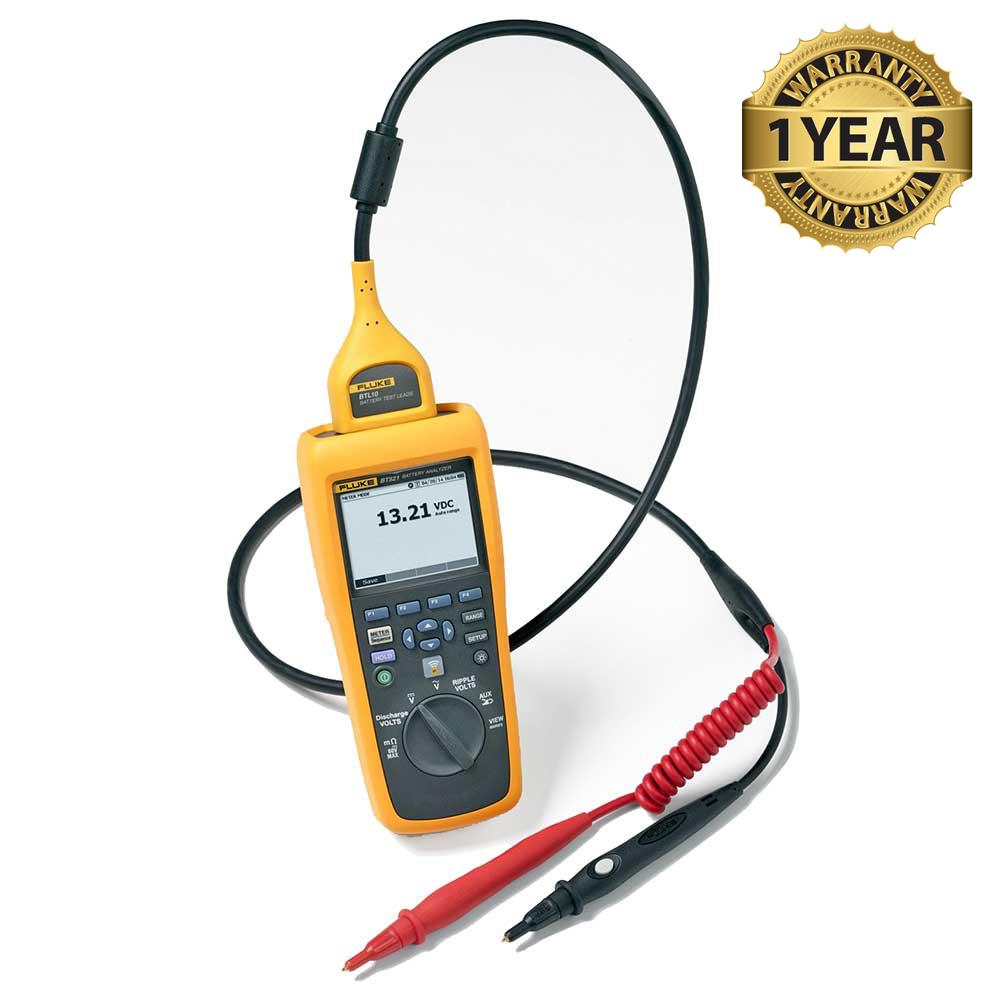

Fluke BT521 Advance Battery Analyzer

Reduced testing complexity, a simplified workflow and an intuitive user interface provide a new level of ease-of-use in battery testing.

500 Series Battery Analyzers are designed for measurements on stationary batteries of all types.

Includes Hard Carrying Case & Accessories As Listed Above!

Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY

Fluke BT521 Advance Battery Analyzer

The new Fluke 500 Series Battery Analyzer is ideal test tool for maintenance, troubleshooting and performance testing of individual stationary batteries and battery banks used in critical battery back-up applications.

Key Measurements:

Battery resistance
DC and AC voltage
DC and AC current
Ripple Voltage
Frequency
Battery temperature

Sequence measurement mode:

Automatic or manual sequence testing of battery strings with automatic measurement storage including voltage, resistance and temperature (with BTL21 intelligent test probe).

Comprehensive Logging:

All measured values are automatically captured during testing and can be reviewed on the instrument before downloading.

Optimized user interface:

Quick, guided setup ensures you’re capturing the right data every time, and the combined visual and audio feedback cues reduce the risk of measurement confusion.

Threshold comparison:

Configure multiple reference values and thresholds for resistance and voltage. Comparison result feedback after each measurement via visual and verbal cues.

Ergonomic test leads:

Rugged coaxial two pole kelvin test pins with remote SAVE button reduce test time and increase efficiency.

Specifications:

Functions	Range	Resolution	Accuracy
Battery resistance/ Strap resistance	3 mΩ	0.001 mΩ	1 % + 8
	30 mΩ	0.01 mΩ	0.8 % + 6
	300 mΩ	0.1 mΩ	0.8 % + 6
	3000 mΩ	1 mΩ	0.8 % + 6
Vdc	6 V	0.001 V	0.09 % + 5
	60 V	0.01 V	0.09 % + 5
	600 V	0.1 V	0.09 % + 5
	1000 V	1 V	0.09 % + 5
Vac (45 Hz to 500 Hz with 800 Hz filter)	600 V	0.1 V	2 % + 10
Frequency (displayed with Vac and Aac)	500 Hz	0.1 Hz	0.5 % + 8
AC voltage ripple (20 KHz Max)	600 mV	0.1 mV	3 % + 20
	6000 mV	1 mV	3 % + 10
Adc/Aac (with accessory Fluke i410)	400 A	1 A	3.5 % + 2
Temperature	0 °C to 60 °C	1 °C	2 °C (4 °F)
Meter mode	999 records for each measurement position with time stamp
Sequence mode	Up to 100 profiles and 100 profile templates (Each profile stores up to 450 batteries) with time stamp
