6A Mini LED Dimmer RF Wireless 14Key Remote Control LED Strip Light Controller

Details

Product Feature:
1. The wireless RF mini controller is an exquisite and compact LED controller that does not require any welding. It can be used directly by plugging in the power supply and light strip, which is very convenient and fast
2. Used to control four types of light strips: monochrome, color temperature, RGB, and RGBW; Dynamic lighting effects such as gradient, jump, gradual dimming, flickering, and burst can be selected according to different customer needs, as well as various static colors to choose from
3. Can be widely used in TV background walls, bedside tables, bar counters, and other application scenarios
4. The product adopts high-quality materials with guaranteed quality and long service life
5. The product has stable performance and is also very suitable for DIY enthusiasts

Product parameters:
Product Name: Wireless RF Mini Controller
Working temperature: -20~60 ℃
Power supply voltage: DC5-24V
Connection method: Gongyang

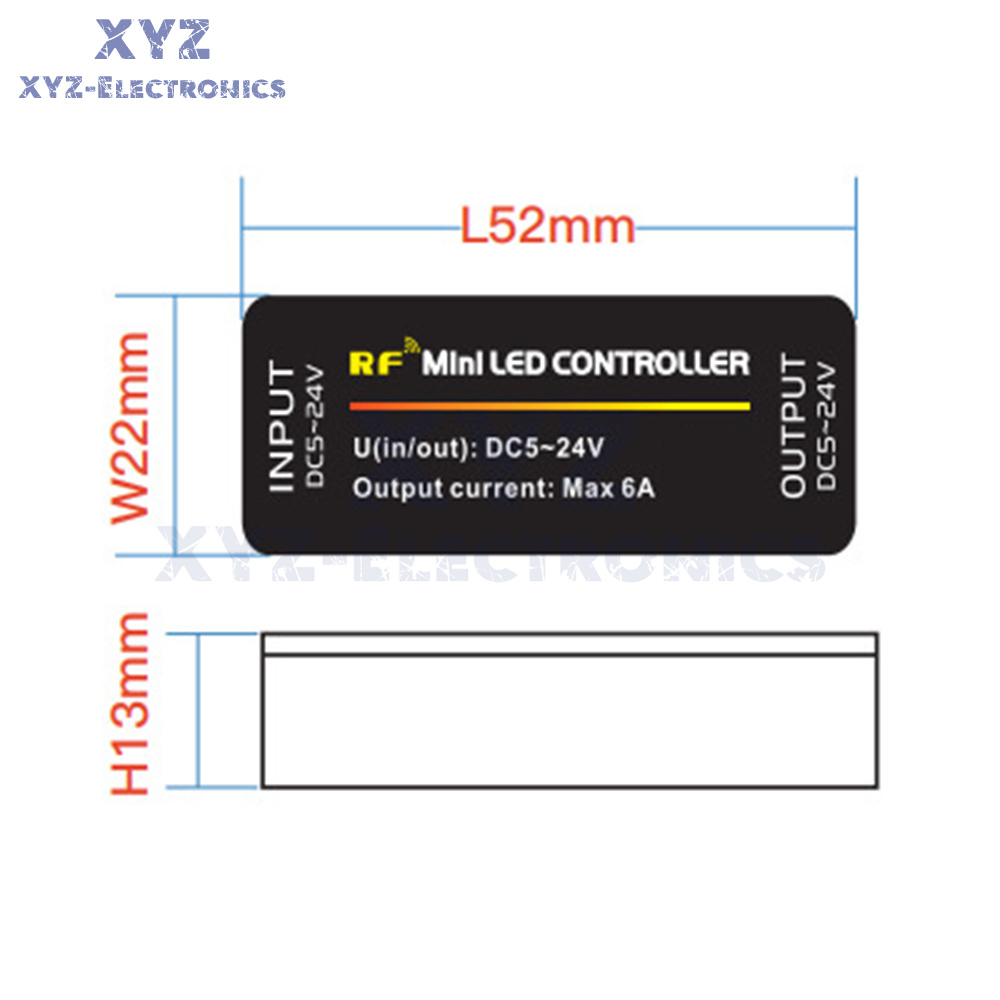

Controller size: L55 × W22 × H13mm
Static power consumption:<0.5W
Output current:<2A/CH Maximum: 6A (thick wire, high-quality PCB, chip, MOS transistor, capable of full load wiring)
Output power: maximum: 5V:<30W, 12V:<72W, 24V:<144W
Remote control battery: CR2025

Interface Description:
1. Power input interface:
Adopting a 5.5 * 2.1mm DC female interface input (using custom thickened wire, capable of withstanding 6A, while ordinary connectors can only withstand 3A)
2. Load output interface:
Adopting: opposite plug female output (thick all copper wire core can be fully loaded for connection)
Monochrome: DC male (5.5 * 2.1mm)
Color temperature: 4pin female head
RGB: 4pin female head
RGBW: 5pin female head

Wiring instructions:
1. First connect the load light strip and ensure that there is no short circuit in the light strip before powering on
2. After confirming that there is no short circuit, connect the 5-24V power supply and do not connect the high-voltage power

Precautions:
(For indoor use only and applicable to lighting equipment)
1. The input voltage of the controller is DC5-24V, which requires the use of a power adapter. Do not input directly at high voltage or other voltages. Please pay attention to safety when connecting.
2. Please connect the power supply, controller, and lighting fixtures in a power off state, and then power on. Please do not reverse the positive and negative poles of the input and output.
3. Please do not overload the device. The maximum output current of the device is 6A, otherwise it may cause damage to the device or affect its service life; Before using the remote control, please pull out the locking tab under the remote control.
4. Please do not use in high dust and high temperature environments. If not used for a long time, please turn off the power.
5. Non professional engineers are advised not to disassemble, disassemble or replace components on their own to avoid equipment damage.
Default shipping code for products:
1. If you want to pair the codes one by one, the controller will be powered off and powered on again. Long press the power on button and the light will flash white, and the code pairing is successful.
2. If you want a one-to-many pass code, the controller will be powered off and powered on again. Press and hold the power off button and the light will flash white to clear the code successfully.

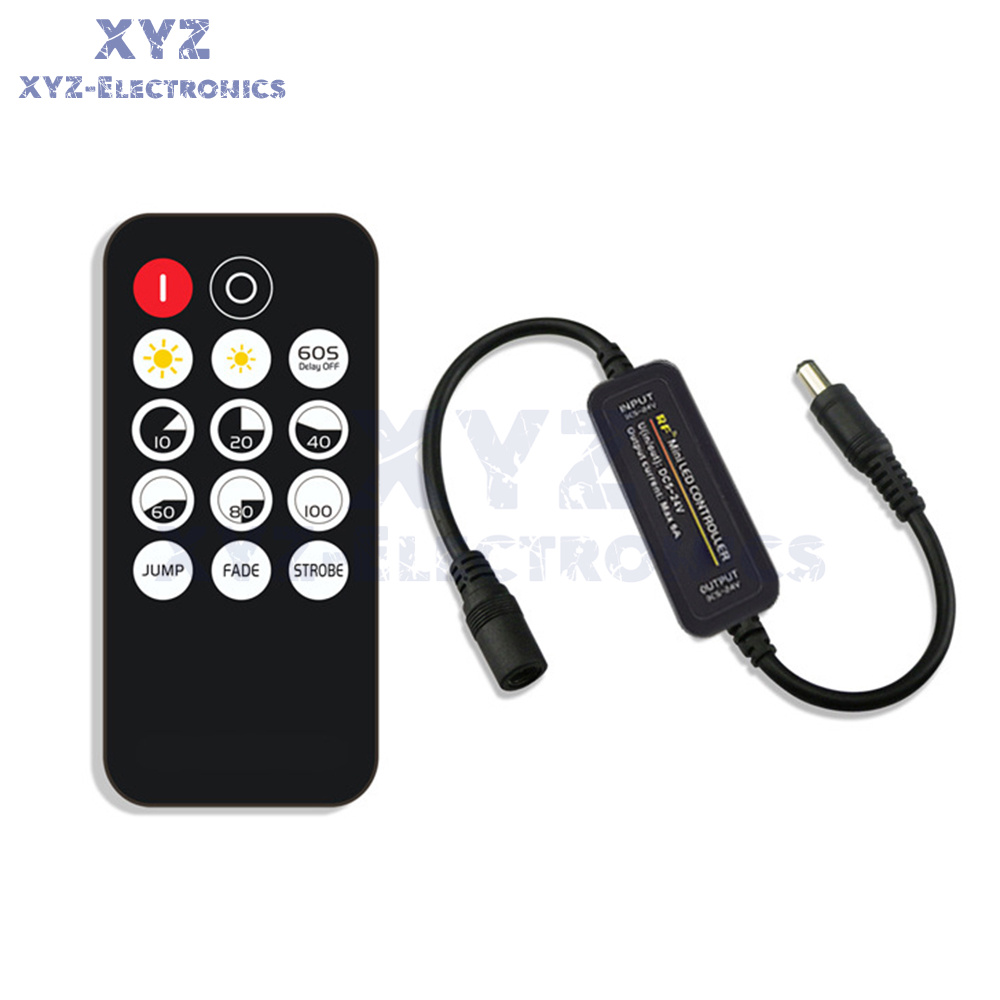

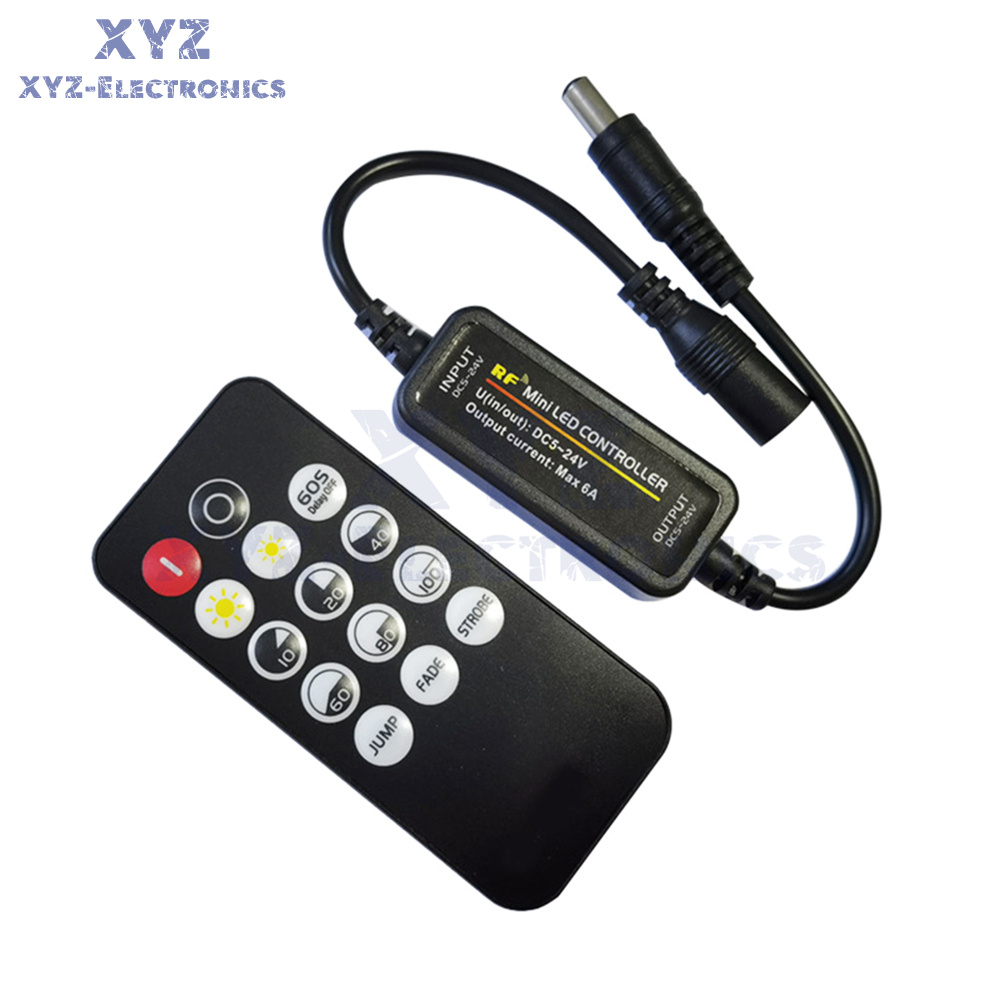

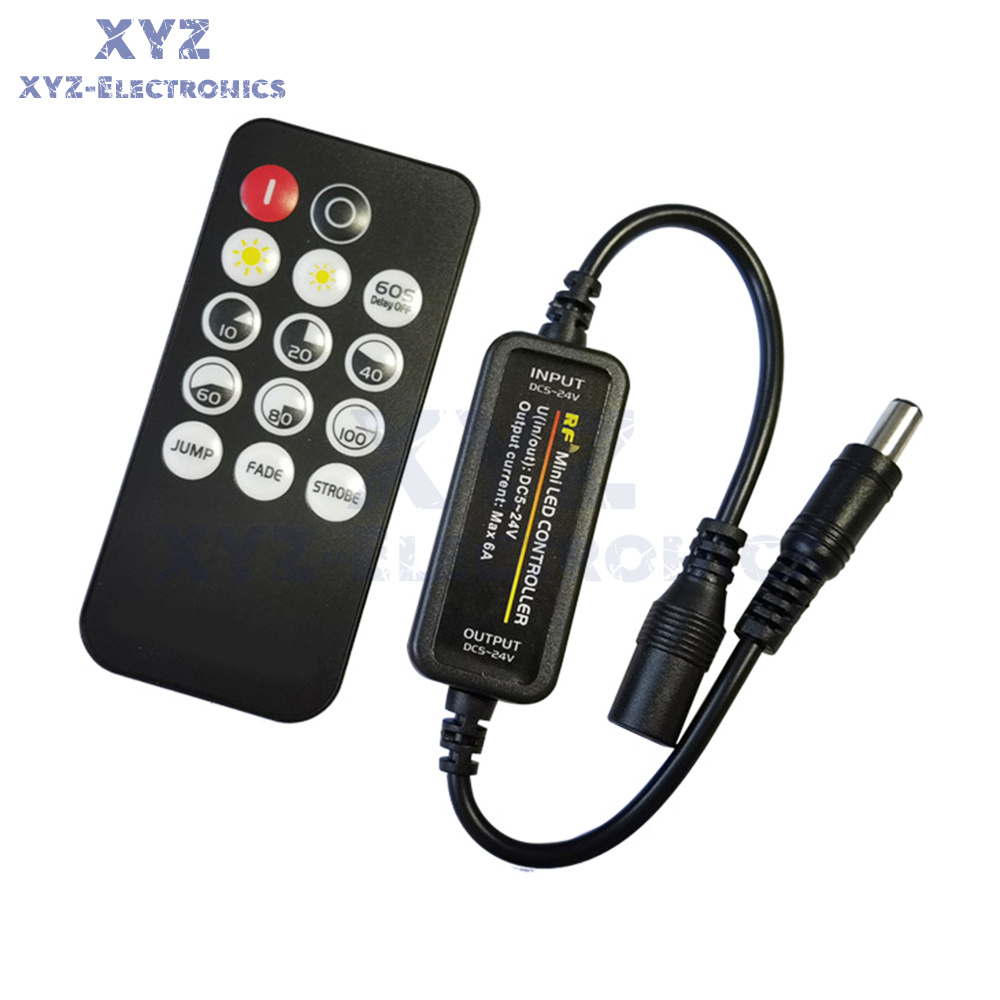

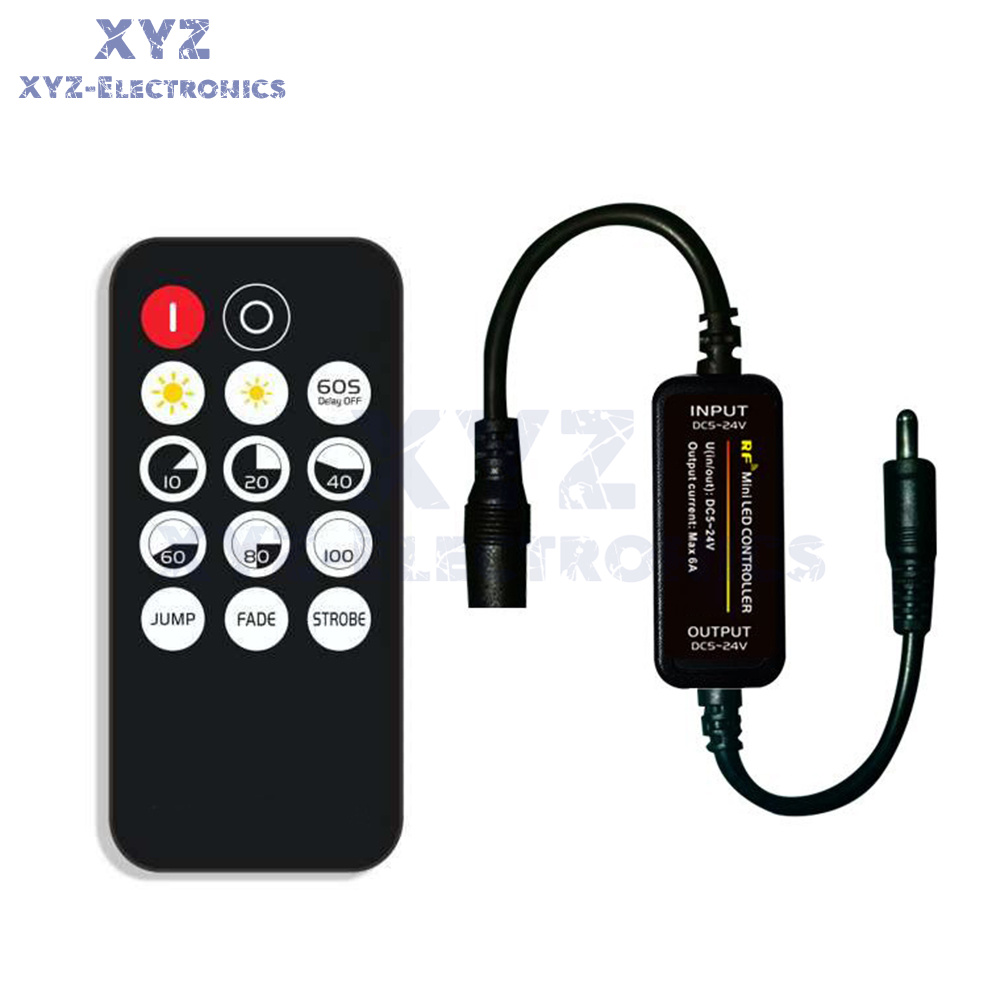

Shipping list:
Controller X1
Remote control X1
Instructions X1


This is the description of Payment Method.


Do not dismiss your dream.

To be without dream is to be without hope.

To be without hope is to be without purpose.

Do not run through your life so fast that you forget not only where you have been, but also where you are

going.

Life is not race, but a journey to be savored each step of the way.

This is the description of Returns Policy.

Do not dismiss your dream.

To be without dream is to be without hope.

To be without hope is to be without purpose.

Do not run through your life so fast that you forget not only where you have been, but also where you are

going.

Life is not race, but a journey to be savored each step of the way.

Copyright©2017 DataCaciques

6A Mini LED Dimmer RF Wireless 14Key Remote Control LED Strip Light Controller

Details

Product Feature:
1. The wireless RF mini controller is an exquisite and compact LED controller that does not require any welding. It can be used directly by plugging in the power supply and light strip, which is very convenient and fast
2. Used to control four types of light strips: monochrome, color temperature, RGB, and RGBW; Dynamic lighting effects such as gradient, jump, gradual dimming, flickering, and burst can be selected according to different customer needs, as well as various static colors to choose from
3. Can be widely used in TV background walls, bedside tables, bar counters, and other application scenarios
4. The product adopts high-quality materials with guaranteed quality and long service life
5. The product has stable performance and is also very suitable for DIY enthusiasts

Product parameters:
Product Name: Wireless RF Mini Controller
Working temperature: -20~60 ℃
Power supply voltage: DC5-24V
Connection method: Gongyang
Controller size: L55 × W22 × H13mm
Static power consumption:<0.5W
Output current:<2A/CH Maximum: 6A (thick wire, high-quality PCB, chip, MOS transistor, capable of full load wiring)
Output power: maximum: 5V:<30W, 12V:<72W, 24V:<144W
Remote control battery: CR2025

Interface Description:
1. Power input interface:
Adopting a 5.5 * 2.1mm DC female interface input (using custom thickened wire, capable of withstanding 6A, while ordinary connectors can only withstand 3A)
2. Load output interface:
Adopting: opposite plug female output (thick all copper wire core can be fully loaded for connection)
Monochrome: DC male (5.5 * 2.1mm)
Color temperature: 4pin female head
RGB: 4pin female head
RGBW: 5pin female head

Wiring instructions:
1. First connect the load light strip and ensure that there is no short circuit in the light strip before powering on
2. After confirming that there is no short circuit, connect the 5-24V power supply and do not connect the high-voltage power

Precautions:
(For indoor use only and applicable to lighting equipment)
1. The input voltage of the controller is DC5-24V, which requires the use of a power adapter. Do not input directly at high voltage or other voltages. Please pay attention to safety when connecting.
2. Please connect the power supply, controller, and lighting fixtures in a power off state, and then power on. Please do not reverse the positive and negative poles of the input and output.
3. Please do not overload the device. The maximum output current of the device is 6A, otherwise it may cause damage to the device or affect its service life; Before using the remote control, please pull out the locking tab under the remote control.
4. Please do not use in high dust and high temperature environments. If not used for a long time, please turn off the power.
5. Non professional engineers are advised not to disassemble, disassemble or replace components on their own to avoid equipment damage.

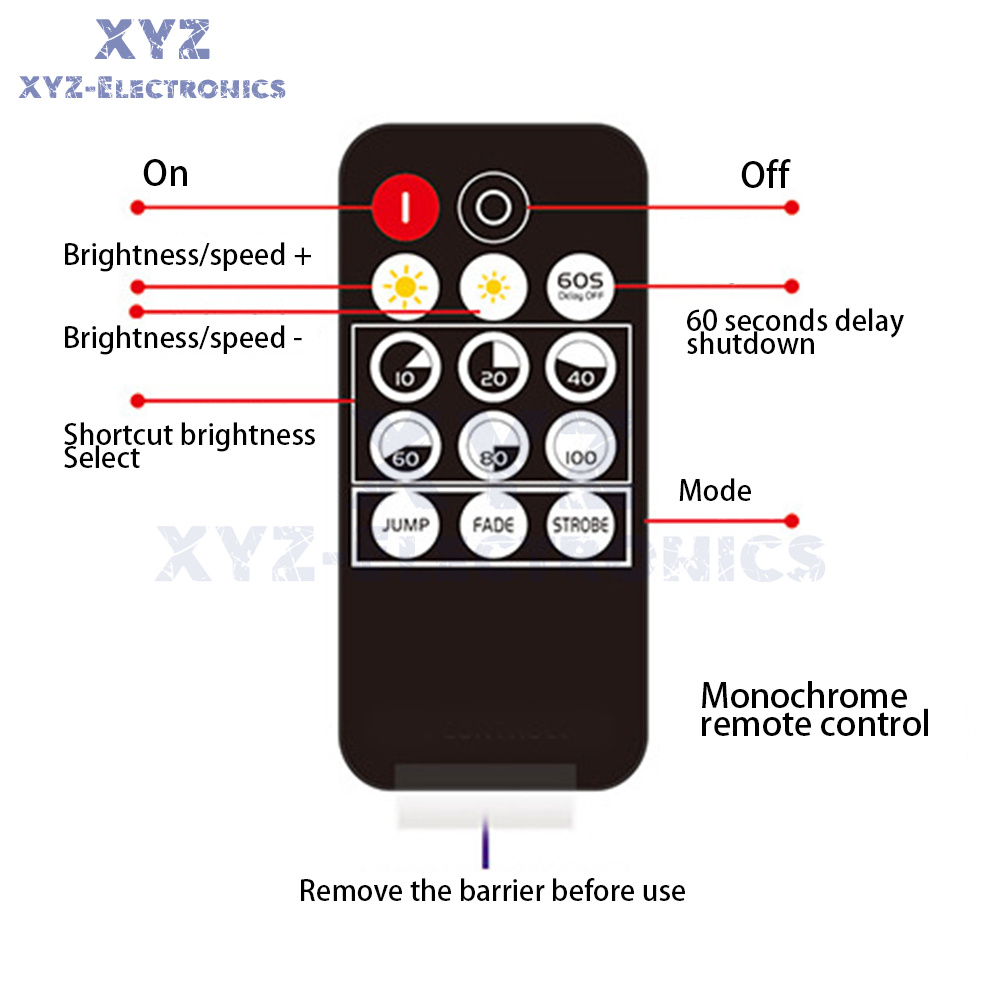

Default shipping code for products:
