Model： UDP2TS UDP2TS
Working pressure: 2-6KGF/CM2
Air consumption 35 liters/minute
Air connection: 6MM
Self-priming vacuum: 680MMHg
Output flow rate 7L/MIN
Liquid connection 3/8 inch
Pump body material: POM/PPS POM/PPS

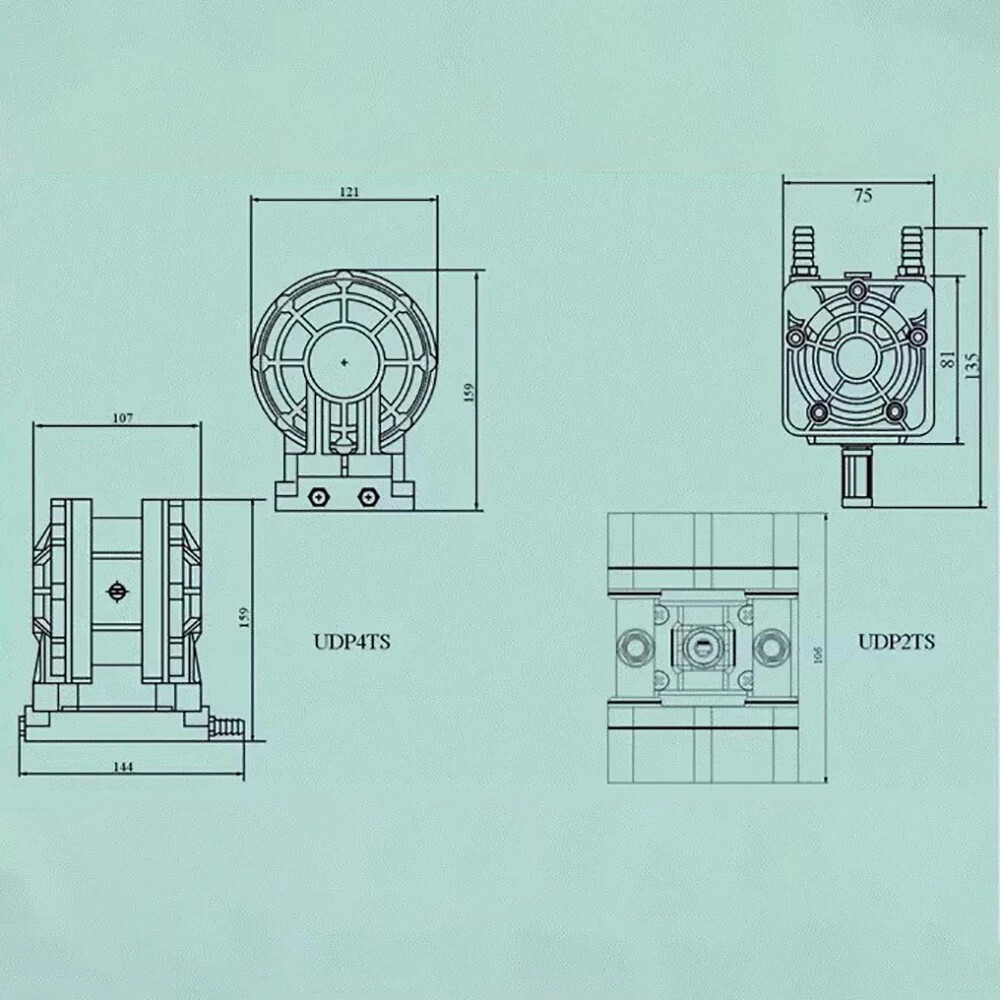

Mounting size: 48x30MM (M4)
Product size: 81x75x135MM
Weight:0.8kg
1、Pump suction peanut butter, pickle water, mashed potatoes, water red sausage, jam, chocolate and so on.
2、Pump suction paint, gum, materials.
3、Adhesives and glue, all available types of pump suction.
4、Various types of tile, porcelain, brickware and pottery glaze slurry.
5, oil wells drilled, with the pump to absorb sediments and grouting.
6、Pumping all kinds of emulsions and fillers.
7、Pumping all kinds of sewage.
8、Pump for oil tankers, barge clearing warehouse to absorb sewage in the warehouse.
9, hops and baking powder thin slurry, syrup, sugar density.
10、Pump suction mine, pit, tunnel, ore dressing, mine pool in the water. Pumping cement grout and mortar.
11, a variety of abrasives, corrosives, oil and mud, cleaning scale and general containers.
12, a variety of highly toxic, flammable, volatile liquid solvents.
13, a variety of acids, alkalis, corrosive liquids.
14, as a variety of solid-liquid separation equipment, the front stage of the pressure device.
(1) pneumatic diaphragm pump is powered by compressed air, proper lubrication can make the pump run more stable and can extend the life of the pump.
2） Ensure that the compressed air is clean, unclean gas is easy to wear the valve, it is recommended to install pneumatic triplex!
3） Switch on and off the pump slowly to minimize the impact on the pipeline and diaphragm, and check whether the pipeline connection is loose before starting the pump.
(4) When conveying dangerous liquid, please connect the exhaust of the pump to a safe place to avoid the danger when the diaphragm is damaged.
(5) Please clean the pump in time after conveying liquids that are easy to dry up, so as not to damage the diaphragm or prevent it from starting next time.
6) When the pipeline is long, fix the pipeline and do not use the pump to bear the weight and vibration of the pipeline.
