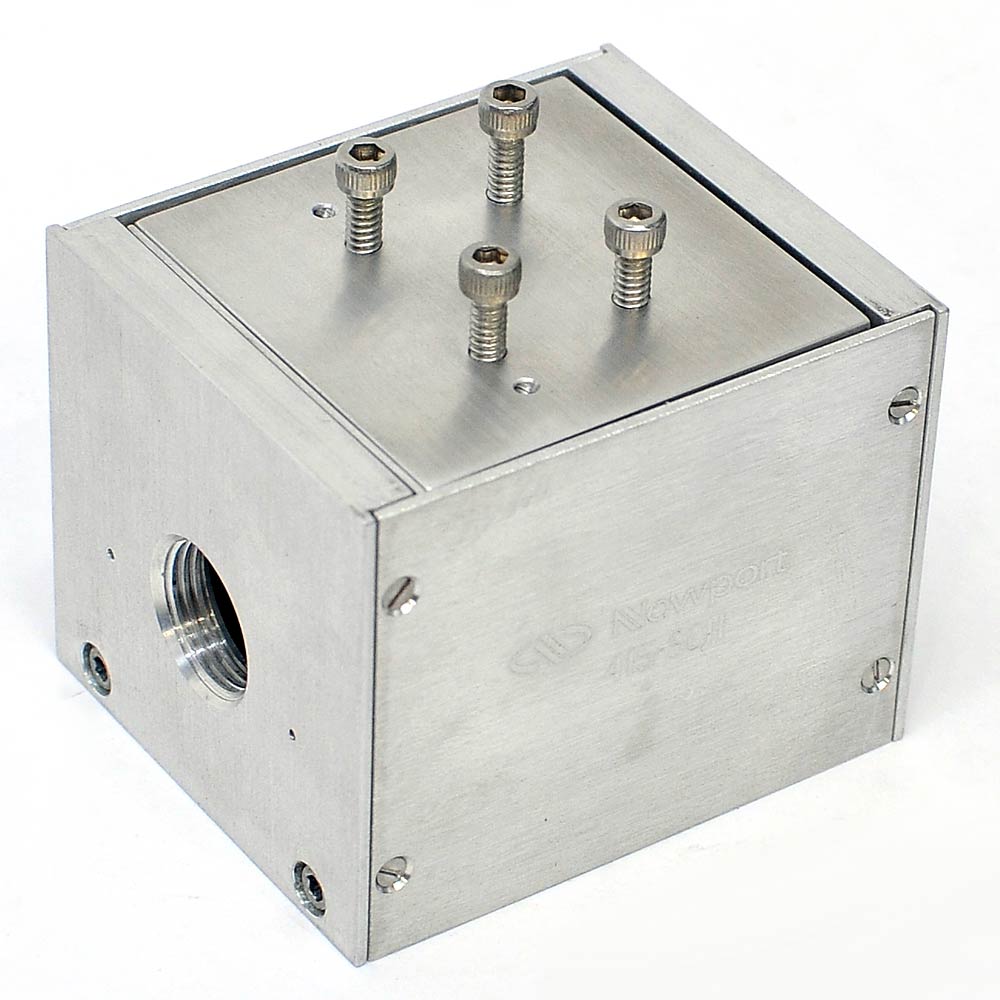

Newport 415-SCH Precision Vertical Translation Stage Lab Jack 8mm Travel 49x49mm
Manufacturer: Newport
Model: 415-SCH
Condition: Used
Manufacturer: Newport
Condition: Used. Comes in non-original packaging. This stage is in Good cosmetic condition with only minor blemishes from prior use. We couldn't find any specifications for this stage online, but it appears to be nearly identical to the Newport MVN50 linear stage. Please note: two of the tiny screws holding on a side cover are missing. The previous installation made inserting these screws impossible so the previous owner just left them out.
Notes: This stage is in Good working condition. The previous application used rods to push a couple of these to rise at the same time, and these were left on the fixture where this stage used to be. Pushing on the polished friction surface makes the stage move up very smoothly. No other testing was done. No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
- (1) Newport 415-SCH Precision Vertical Stage
Specifications:
- Manufacturer: Newport
- Model: 415-SCH
- Lab jack/vertical motion stage
- Precision wedge jack
- Intended for use with micrometer adjuster, not included
- Roller bearings on all friction surfaces
- Spring-loaded for negligible backlash
- THK linear motion guides
- Threaded holes top and bottom for mounting
- Load capacity: 60 N
- Translation travel:8 mm
- Overall dimensions: 64 x 54 x 51 mm
- Moving stage dimensions: 49 x 49 mm
