Für Old Chrysler Jeep Dodge Plymouth Carplay Stereo Radio GPS Wifi Head Unit 6.8
| NOTE |
Attention: lf your car has factory amplifier, please contact us to purchase another kind of power harness, otherwise there may be no sound |
Specifications |
|
General |
- Power Supply: DC 12V (allowance range: 10.8-14.5V) - Max. Current: 10A - Screen Size: 6.8 inch - Din: 1 Din - Front panel Size: As picture show |
|---|---|
| Fitment | For Chrysler |
System |
- Operation System: Android 13 - CPU: Quad Core - GPU: Quad Core - ROM: 16GB - RAM: 1GB- Extended USB: Support USB Disk up to 32GB |
| Support Carplay/Android Auto | -Build-In Support WIFI Wireless & USB Wired Carplay And Android Auto. |
Display |
- Touch Screen: Yes - Resolution: 1280*480 - Capacitive or Resistance Screen: Capacitive - Built-in Clock and Calendar: Yes, show real time and can use network-provided time - Main Menu Status Bar display: Can be changed to Music/Radio/BT-Stereo Player and Clock/Date/Week - Change Apps-Icon Position: Yes - Picture in picture split screen:Yes Split screen feature enables you to use two applications at the same time. For example running Navigation with Music Player or Radio with Navigation at the same time. Optimum convenience for both the driver and passengers. |
| EQ | - 16 segment EQ regulation |
WiFi/3G/4G |
- Connector: On the Back - WiFi: Built-in WiFi Modem, support 802.11b/g/n - Supports 4G & 3G Internet (4G Dongle and 3G Dongle are not included) |
Internet |
- Explorer: Opera, UCWeb, SkyFile, Dolphin and more explorer for your selection - Online Entertainment: Online Video, TV, Movie, Music, Radio, Video Chat - Online Navigation: Online Google Maps Navigating - Online Games: Yes, online play or you can download it from google play store - Online Communication: WeChat, Twitter, Facebook, Skype, Gmail, Whatsapp etc. - Read and edit Office Software: Yes, support Word, Excel, Powerpoint, PDF, TXT |
Audio |
- Format: MP3/WMA/MP2/OGG/AAC/MA4/FLAC/APE/WAV etc. Could play via song list - Record: MP3, WMA - Other: LRC synchronized display; ID3 search; Search by files; Album Picture; User-defined audio effect - Audio IC: Top Global Cirrus IC, independent audio decoding - SNR: Noise rations:=90dB |
Video |
- Format: Support AVI (H.264, DIVX, XVID), RM, RMVB, MKV (H.264, DIVX, XVID). WMA, MOV, MP4 (H.264, MPEG, DIVX, XVID). DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP, MPG etc. =30 formats, Playing internet video directly (while downloading) - Play: Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot |
GPS |
- Operation System: Android 13 - Support Maps: IGO, Sygic, Google Map etc. - Voice Guidance: Yes - Support 2D/3D Map Views: Yes - Dual Zone: Yes, navigating while music playing - Online Navi: Yes, support google maps online navigating |
Bluetooth |
- Hands Free: Yes - A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth - Bluetooth Music Control: Yes, play/pause/previous/next - PB-Download: Yes, can download phonebook from mobile to this unit - PB-Search: Yes, can use the first letter to search contact member in PB-Listings - Calling Records: Yes, Dialed Call, Received Call, Missed Call - Setup: Auto Answer, Auto connect, Device name - Built-in Microphone: Yes, on the front panel - External Microphone Jack：Yes on the RCA cable |
Radio |
- FM Tuning Range: 87.5-108MHz - FM Increment: 0.05MHz(EU)/0.1MHz(US) - FM Area: Europe/USA1/USA2/Japan/Russia - RDS:On/Off |
USB |
- Position: 3 USB Port(2 Front + 1 Rear), can be connected with Media/Camera/DAB+ Box/Smartphone - Play MP5 Videos: Yes, can play RMVB Videos up to 1080P - Touch Music Title to play directly: Yes |
DVR |
- Built-in Car Recorder App: Yes, just connect a USB Camera to use this function - Support HD CCD Camera: Yes - Play recorded Video directly: Yes - Storing Position: Nand Flash/GPS Card/SD Card/USB Storage can be changed |
DAB(+)-IN |
- Support（DAB+ BOX NEED TO BUY SEPARATELY） |
DTV-IN |
- Built-in Digital TV Tuner: No - External Port for TV Box: Yes, Support DVB-T/DVB-T2/ATSC/ISDB Box - Power Supply to TV Box directly: Yes, you can connect our TV Box to achieve this function - Touch Control the TV Box on unit: Yes, you can connect our TV Box to achieve this function |
Additional |
- Textbook: Could change font, font color, background color, bookmark, reading E-book while listening music - Photo Viewer: Support JPS, BMP, PNG, GIF etc. format. play by revolve, Powerpoint Support 4096*4096 Pixels - Wallpapers: 5 live wallpapers, 17 standard wallpapers, support DIY wallpaper from Gallery - APK Installer: Support Android Package installer - Support Torque Pro(OBD2 &Car): Yes, you can connect a Bluetooth/WIFI OBD2 Scanner Tool(Bluetooth version ≥ 4.2) to use this function - Support Mirror Link function: Yes, support wireless and wired screen mirroring from iPhone and android smartphone - Support TPMS: YES (Not Included) -Support Steering Wheel Control;Yes |
Setup |
- WiFi/Hotspot/Bluetooth: Yes - Brightness level adjustable: Yes - Wallpaper: Wallpapers/Live Wallpapers/Gallery - Sound: Key Tone & Volume - Storage: Display Internal Storage/Nand Flash/Connected Device Storage - Apps: Running Apps display/force stop/uninstall - Security: Yes - Accounts: Yes - Languages and Input: more than 70 Languages and choose input method - Backup and Reset: Yes - Date and Time: Setting Date&Time by yourself or choose GPS/network-provided time - Accessibility: Yes - GPS: Yes, GPS application options/monitoring/sound mode/mixing ratio - Driving safety: Watching Video, Reversing X-mirror/Volume, Reversing Trajectory/radar Display, Rear view ruler - Amplifier: Rock/Pop/Jazz/Classic/Flat/Voice/Custom - Steering Wheel Control: Yes - About Device: Display Parameter Info. |
Input |
- AUX Video In - Rear-View Camera Video In - DTV Box In - DAB+ Box In - Car DVR In - GPS Antenna In |
Output |
- Video Out - Audio Out: LF, LR, RR, RF - Surround Stereo Out: 4*45W |
Accessories |

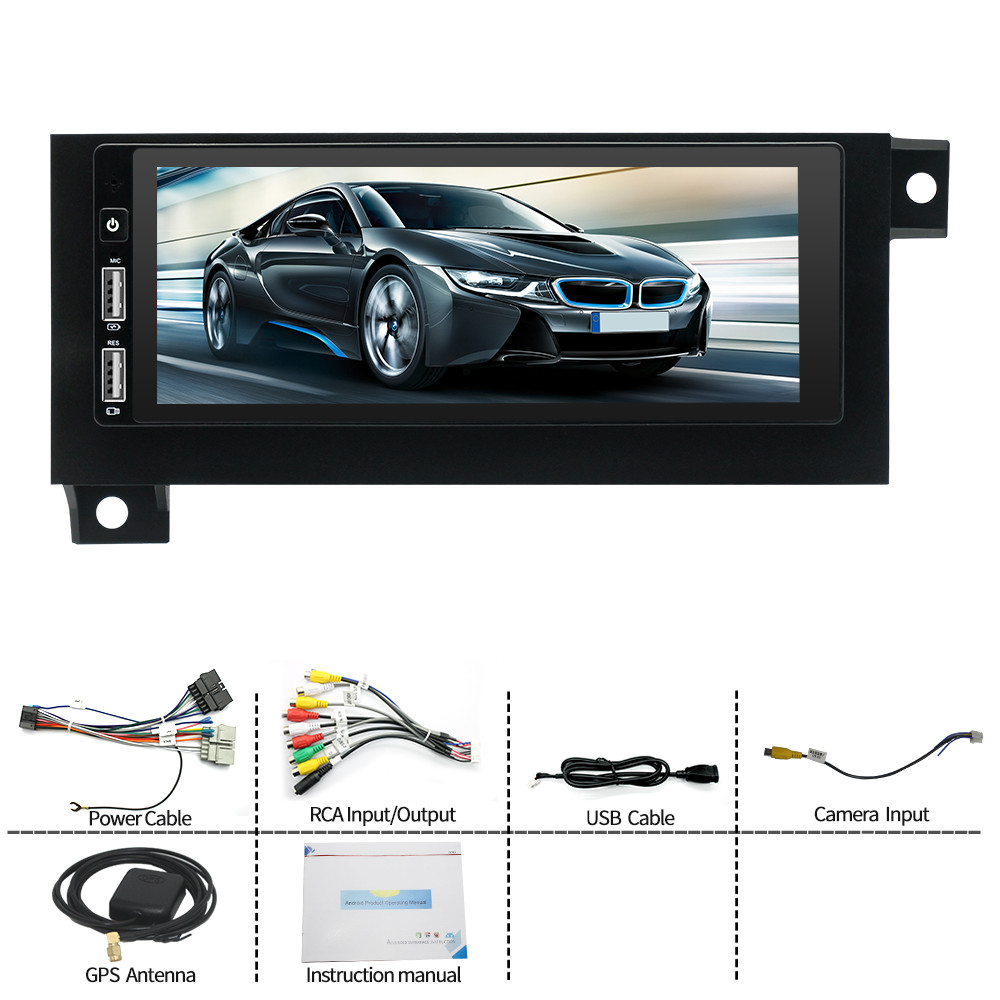

Package Included: -1 x Car Radio Stereo With Frame -1 x GPS Cable -1 x USB Cable -1 x Power Cable -1 x RCA Cable -1 x Camera Input Cable -1 x User 's manual |
