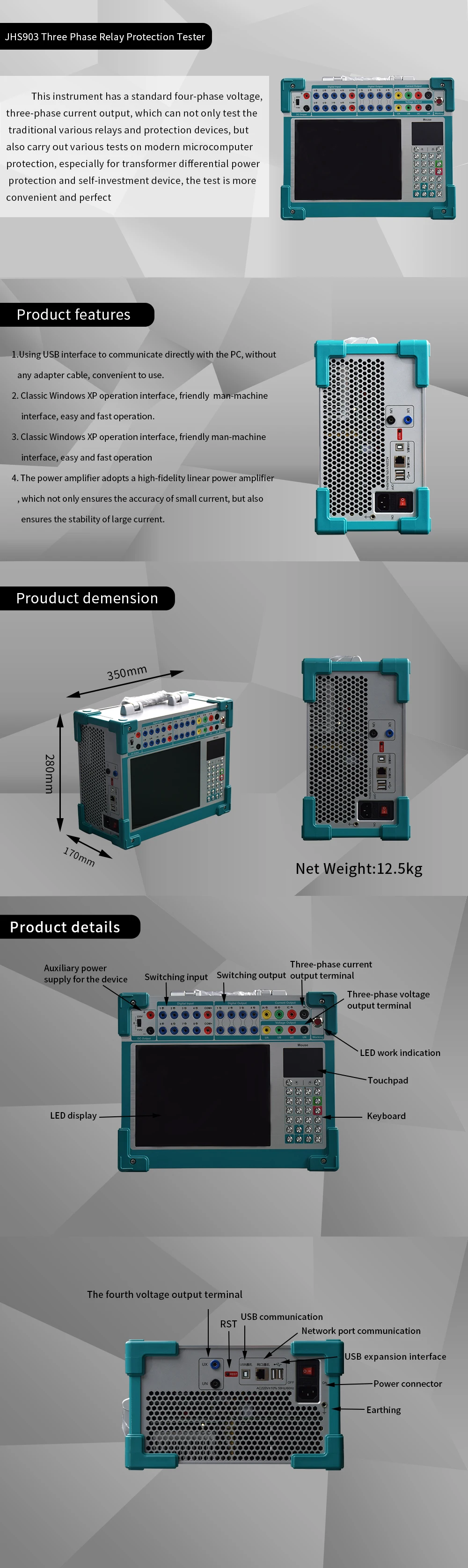

Product Overview：
1.Windows XP operation interface, high-performance embedded industrial control computer, easy and fast operation.
2.It has software self-calibration function, which greatly improves the accuracy and stability.
3.The power amplifier adopts high-fidelity linear power amplifier, which not only ensures the accuracy of small current, but also ensures the stability of large current.
4.It adopts USB interface to communicate with PC directly, without any adapter cable, which is convenient to use.
5.The main control board adopts DSP+FPGA structure and 16-bit DAC output, which can generate 2000 high-density sine waves per week for the fundamental wave, which greatly improves the quality of the waveform and the accuracy of the tester.
2.It has software self-calibration function, which greatly improves the accuracy and stability.
3.The power amplifier adopts high-fidelity linear power amplifier, which not only ensures the accuracy of small current, but also ensures the stability of large current.
4.It adopts USB interface to communicate with PC directly, without any adapter cable, which is convenient to use.
5.The main control board adopts DSP+FPGA structure and 16-bit DAC output, which can generate 2000 high-density sine waves per week for the fundamental wave, which greatly improves the quality of the waveform and the accuracy of the tester.
Main Features:
(1)Current source : AC/DC voltage source, AC/DC current source
(2)Parallel Output:Three-phase parallel output (effective value): 0-90A
(3)Max Output Power Per Phase:400 VA
(4)Frequency Range:0 ~ 1000 Hz, accuracy 0.01 Hz
(5)Switch Input Terminal:8 pairs
(6)Harmonic Number:Harmonic Number
(7)Phase:0 ~360,The accuracy is 0.1 degree
(8)DC Current Output:0 ~ ± 10 A / phase, accuracy: 0.2 % ± 5 mA
(9)Dimensions:410 mm * 190 mm * 420 mm
(10)Time range : 1ms -9999s
(11)Measurement accuracy : 1ms
(12)Weight:12.5 kg
(2)Parallel Output:Three-phase parallel output (effective value): 0-90A
(3)Max Output Power Per Phase:400 VA
(4)Frequency Range:0 ~ 1000 Hz, accuracy 0.01 Hz
(5)Switch Input Terminal:8 pairs
(6)Harmonic Number:Harmonic Number
(7)Phase:0 ~360,The accuracy is 0.1 degree
(8)DC Current Output:0 ~ ± 10 A / phase, accuracy: 0.2 % ± 5 mA
(9)Dimensions:410 mm * 190 mm * 420 mm
(10)Time range : 1ms -9999s
(11)Measurement accuracy : 1ms
(12)Weight:12.5 kg
Technical parameters:
Model | JHS903 |
Output Voltages | 110V (1A) -220V (0.6A) |
Power Supply | AC220V±10% |
Current source | AC/DC voltage source, AC/DC current source |
Power supply | AC220V±10% 50Hz |
Maximum output power per phase | 420VA |
DC current output | 0- ± 10A/phase, accuracy: 0.5% ± 5mA |
Line voltage output (effective value) | 0-240V |
Three-phase parallel output | 0-90A |
Switching input terminal | 8 pairs |
Time range | 1ms -9999s |
Measurement accuracy | 1ms |
