Product Name

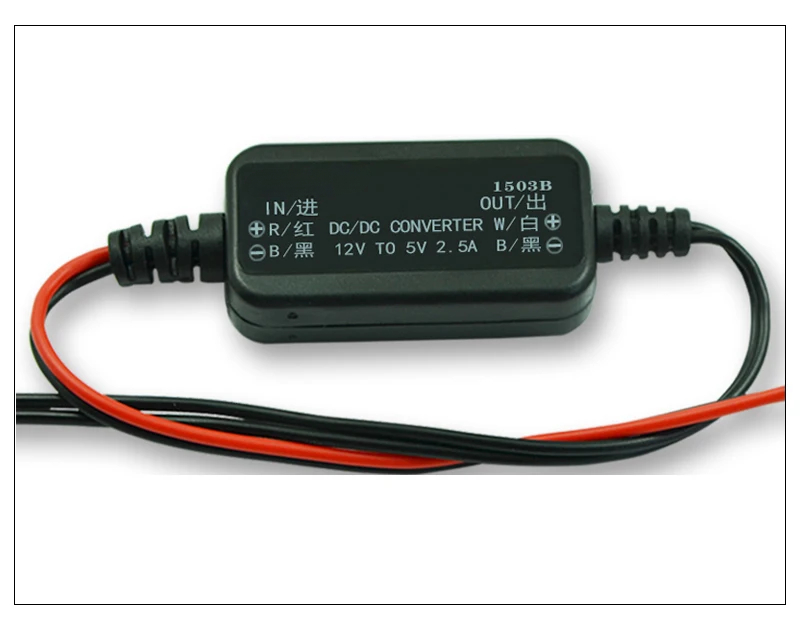

12V to 5V 6V 9V DC Converter

Model No.

1503B

Module Properties

non-isolated buck module

Rectification

synchronous rectification

Input (cable length: 10cm)

Input Voltage

DC 12V

Input Voltage Range

DC 8-15V( the max input must be less than DC 16V, otherwise the converter will be damaged)

Output(cable length: 10cm)

Output Voltage

DC 5V / 6V      9V

Output Current

                    2.5A          1A   Max

Output Power

                   12.5W        9W Max

Conversion Efficiency

>93%

Voltage regulation

±3%

Load regulation

± 2%

Ripple (Full load test)

< 150mV

No-load current

<100mA

Working Temperature

-40~80℃( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)

Waterproof Rating

non-waterproof

Protection

Over-current protection / Overheating protection / anti-shock protection

Application

mobile phone, car camera, Electric motors, Trucks, Golf Carts, Forklift, Solar Panel Power System, water pumps, industrial equipment and so on.

Case Material

ABS Plastic

Product Size (L x W x H)

43*22*11mm

Product Weight

14g

Warranty

12 months

Cooling Way

Free air convection

OEM&ODM Service

Acceptable
