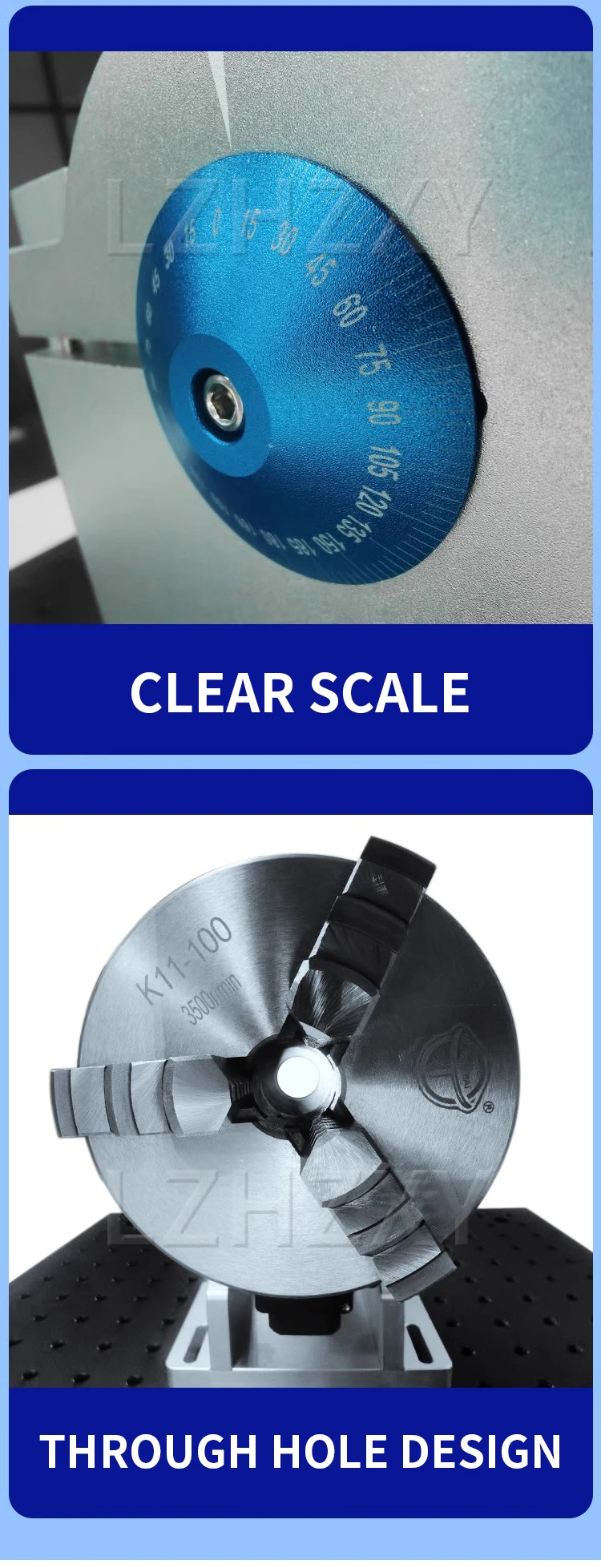

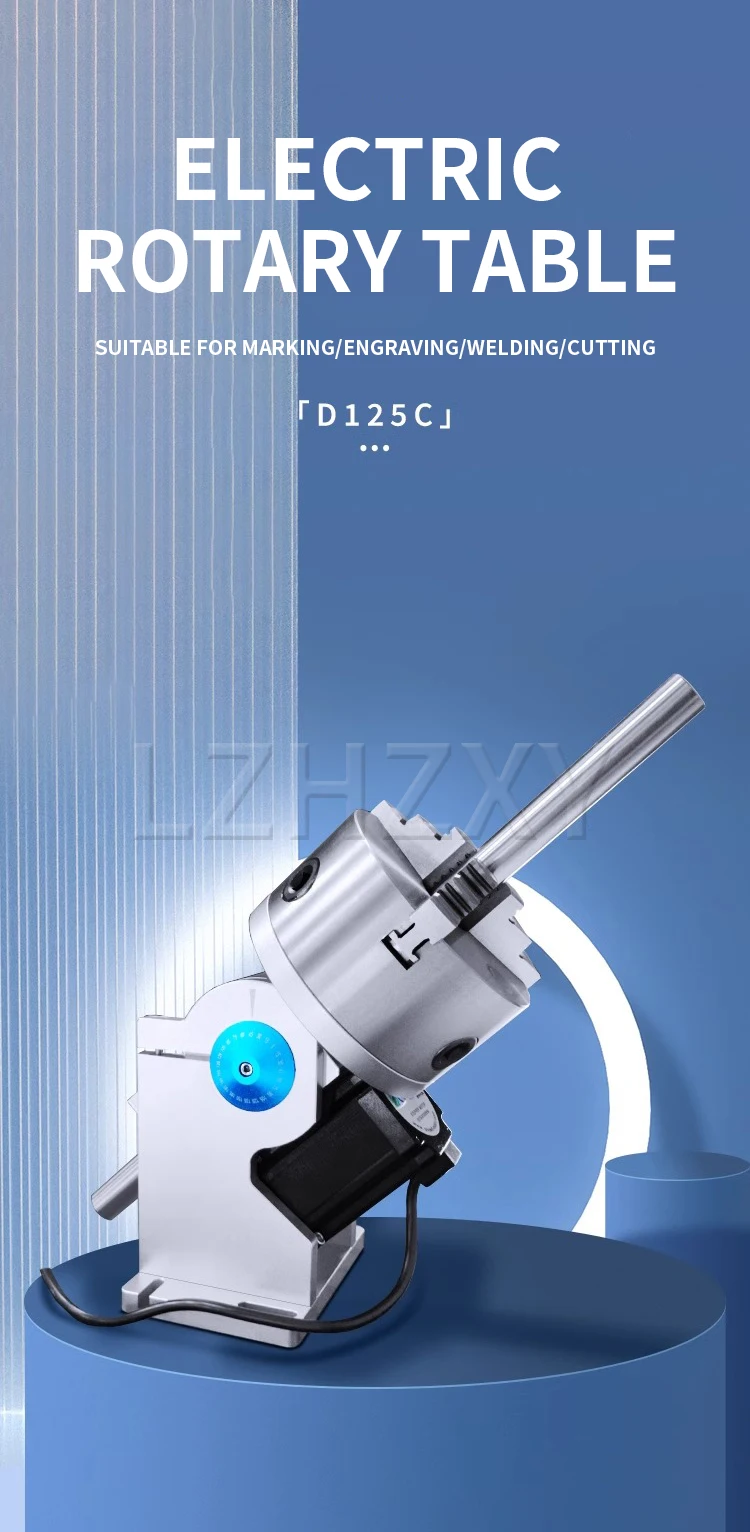

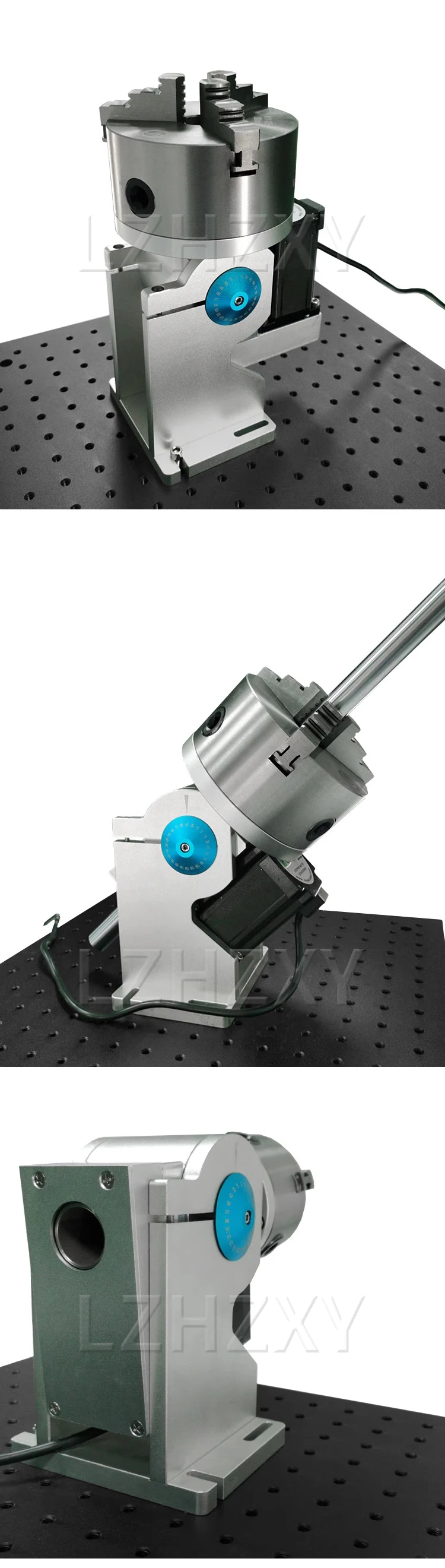

Professional Universal Through Hole Design LY D80C D100C D125C 3 Claws Rotary Axis Diameter 80mm 100mm 125MM Max For Fiber

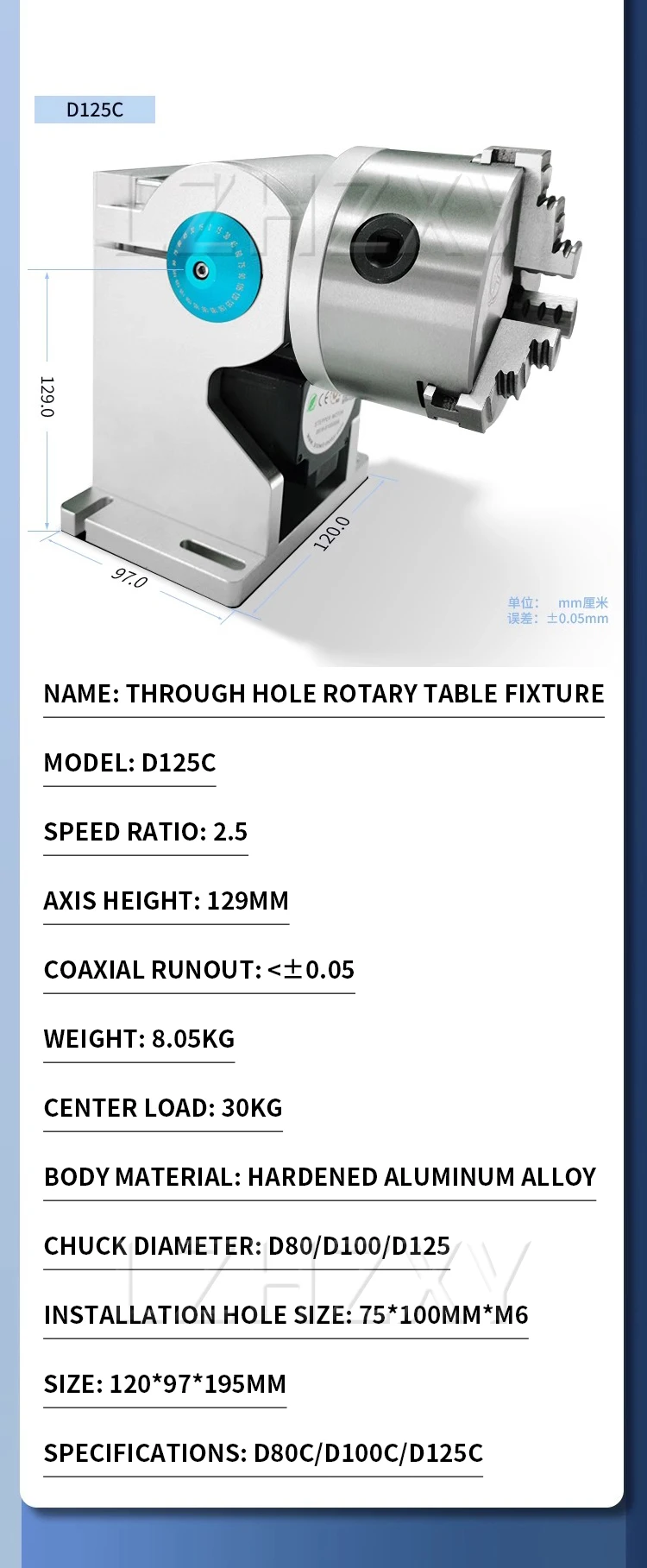

Name: Through hole rotary table fixture
Model: D125C
Speed ratio: 2.5
Axis height: 129MM
Coaxial runout: <±0.05
Weight: 8.05KG
Center load: 30KG

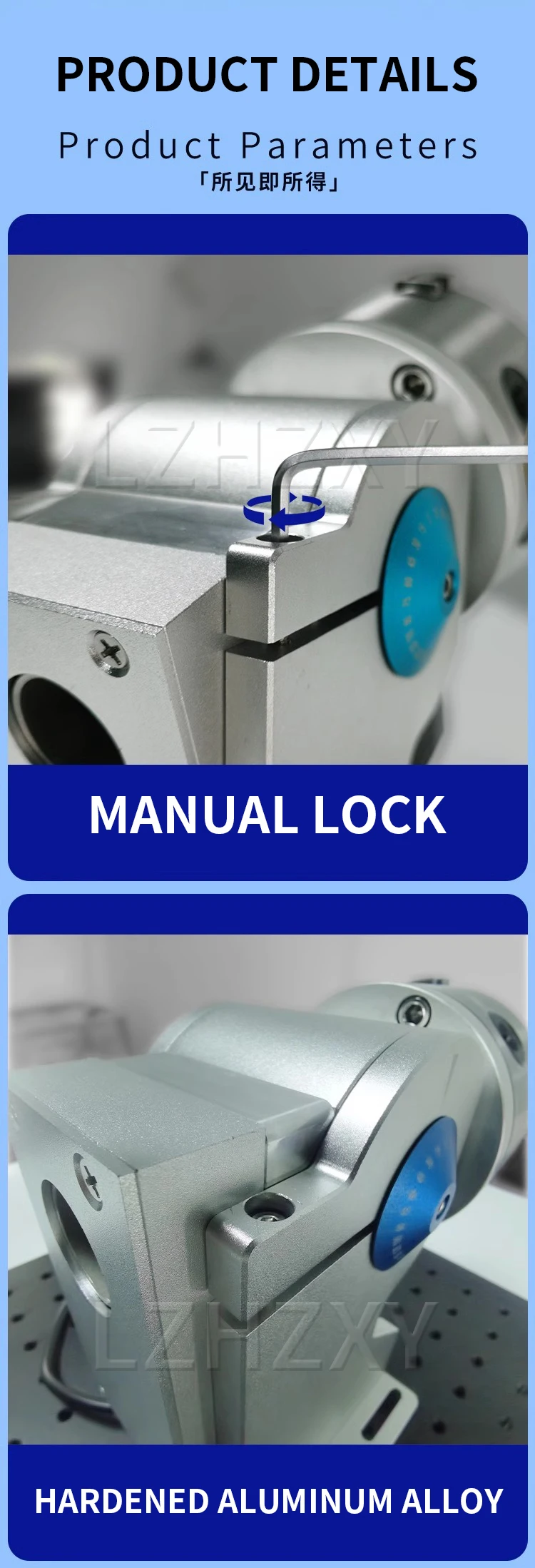

Body material: hardened aluminum alloy

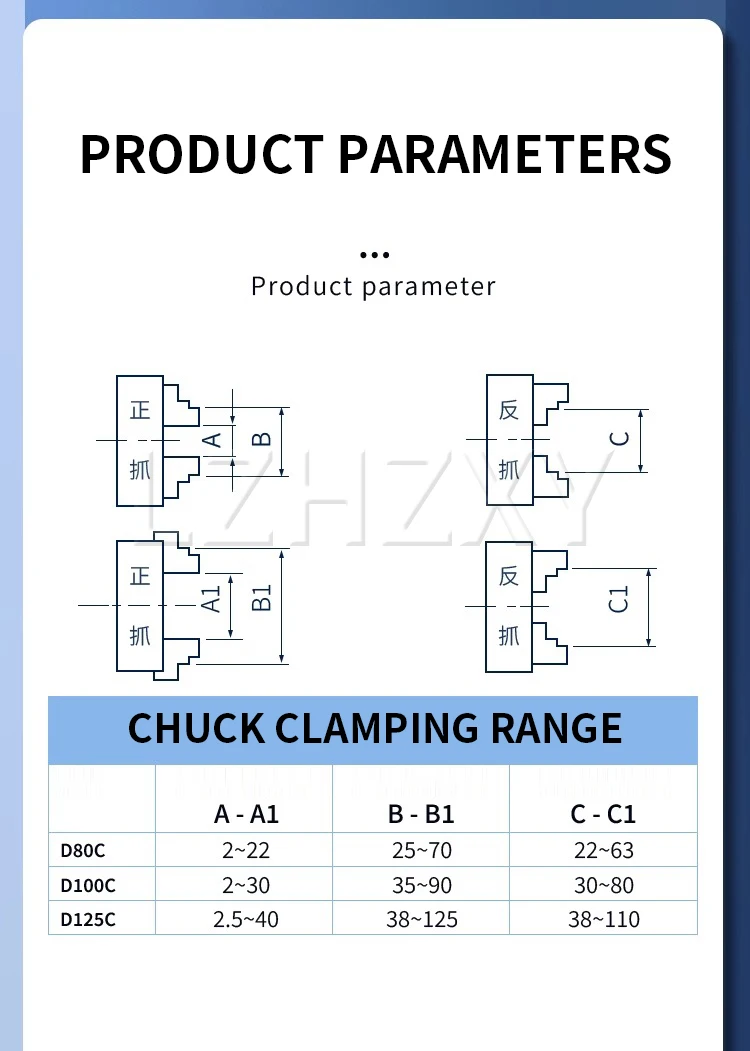

Chuck diameter: D80/D100/D125
Installation hole size: 75*100MM*M6
Size: 120*97*195MM
Specifications: D80C/D100C/D125C
