Details

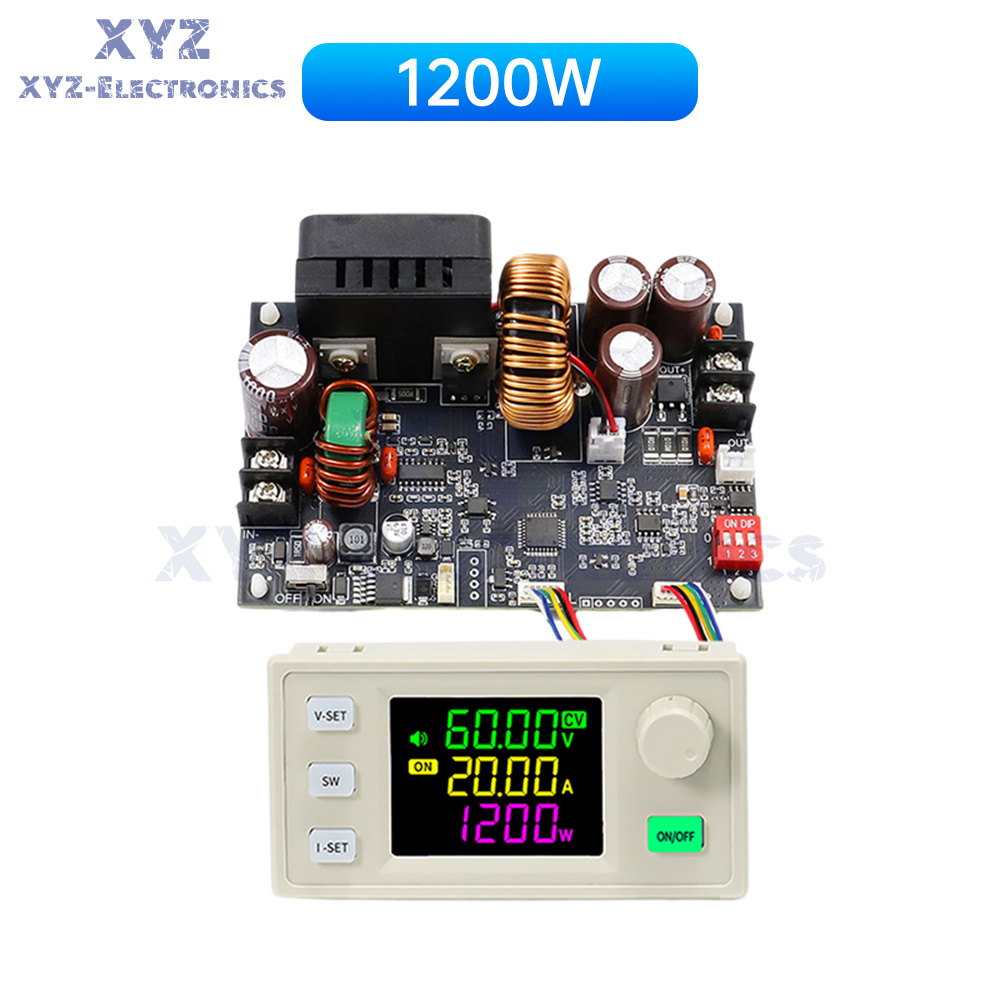

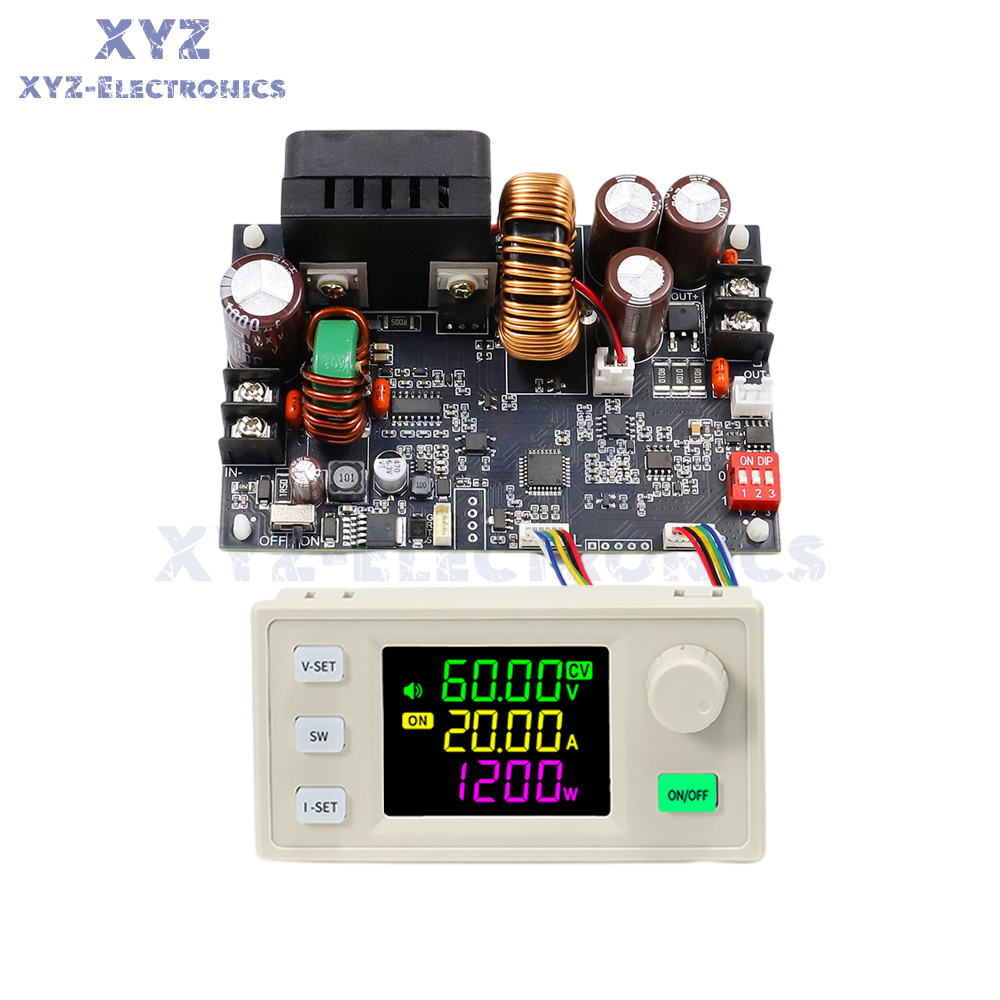

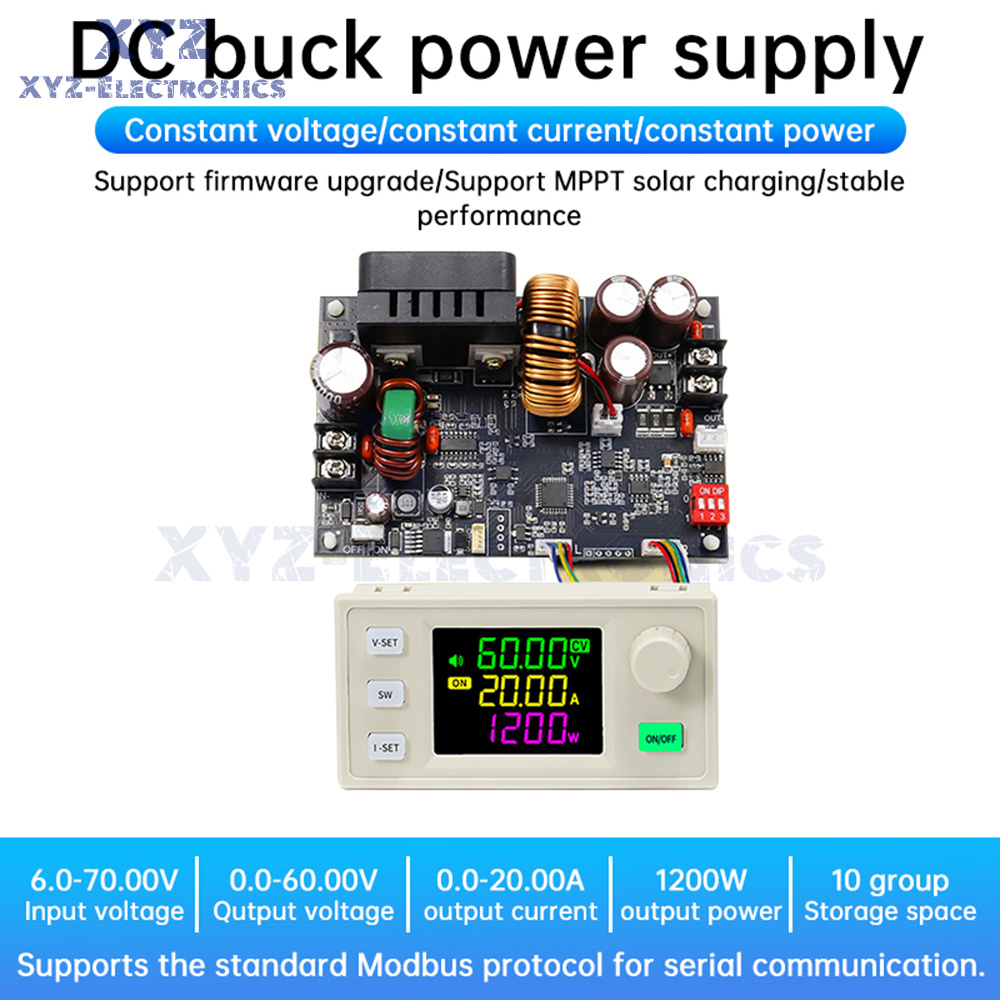

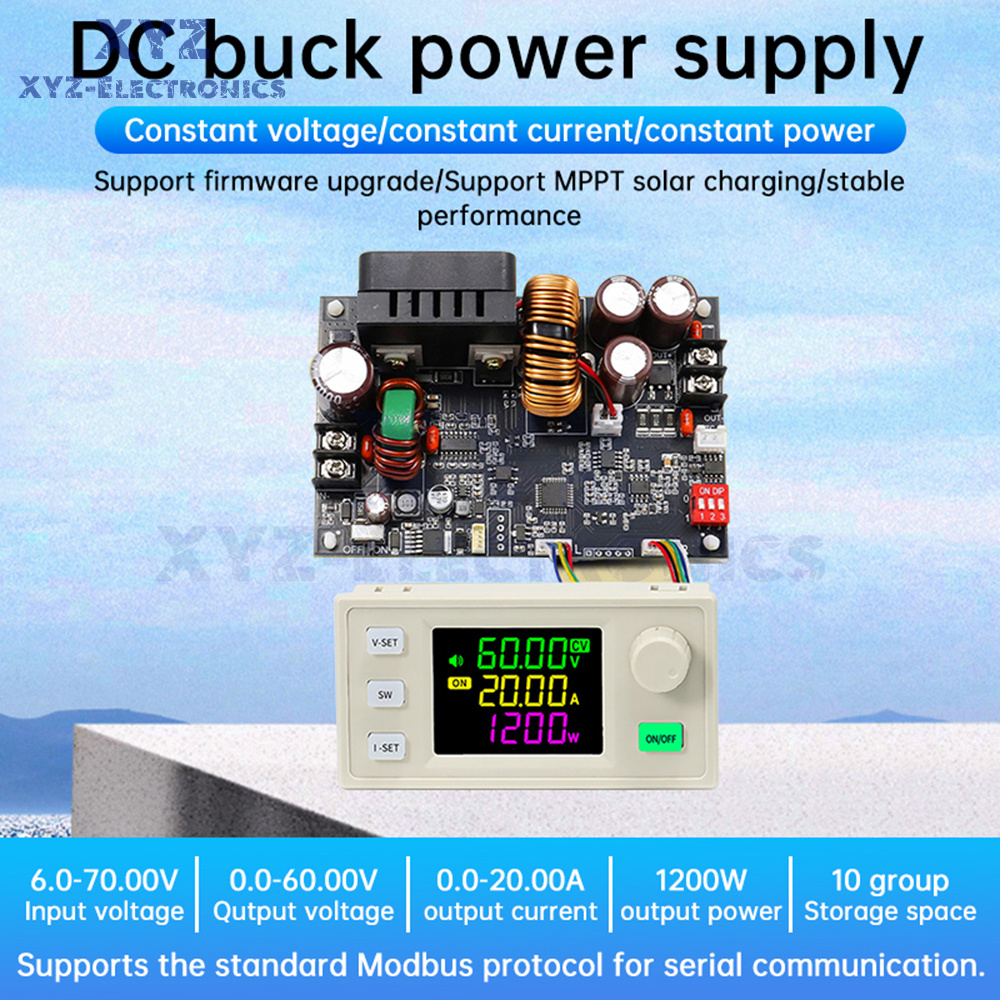

1. Supports firmware upgrade, MPPT solar charging, and serial communication
2. The display panel adopts a gold-plated design, which has better oxidation resistance, conductivity, and durability
3. Silicone buttons, comfortable to the touch, each button comes with an indicator light

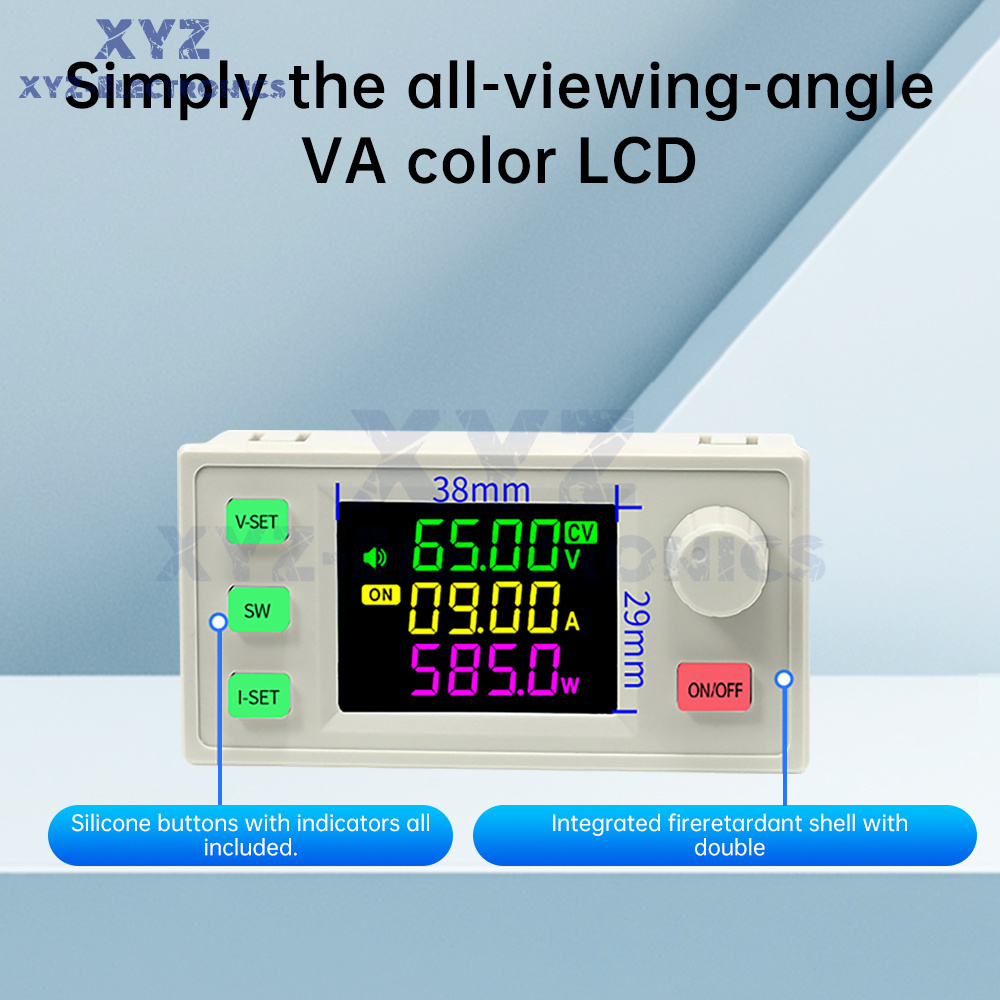

4. Full view VA color LCD screen with full and rounded fonts
5. Comes with multiple protections such as input overcurrent protection, undervoltage protection, overvoltage protection, etc

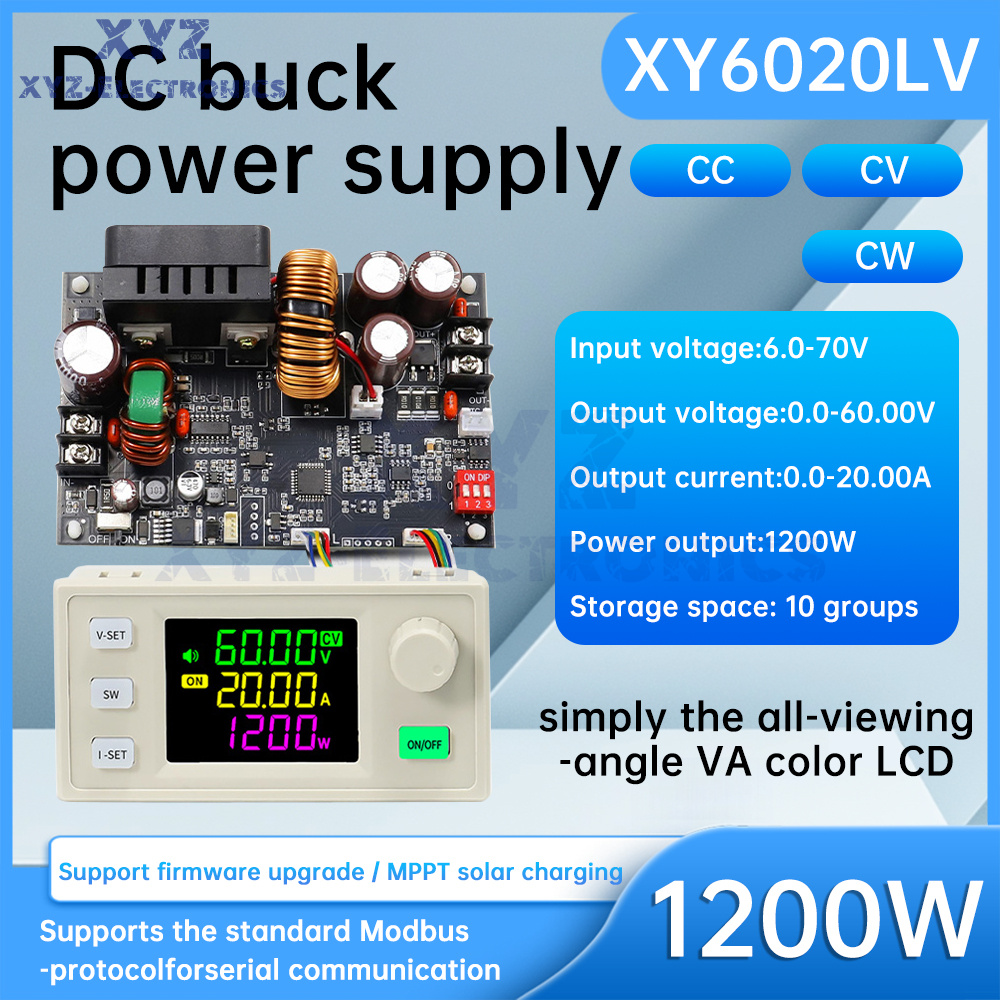

Input voltage: 6.0~70V
Output voltage: 0.0~60V
Output current: 0~20.00A
Typical output ripple value: 100mv VPP
Output power: 0~1200W
Input voltage measurement resolution: 0.01V
Output voltage setting measurement resolution: 0.01V
Current setting measurement resolution: 0.01A
Input voltage measurement accuracy: ± 1%+5 words
Output voltage setting and measurement accuracy: ± 0.4%+1 word
Output current setting and measurement accuracy: ± 0.5%+3 words
Cooling fan turned on: current>2A power>50W temperature>50 ℃
Cooling fan turned on and turned off: current<1.5A, power<45W, temperature<45 ° C
1. The input cannot be connected to AC power, let alone 220V mains power
2. The maximum input voltage should not exceed 75V, and it is recommended to use it within 70V. The positive and negative poles should not be reversed
3. The output has no anti backflow protection. When connecting the battery, it is necessary to ensure that the output voltage of the power supply is always higher than the battery voltage, or to connect a diode in series with the positive pole of the power supply to prevent the battery voltage from backflow and burning out the power supply
4. When connecting the output terminal to the battery, be careful not to reverse the positive and negative poles
5. The product is a step-down power supply, with a maximum output voltage equal to the input voltage multiplied by 0.945
Header * 1
Bottom plate * 1
Wire * 2
