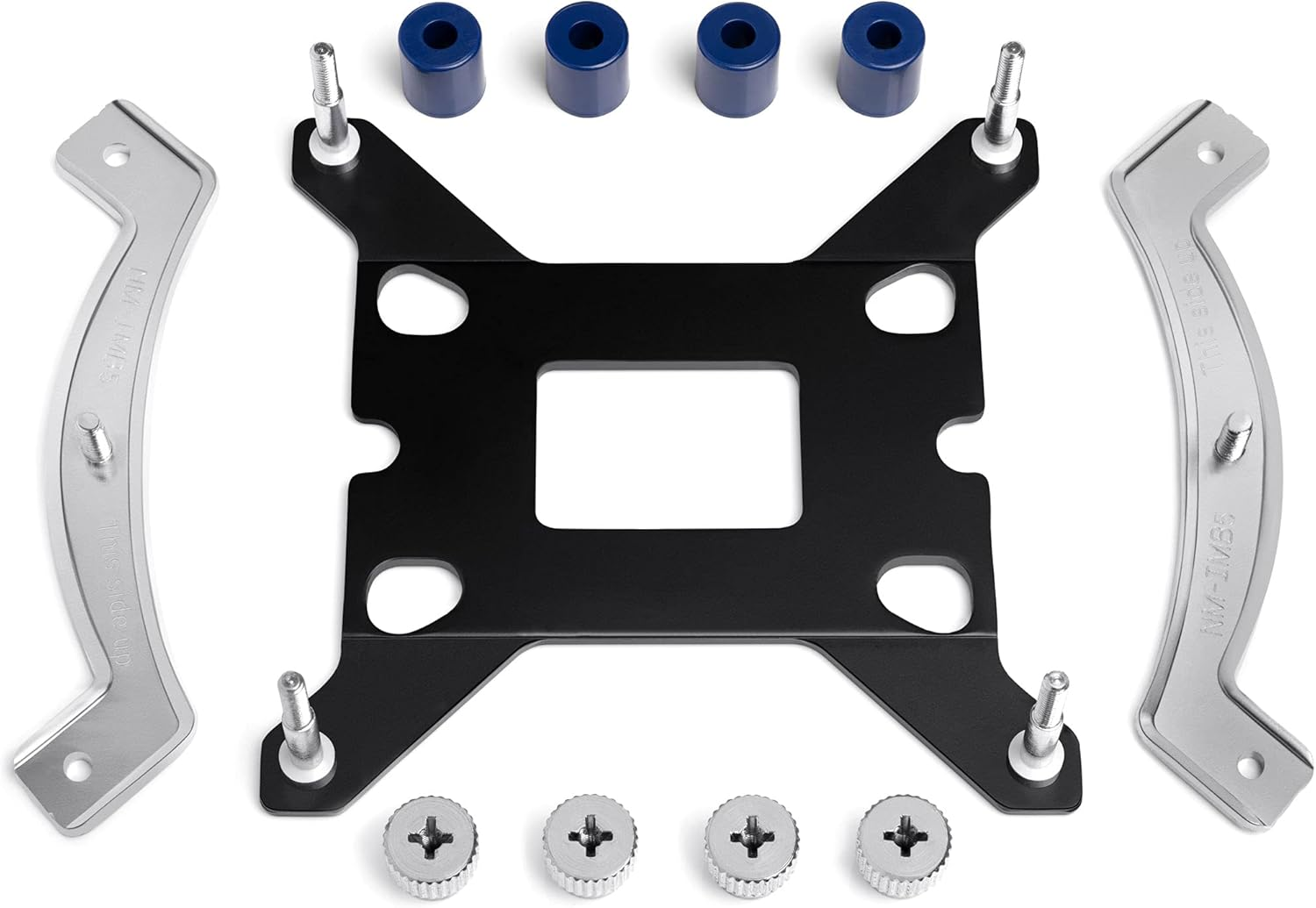

Noctua Nm-I17Xx-Mp78, Mounting Kit for Noctua CPU Coolers on Intel LGA1851
Description
| Item model number | NM-i17xx-MP78 |
| Warranty Description | 6 year manufacturer’s warranty |
| Country of Origin | Taiwan |
| Thickness | 10 Millimeters |
| Batteries Included? | No |
| Unit Count | 1.0 Count |
| Batteries Required? | No |
| Finish | Black |
| Product Dimensions | 5.98 x 4.37 x 1.18 inches |
| Material | Aluminum |
| Item Depth | 152 millimeters |
| Finish Type | Black |
| Manufacturer | Noctua |
| Item Package Quantity | 1 |
| Item dimensions L x W x H | 5.98 x 4.37 x 1.18 inches |
| Item Weight | 7.04 ounces |
| Part Number | NM-i17xx-MP78 |
| Mounting Type | Base mounting |
| Color | Black |
| Wattage | 3600 kWh |
| Voltage | 220 Volts |
| Included Components | NOCTUA NM-I17XX-MP78 |
| Brand | Noctua |
- Mounting upgrade kit for Noctua CPU coolers with 78mm mounting pitch (see detailed compatibility information on Noctua website)
- Enables the installation of compatible Noctua CPU coolers on Intel’s LGA1851 and LGA1700 socket for Intel Core and Core Ultra processors
- Tailor-made for LGA1851/1700, dedicated one-piece backplate with fixed struts
- Outstanding reliability, optimal contact pressure and easy, straightforward installation
- Cooler can be installed turned by 90° if space and other components permit
Product Description
The NM-i17xx-MP78 is a SecuFirm2 mounting upgrade kit that allows Noctua CPU coolers with 78mm mounting pitch (see detailed compatibility information) to be upgraded to Intel’s latest LGA1851 platform, as well as the previous LGA1700 socket. True to the SecuFirm2 tradition, it combines outstanding reliability, optimal contact pressure and easy, straightforward installation in order to enable Noctua users to continue using their heatsinks on Intel Core and Core Ultra series processors.
For Noctua coolers with 78mm mounting pitch
The NM-i17xx-MP78 kit is compatible with a wide range of Noctua CPU coolers that use 78mm mounting pitch, whereas heatsinks with 83mm mounting pitch must use the MP83 version. Please refer to our detailed compatibility information to check which kit is right for your cooler.
| Socket Compatibility: | Intel LGA1851, LGA1700 |
| Caution: | This mounting upgrade kit makes it possible to install a Noctua heatsink, which has originally been designed for the LGA1700/1851 hardware. As the clearance specifications for LGA17xx differ from other sockets, it is crucial to verify that your heatsink is fully compatible with your LGA17xx motherboard before installation. Please consult our compatibility database in order to make sure that your motherboard is fully compatible with your heatsink. |
| Cooler Compatibility: | The following coolers can be made compatible to LGA17xx using the NM-i17xx-MP78 Upgrade-Kit: NH-U14S, NH-U12A, NH-U12S, NH-U12S chromax.black, NH-U12S SE-AM4, NH-U12S redux, NH-U9S, NH-U9S chromax.black, NH-L12S, NH-L12 Ghost S1 edition |
| Please Note: | The NM-i17xx-MP78 is only compatible with heatsinks that have 78mm mounting pitch (see detailed compatibility information) and that the NM-i17xx-MP83 kit must be used for heatsinks with 83mm mounting pitch. |
Perfect contact pressureSecuFirm2 mounting systems use high-grade coil springs to achieve perfect contact pressure. No guesswork regarding how far to tighten the mounting screws, no risk of damaging the socket with excessive pressure! | Cooler can be installed turned by 90°Installing a cooler turned by 90° can be desirable for airflow or compatibility reasons. Thanks to the square layout of the hole pattern on the LGA1851 and LGA1700 platforms, this is easily possible with the NM-i17xx kits if space and other components permit. | Trusted SecuFirm2 qualityOver the years, SecuFirm2 has become synonymous with impeccable long-term stability and flawless craftsmanship. Enthusiast users and industry clients alike trust the time-tested quality of Noctua's professional mounting systems. | One-piece backplate with fixed strutsThe NM-i17xx kits feature a sturdy one-piece backplate with fixed struts that doesn’t require any pre-assembly or adjustment. Due to the fixed struts, aligning the backplate and attaching it to your motherboard is a breeze! |
