Details
2. Using half-hole process, can be soldered on custom boards.
3. Unique dual-core, dual-architecture, clock running frequency up to 150MHz.
4. Can be recognised as mass storage for drag-and-drop program download via USB.
5. Split design, on-board FPC 8PIN interface, can lead to USB Type-C interface through the adapter board.
6. Support C/C++, MicroPython, easy to get started, can be quickly embedded into the application.

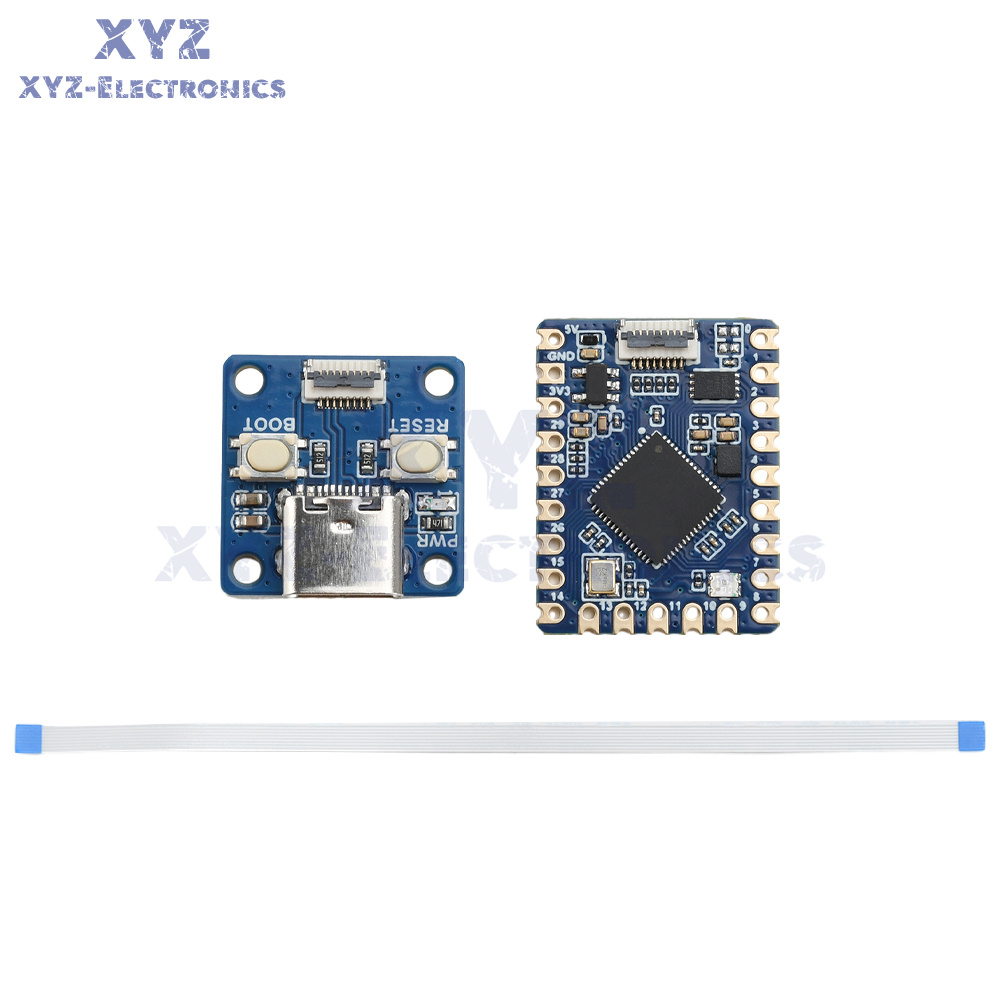

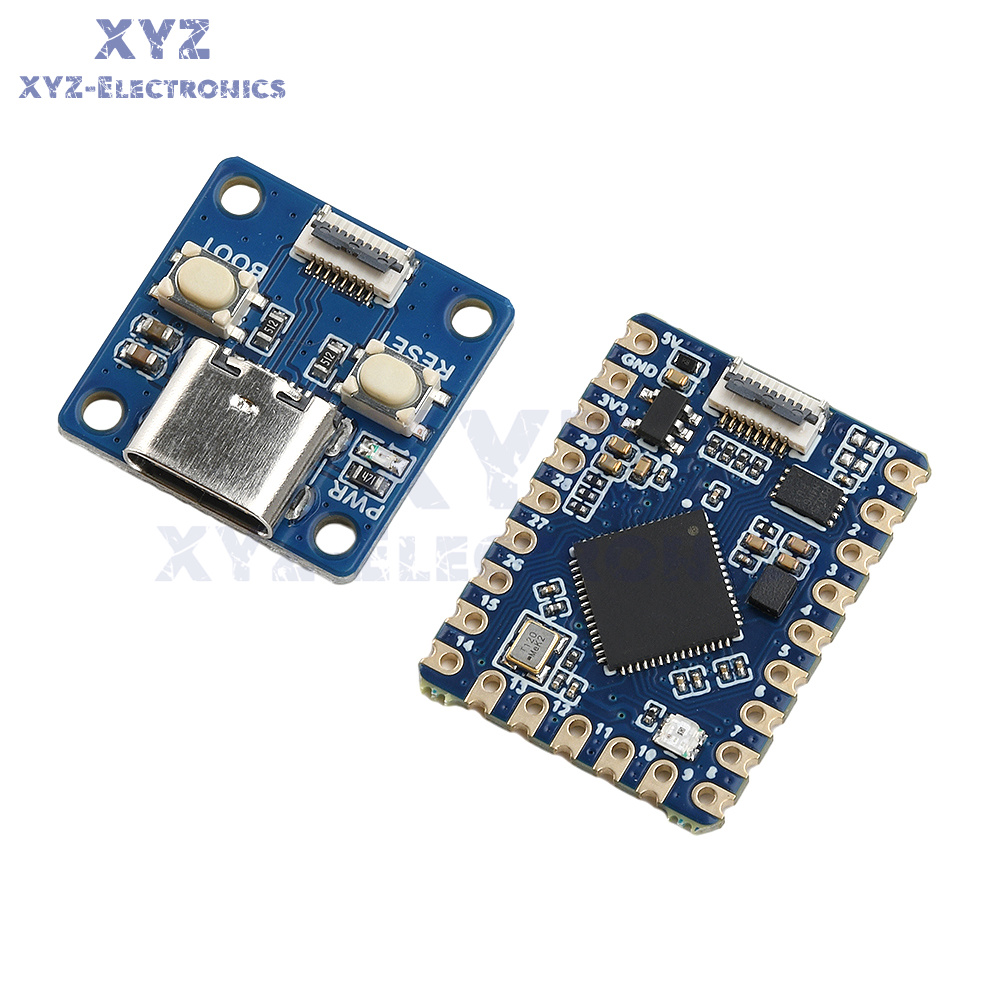

2 combinations of RP2350-Tiny single board, RP2350-Tiny-Kit single board + adapter board + FFC cable can be selected

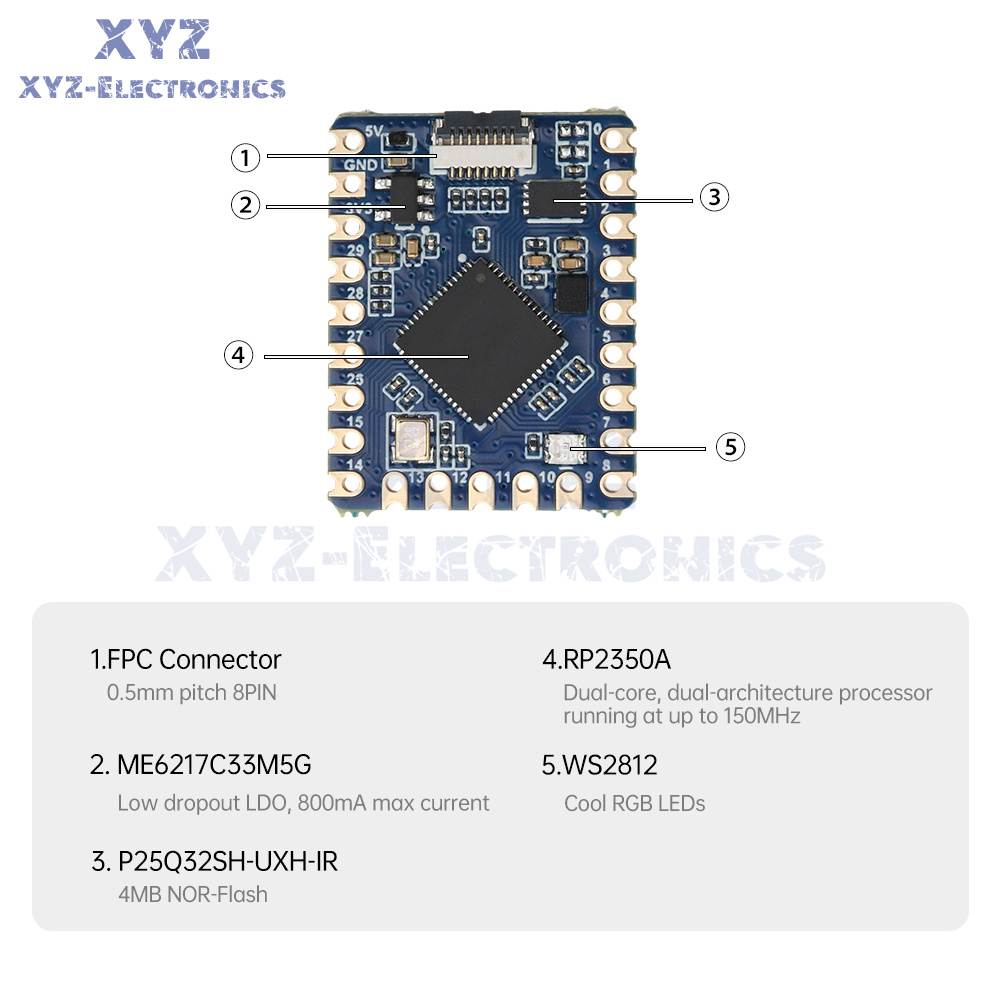

Adopted RP2350A microcontroller chip
Unique dual-core, dual-architecture with dual-core ARM Cortex-M33 processor and dual-core 3 RISC-V core processor clocked at up to 150MHz.
Built-in 520KB of SRAM and 4MB of on-chip Flash.
On-board FPC 8PIN connector, USB Type-C connector via adapter board
Stamped holes for direct soldering and integration into user-designed backplanes
USB1.1 host and device support
Supports low-power sleep and hibernation modes
Drag-and-drop program download via USB for mass storage recognition

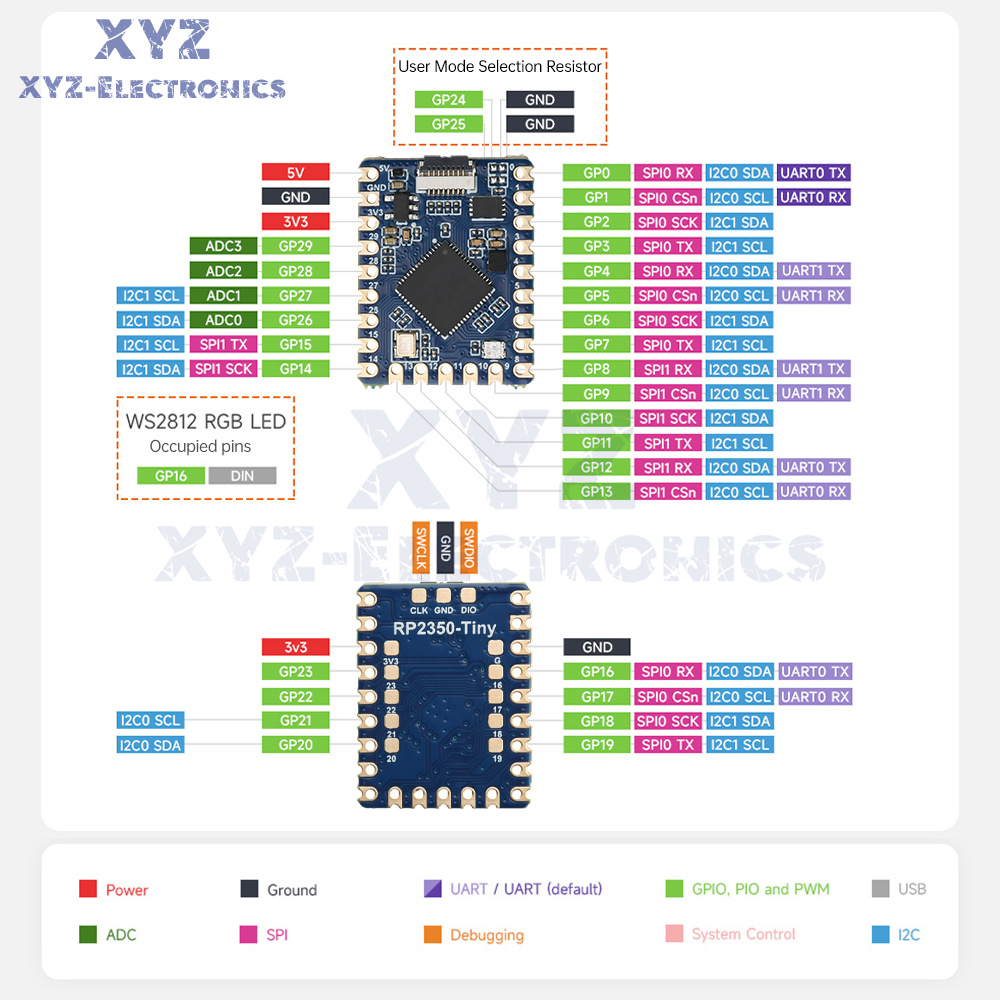

Pinout of 28 multi-function GPIO pins (20 can be pinned out, the rest can only be soldered out)
2 SPI, 2 I2C, 2 UART, 4 12-bit ADCs, 16 controllable PWM channels
Precision on-chip clock and timer
Temperature Sensors
On-Chip Accelerated Floating Point Library
12 Programmable I/O (PIO) state machines for custom peripheral support
Main board size 23.5mm*18mm*2.1mm
Adapter board size 18mm*18mm
1 x RP2350-Tiny Single Board Development Board
1 x Adapter board (optional)
1 x FFC cable(optional)
