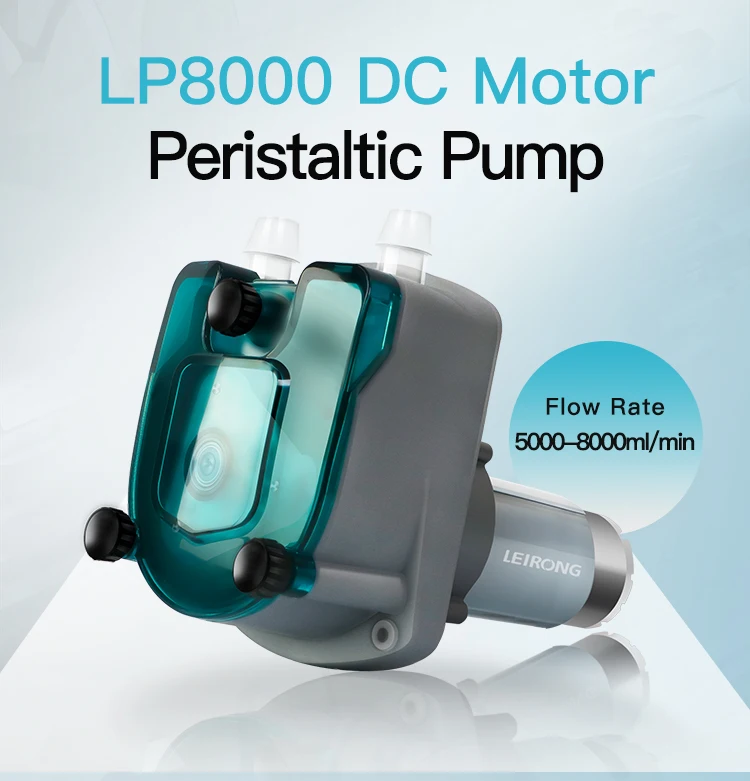

LP8000 DC motor peristaltic pump
Product characteristics
LP8000 DC motor peristaltic pump
Arge flow pump head waterproof design All helical gear multi-stage collaborative drive force uniform long life high reliability Compact structure card slot design easy to change the pipe without running Double bearing support drive maintenance-free Transparent shell beautiful and generous work visible Low noise and stable performance Stepper motor, DC motor 2 kinds of motors are available Support customization: waterproof motor DC motor with feedback control
Waterproof protection
Card slot design does not run pipe
Self-grinding roller does not damage the tube
Double bearing operation is stable
Self-developed precision gears run more smoothly
DC Motor
Product parameter
|
Product name
|
LP8000 DC motor peristaltic pump
|
|
|
|
|||
|
Motor type
|
DC motor
|
|
|
|
|||
|
1100-1250ml/min Flow range
|
5000-8000ml/min
|
|
|
|
|||
|
Control mode
|
Full speed /PWM speed regulation
|
|
|
|
|||
|
Rated voltage
|
12V/24V
|
|
|
|
|||
|
Weight
|
950g
|
|
|
|
|||
|
Pump tube selection
|
Silicone tube /Norprene
|
|
|
|
|||
|
Number of roller
|
3-roller
|
|
|
|
|||
|
Noise
|
≤65dB
|
|
|
|
|||
|
Power
|
72W
|
|
|
|
|||
|

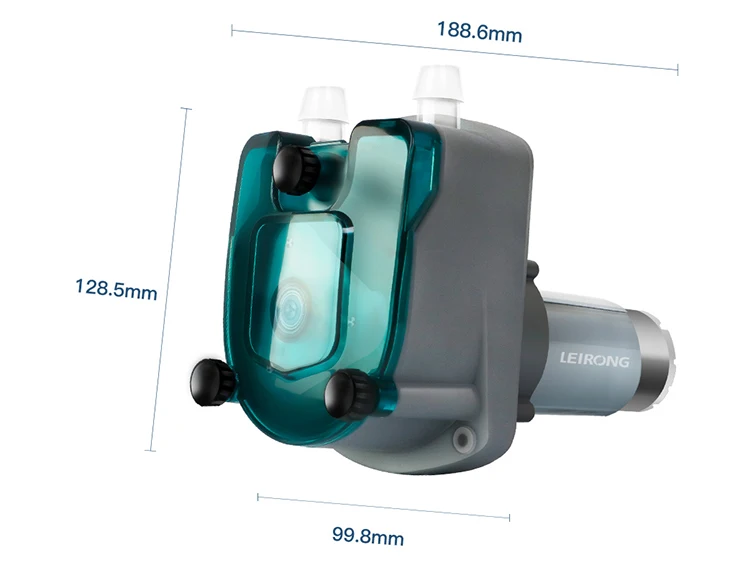

Product size
|

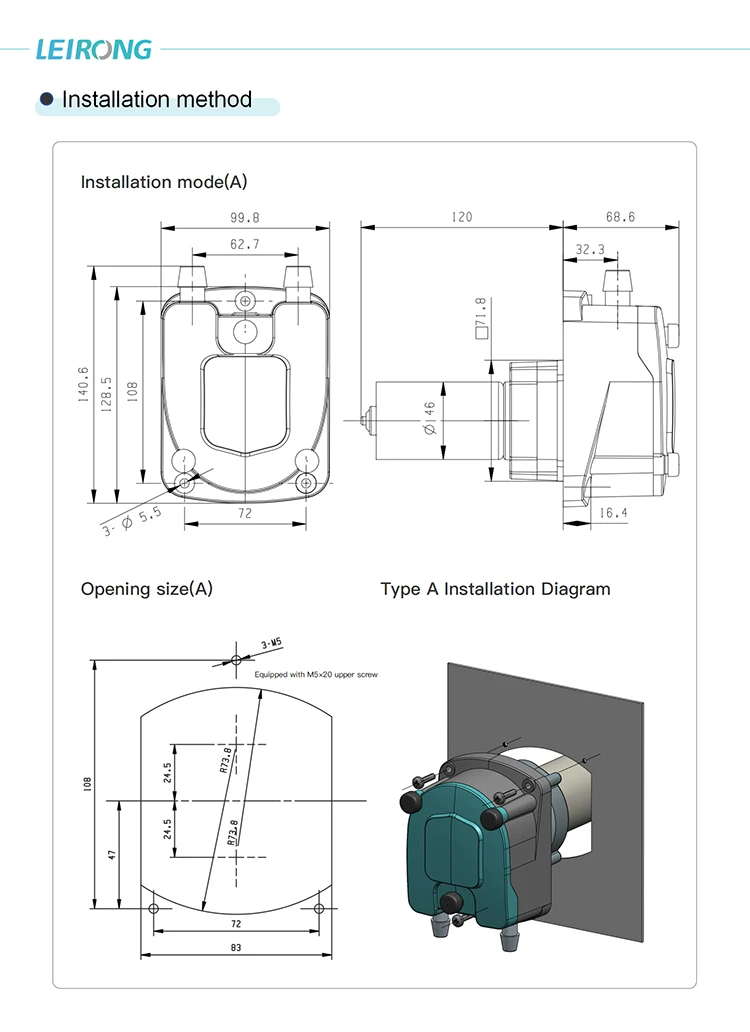

mode A:99.8mm*128.5mm*188.6mm
|
|
|
|
|||
Choose peristaltic pump
Flow parameter
Pump tube life testing method: LP8000 peristaltic pump, speed: 430r/min, temperature 20 ℃, Test liquid: water, continuous operation test. The slower the rotational speed of the peristaltic pump, the longer the service life of the pump tube.
The service life of the pump tube may vary depending on the operating conditions, pipeline pressure, and liquid corrosiveness.
|

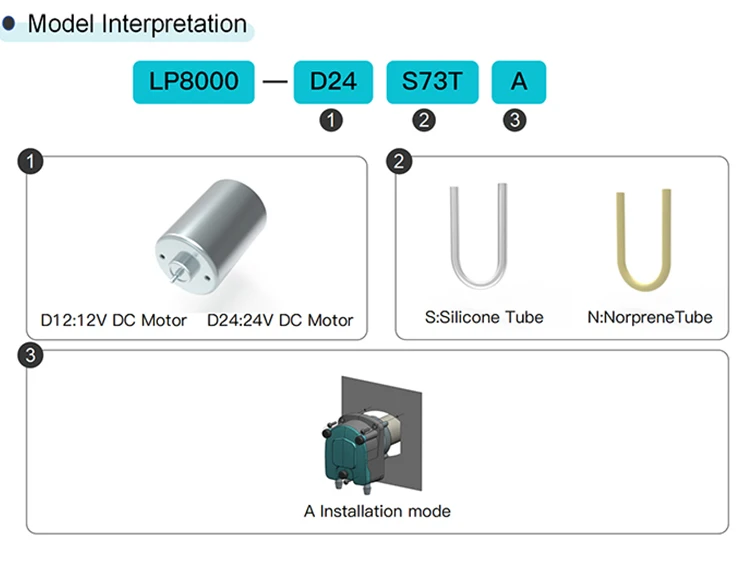

Tube Species
|
|
S73T
|
S82T
|
N73T
|
N82T
|
|||||
|
ID×OD
|
|
9.6X16
|
12.7x19.1
|
9.6X16
|
12.7x19.1
|
|||||
|
Tube Materials
|
|
Silicon tube
|
Silicon tube
|
Norprene
|
Norprene
|
|||||
|
Flow
rate
mi/min
|
12V
2.5A
|
5800
|
8000
|
5000
|
7200
|
|||||
|
|
24V
1.5A
|
5800
|
8000
|
5000
|
7200
|
|||||
|
deal working conditions:ambient temperature 0-50 degrees,relative temperature less than 80%
|
|
|
|
|
|
|||||
Flow testing method: Water test at room temperature 20℃ and atmospheric pressure. The above data is for reference only, and there may be deviations in flow rate depending on different liquids, pressures, and pipeline lengths. The material, flow rate, and control method of the pump tube can be customized according to the needs.
Tube change procedure
1. Loosen the fixing screws and remove the pump cover
2. Take out the pump pipe assembly
3. Fix one joint in the card slot, turn the synchronous disk, install the pump pipe, and clamp the other joint
4. Install the pump cover and screws to complete the tube change
