Specification:



Condition: New Controller System: Electromagnetism  Starting Wind Speed: 1.3m(12inch)/s  Cut-in Wind Speed: 2.0-2.5 m/s  Rated Wind Speed: 14m/s  The Instantaneous Maximum Wind Speed: ≤45m(1772inch)/s Blades Quantity: 3 (with Different Colors) Diameter of Blades: 0.6m/24inch   Blades Height: 0.8m/31inch Speed Regulation: Automatic

Rated Power: 1000W  Max Power: 1050W  Generator Protection Grade: IP67  Work Environment Temperature: 25 to 45℃+  Product Assembly Weight: <10kg/22lbs Over-speed Protection: Electromagnetic Brake  Blade Material: Nylon Fiber Generator: Maglev Generator  Service Life: 10-15 Years  Installation Instructions: Not Included Rated Voltage: 24V



Description

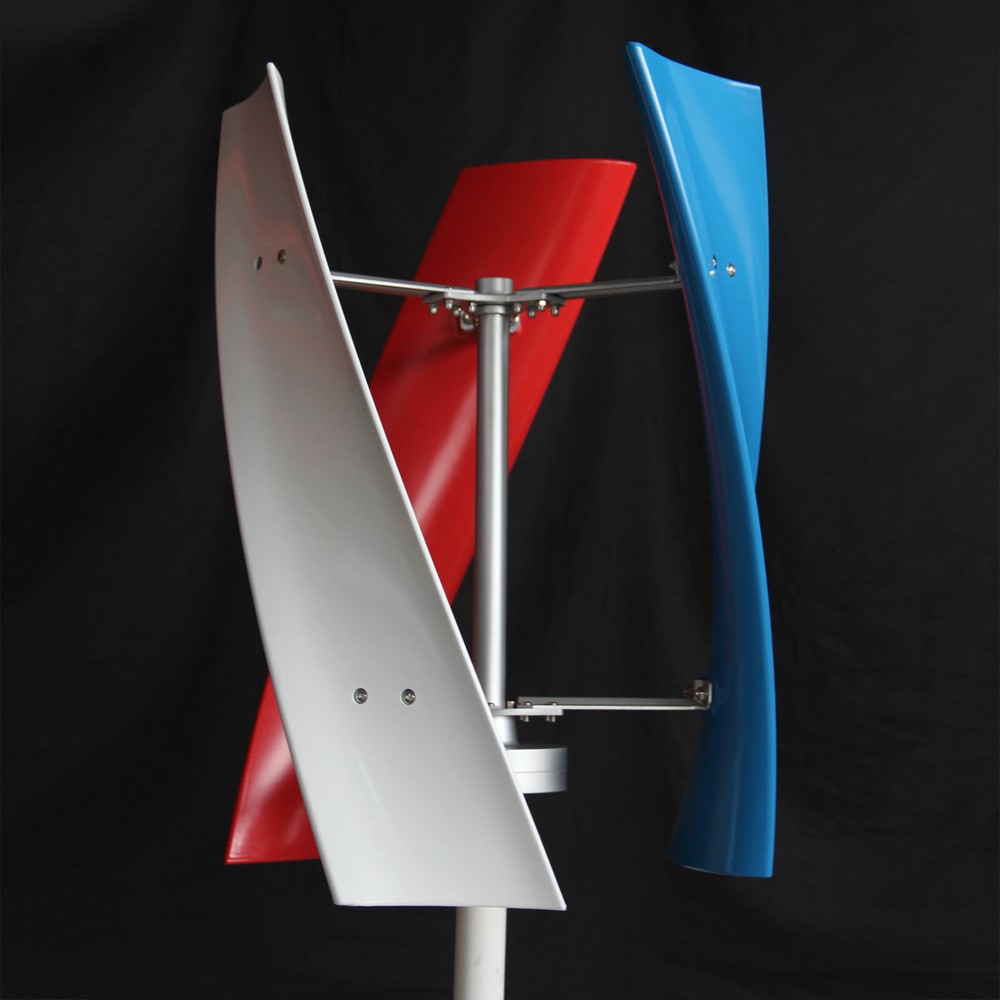

The wind turbine with the coreless permanent magnet generator and three high-strength nylon fiber blades is more durable and has a long service life. The spiral blades are aerodynamically designed to make the rotor run smoothly and reliably, which leads to stable electricity generation. Besides, it has maximum speed protection. It is well suited for boats, gazebos, cabins or mobile houses, and other energy supplies for homes, businesses and industry.

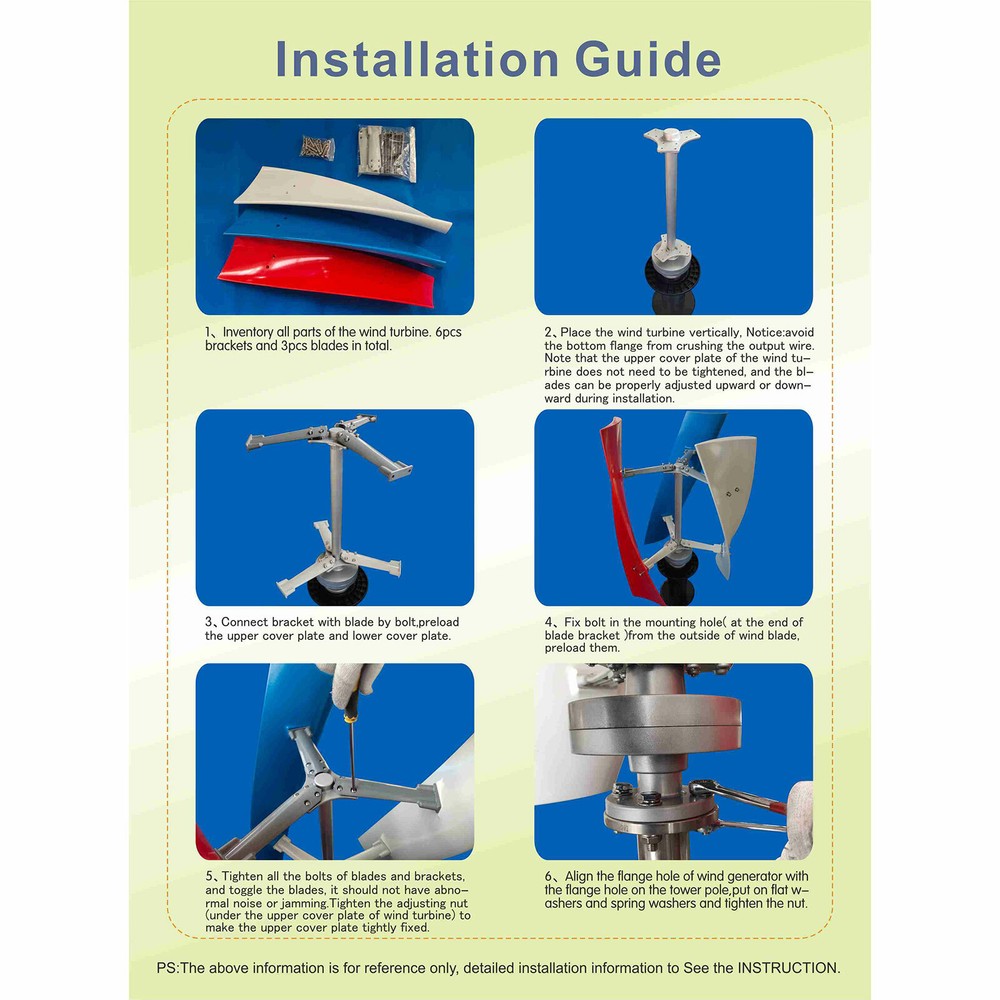

Installation

1. Check all the parts of the wind turbine, which includes 6 brackets and 3 blades in total.

2. Place the wind turbine vertically.

3. Connect brackets with blades by the bolt. Load the upper cover plate and lower cover plate.

4. Fix the bolt in the mounting hole (at the end of the bracket) from the outside of the wind blade.

5. Tighten all the bolts of blades and brackets, and toggle the blades. It should not have abnormal noise or jamming. Tighten the nut (under the upper cover plate of the wind turbine) to make the upper cover plate tightly fixed.

6. Align the flange hole of the wind turbine with the flange hole on the tower pole, put on flat washers and spring washers, and tighten the nut.

7. Professional installation is highly recommended if you have no previous installation experience.

8. You can watch the attached installation video as a reference.

9. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.



Key Features

Great Durability: The wind turbine with the coreless permanent magnet generator and three high-strength nylon fiber blades is more durable and has a long service life.



Smooth Running: The spiral blades are aerodynamically designed to make the rotor run smoothly and reliably, which leads to stable electricity generation. The double bearing and low vibration also ensure more stable operation.



Low Noise: Drawing on the design principle of aircraft wings and the horizontal plane rotation, noise can be reduced to a level that cannot be measured in the natural environment.



Generating Electricity at Lower Wind Speeds: Due to its compact shape, low starting wind speed, and large windward area, the wind turbine can generate electricity at lower wind speeds.



Strong Wind Resistance: The horizontal rotation brings small wind pressure so that it can resist a super typhoon.



Maximum Speed Protection: When the wind turbine reaches the maximum speed of 300rpm, it will automatically brake.



Easy to Install: Everything you need for installation is included. The wind turbine with a user-friendly and convenient flange design is easy to install.



Low Starting Wind Speed: Its starting wind speed is lower than other wind turbines, and the rising arc of power generation is gentle, so it can generate more power than others within a certain range.



Details

Vertical Blades: The main force point of the wind turbine is concentrated on the blade edge, so that it can effectively avoid blade shedding, fracture, or flying out.



Three-phase AC Permanent Magnet Generator: The wind turbine with a low-torque and high-power intelligent tracking microprocessor can regulate current and voltage efficiently. It significantly increases wind energy utilization and annual power production.



Aluminum Main Rod: The main rod is made of aluminum with high hardness and can be fully recycled, so it is uneasy to break and eco-friendly.



Package Included

1 x Wind Turbine

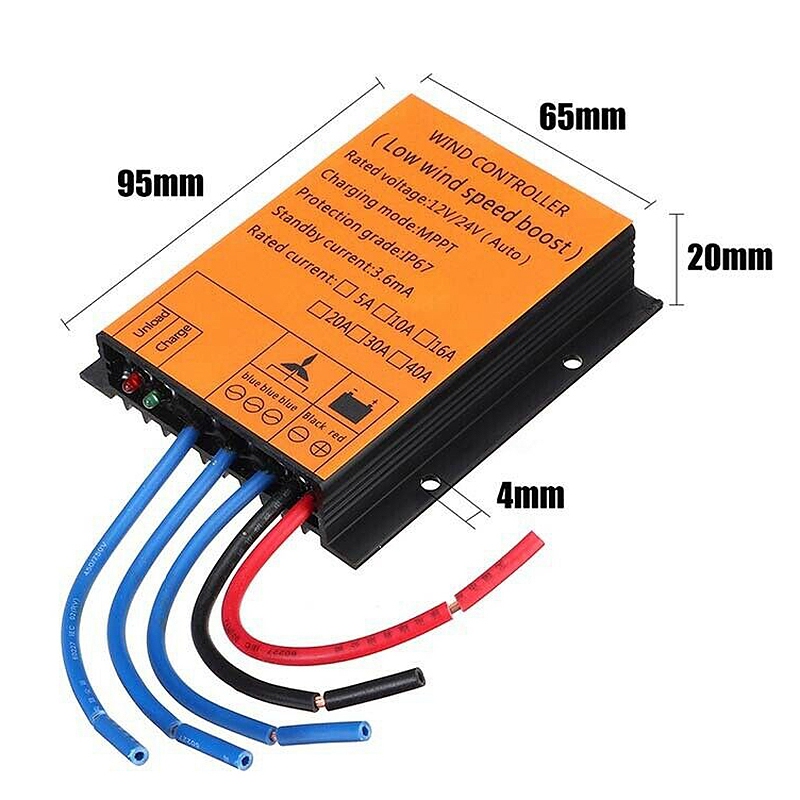

1 x Controller

3 x Blades (White, Red, Blue)

1 x Bag of Screws to Connect the Main Body

1 x Bag of Screws for Connecting the Bracket Blades

Other Accessory for Assembly

note：The wind speed needs to reach 18m/s for the machine to generate electricity properly.

note：The wind speed needs to reach 18m/s for the machine to generate electricity properly.



Notes

• There are two different kinds of screws. Please confirm the correct position of the screws before installation.
• The upper cover plate of the wind turbine does not need to be tightened, and the blades can be properly adjusted upward or downward during installation.
• When you place the wind turbine vertically, please prevent the bottom flange from crushing the output wire.
• Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
