Details
1.PC shell, fire-resistant and high temperature resistant
2.LED high-definition screen, digital display panel more intuitive
3. Silver contacts, stable performance, antioxidant, high working efficiency
4. Bottom high-capacity pins, copper galvanized material, high melting point, antioxidant corrosion resistance, good conductive properties
5. 4 delay modes: power-on delay mode, delayed release mode, cyclic delay mode, cyclic delay number of settings

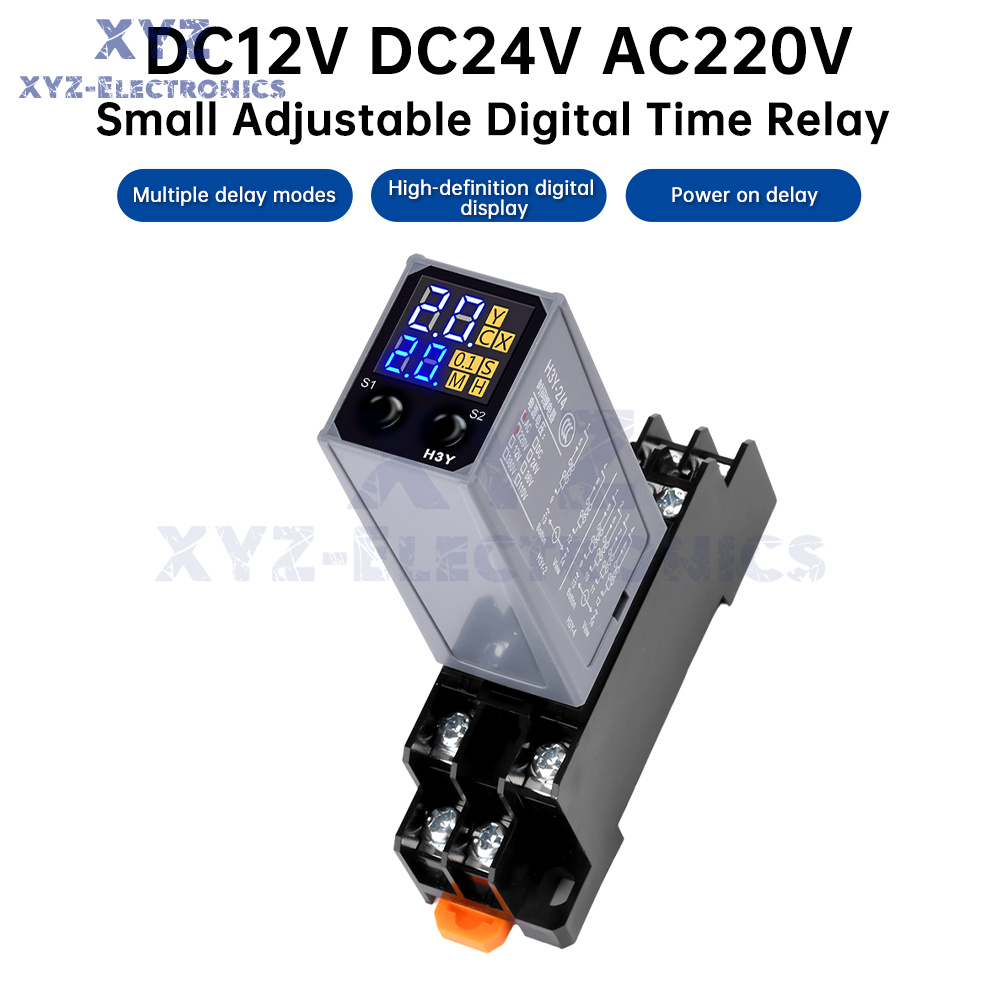

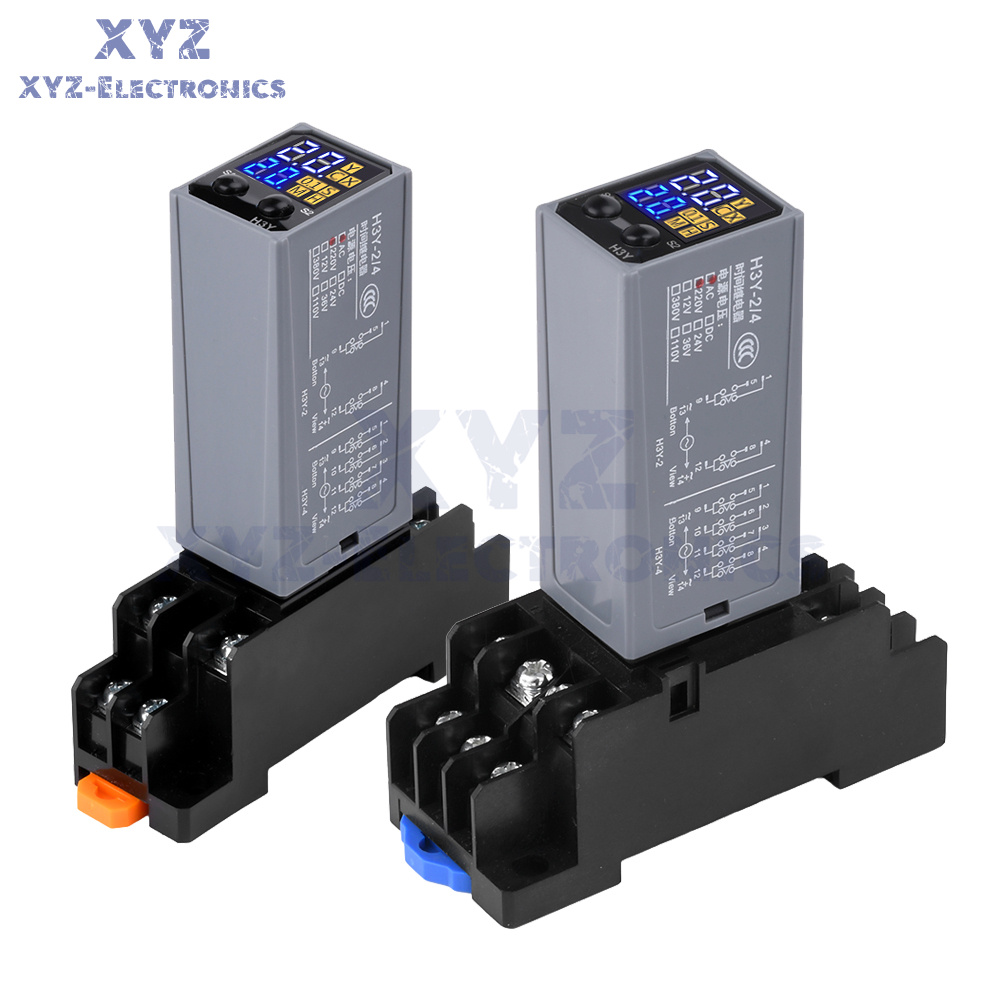

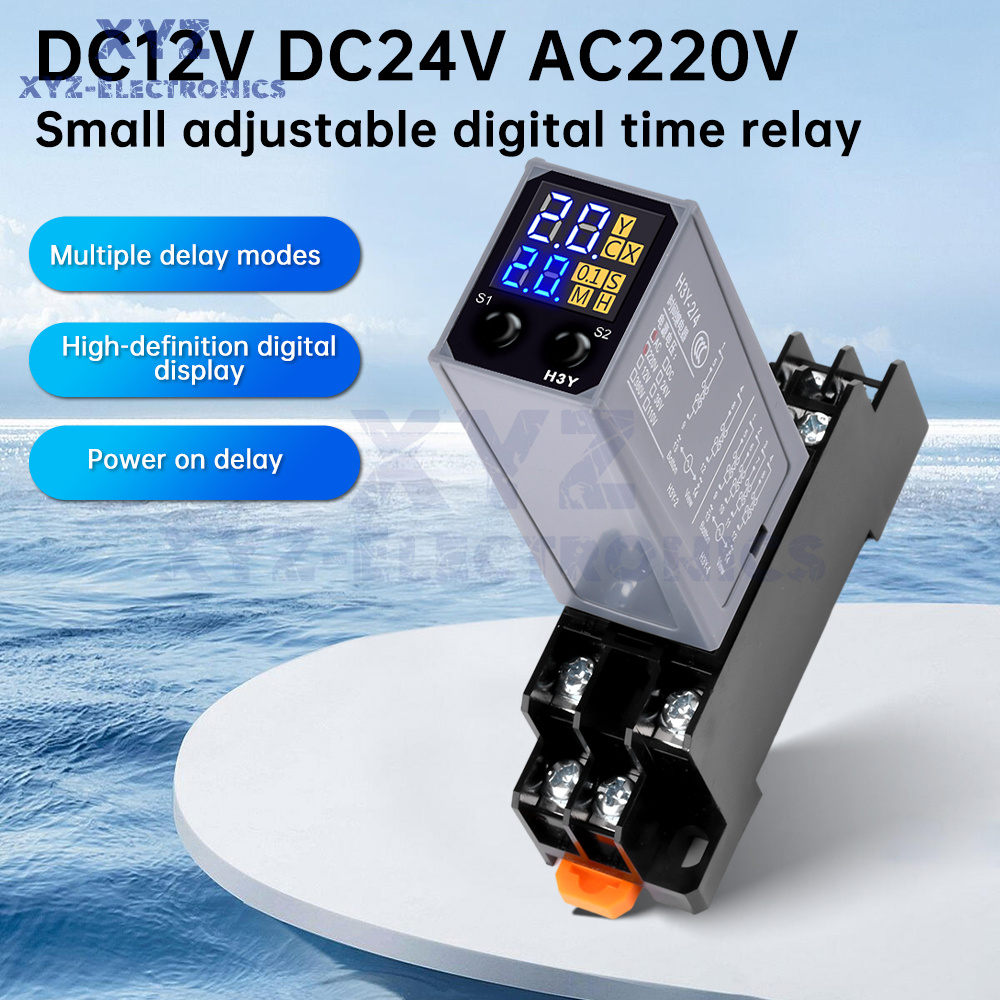

Product name: time relay (8 feet / 2 open 2 closed)
Voltage: DC12V 24V, AC 220V (optional)
Time range: 0.1S-99H
Time error: 1%
Power consumption: Max.1.5VA
Ambient temperature: -25~75°C
Allowable voltage range: 90-110% of rated voltage

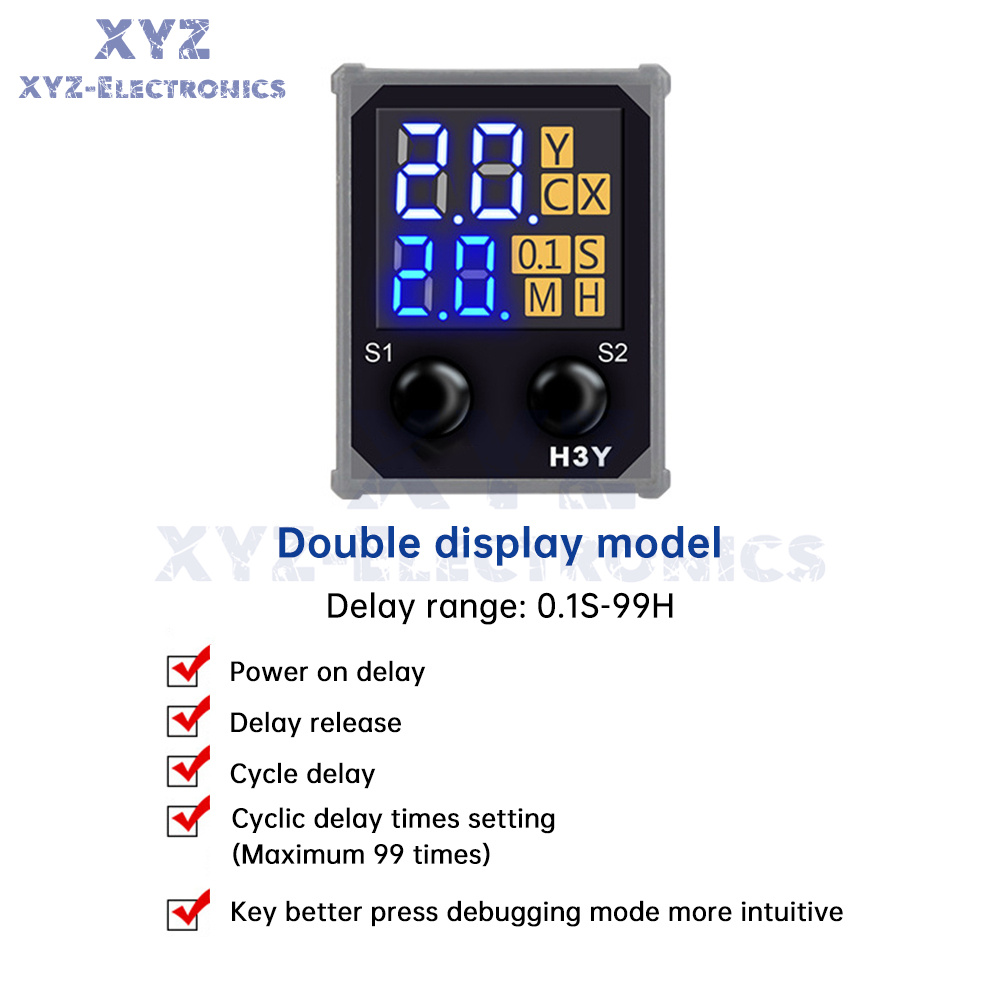

Working mode:
Y: power-on delay
C: delayed release
X: cycle delay
LC: cycle delay times

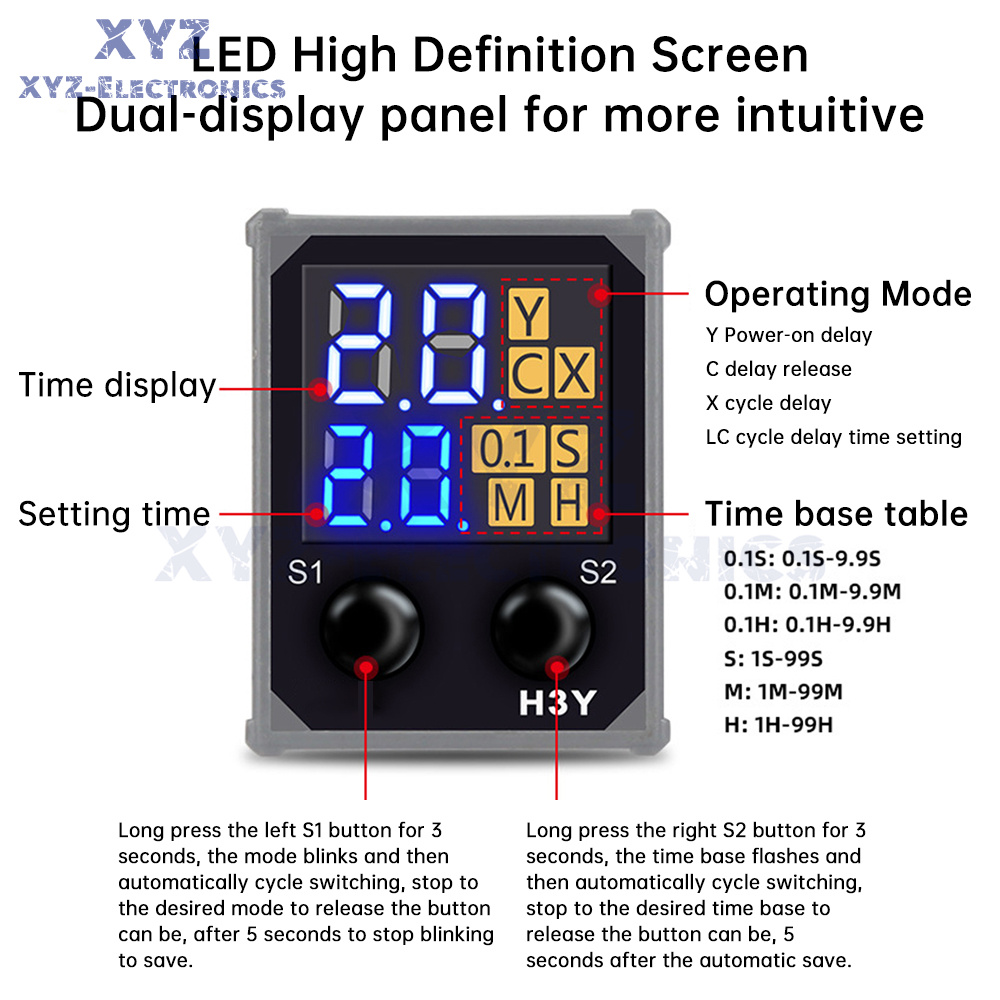

Mode setting: Long press the left S1 button for 3 seconds, the mode will automatically cycle after blinking, stop to the desired mode and release the button, stop blinking after 5 seconds to save.
Time base setting: Long press the right S2 button for 3 seconds, the time base will automatically cycle after blinking, stop to the desired mode and release the button, stop blinking after 5 seconds to save.
Digital setting: press the left button to switch mode
Time relay*1
Base*1
