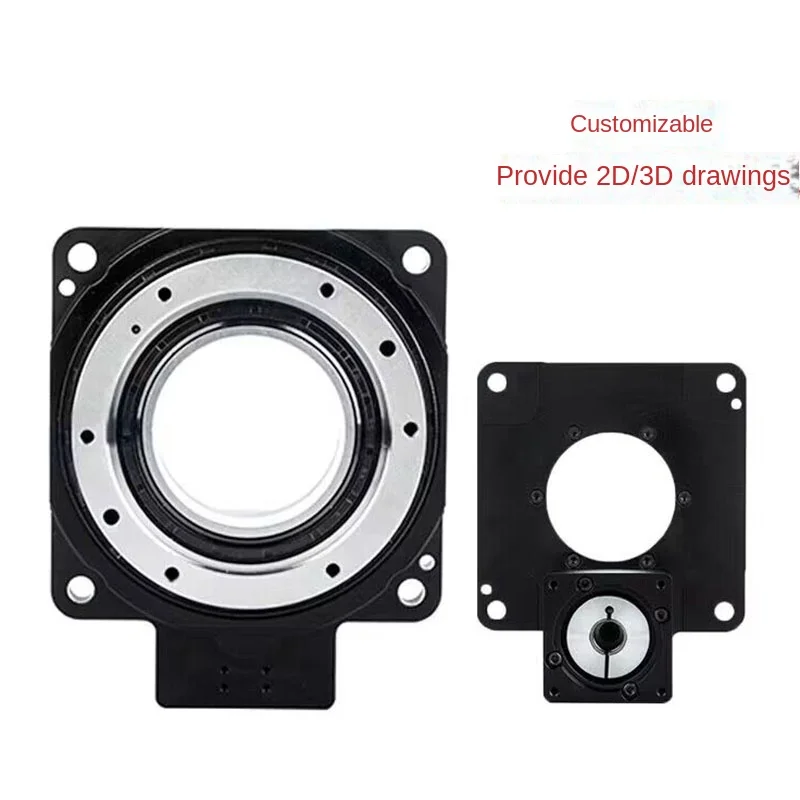

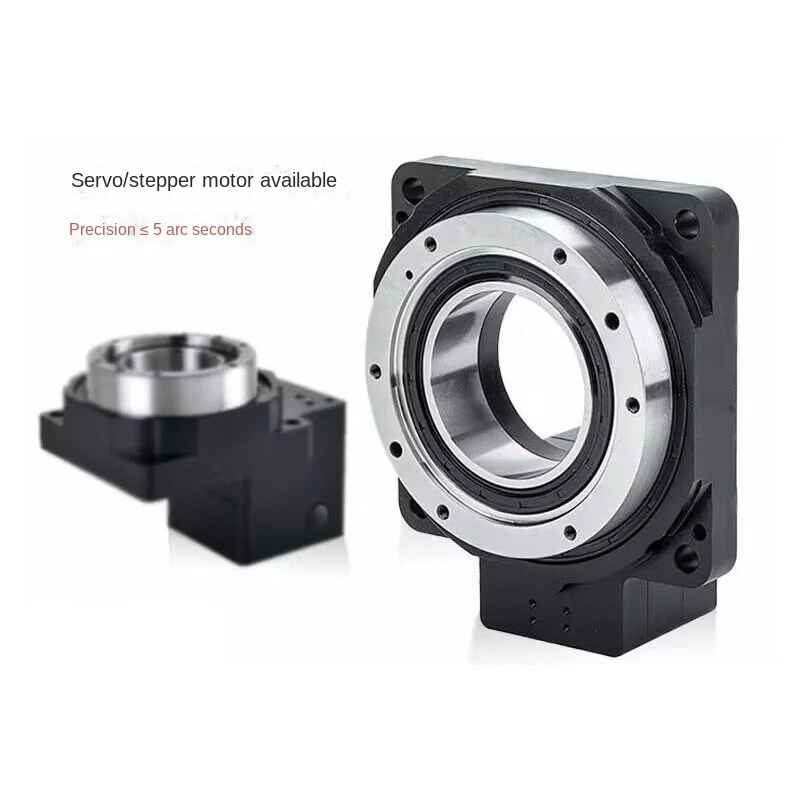

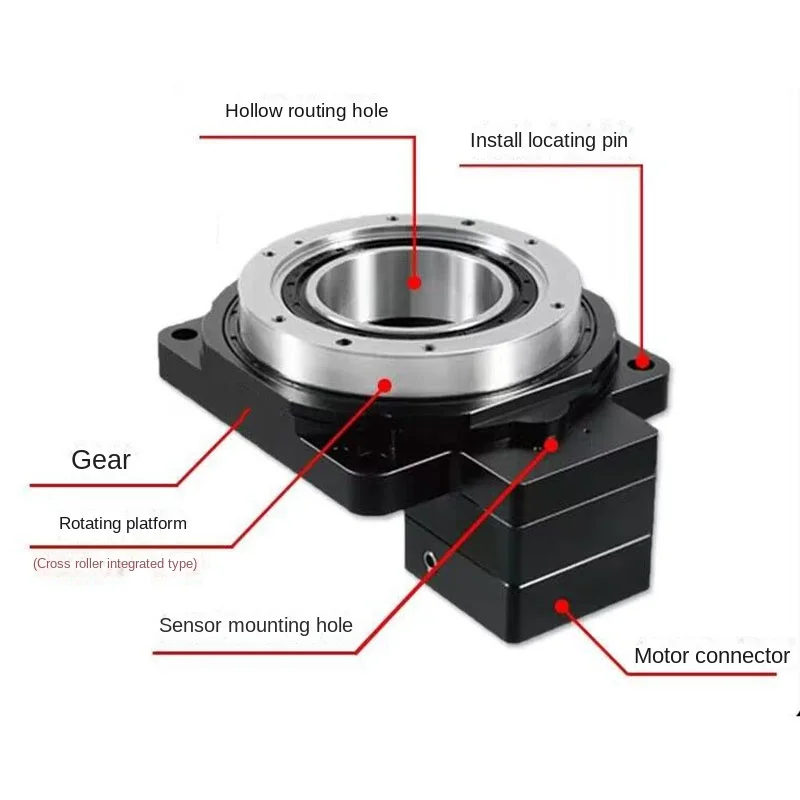

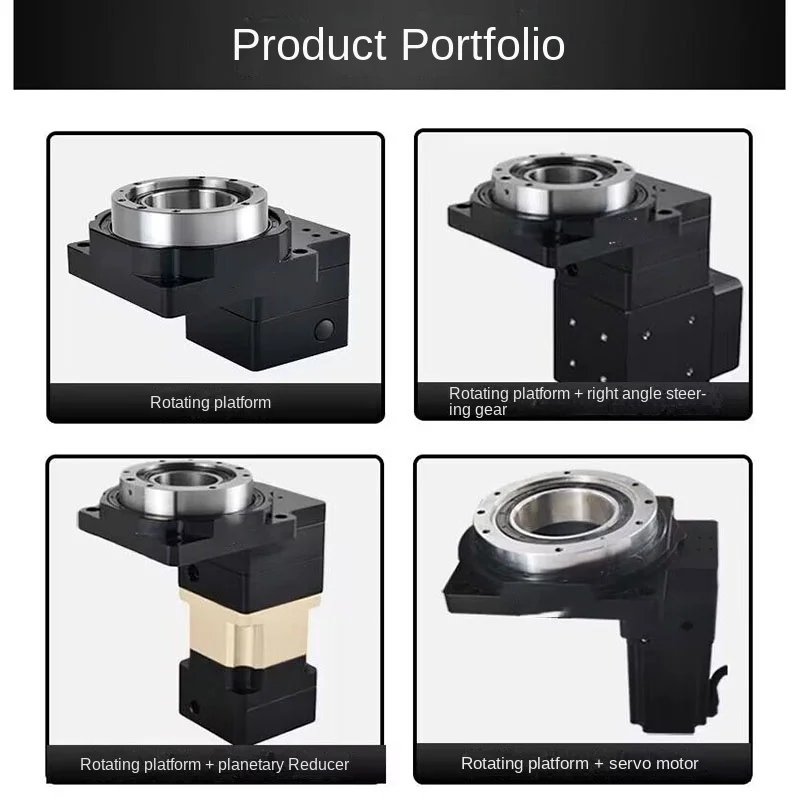

Precision Cnc Cutting Table Accessory - Hollow Rotational Platform, Replaceable Cam Indexer - 4Th/5Th Axis - Motor Compatible
ZT60
Bearing Type: Crossed Roller Bearing
Reduction ratio 5/10
Matching motor 50W/100W42 stepper
Allowable torque N.m5.2
Moment of inertia kg.m'4380*10''kg-m''
Allowable speed 200rpm
Allowable moment of inertia N.m16
Allowable axial load 260
Positioning accuracy arc-min0.5
Repeat positioning accuracy arc-sec: 5
Rotation plane deviation (disk runout) mm+0.005
Parallelism of rotating platform mm< 0.015
Rotary platform concentricity mm< 0.01
Noise value dB(A)58
Protection class IP40
Weightkg1.5

ZT85
Bearing Type: Crossed Roller Bearing
Reduction ratio 5/10/15
Matching motor 200W/400W/100W42 stepper
Allowable torque N.m42/25/18
Moment of inertia kg.m'2550*10''kg-m''
Allowable speed 200rpm
Allowable moment of inertia N.m72/36
Allowable axial load 800
Positioning accuracy arc-min0.5
Repeat positioning accuracy arc-sec: 5
Rotation plane deviation (disk runout) mm+0.005
Parallelism of rotating platform mm< 0.015
Rotary platform concentricity mm< 0.01
Noise value dB(A)60
Protection class IP40
Weightkg1.5
