60A Solar Controller MPPT 12V24V36V48V60V 72V 84V 96V Battery Regulator Max 230V

【Solar voltage &power range】The controller supports high photovoltaic input power and voltage. Acceptable solar voltage up to 230V. When the battery system is 12V: it is recommended that the solar power be 720W; 24V(1400W); 36V(2160W); 48(2880W); 60V(3600W); 72V(4320W); 84V(5040W); 96V(5760W)；

【Compatible with multiple battery types】: It can charge and discharge different types of 12V/24V/36V/48V/60V/72V/84V/96V battery packs, including lithium-ion and lead-acid batteries GEL, LiFePO4, Li ion, and user;

【Advantages】 Y&H MPPT controller is equipped with full power input function to provide stable and sufficient power for the equipment, which has obvious advantages in high-power and complex power demand scenarios.

【Multiple Protection】Solar voltage regulator has overcharge protection, overcurrent protection, overheating protection, short circuit protection.Lithium battery activation can effectively activate lithium batteries that may be in a low-activity state and restore them to a good working condition, thus extending the service life of lithium batteries.

【Application Scenarios】: Off-grid solar power systems for homes and farms, off-grid solar power systems for small workshops and factories, RVs, boats and off-grid solar power systems.

Descriptive:

Y&H controller is used in solar off-grid power generation systems to automatically regulate battery charging and discharging. It has an advanced tracking algorithm to obtain the maximum power of the solar module to charge the battery; at the same time, its Low Voltage Disconnect (LVD) function prevents the battery from over-discharging and causing damage.

The MPPT controller's comprehensive self-test function and electronic protection function can avoid damage caused by installation errors and system failures.

Features:

1.Maximum power point tracking technology, can significantly improve the energy utilization of solar energy system, conversion efficiency of up to 97%.

2.Battery voltage available:12V/24V/36V 48V/60V/72V/84V/96V

3.Multiple battery type settings: Lead Acid,Gel,LifePo4,Li,User

4.PV Open Circuit Voltage: 0V-230V,Charging current (A) is adjustable.

5.Automatic compensation of charging voltage and current according to battery temperature to prolong battery life.

6.Wide range of high voltage: the same type of 60A controller can withstand up to 150V, while the 12V battery can withstand up to 45V, Y&H controller 12V battery system can withstand up to 230V, the advantage is obvious.

7.PV minimum input is calculated as about 1.5-2 times the battery voltage. (Example: 12V battery, minimum input voltage is 18V-24V voc)

NOTE:

1:Lead-acid batteries: 60V/72V/84V need to be adjusted manually.

2:solar panel input voltage minimum input: to be greater than the maximum battery voltage of 20V; maximum does not exceed 230V

Echnical Data
Model		60A	120A
Charging Mode		MPPT automatic maximum power tracking
Charging Method		MPPT tracks maximum power,fast charge balanced charge,and float charge.
Battery Type	Lead Acid	(12V/24V/36V/48V/96V Auto + 12V/24V/36V/48V/60V/72V/84V/96V Adjustable)
	Gel	12V/24V/36V/48V/60V/72V/84V/96V
	LifePo 4	Single voltage 3.2*number of strings (4 strings -45 strings adjustable)Saturation voltage 3.65V
	Li-ion	Single voltage 3.7*number of strings (2 strings -45 strings adjustable)Saturation voltage 4.2V
	USER	Adjustable limit voltage for equal charge, float charge and DC discharge:8V-170V
With lithium battery activation function		With photovoltaic input,there is charging voltage (activate lithium battery),can be used without battery DC output
PV maximum open circuit input voltage		0--230V
Maximum PV input	12V	720W	1440W
	24V	1440W	2880W
	36V	2160W	4320W
	48V	2880W	5760W
	60V	3600W	7200W
	72V	4320W	8640W
	84V	5040W	10080W
	96V	5760W	11520W
The charging current is adjustable		10-60A	10-120A
Start charging		PV voltage is greater than +3V of battery voltage (low current charging on rainy days)
Direct charging current out put function		DC continuous output 60A	DC continuous output 120A
Temperature compensation		According to the temperature of the battery,the charging voltage and current are automatically compensated to prolong the battery life

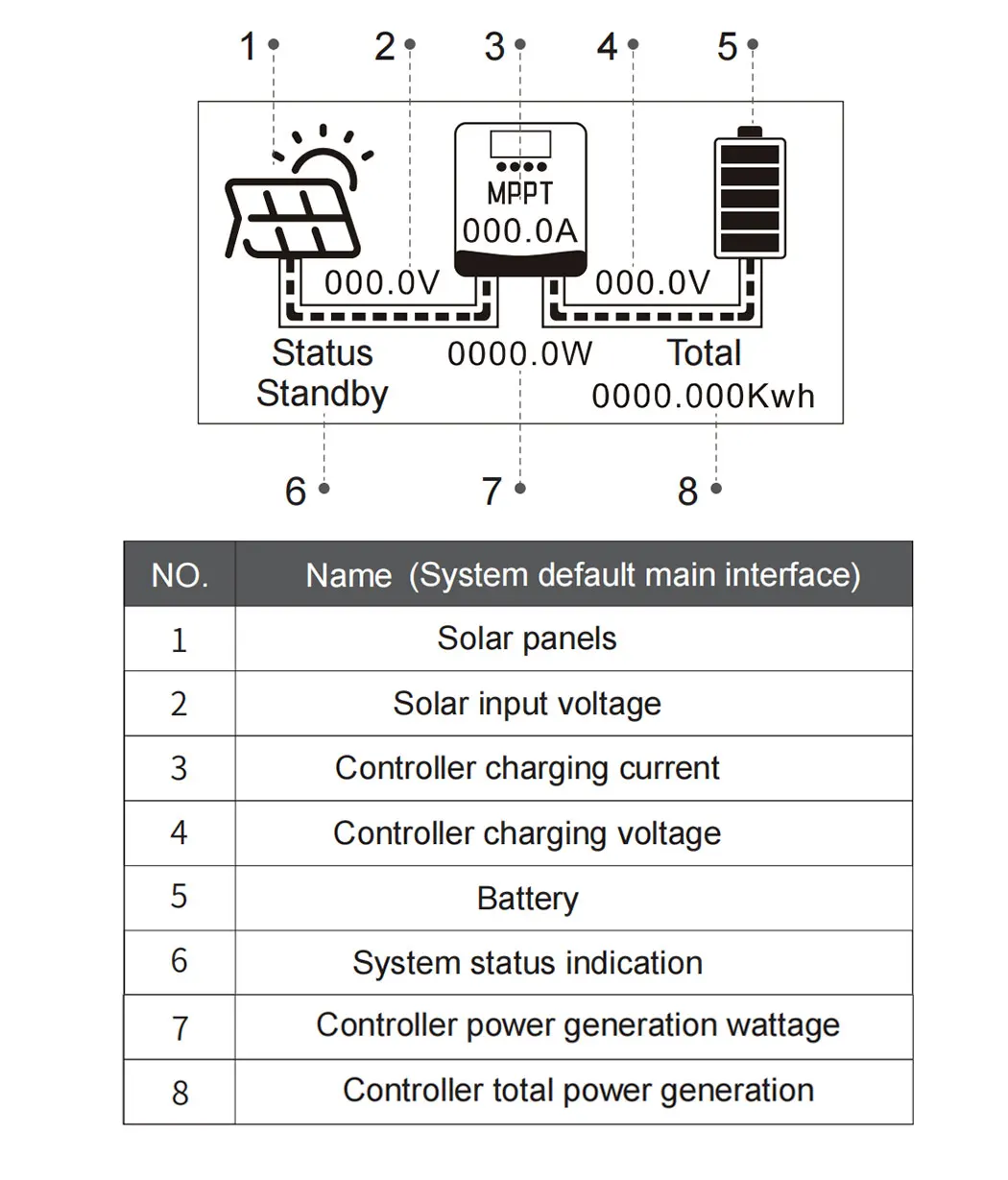

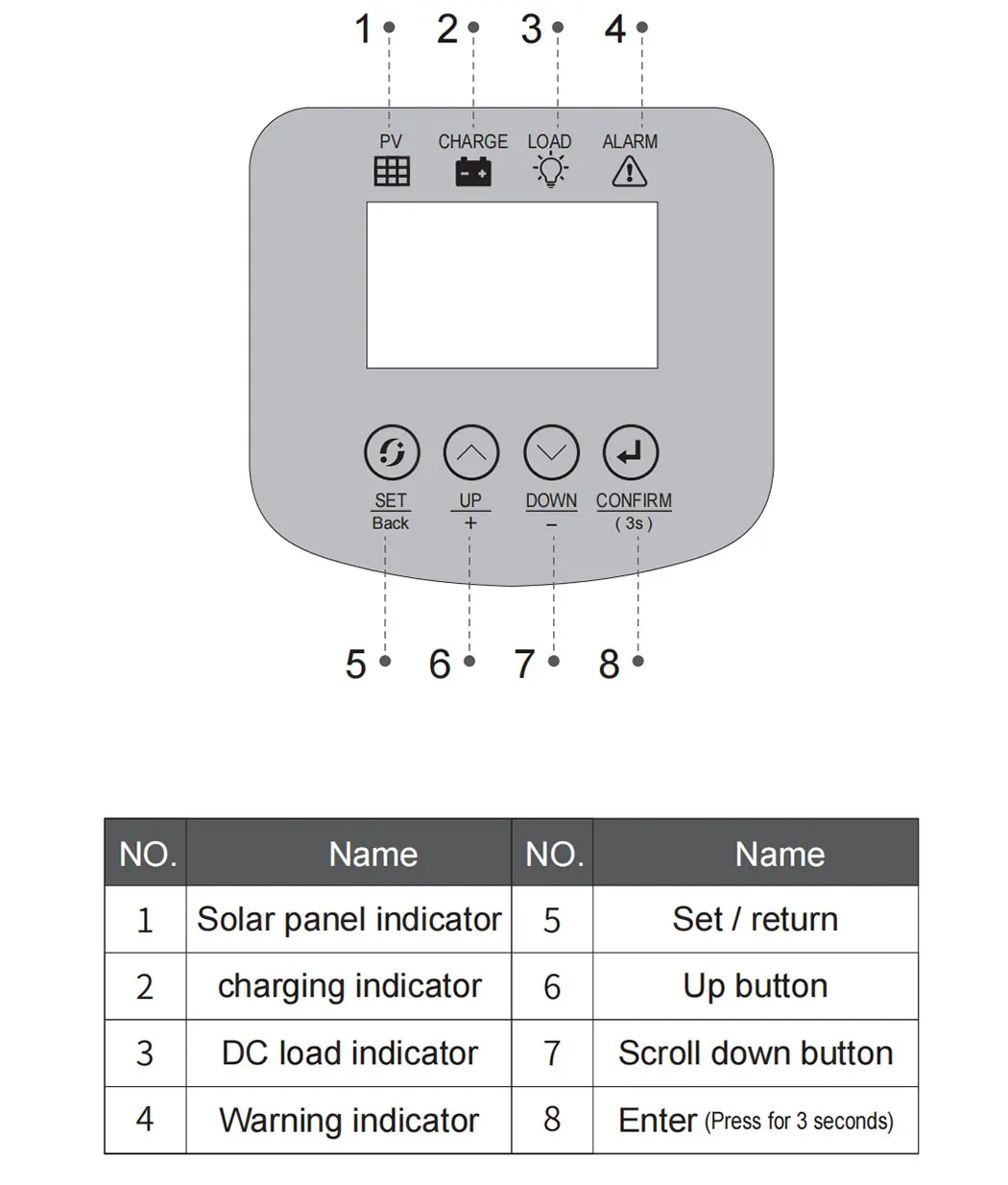

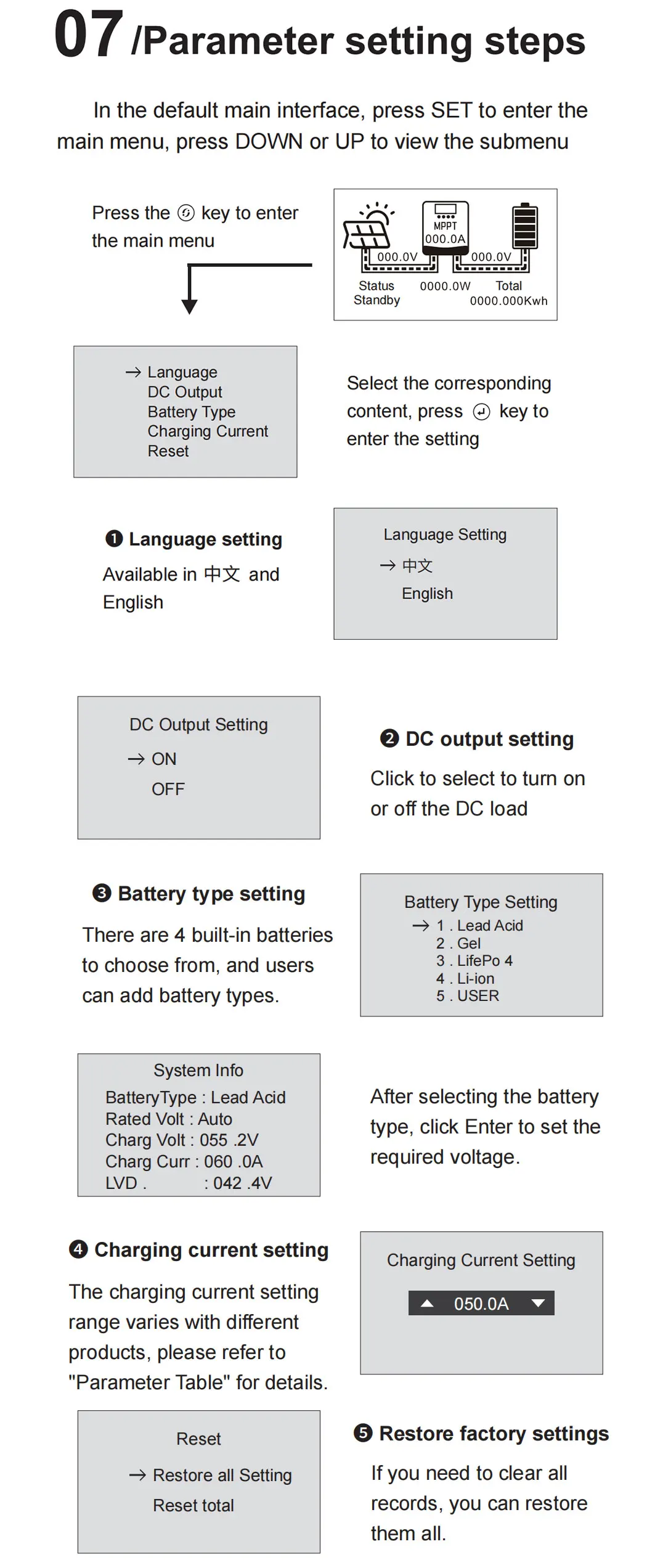

Display communi- cation		LCD display with touch button:(generating capacity /photovoltaic voltage /battery voltage /charging current/power/operation status) Chinese and English display Settings:(battery type,charging current,return to factory)
		8-pin RS485 communication interface (operation status and setting can be queried)
Working environment temperature		-20℃~40℃
Protection level		IP 21
Altitude		0～3000m
Weights		3.2kg	4.54kg
Product size		3728.518cm	41.632.718cm
