High purity graphite oil bath smelting gold and silver bar mold high temperature resistant gold ingots mold pouring pot graphite boat crucible

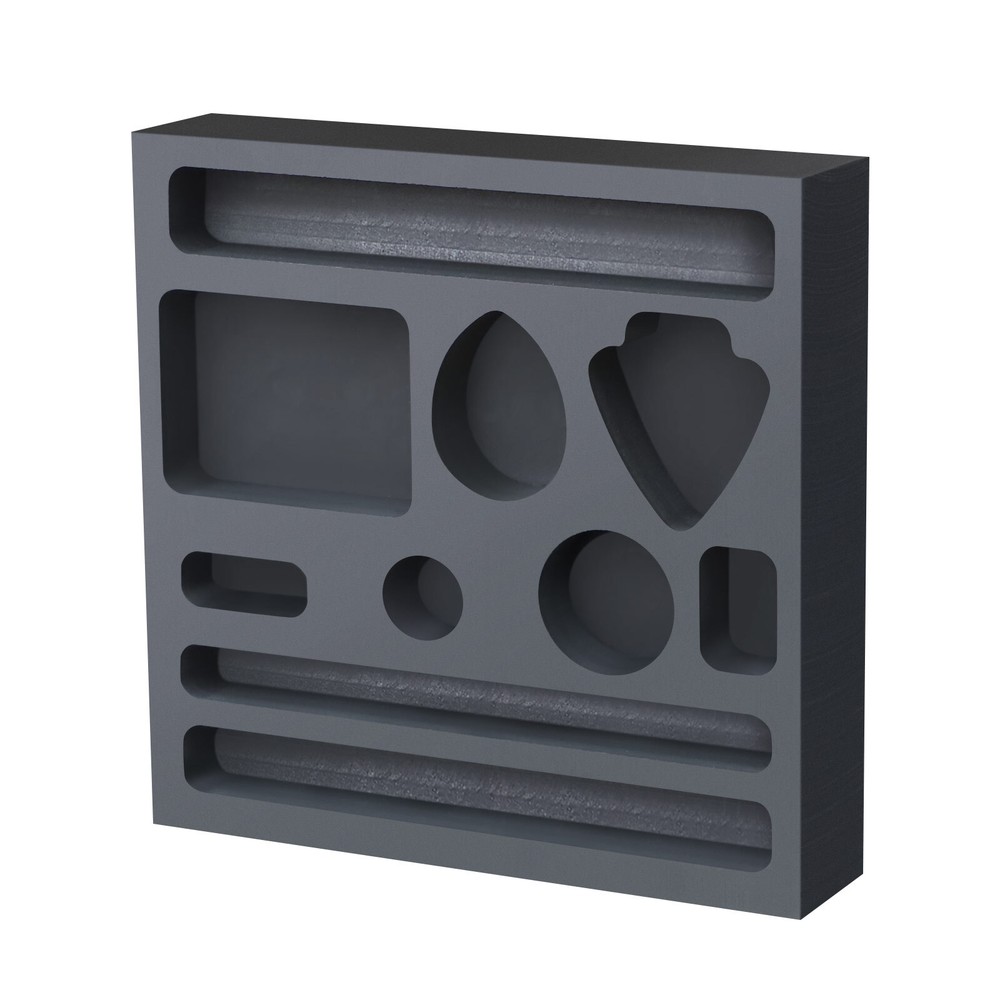

Graphite Ingot Casting Mold Combo Mould for Melting Refining Gold Silver Copper

Specification:

Name:Graphite ingot

Model:SG-SMG-10K

Density:1.85g / cm * 3

Resistance:13μΩ-m

Anti-fold:55MP a

Anti-stress:75MPa

Hardness (Shore):35

Granules:Average particle φ25μm

Purity:99.95%

Product Size:10cm*10cm*2cm

Product Weight:350g



Benefits for you:

1.It has good thermal stability and can be used in a rapid temperature rise and fall environment.

2.Strong acid and alkali resistance, good corrosion resistance, impact resistance, 75MPA compression resistance and 55MPa flex resistance

3.It has good thermal conductivity, which can greatly shorten the melting time and save energy.

4.The brightness of the crucible is less than 0.1%, ensuring that the metal purity will not be affected during metal refining.

5.The product is resistant to high temperature and can withstand 2000 ℃

Applications:

Graphite Ingot Mold is used in the fields of metallurgy, foundry, machinery, chemical industry, DIY, etc., for the exercise of non-ferrous metals such as: gold, silver, copper, aluminum, lead, zinc, etc.

Technical Support:

All Products from the factory will be provided for one year warranty after sales and lifetime technical support.

1. Do not give mechanical impact, do not drop or hit from a high place

2. Don't be drowned by water. Store in a dry place.

3. Do not rinse with water when cleaning the crucible

4. Please warm up slowly for the first time, which will help increase the service life.



Shipping List:

1pc Graphite Ingot Mold
