Features:
- Wired Rear View System Features: Easy installation, no need to worry about the common wireless signal interference
Monitor Features.
- TFT LCD Monitor Features:
- 7" Backlight Color TFT LCD monitor
- Wide screen, high definition, full color
- Full function wireless remote, and User friendly controls
- Compatible with both PAL and NTSC video system
- Easy to install with 2 ways available: standing and mounting

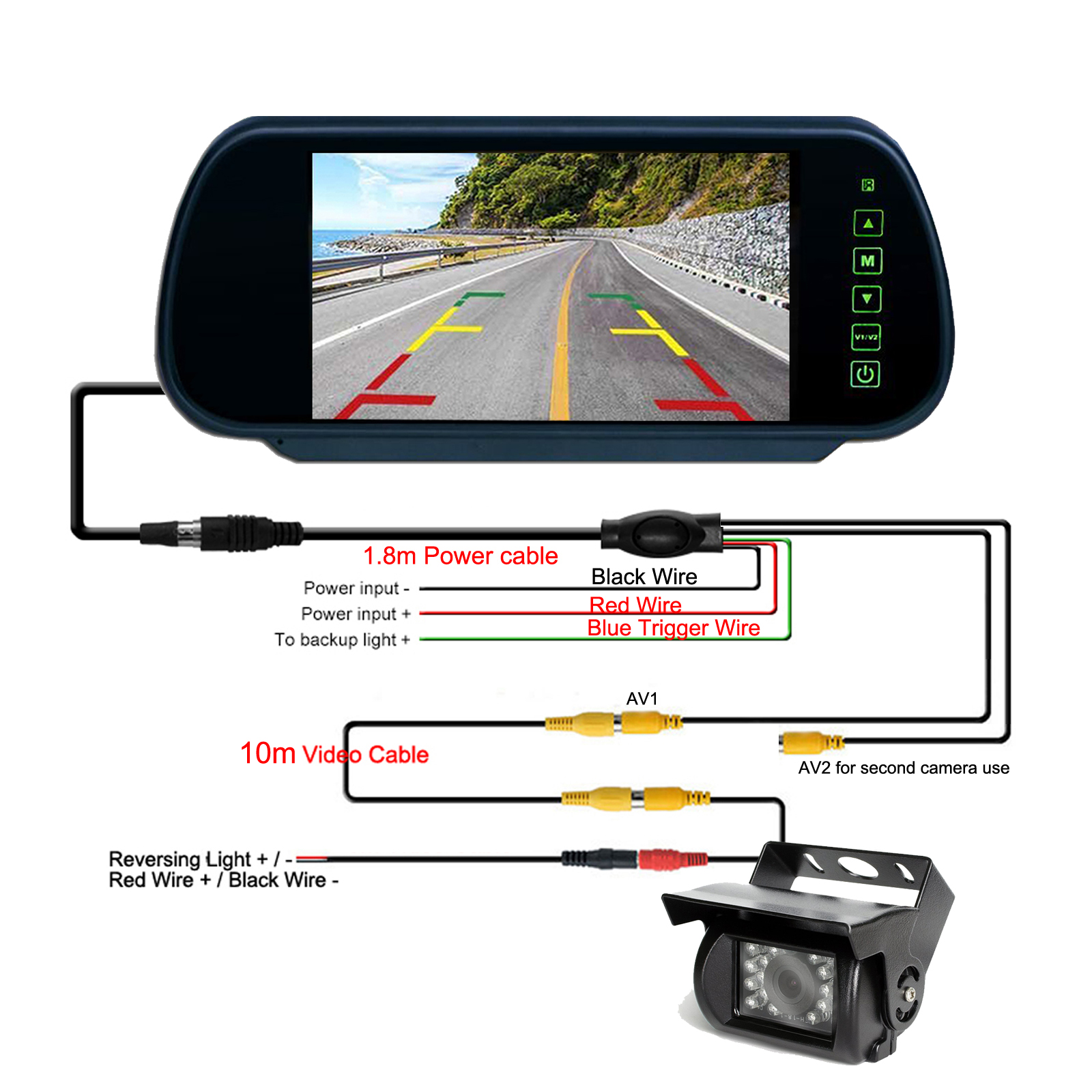

- 2 RCA Video inputs (V1 for DVD player/V2 for Backup camera) and automatically throw-over
- Available for car VCD, DVD, GPS, etc. and especially designed to connect to your car camera
- DC 12V Input for 12V Cars
- 18 IR LEDs up to 10-15 meters(Night Vision Automatic)
- IP68 Hight Water-proof-Rating
- 120 degree wide angle viewing helps avoid accidents & injuries
- Easy to adjust the unit angle and easy to mount
Specification:
Camera Specifications:
- Effective Pixels: 800x480
- Vertical sync frequency: NTSC 60HZ
- Scanning system: 2:1 Interlace
- Sync System: Internal
- AGC: Auto
- BLC: Auto
- Resolution: 600 TV Lines
- S/N Radio: More than 48dB
- Current consumpition: No more 150mA
- Power supply: DC12V-24V
- Operating temperature: -20℃ ~ 70℃ RH95% MAX
- Storage temperature: -30℃ ~ 85℃ RH95% MAX
- Horizontal angle: 92℃ /110℃
- Lens angle: 120℃
- Water-proof: IP68
- Minimum Illumination: 0.5Lux/F 1.2(0Lux with Led)
TFT LCD Monitor Specification:
- Screen Size: 7 inch
- Display Size: 16:9
- Resolution: 800 x 480 Pixels
- Color Model: RGB
- Video System: PAL/NTSC(Video)
- Power Supply: DC 12-24V
- Power Consumption: 8W

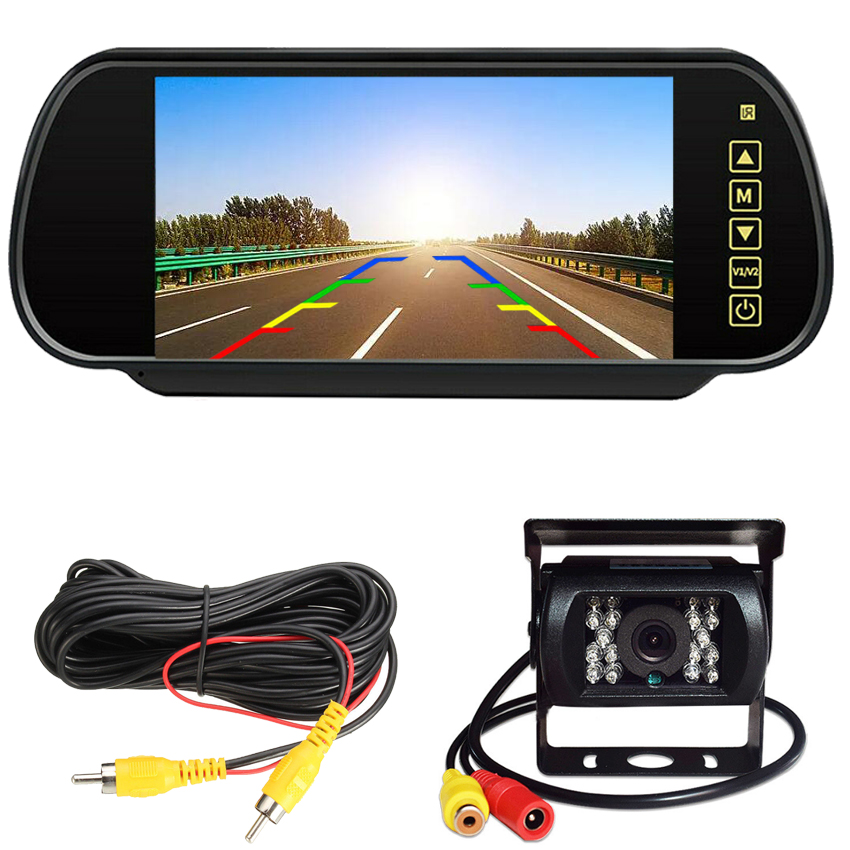

What is included:
- 1 x 7" TFT LCD Monitor Mirror
- 1 x Remote Control
- 1 x Universal User Manual
- 1 x Rear View Camera
- 1 x 10m RCA Video Cord
- 1 x Power Cable for the Camera
- 1 x Power Cable for the Monitor
