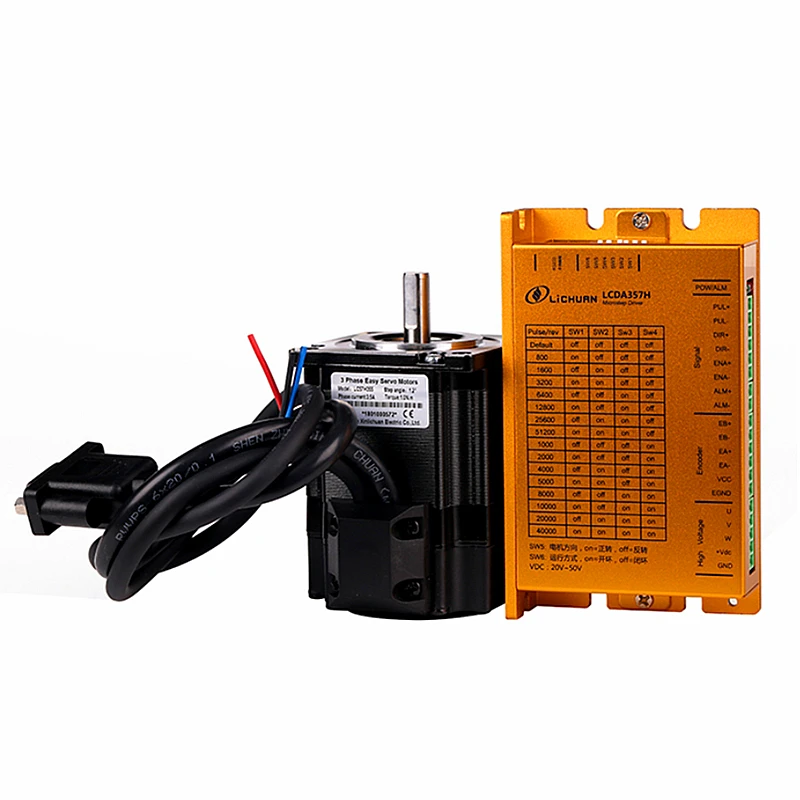

Servo motor driver LCDA357H +Nema23 stepper motor 57 with encoder with 3M cable for CNC Router

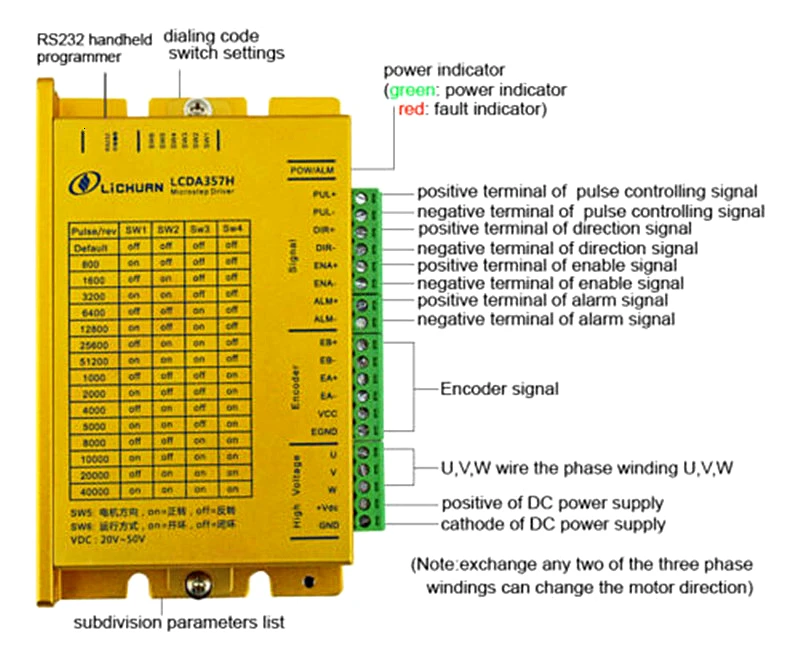

LCDA357H Features:

Input voltage range: 18-50 VDC

Maximum peak current: 7A

Subdivision range: 200-51200ppr

Signal Input: Differential/Single-Ended, pulse/direction

Impulse response frequency: 200KHz

The electrical parameters of automatic tuning function Closed-loop vector control to ensure the motor speed high torque output, while ensuring that the motor does not lose steps

Overvoltage,overcurrent, tracking error over poor protection

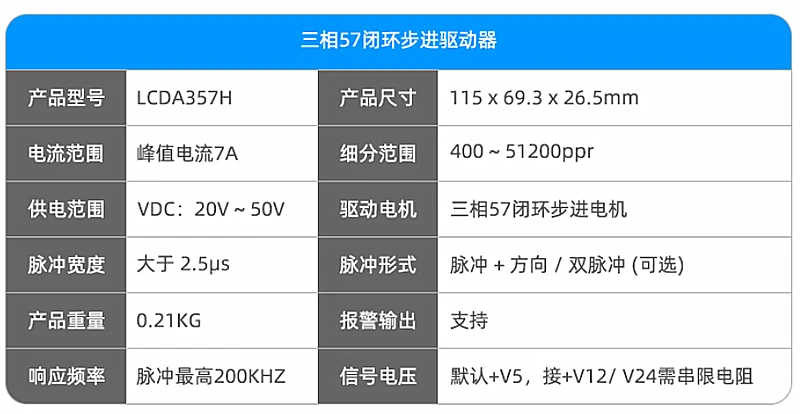

Product	3phase NEMA23 57mm stepper motor driver	Brand	LC
Model	LCDA357H	Suitable Motor	3phase NEMA23 57mm stepper motor
Voltage	18-50vDC	Current	7A max
Subdivision	2-256	Signal voltage	5v(need add Limiting resistor if 12V or 24V)
Pulse	200kHZ	Alarm	support
Signal Input	Difference/single-end, Pulses/direction	warranty	1 year

Closed Loop motor driver Parameter Description:

Parameter	LCDA357H
Parameter	Min	Typical	Max	Unit
Max Current			7	A
Input Voltage	18	36	50	Vdc
Logic Input Current	7	10	16	mA
Pulse frequency		200		kHZ
Insulation resistance	500			Mohm

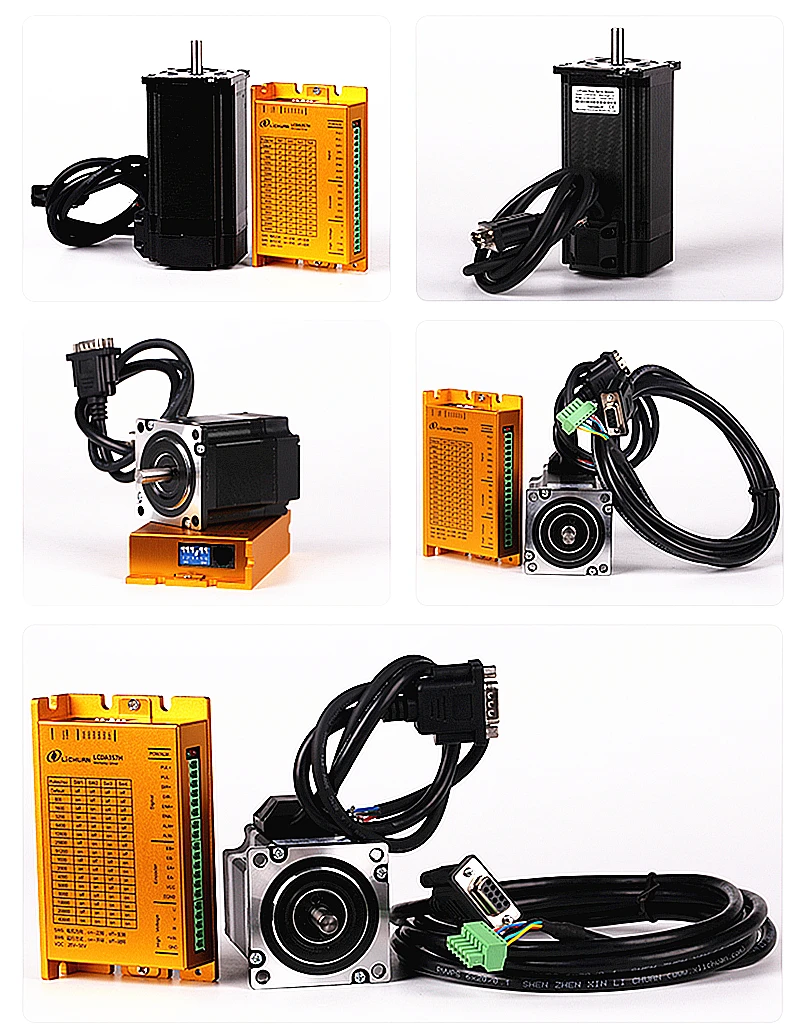

Packing list:

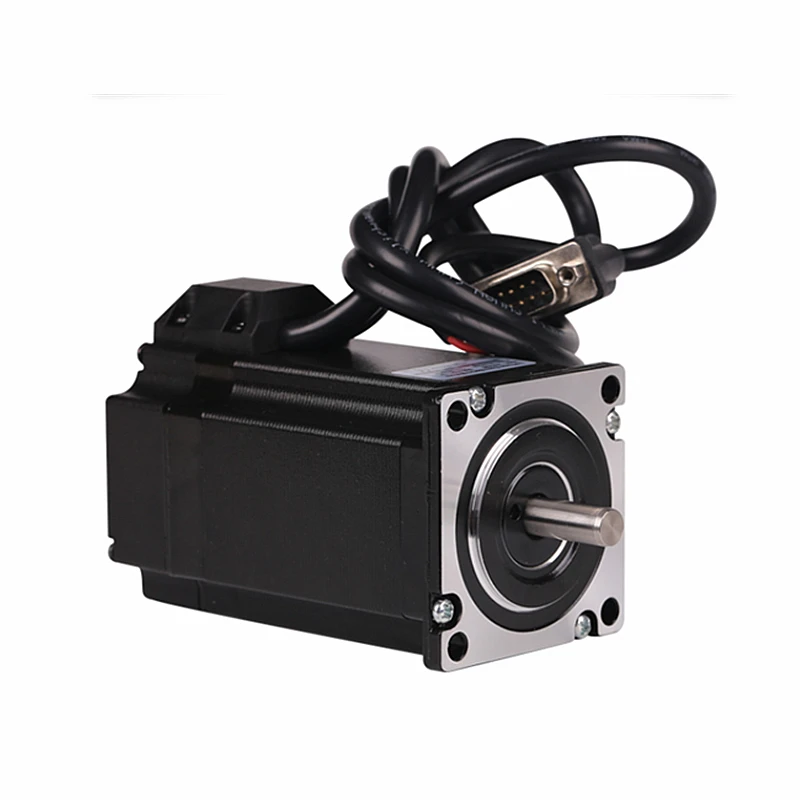

1 pcs3 phase NEMA23 Closed-loop stepper motor(with 0.5m motor cable )

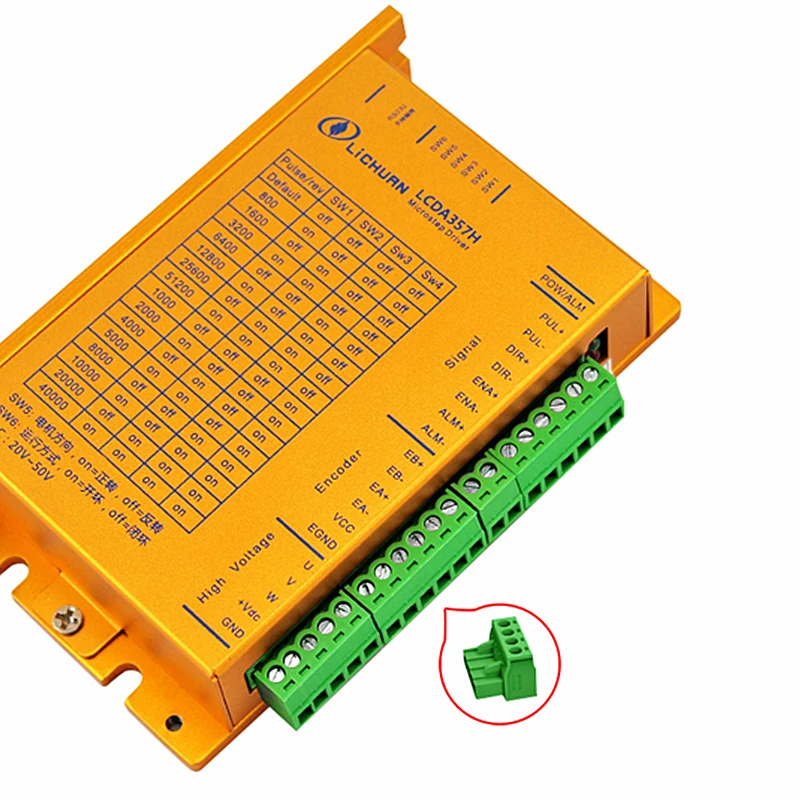

1 pcs3 phase closed loop stepper motor driver LCDA357H

1 pcs3M Encoder cable(If you need longer cables, please contact with us)
