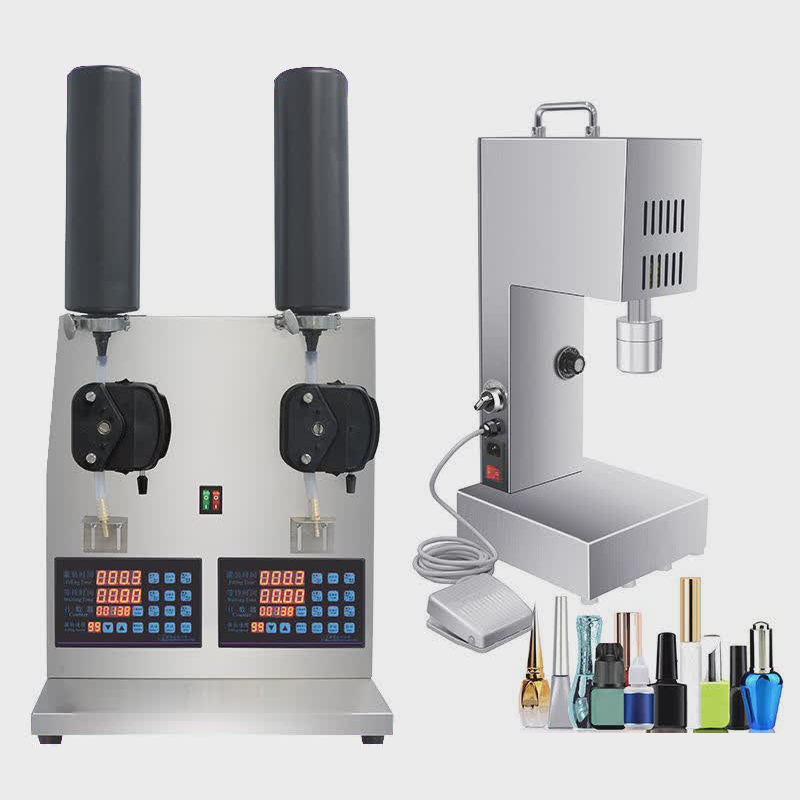

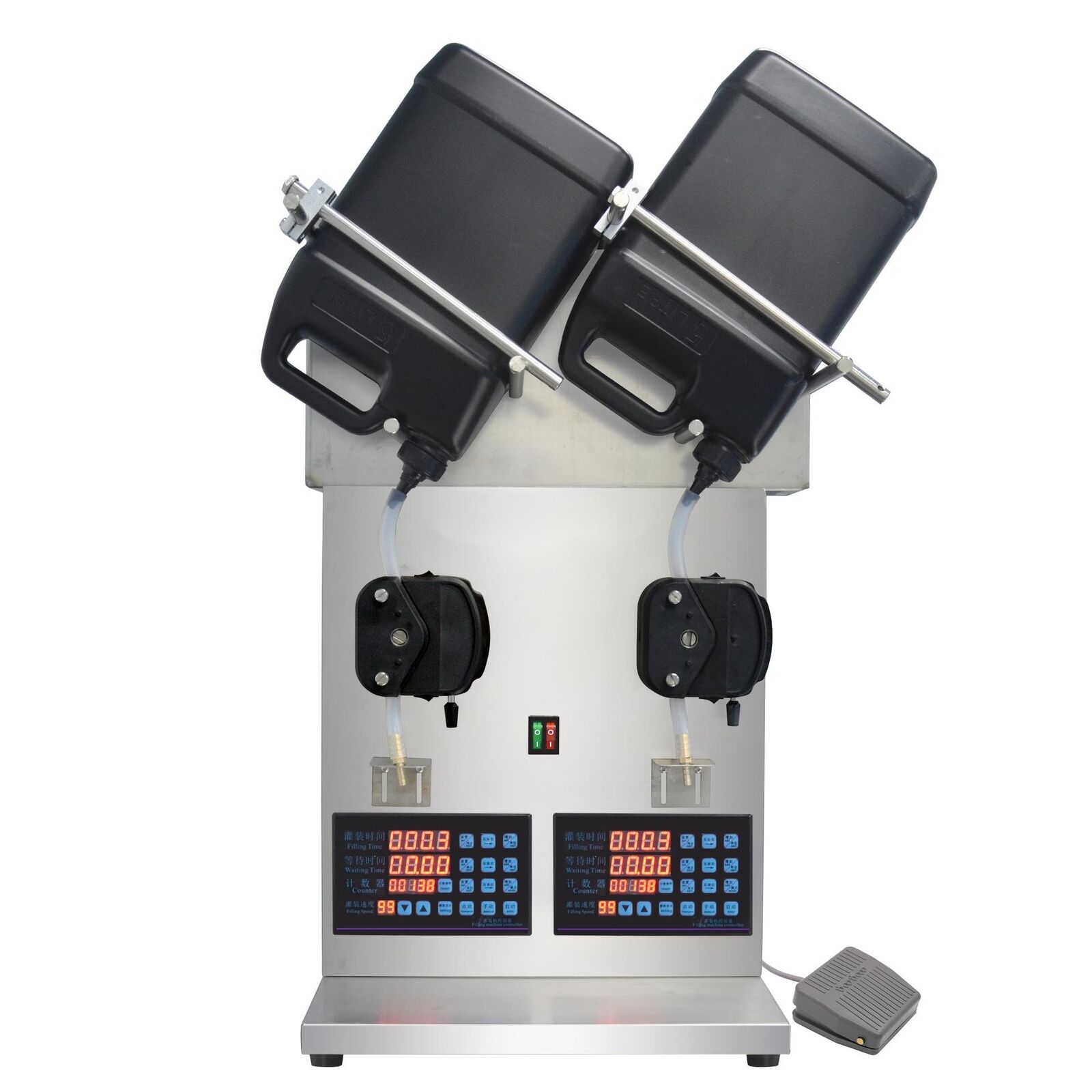

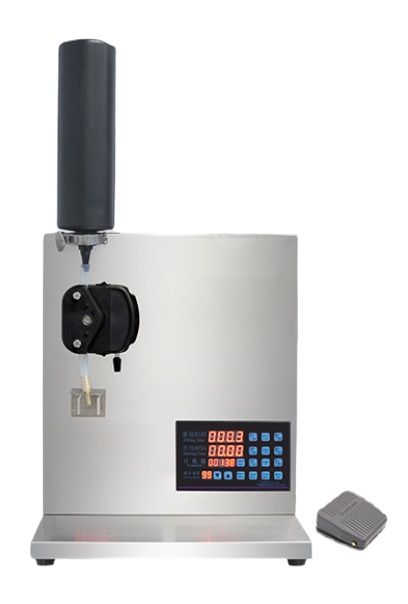

his machine adopts a rolling self-priming PPS pump motor and uses a microcomputer to control the pump speed to achieve automatic quantitative filling and automatically stop when the set capacity is reached. It is suitable for filling trace amounts of liquids above 2ML, with small errors, which cannot be achieved by other filling machines and manual labor.
Advantages and features of PPS pump (must read)
1. The feeding pipe is only 20CM long, which is convenient for cleaning and reuse. It also saves time and cost by directly replacing the pipe. It is especially suitable for customers with many varieties and small filling volume.
2. The filling material only flows in the hose and does not pass through any part in the machine without damaging the pump head. It has a long service life and can achieve food-grade pollution-free filling.
3. Widely applicable, almost all liquids with good fluidity (liquids with high concentration or containing micro-particles) can be filled. It is especially suitable for materials with high hygienic requirements, such as nail polish, nutrient solution,polluting, corrosive liquid filling, a true universal filling machine,
4. This machine can be filled at high temperatures, and the maximum temperature it can withstand can reach 180 degrees.
5. When filling materials that cannot be handed over and contaminated, different hoses can be replaced, without the possibility of cross-contamination, and disinfection and cleaning are very convenient.
Technical Parameters:
Working power supply: 220V 110V
Power:180W
Working mode: pure electric

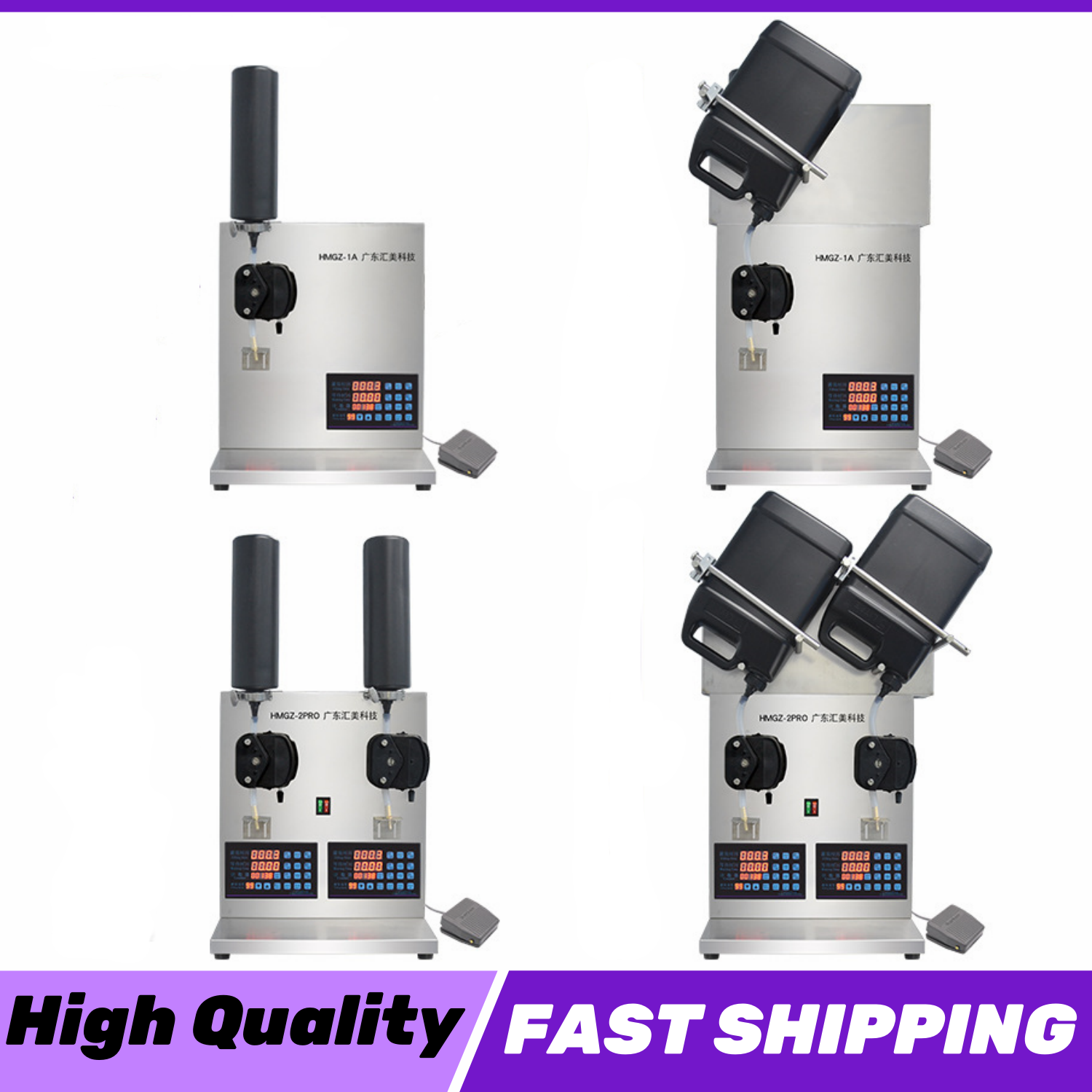

Filling head: single head/double head
Working capacity: single head/double head, single head 1,000 bottles/hour, double head 2,000 bottles/hour
Filling head diameter: 6MM
Machine size:350x360x400MM+230MM
Maximum flow: 1500ML/head/minute
Error:2%
Weight: single head 10KG/double head 15KG
Body material: 201 stainless steel
Two heads： can fill about 2,000-3,000 bottles per hour.
One head： can fill about 1,000-1,500 bottles per hour.

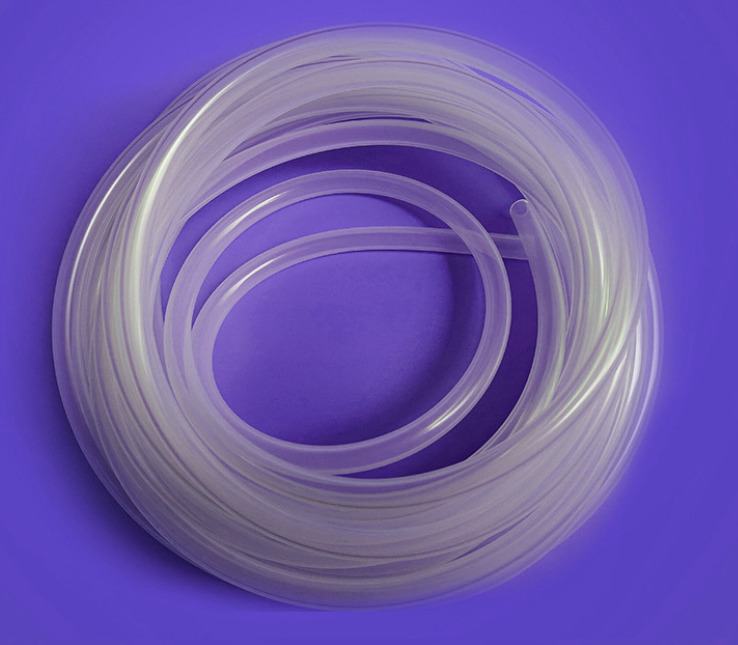

The machine is equipped with a 10-meter feeding pipe.
