Description

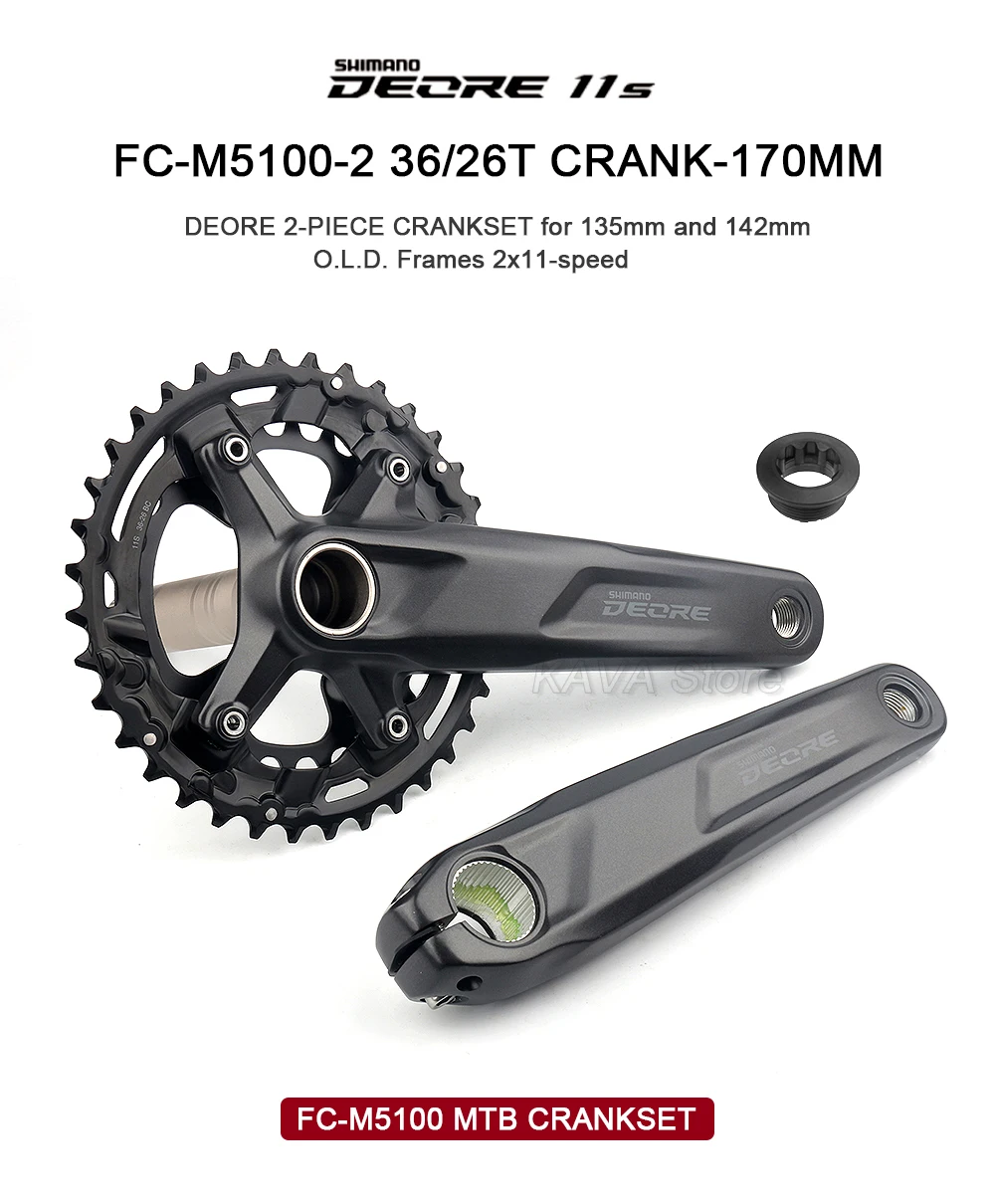

Model: FC-M5100-2

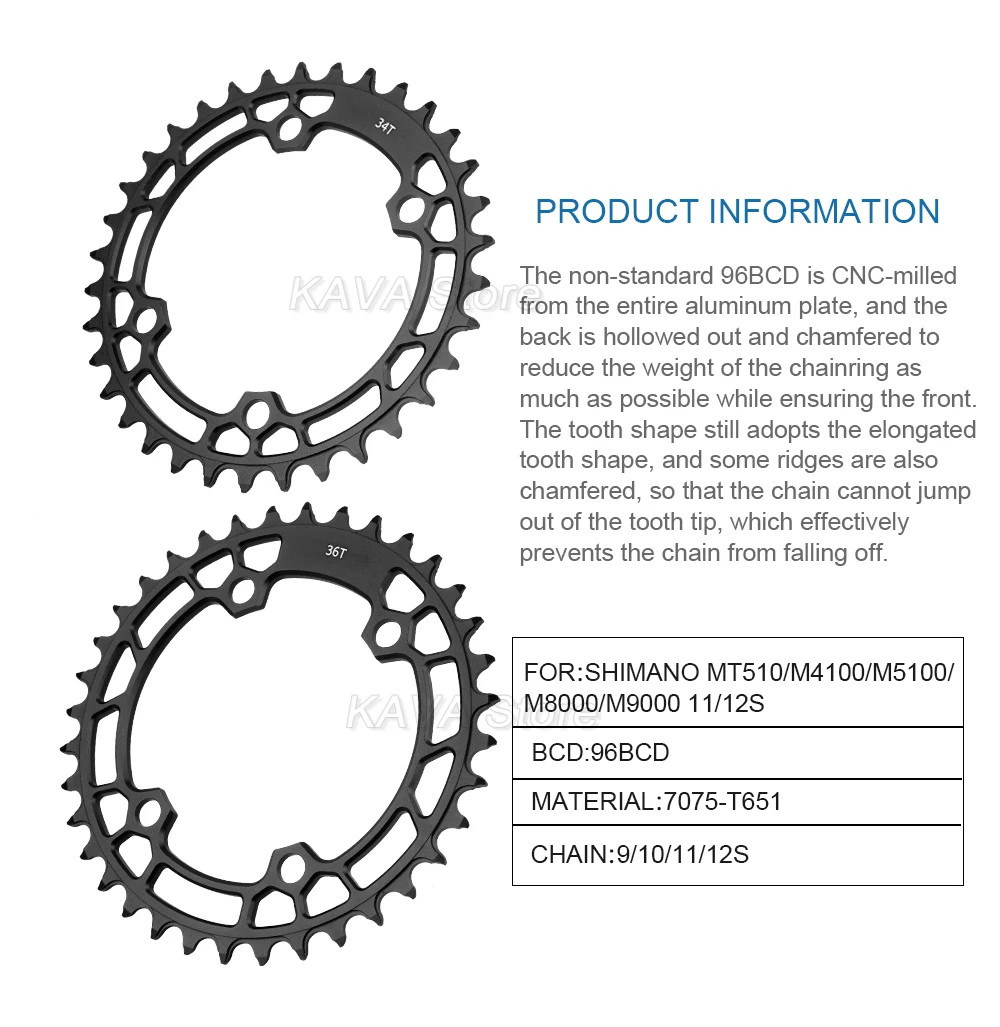

Chainring: 26T/36T (Shimano), 32T 34T 36T (WUZEI)
Chain center line: 48.8mm

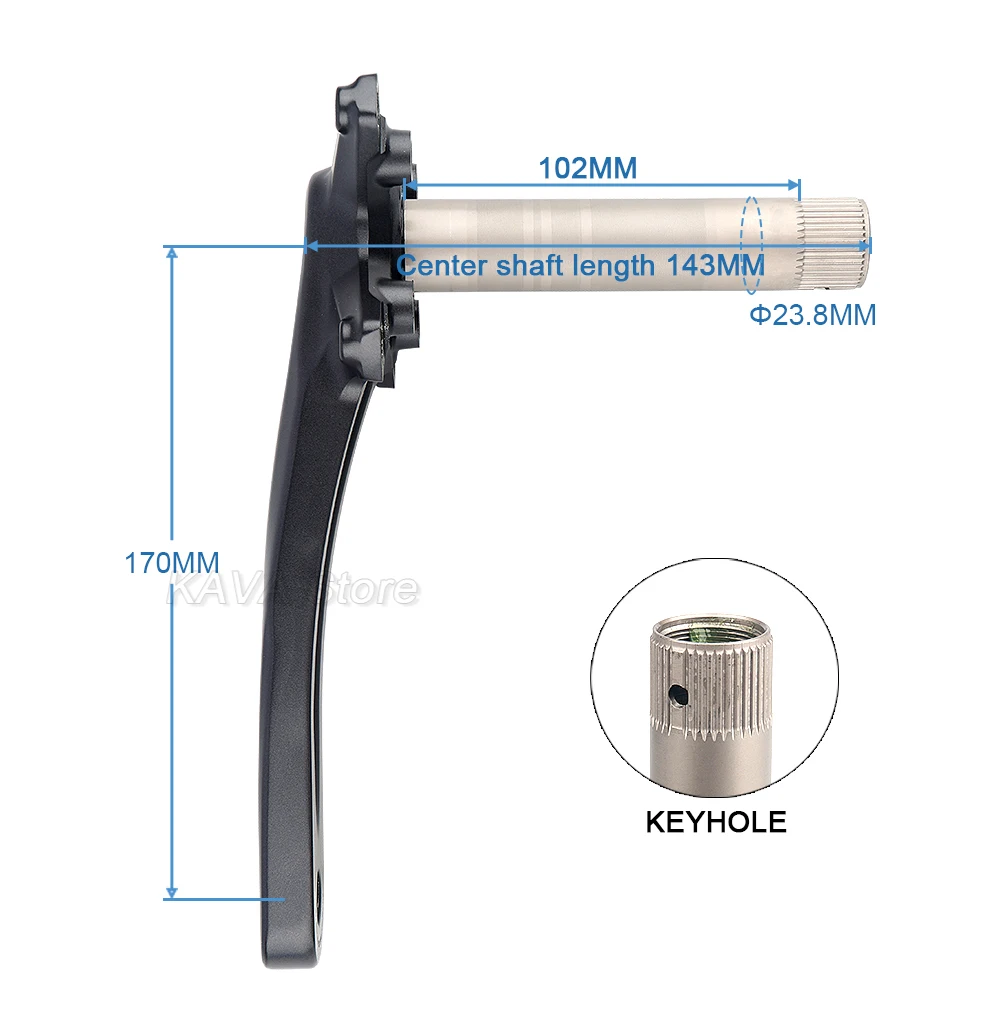

Crank Arm Length: 170mm
Compatible bottom bracket type_ on the outside:
Compatible chains: HG-X11 11 speed, HG-X 10 speed
Sprocket fixed arm/crank claw: 4
Optional chain guard_without chain/anti-shock chain guard:
Rear gear: 11/10
Recommended bottom bracket _ press-in type: BB-MT500-PA
Recommended bottom bracket_thread (normal): SM-BB52
Thread bottom bracket width (mm): 68mm/73mm

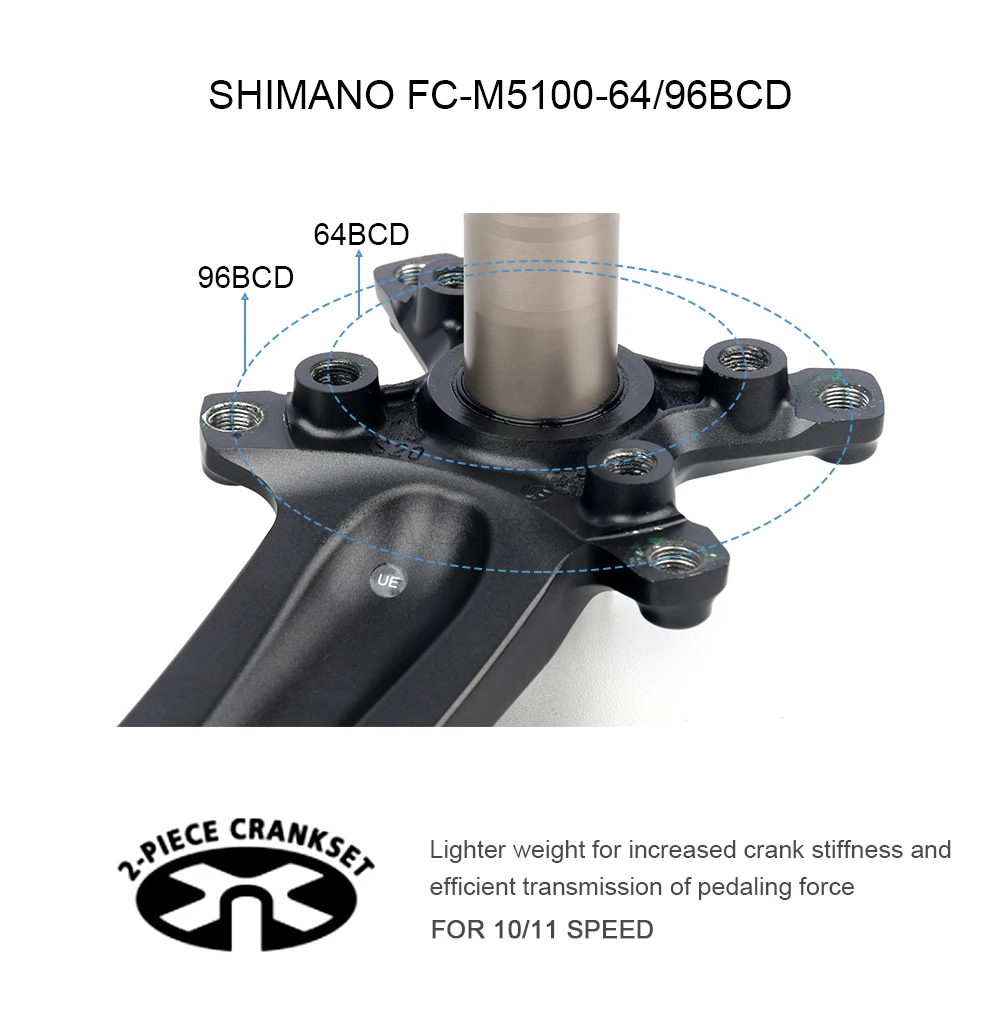

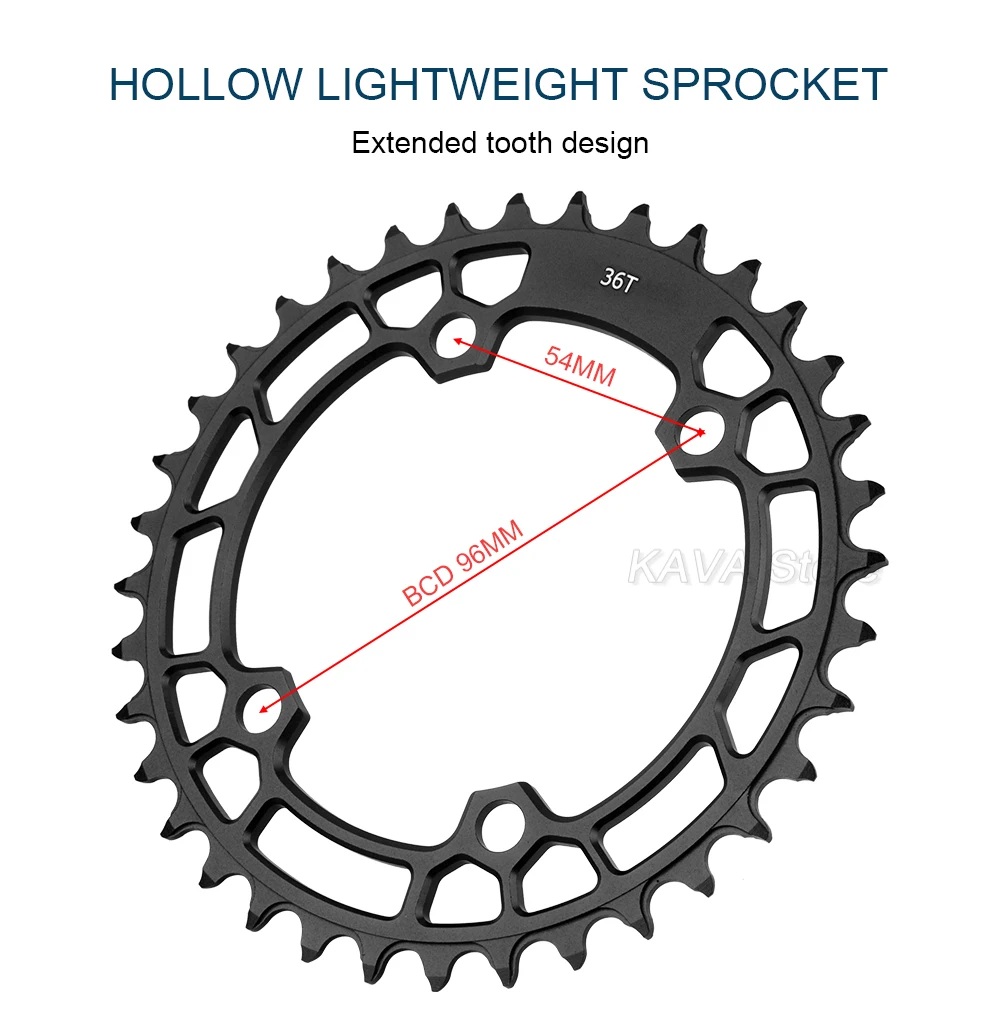

P.C.D. (mm): 96
Q factor (mm): 178.5
Chain center line (mm): 48.8
O.L.D._QR/Nut (mm): 135, 141
O.L.D._Cylinder shaft (mm): 142, 148

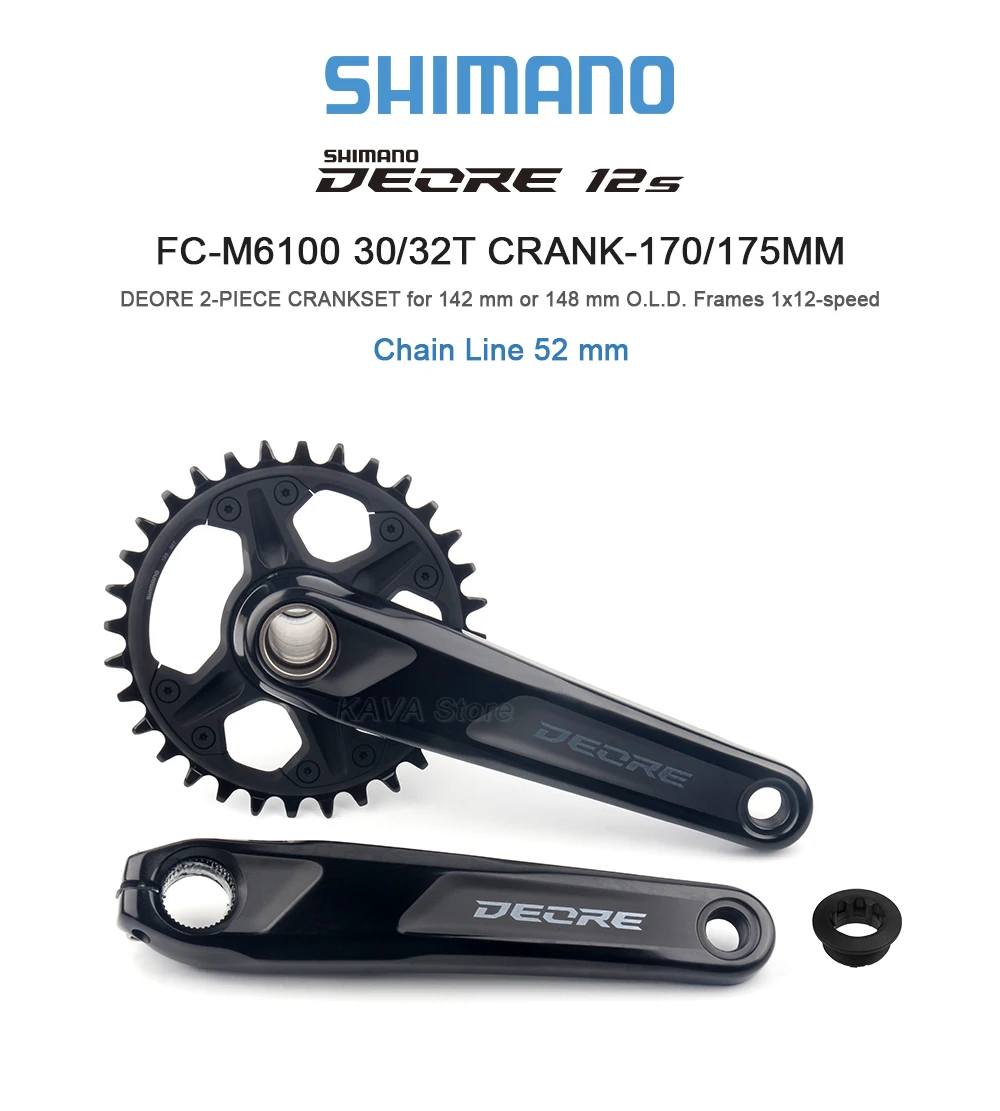

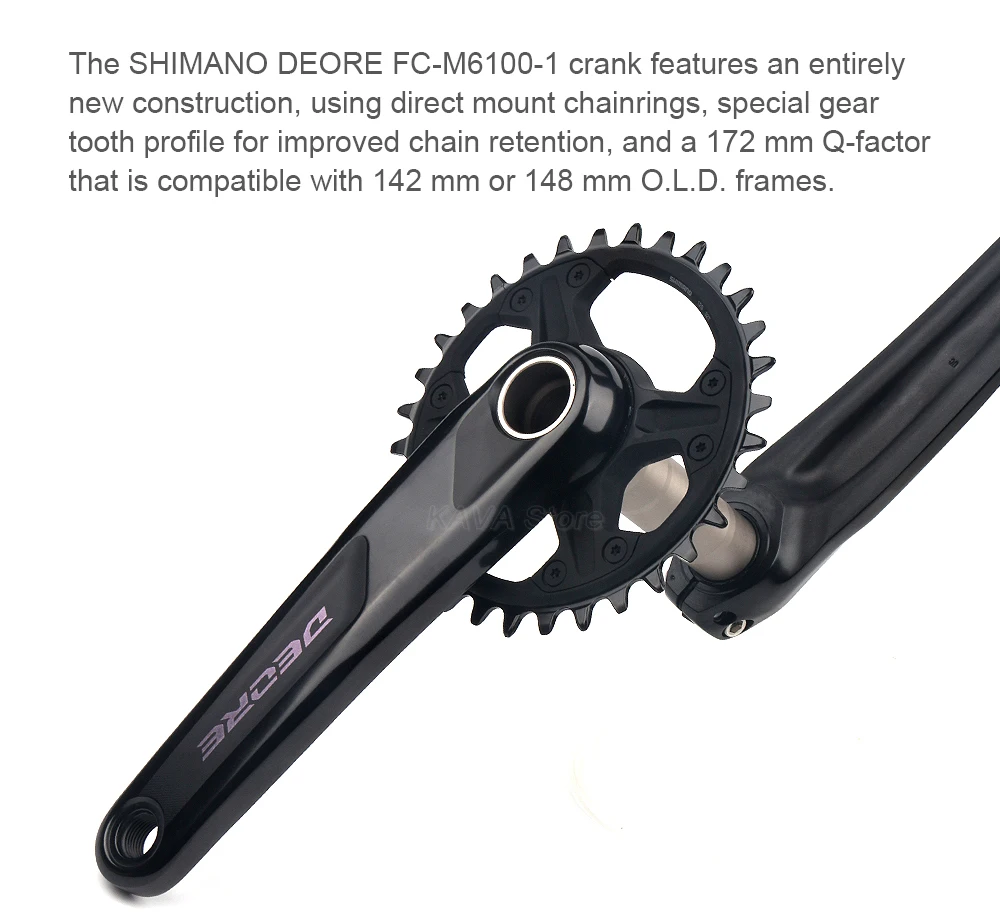

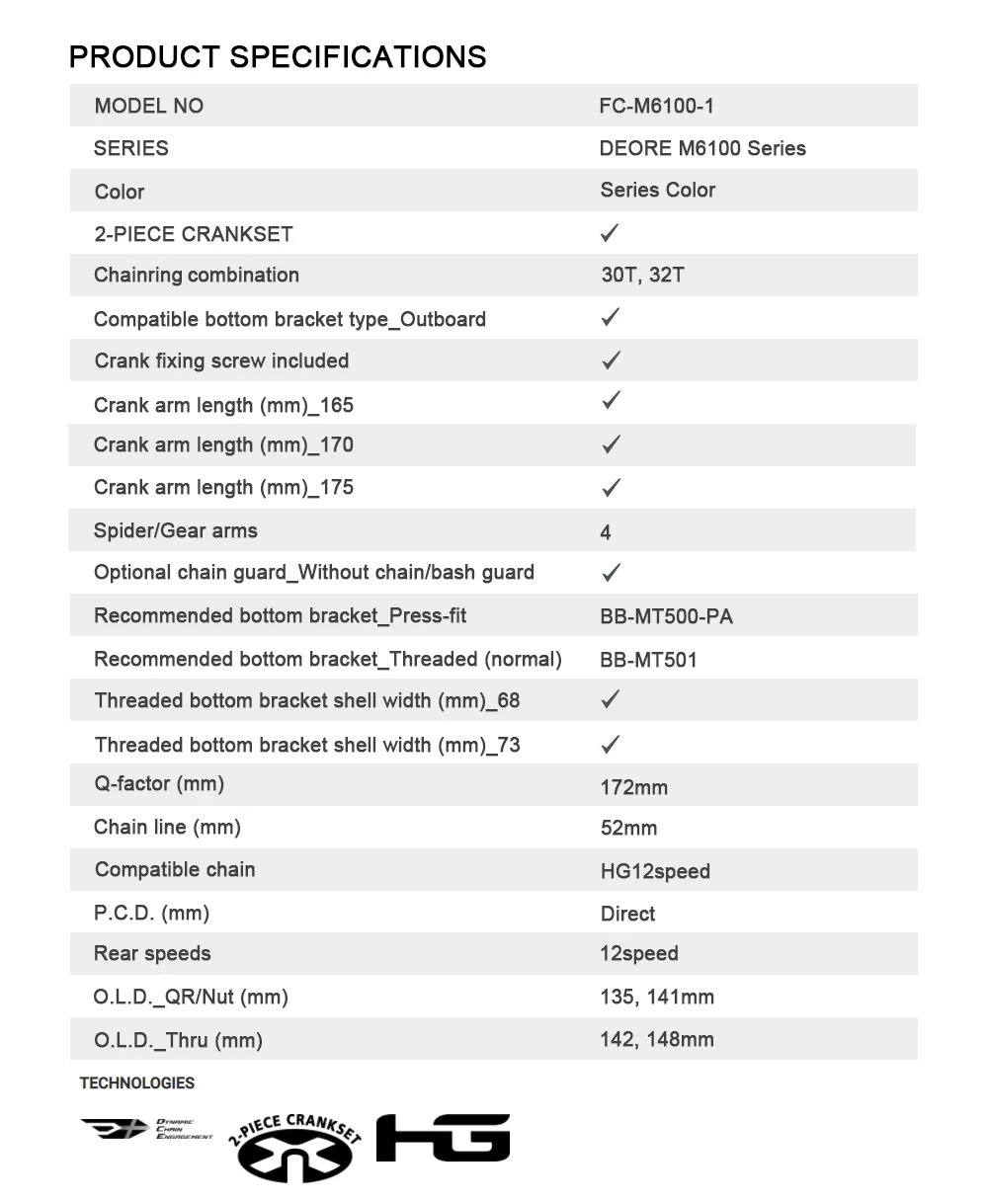

SHIMANO DEORE FC-M6100 Crankset

Description
Model: FC-M6100
Series: DEORE M6100 series
Sprocket combination: 30T, 32T

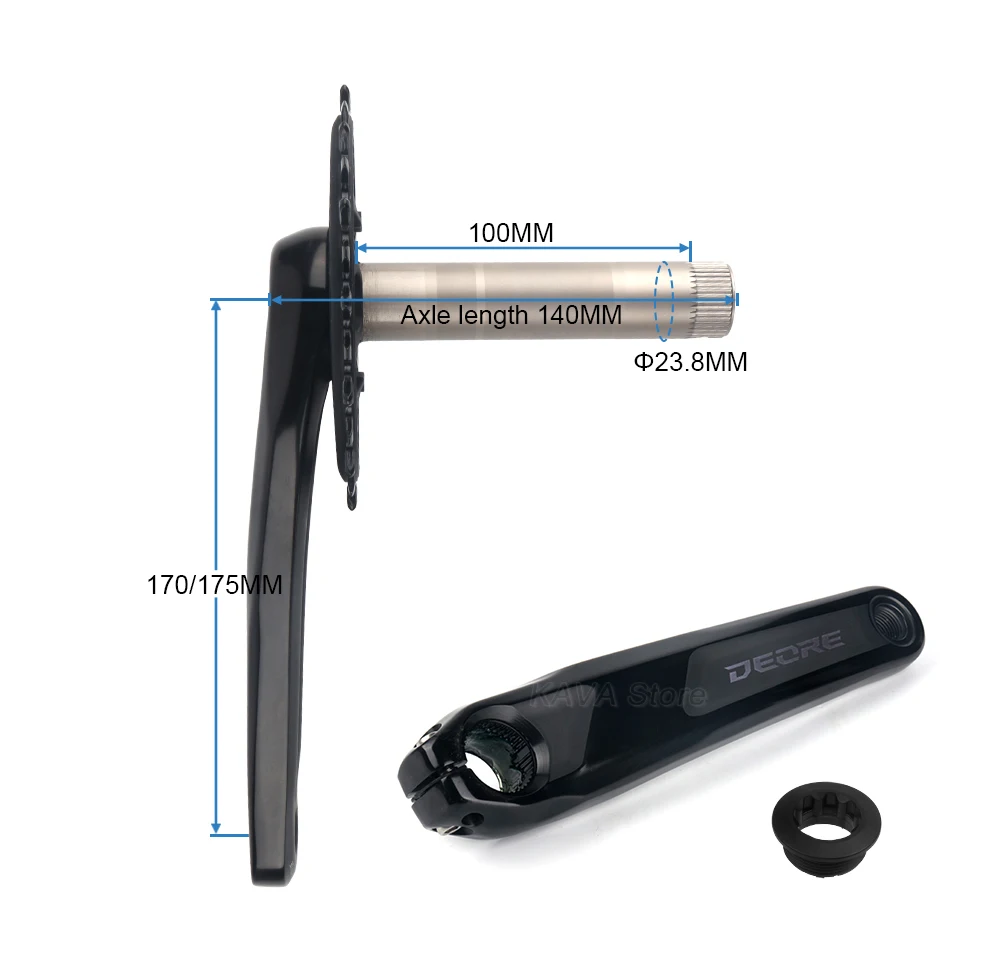

Crank Arm Length: 170mm/175mm
Sprocket fixed arm/crank claw: 4
Recommended bottom bracket _ press-in type: BB-MT500-PA
Recommended bottom bracket_thread (normal): SM-BB52
Thread bottom bracket width (mm): 68mm/73mm

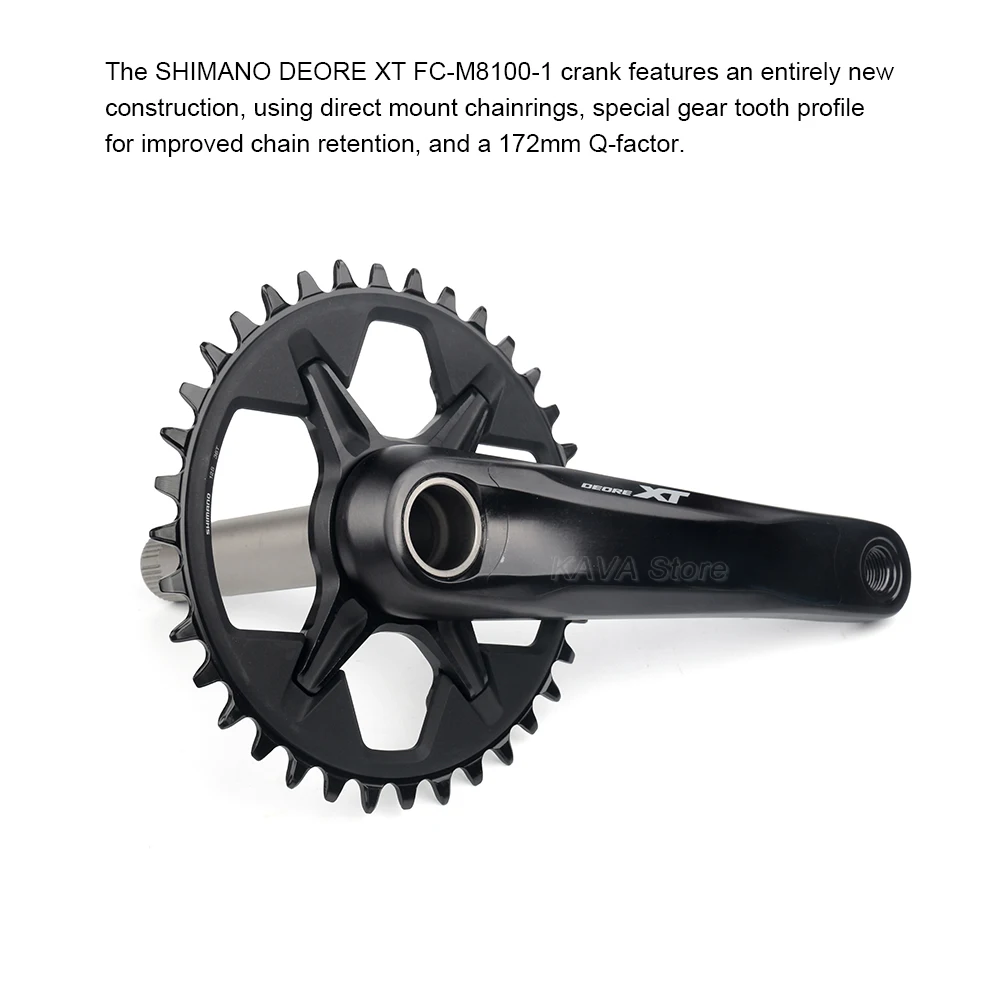

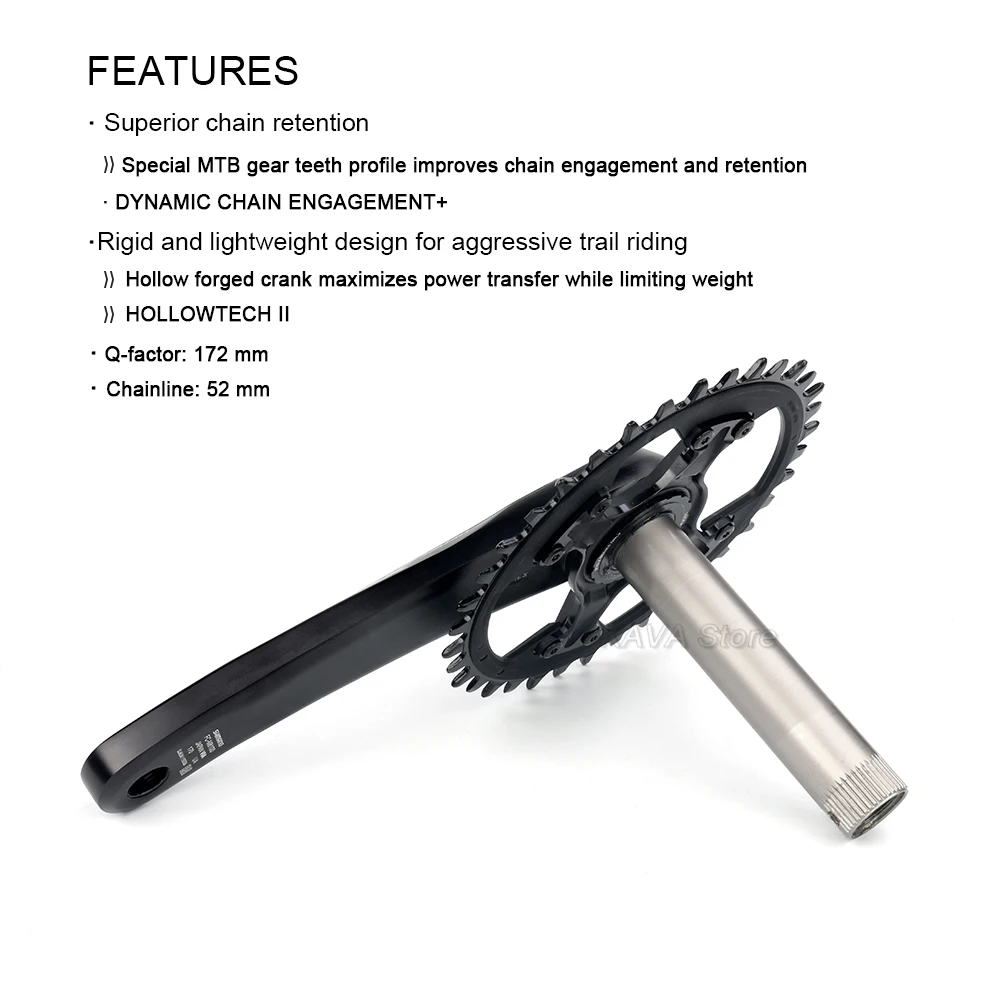

Shimano XT FC-M8100 Crankset

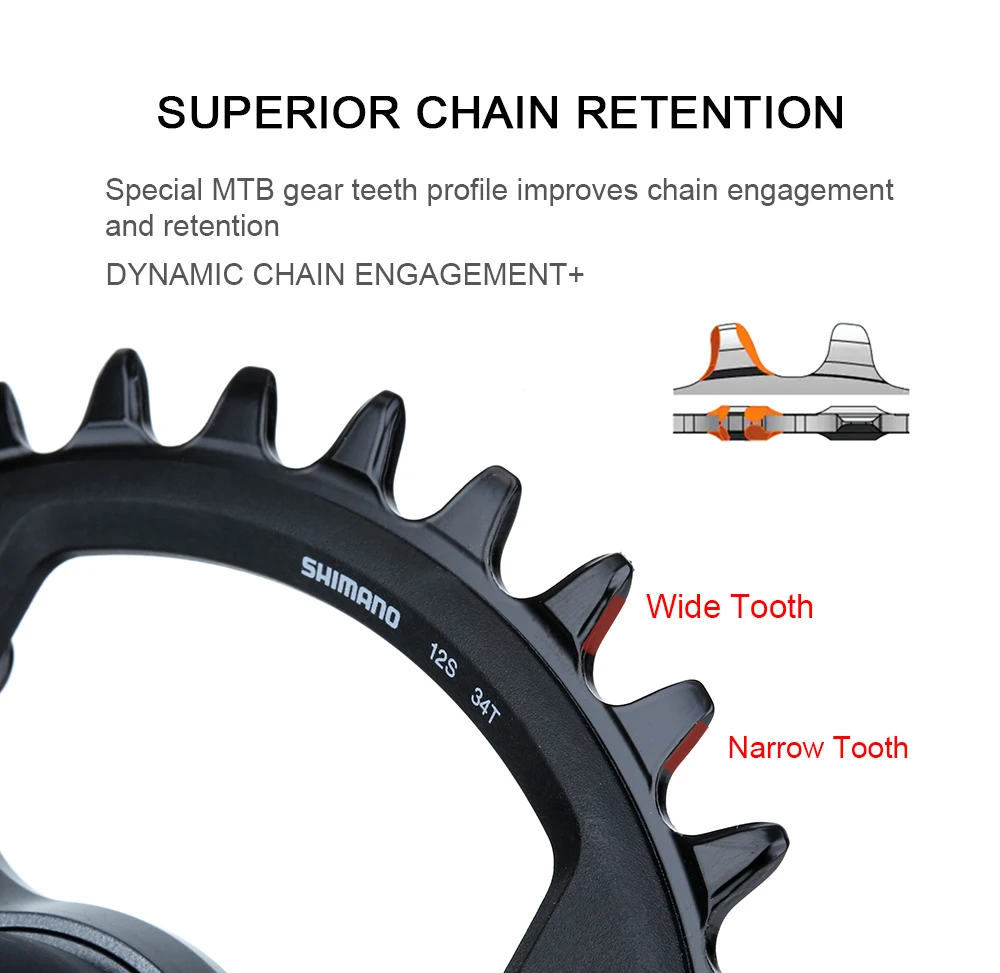

-Special MTB gear teeth profile improves chain engagement and retention,
-Sturdy and Lightweight Design, Suitable for intense off-road riding
-A hollow-forged crank maximizes power transfer while limiting weight
-BENEFIT close
-Superior chain retention
-Rigid and lightweight design for aggressive trail riding

Q-factor: 172 mm
Chainline: 52 mm

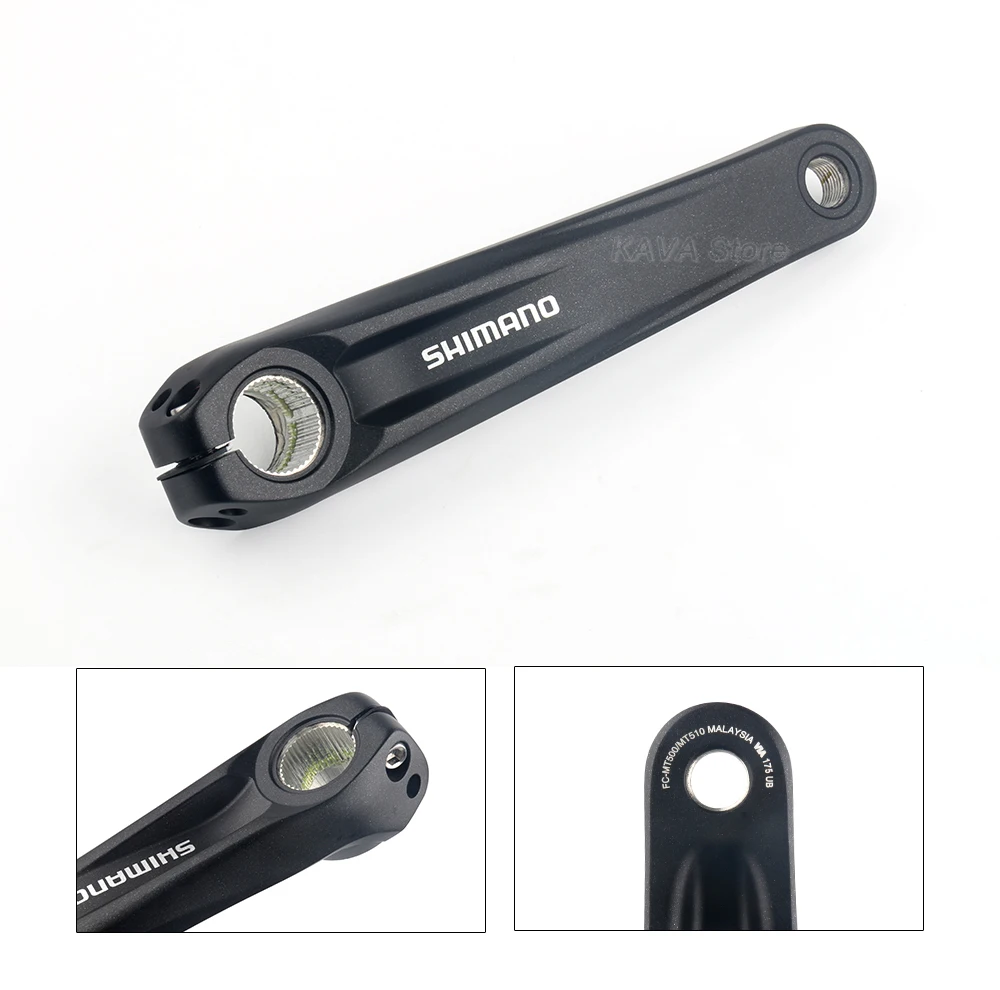

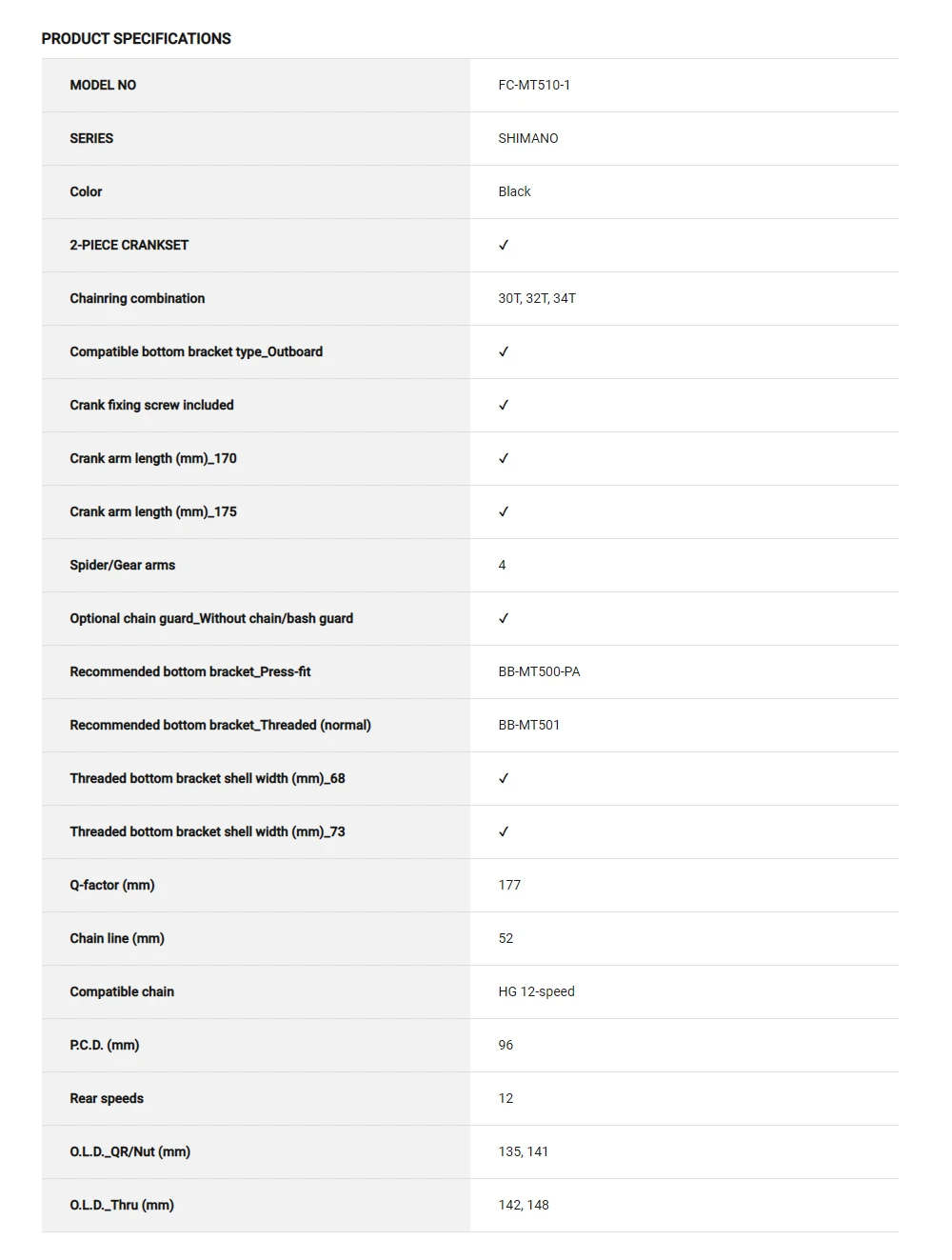

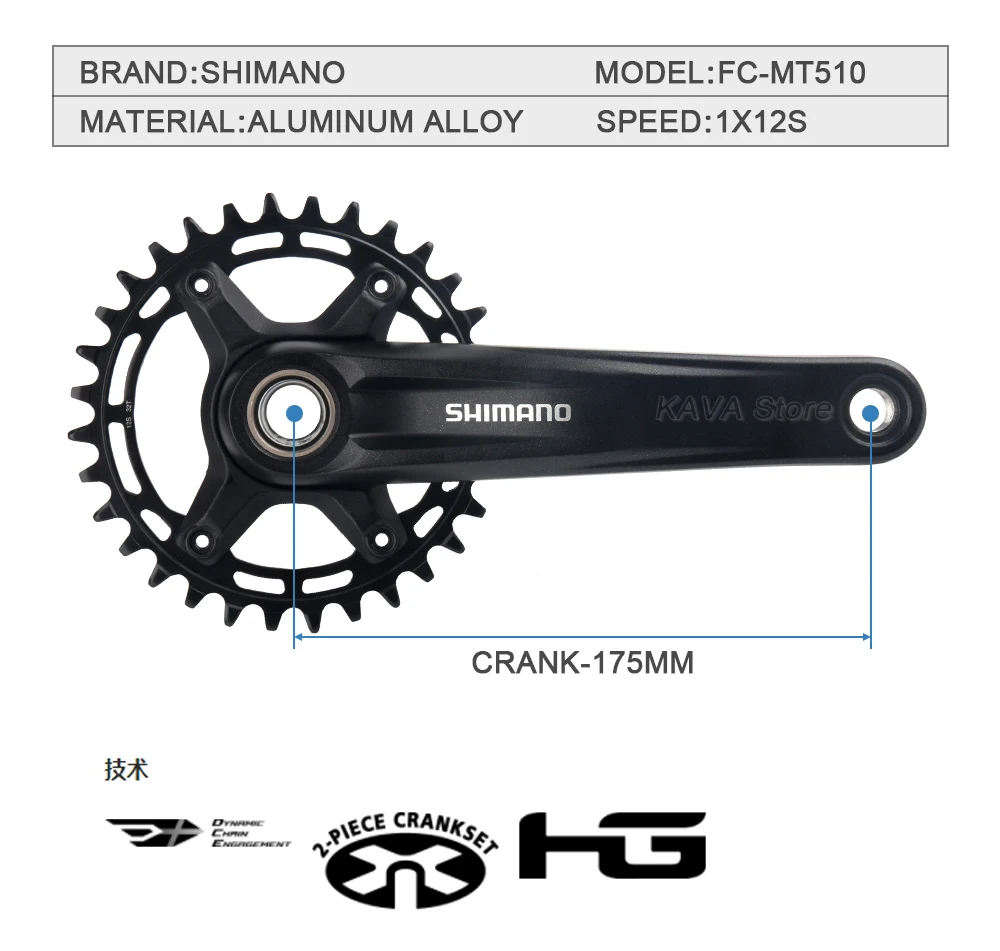

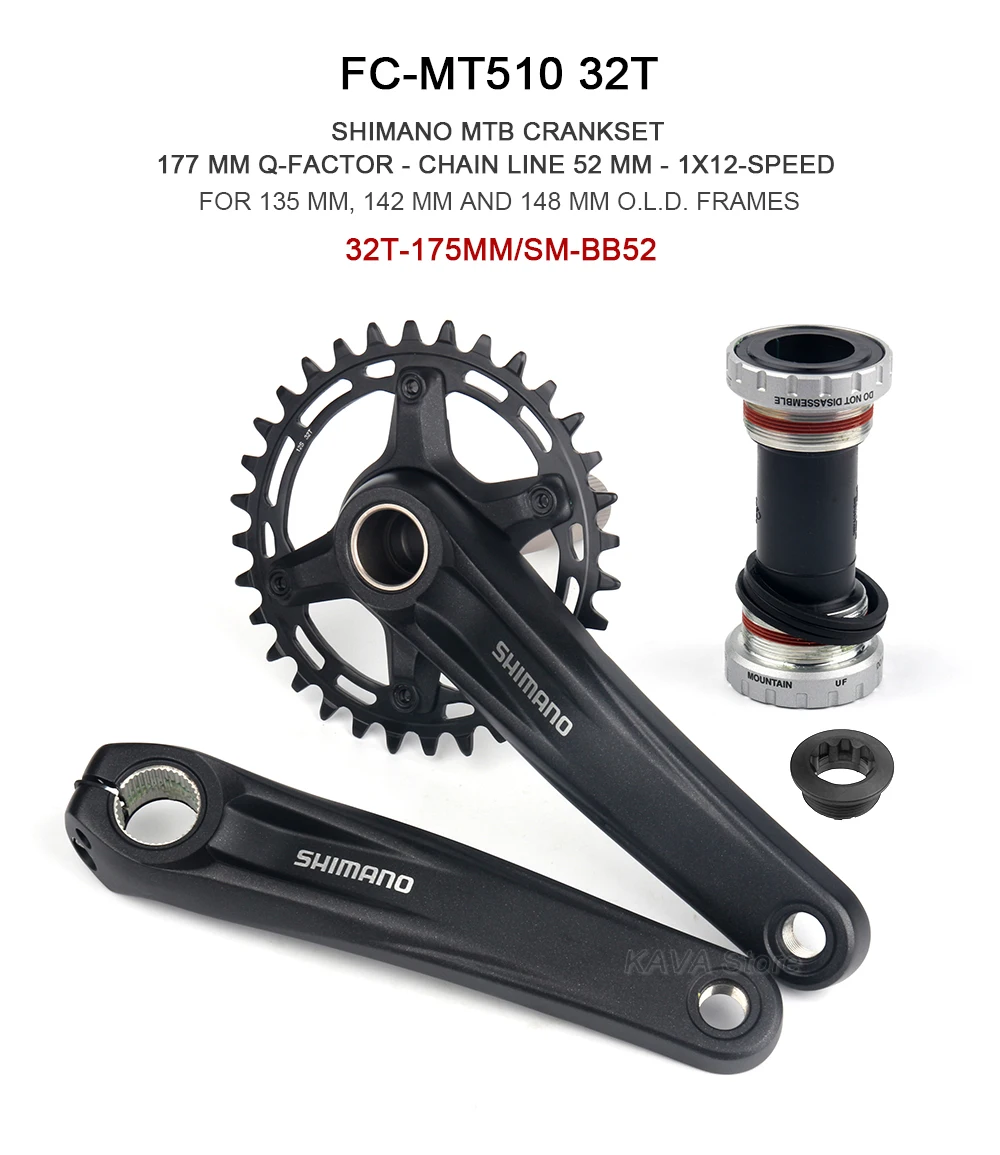

Shimano FC MT510 Crankset

Brand: Shimano, 100% original
Main material: Alloy
Crank length: 175mm
Chainring teeth: 32T

SHIMANO - MTB Crankset - 2-PIECE CRANKSET - 177 mm Q-factor - Chain Line 52 mm - 1x12-speed

-Smoother riding even over rough terrain

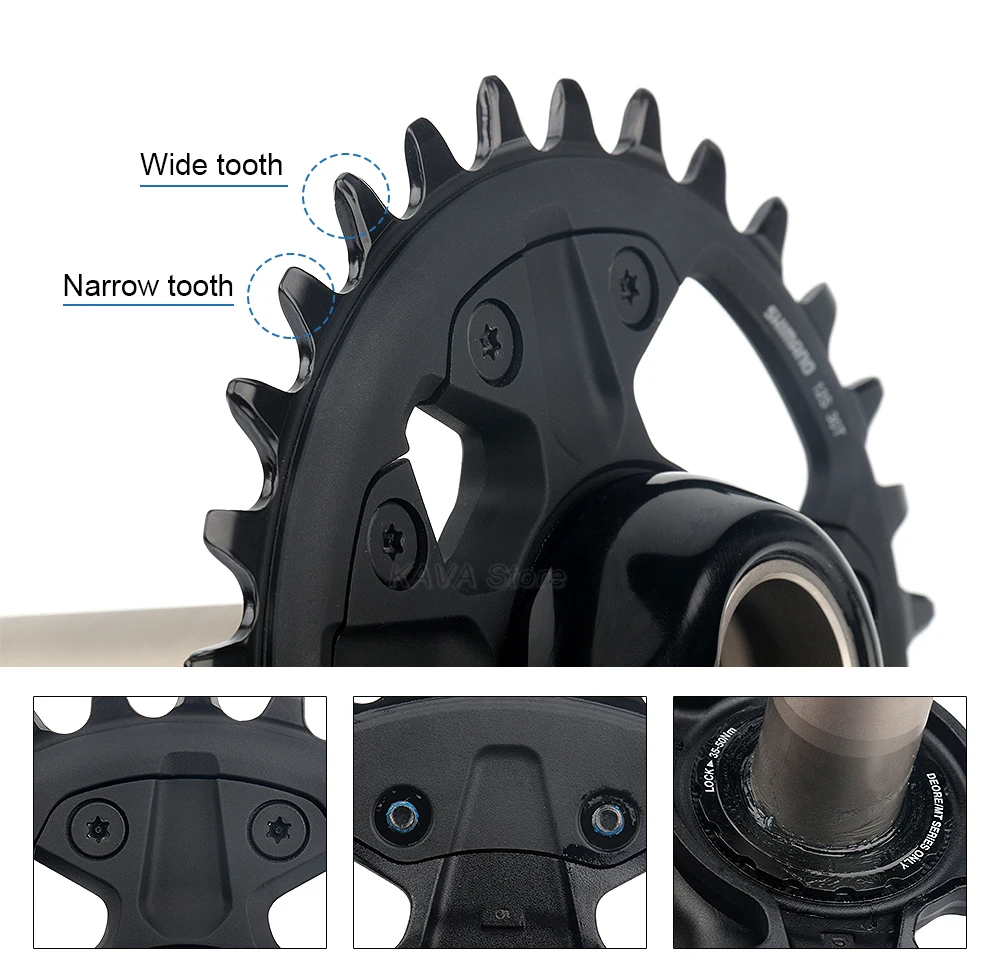

DYNAMIC CHAIN ENGAGEMENT+ improves chain engagement and retention.
-Chain ring combination 32T.

SM-BB52

SHIMANO Threaded Bottom Bracket 68/73 mm shell width
SHIMANO ALIVIO - Bottom Bracket - Threaded - HOLLOWTECH II - 68/73 mm shell width - Trekking

With better sealing and rotation the SHIMANO DEORE bottom bracket delivers high driving efficiency.

BB-MT500-PA

SHIMANO DEORE Press-Fit Bottom Bracket 68/73 mm shell width

SHIMANO DEORE - Bottom Bracket - Press-Fit - HOLLOWTECH II - 68/73 mm shell width

With better sealing and rotation the SHIMANO DEORE bottom bracket delivers high driving efficiency.

BB-MT501

SHIMANO Threaded Bottom Bracket 68/73 mm shell width

SHIMANO - Bottom Bracket - Threaded - HOLLOWTECH II - 68/73 mm shell width

With better sealing and rotation the SHIMANO DEORE bottom bracket delivers high driving efficiency.

BB-MT800

SHIMANO DEORE XT Threaded Bottom Bracket 68/73 mm shell width

SHIMANO SLX - Bottom Bracket - Threaded - HOLLOWTECH II - 68/73 mm shell width

For SHIMANO 24mm MTB cranks, the SHIMANO DEORE XT bottom bracket uses high quality sealed bearings and is offered in threaded and pressfit options.
