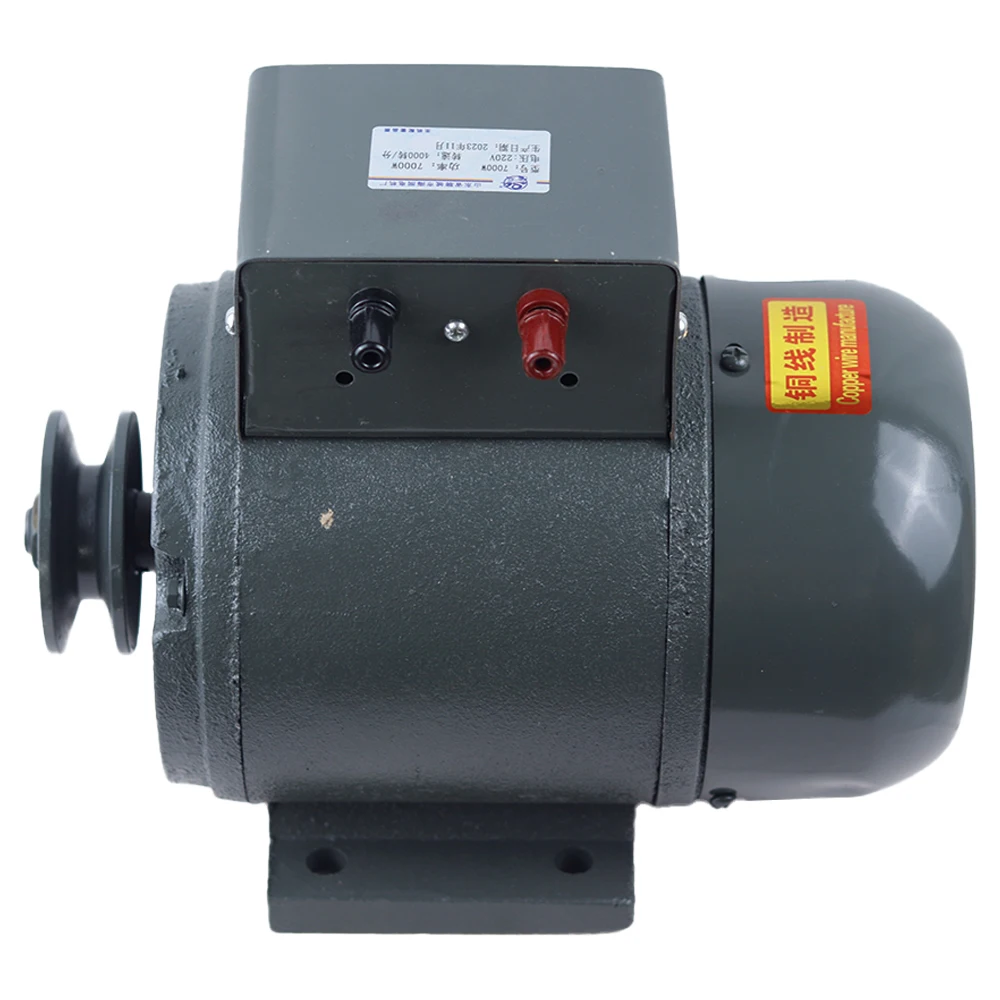

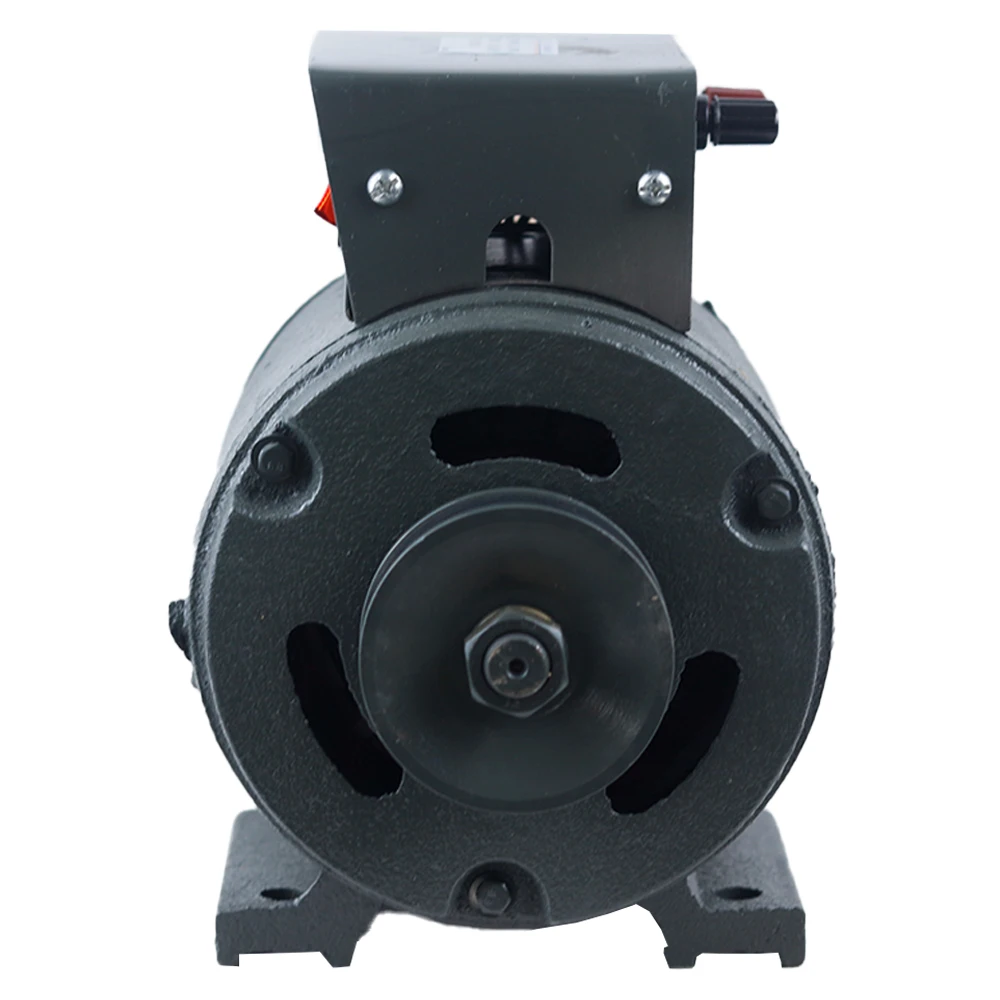

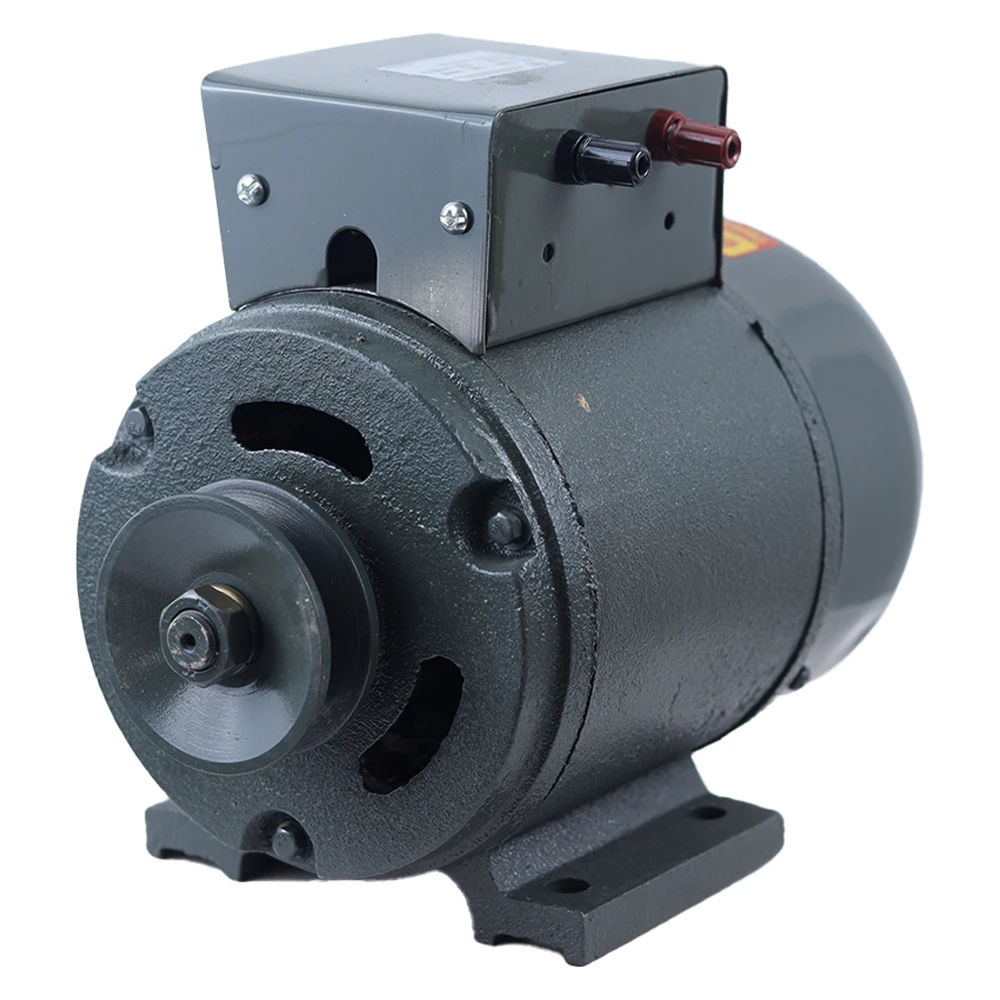

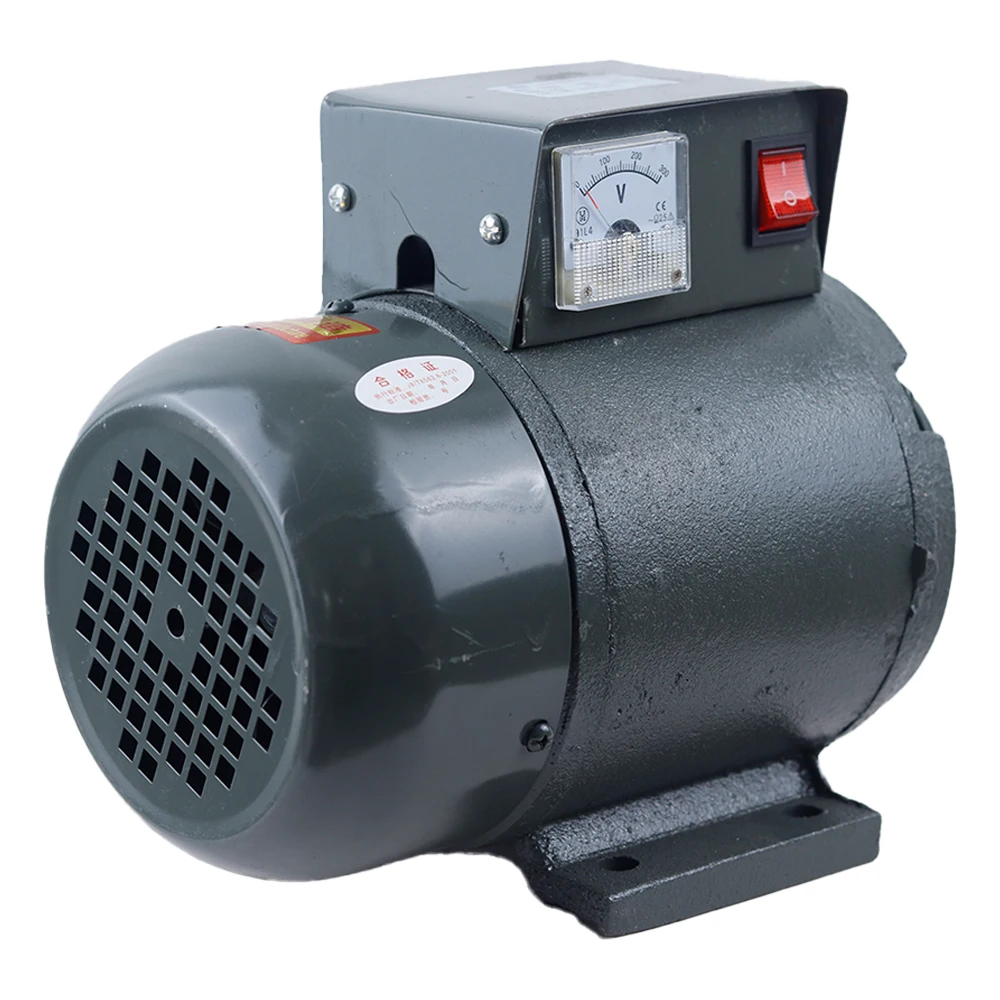

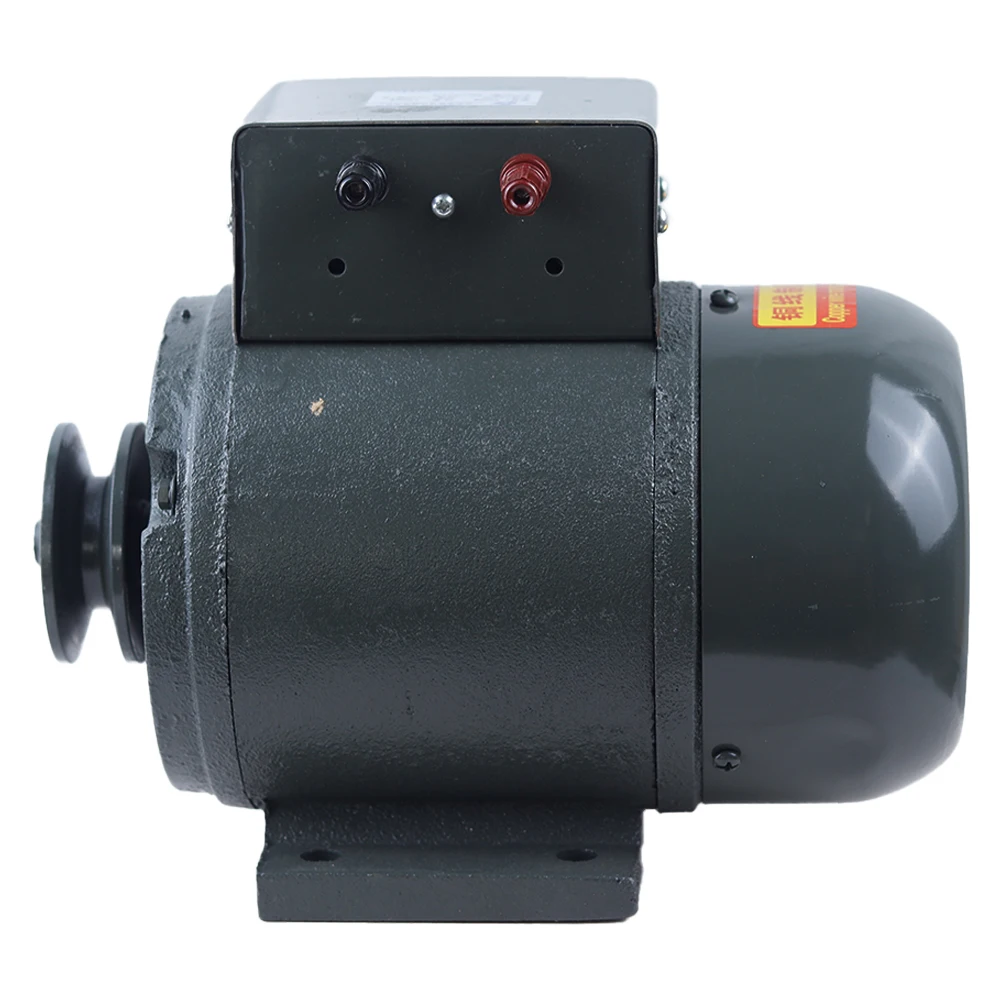

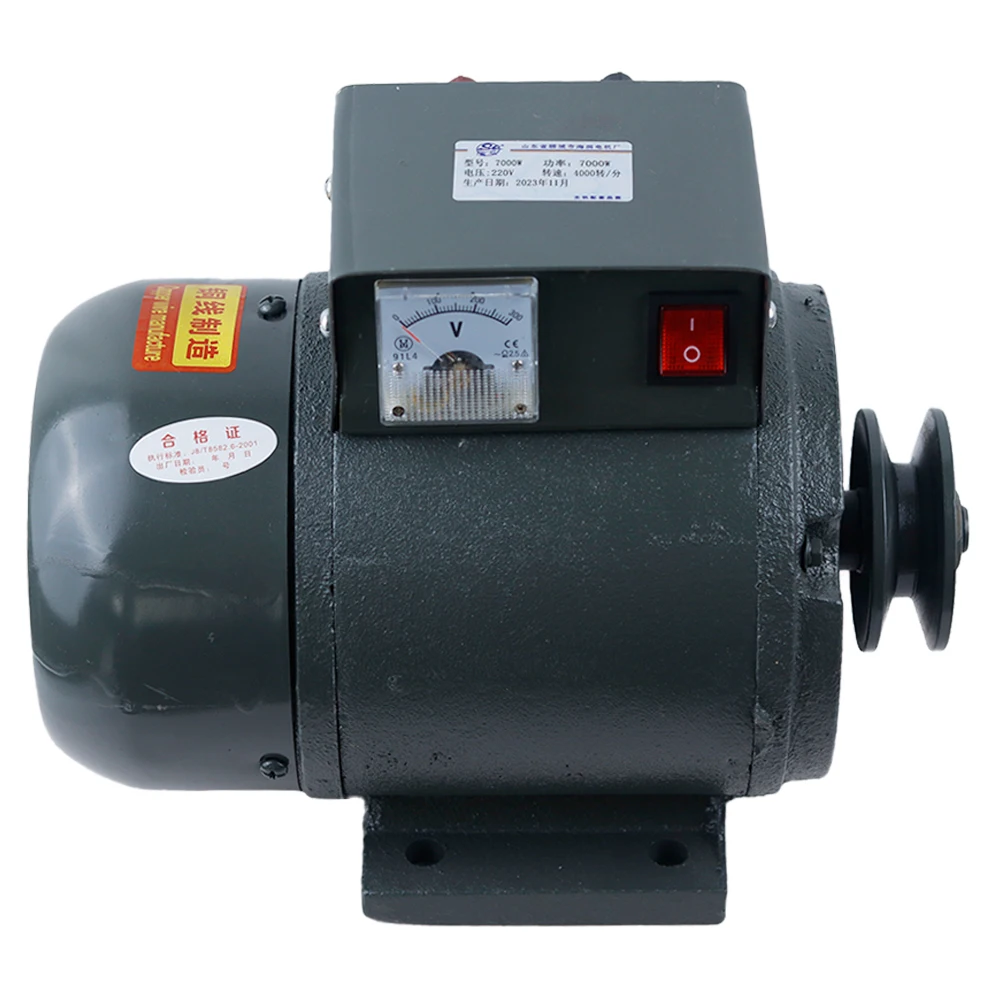

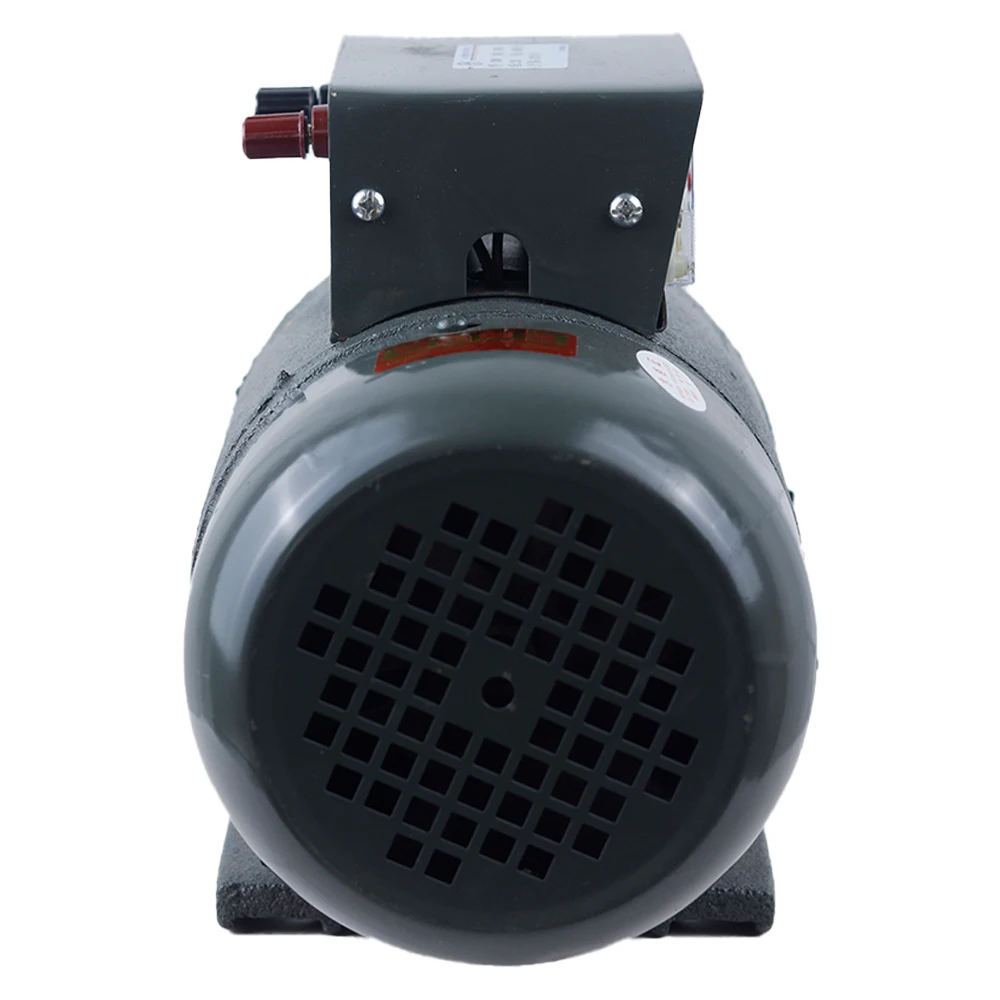

Belt type 220V diesel lighting generator 1000W small engine household pure copper wire gasoline engine
3500W 220V

Model: 3500 (belt type)

Rated speed: 2800-4000 rpm

Voltage: 220V

Power: 3500 (actual power 1000W)

Function: Can be used with light bulbs for illumination, not with household appliances.

The required speed is 2800-4000 revolutions per minute. 3500W requires at least three horsepower diesel engines to drive, which can drive around 10 100 watt light bulbs.

There are slight errors in manual weighing and measurement. The actual size and weight are based on the actual product.

3500w 220v

Net weight of approximately 6.3 kilograms

5000W 220V

Model: 5000 (belt type)

Rated speed: 2800-4000rpm

Voltage: 220V

Power: 5000 (actual power 1800W)

Function: Can be used with light bulbs for illumination, not with household appliances.

The speed requirement is to reach 3000-4000 revolutions per minute. 5000W requires a four horsepower diesel engine to drive, which can drive around 17 100 watt light bulbs.

There are slight errors in manual weighing and measurement. The actual size and weight are based on the actual product.

5000W 220V net weight is about 9.5 kilograms.

7000W 220V

Model: 7000 (belt type)

Rated speed: 2800-4000rpm

Voltage: 220V

Power: 7000(actual power 2200W)

Function: Can be used with light bulbs for illumination, not with household appliances.

The speed requirement is to reach 3000-4000 revolutions per minute. 7000W requires a four horsepower diesel engine with

Moving can drive around 20 100 watt light bulbs.

There are slight errors in manual weighing and measurement. The actual size and weight are based on the actual product.

The net weight of 7000W 220V is about 11.4 kilograms.

The winding of this motor is made of all copper wire and is made of copper enameled wire. The motor has a very long service life

Below is a brief introduction to the advantages of paint baking motors:

Because the paint baking process must be formal: (1) the copper wire rotor needs to be coated for 1 hour, (2) it needs to be naturally drained for 8 hours, and (3) it needs to be placed in the automatic constant temperature paint baking equipment; It takes 12 hours. The above three programs, except for automatic paint baking, are all manually operated! So please don't forget the cost of baking paint when comparing prices, which is not visible on the surface of the motor. The motor power is also similar in the early stages of use. So many manufacturers have basically not engaged in this paint baking process anymore

It is important and necessary to apply insulation paint to copper wires. The service life of motors that have been painted with insulation paint is more than 10 times longer than that of motors that have not been painted with insulation paint. This is because enameled wires with insulation paint work with electromagnetic stability, are not easy to heat up, and the internal temperature of the rotor is very low; Long term operation does not age, and copper wires oxidize slowly.
