Specifications:

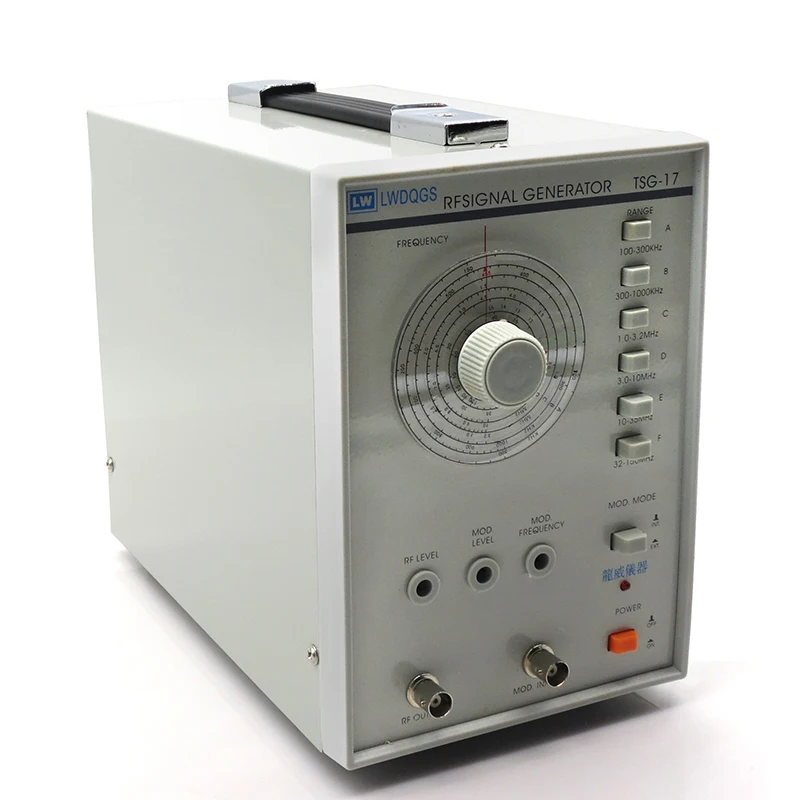

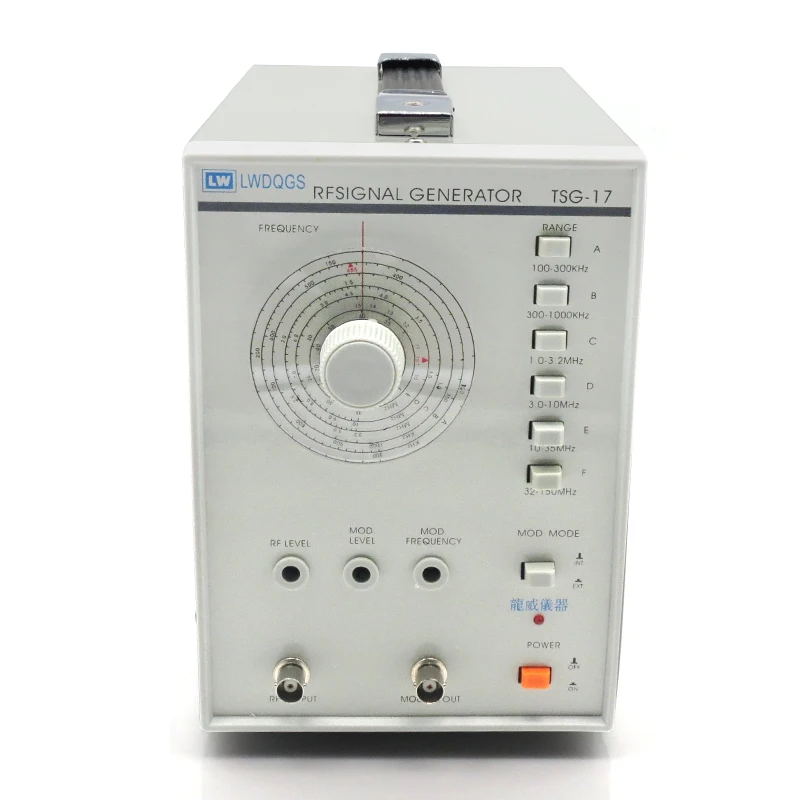

Product name: high frequency signal generator
Model: TSG - 17
Spectrum:
A: 100 KHZ to 300 KHZ
B: 300 KHZ to 1 MHZ
C: 1 MHZ to 3.2 MHZ
D: 3 MHZ ~ 10 MHZ
E: 10 MHZ ~ 35 MHZ
F: 32 MHZ to 150 MHZ
Frequency accuracy: plus or minus 5%
Output waveform: RF/AM signal waveform
Output impedance: 600 Ω
Rf output: > 100 MVRMS (shift frequency 35 MHZ) or less
Level control: 1 mv - 100 mv
Modulation: 150 hz to 1.5 KHZ am about 0-30% is adjustable
Working environment: 50 hz ~ 20 KHZ
Power supply: 220 v / 110 v + 10% for 50/60 hz
Weight: 2.5 kg

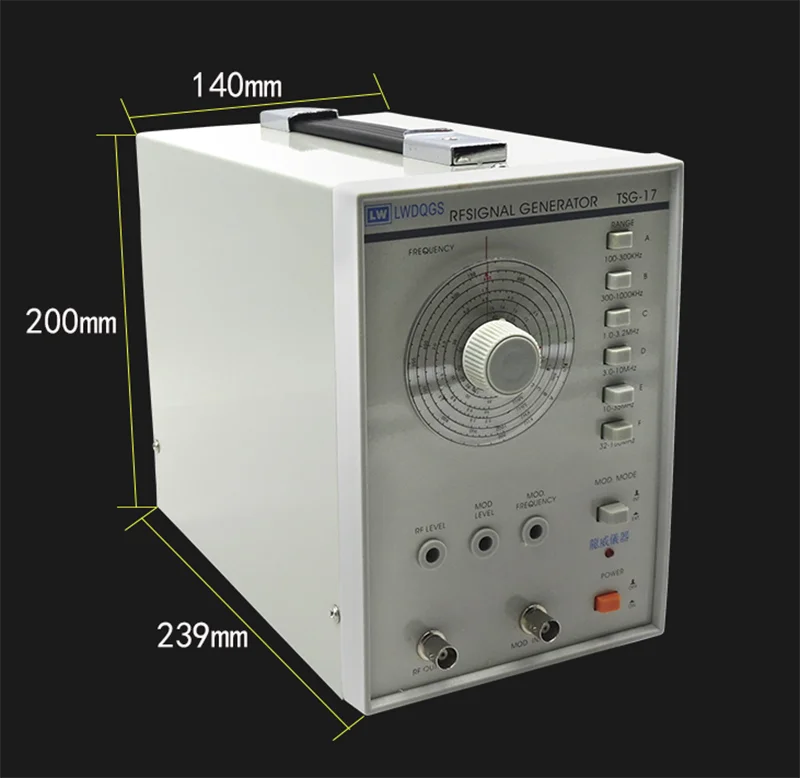

Size: 239 * 140 * 200 mm

|
