Features:
DMX common controller adopts the advanced micro control unit, it receives standard DMX-512 digital control signal and transformed it into PWM signal for driving LED;You could connect DMX module with DMX digital console to achieve dimming or various changes in procedures.
Specifications:
100% Brand New and High Quality

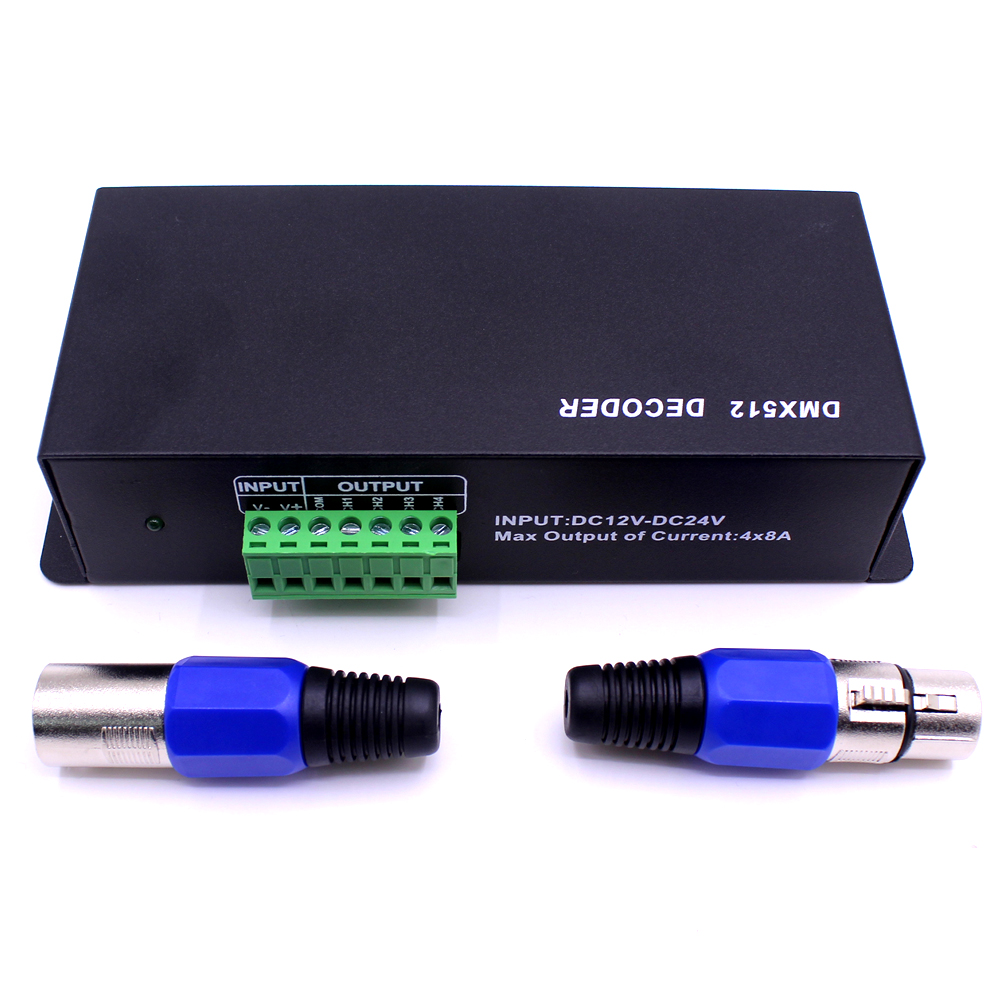

Products: 4CH DMX 512 Controller
Connection mode: Common Anode(+)
Input: DC 5V-24V
Output:4CH
Output current:<4A each channel.
Power:<80W (5V) , <192W(12V),<384WW(24V)
Size: Approx 165mm x 67mm x 40mm (W x D x H)
Weight: Approx 320 g
Static power consumption:<1W.
Metial:Metal
Working Temperature: -20-60C.
Warranty:1.5 years
Application:

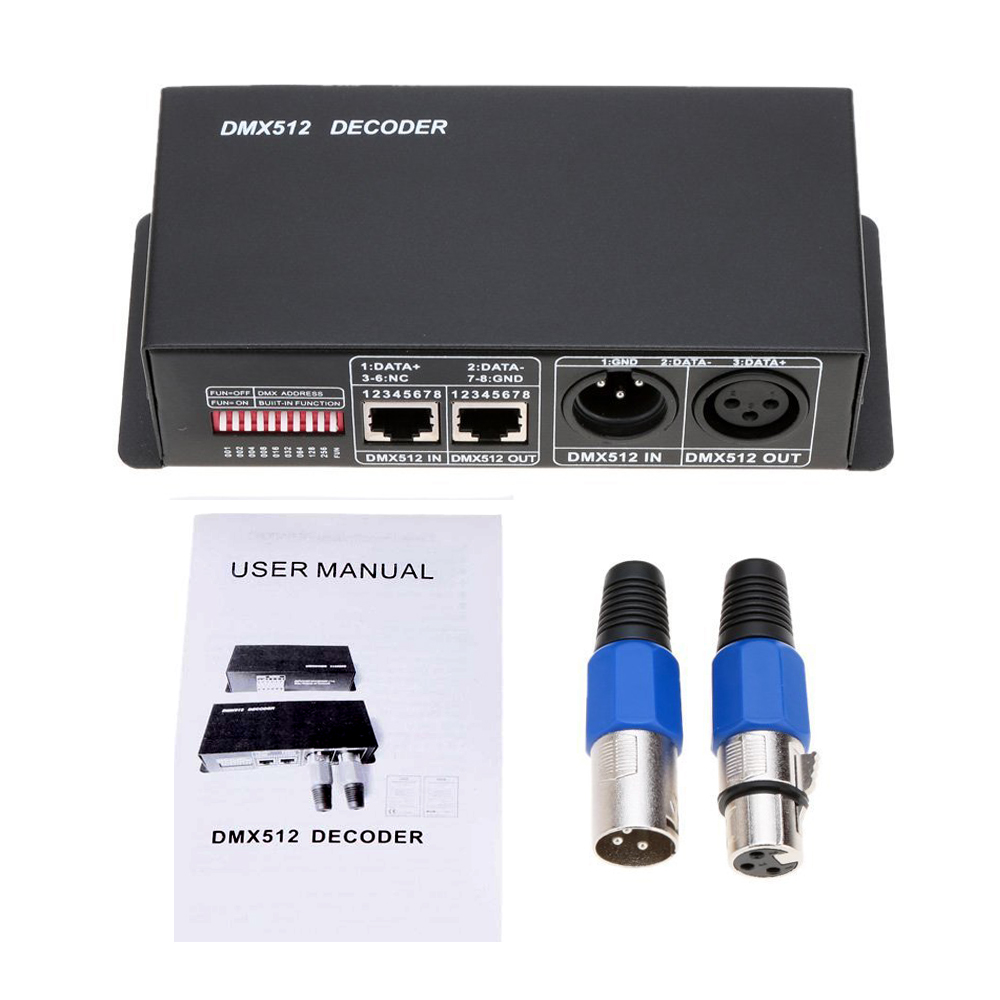

DMX address code settings
Each DMX common controller occupied 3 DMX addresses, adopt coding switch set address, it is a Binary numerical code switch which is setting DMX original address code from 1 to 9, 1 is the lowest, and 9 is the highest,511 address codes could be setted in all.DMX original address code equal aggregate value of the coding switch value from 1 to 9,dial the coding switch upwards(ON is setted 1),the value of bit can be gotten, on the contrary, the value of bit is 0.
DMX signal can be received when coding switch FUN(10)=OFF(ON is setted 0).
Example :
Look at the following picture,if you want to set 37 as the address code,you can only dial down the first,the third and the sixth code switch, the aggregate value of coding switch value from 1 to 9 is 32+4+1,that is,the original address code of DMX512 is 37.
