Features:
100% brand new and durable
Export customized version of advanced motor,
high temperature magnetic high temperature wire shell full precision CNC machining,
providing multiple KV values

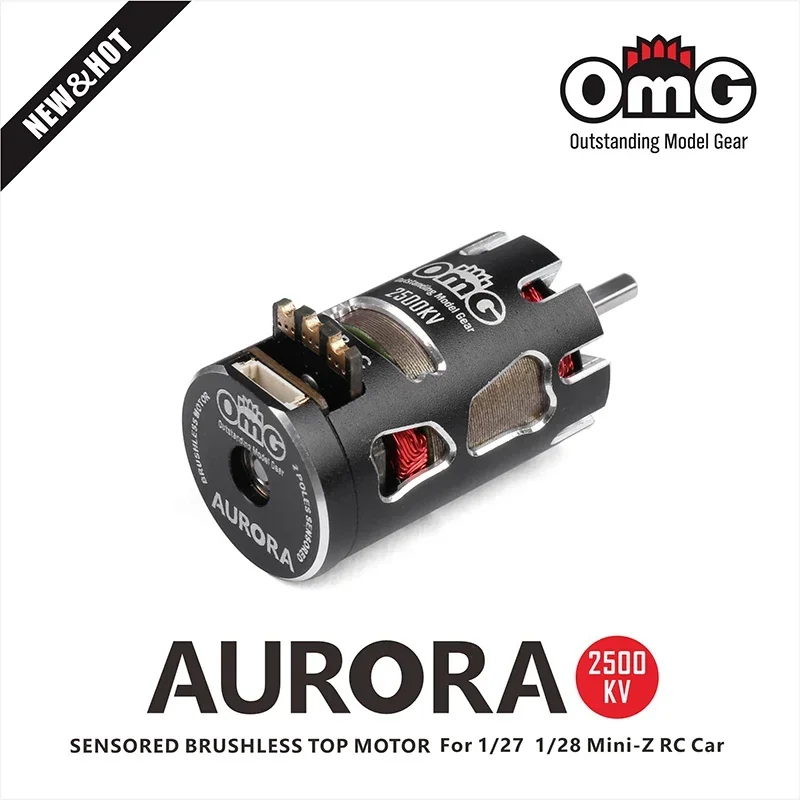

AURORA 2500KV Series Sensored Brushless Top Motor for 1/24 1/27 1/28 RC Car
OMG-MT-AURORA-S2-2500KV
Sensored brushless top motor for 1/27 and 1/28 Mini-Z RC Car
Suitable for rc RWD,FWD,etc vehicles.
Max Amps:7A
Max Voltage (V):<8.4
Resistance(Ω):1.25
No-load Current(A):0.2
Continuous Power(W):80
Poles:2
Max RPM:60000
Length of extend Shaft:10mm
Diameter Length(mm):Φ15X25mm
Shaft Diameter(mm):Φ2
Weight:17g

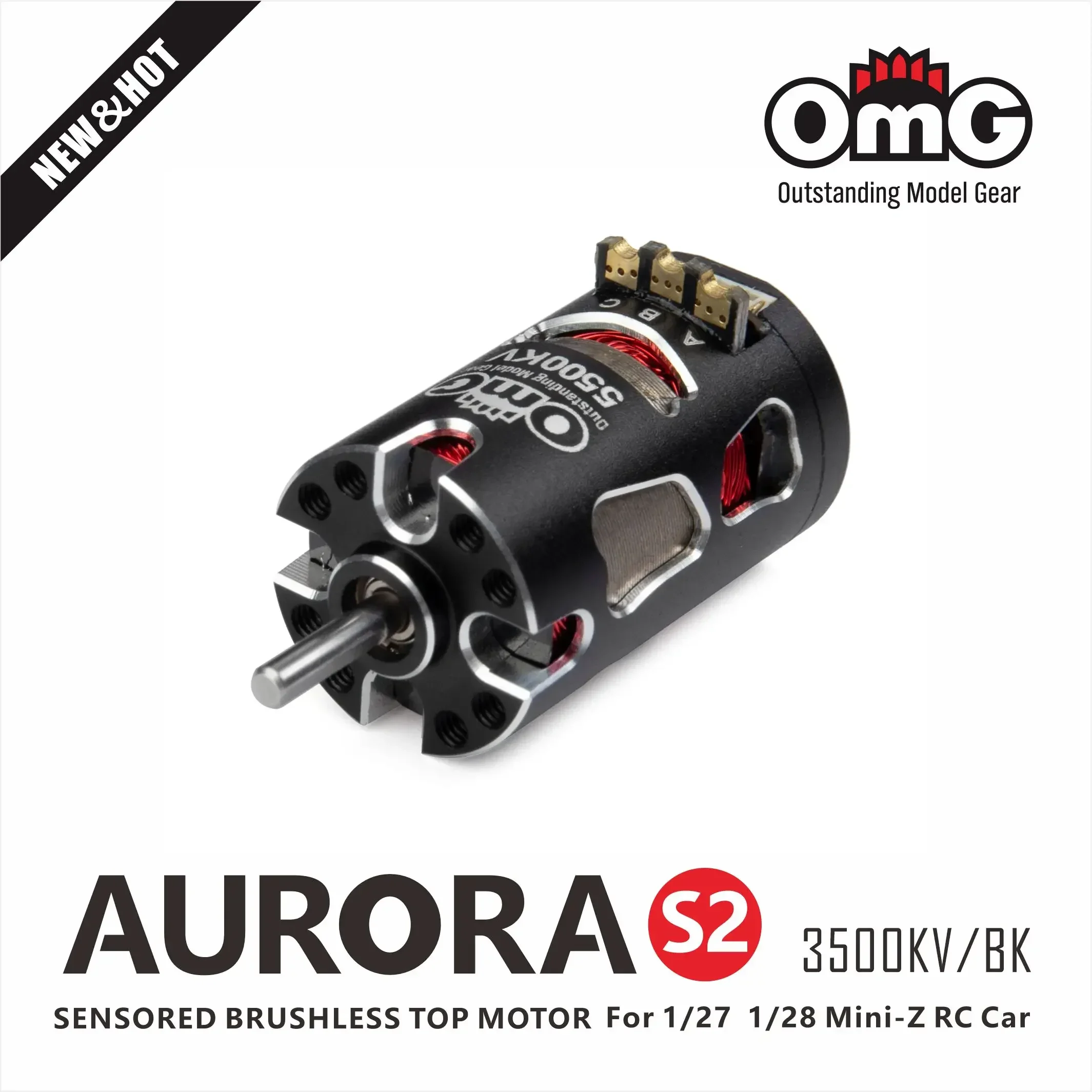

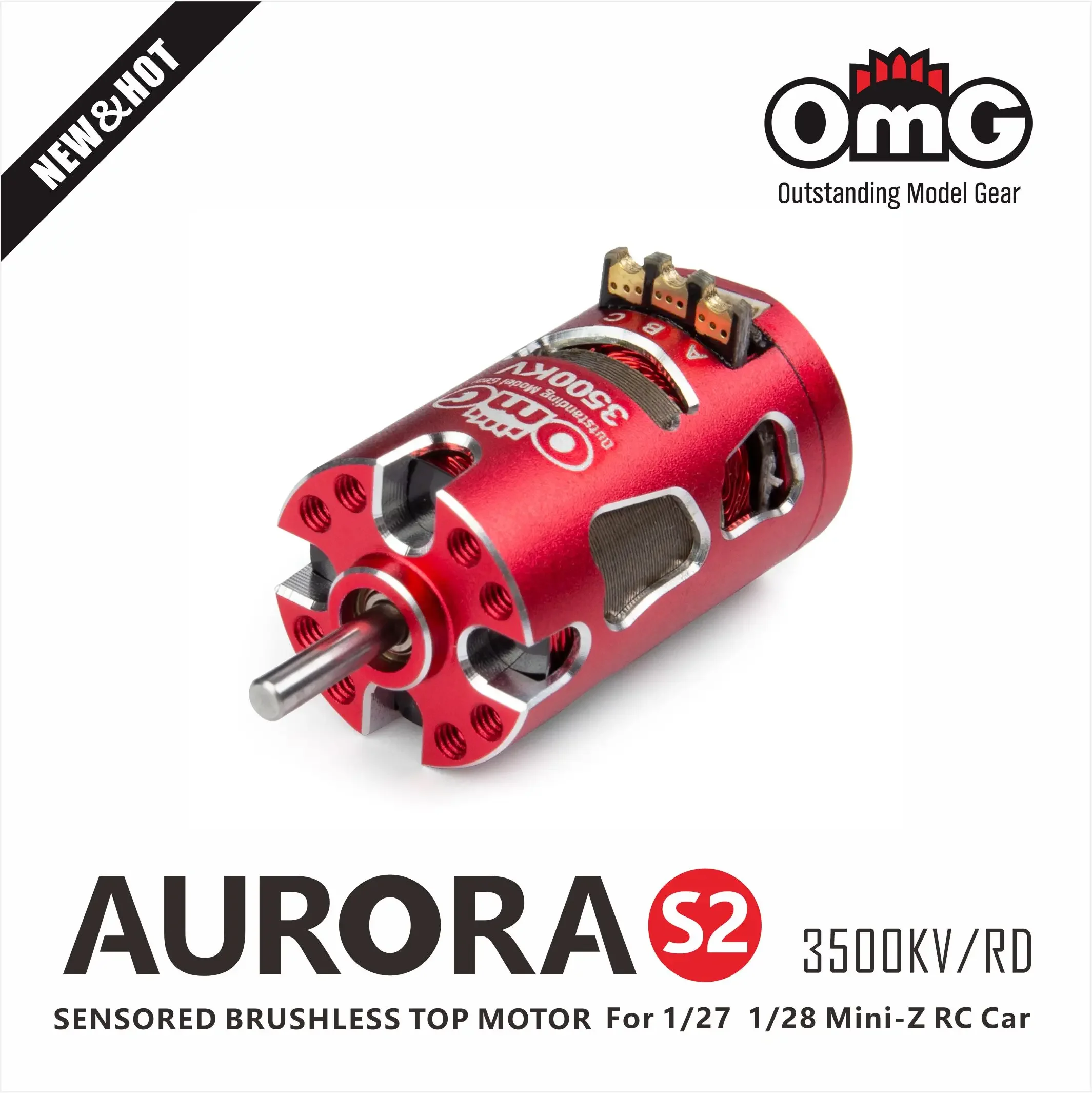

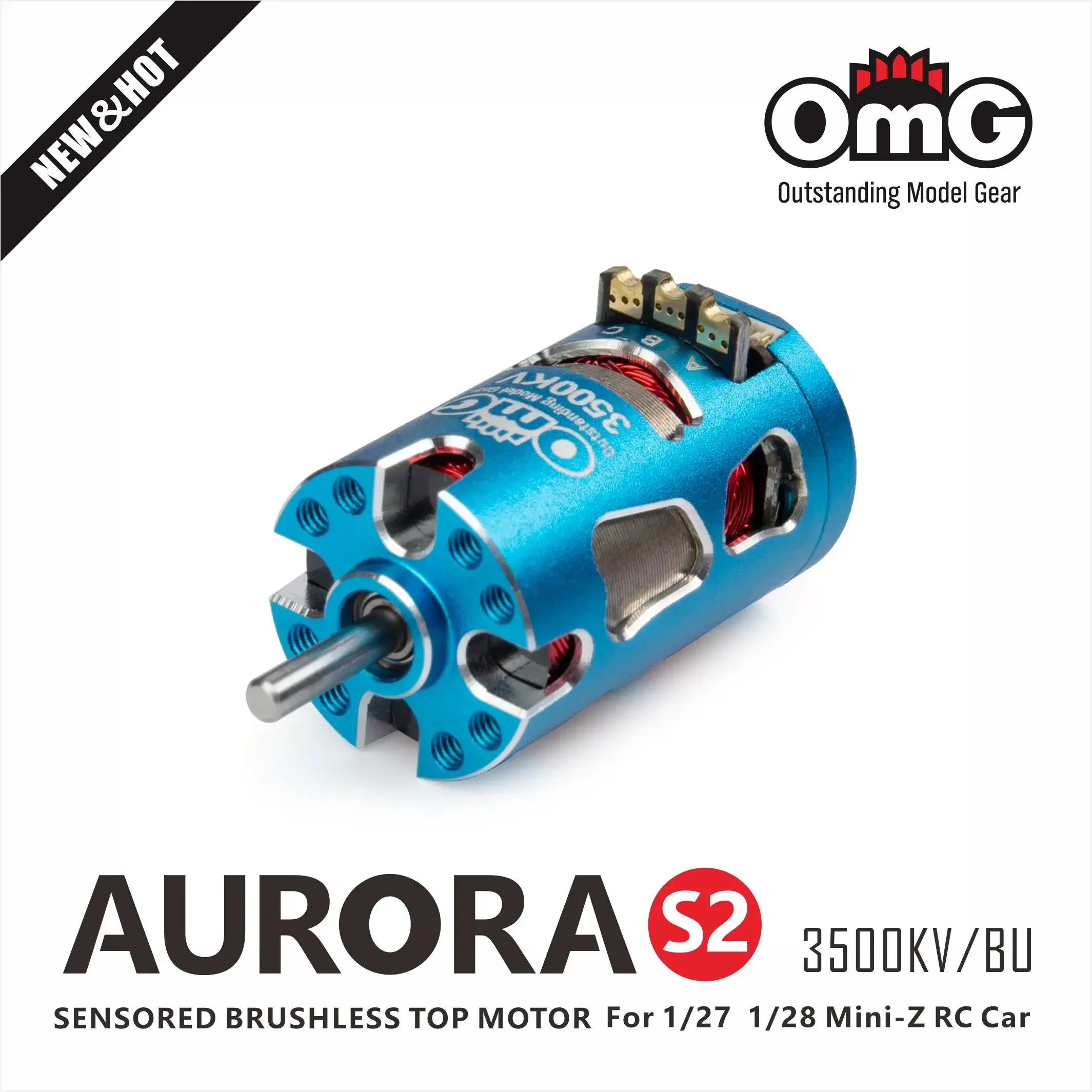

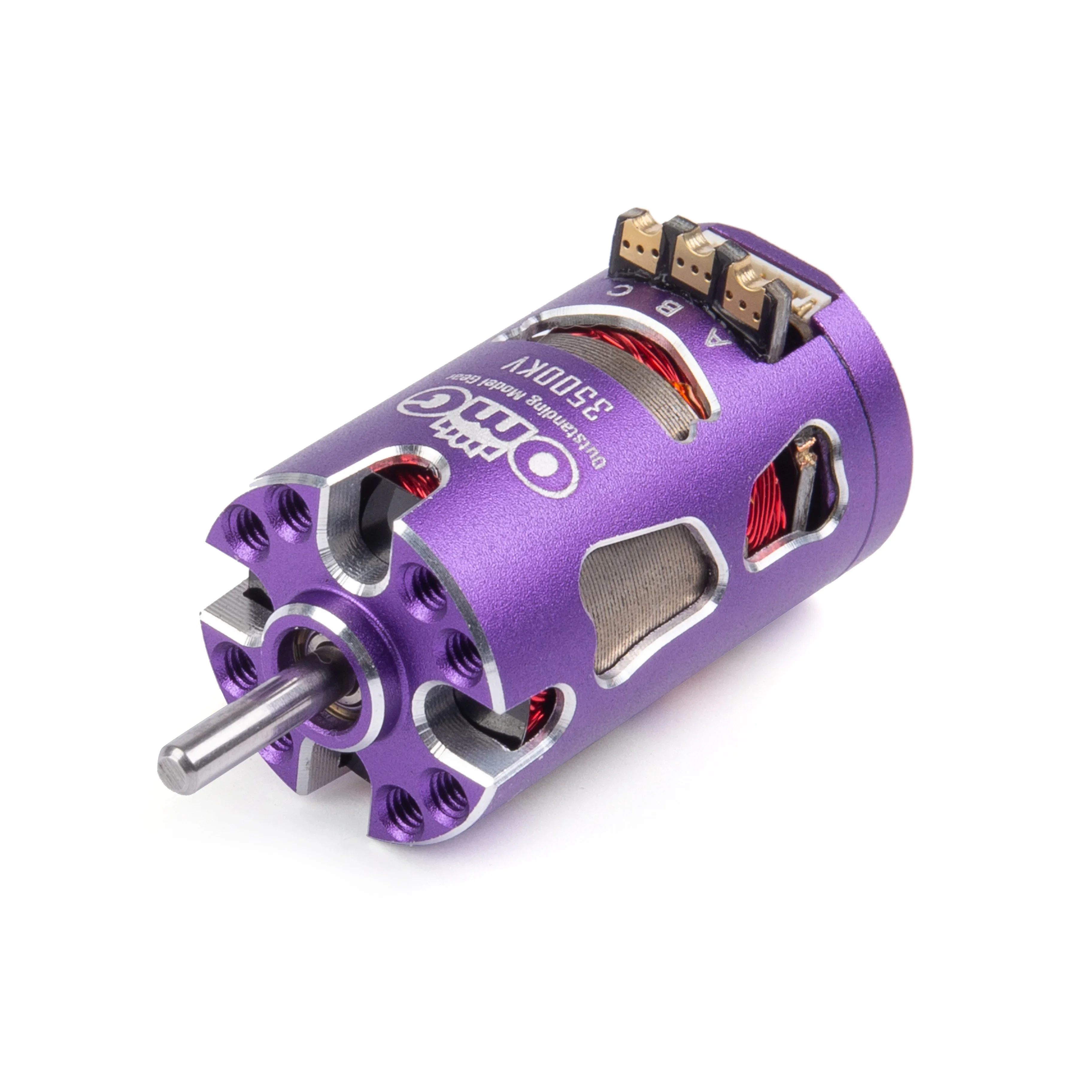

AURORA 3500 KV Series Sensored Brushless Top Motor for 1/24 1/27 1/28 RC Car
OMG-MT-AURORA-S2-3500KV
Sensored brushless top motor for 1/27 and 1/28 Mini-Z RC Car
Suitable for rc RWD,FWD,etc vehicles.
Max Amps:8A
Max Voltage (V):<8.4
Resistance(Ω):0.74
No-load Current(A):0.25
Continuous Power(W):80
Poles:2
Max RPM:60000
Length of extend Shaft:10mm
Diameter Length(mm):Φ15X25mm
Shaft Diameter(mm):Φ2
Weight:17g

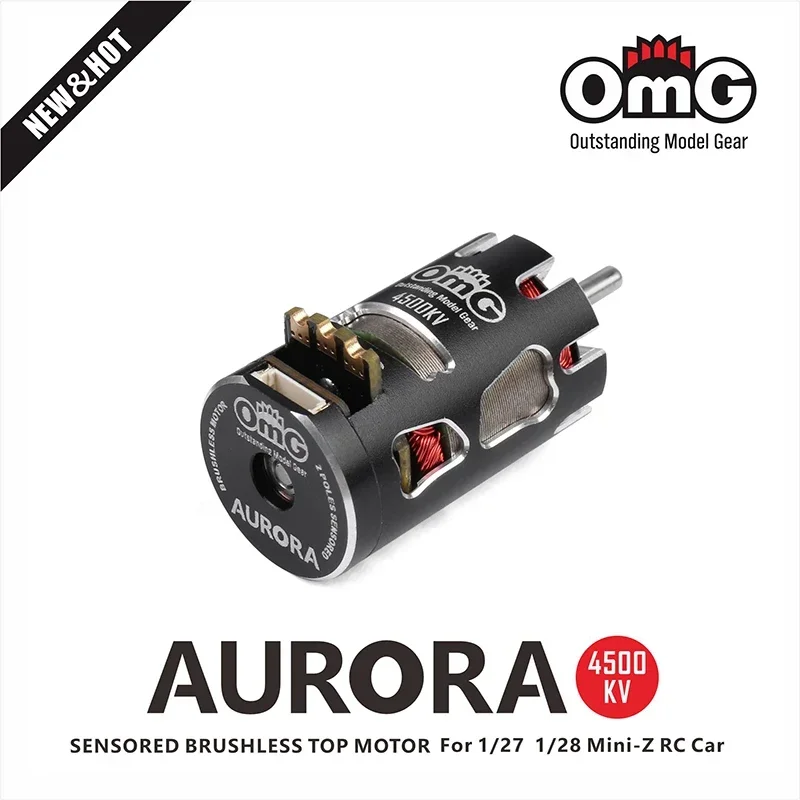

AURORA 4500KV Series Sensored Brushless Top Motor for 1/24 1/27 1/28 RC Car
OMG-MT-AURORA-S2-4500KV
Sensored brushless top motor for 1/27 and 1/28 Mini-Z RC Car
Suitable for rc RWD,FWD,etc vehicles.
Max Amps:9A
Max Voltage (V):<8.4
Resistance(Ω):0.45
No-load Current(A):0.35
Continuous Power(W):80
Poles:2
Max RPM:60000
Length of extend Shaft:10mm
Diameter Length(mm):Φ15X25mm
Shaft Diameter(mm):Φ2
Weight:17g

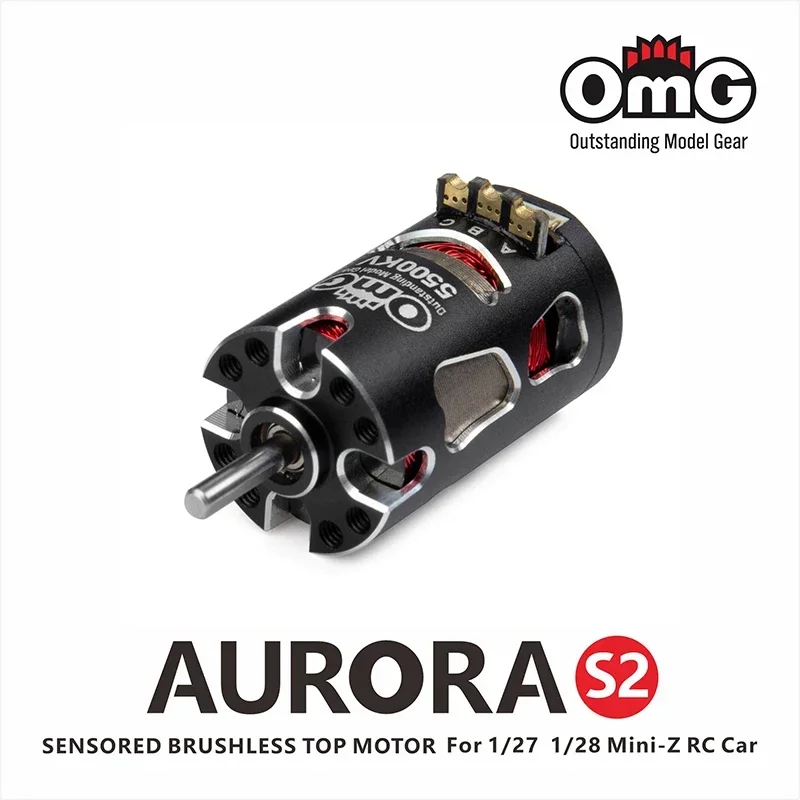

AURORA 5500KV Series Sensored Brushless Top Motor for 1/24 1/27 1/28 RC Car
OMG-MT-AURORA-S2-5500KV
Sensored brushless top motor for 1/27 and 1/28 Mini-Z RC Car
Suitable for rc RWD,FWD,etc vehicles.
Max Amps:10A
Max Voltage (V):<8.4
Resistance(Ω):0.28
No-load Current(A):0.5
Continuous Power(W):80
Poles:2
Max RPM:60000
Length of extend Shaft:10mm
Diameter Length(mm):Φ15X25mm
Shaft Diameter(mm):Φ2
Weight:17g
AURORA 2500KV Series Sensored Brushless Top Motor for 1/24 1/27 1/28 RC Car
OMG-MT-AURORA-S2-2500KV
Sensored brushless top motor for 1/27 and 1/28 Mini-Z RC Car
Suitable for rc RWD,FWD,etc vehicles.
Max Amps:7A
Max Voltage (V):<8.4
Resistance(Ω):1.25
No-load Current(A):0.2
Continuous Power(W):80
Poles:2
Max RPM:60000
Length of extend Shaft:10mm
Diameter Length(mm):Φ15X25mm
Shaft Diameter(mm):Φ2
Weight:17g
AURORA 3500 KV Series Sensored Brushless Top Motor for 1/24 1/27 1/28 RC Car
OMG-MT-AURORA-S2-3500KV
Sensored brushless top motor for 1/27 and 1/28 Mini-Z RC Car
Suitable for rc RWD,FWD,etc vehicles.
Max Amps:8A
Max Voltage (V):<8.4
Resistance(Ω):0.74
No-load Current(A):0.25
Continuous Power(W):80
Poles:2
Max RPM:60000
Length of extend Shaft:10mm
Diameter Length(mm):Φ15X25mm
Shaft Diameter(mm):Φ2
Weight:17g
AURORA 4500KV Series Sensored Brushless Top Motor for 1/24 1/27 1/28 RC Car
OMG-MT-AURORA-S2-4500KV
Sensored brushless top motor for 1/27 and 1/28 Mini-Z RC Car
Suitable for rc RWD,FWD,etc vehicles.
Max Amps:9A
Max Voltage (V):<8.4
Resistance(Ω):0.45
No-load Current(A):0.35
Continuous Power(W):80
Poles:2
Max RPM:60000
Length of extend Shaft:10mm
Diameter Length(mm):Φ15X25mm
Shaft Diameter(mm):Φ2
Weight:17g
AURORA 5500KV Series Sensored Brushless Top Motor for 1/24 1/27 1/28 RC Car
OMG-MT-AURORA-S2-5500KV
Sensored brushless top motor for 1/27 and 1/28 Mini-Z RC Car
Suitable for rc RWD,FWD,etc vehicles.
Max Amps:10A
Max Voltage (V):<8.4
Resistance(Ω):0.28
No-load Current(A):0.5
Continuous Power(W):80
Poles:2
Max RPM:60000
Length of extend Shaft:10mm
Diameter Length(mm):Φ15X25mm
Shaft Diameter(mm):Φ2
Weight:17g
Package list :
(What you see in the color picture is what you get)
Please refer to your instruction for the part number and picture.
Note:The size may have 1-2mm differs due to manual measurement.
