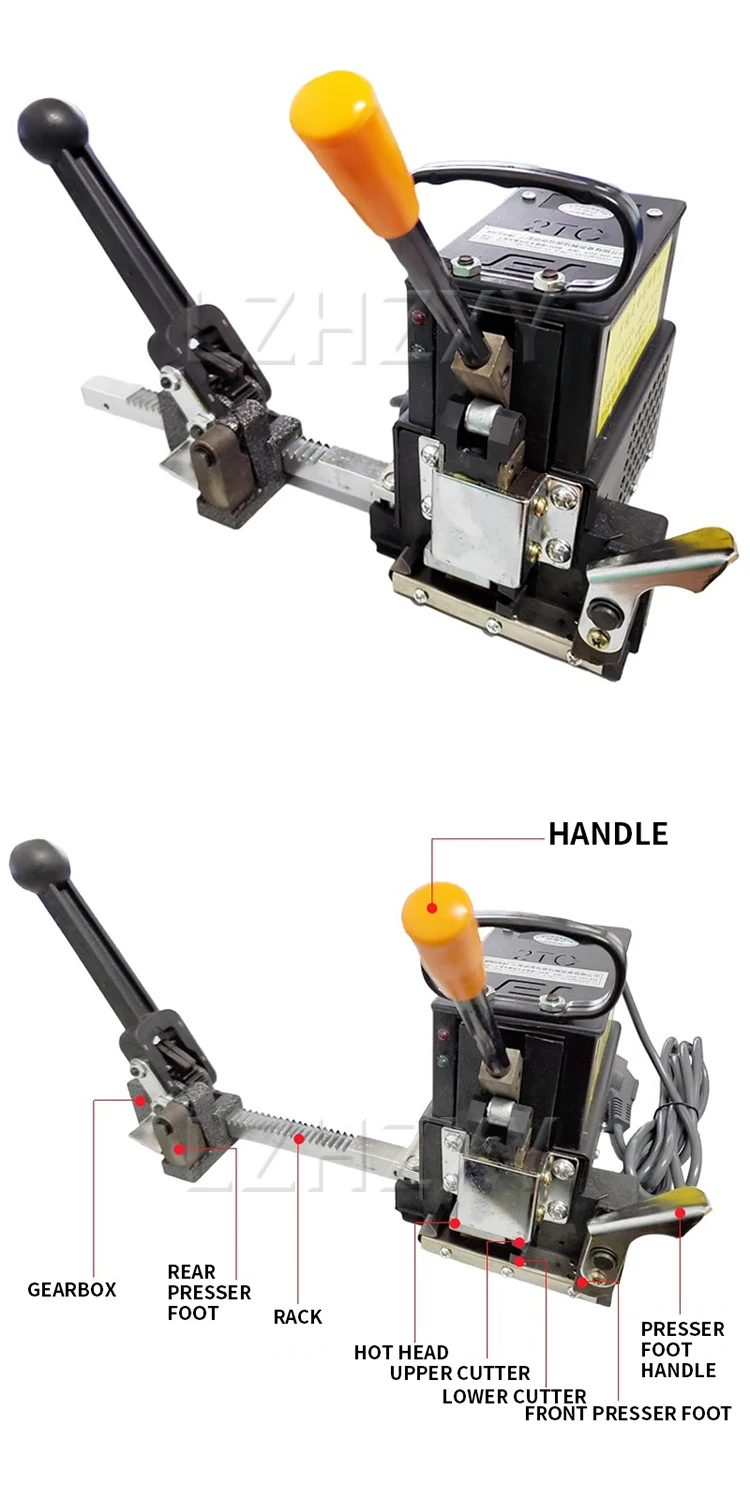

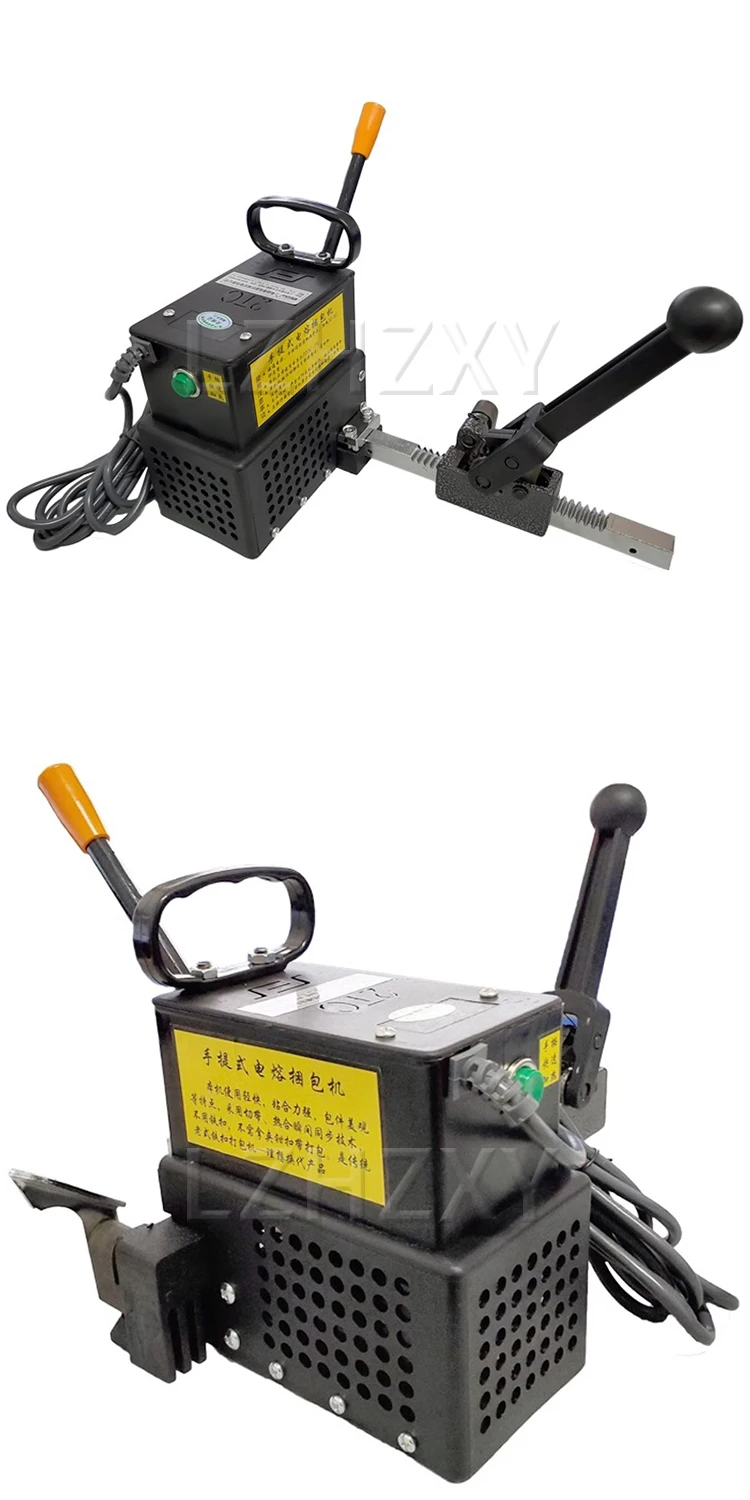

Name: Hot Melt Packer
Model: KZ-2TC
Voltage: 220V 50Hz
Power: 200W
Current: 3A
Strap Thickness: 0.7-1.8MM
Strap Width: 6-15MM
Bundling Strength: 400N
Minimum Bundling Size: 200*200MM
Size: 37*25*23CM
Weight: 3.2KG
Operation Steps:

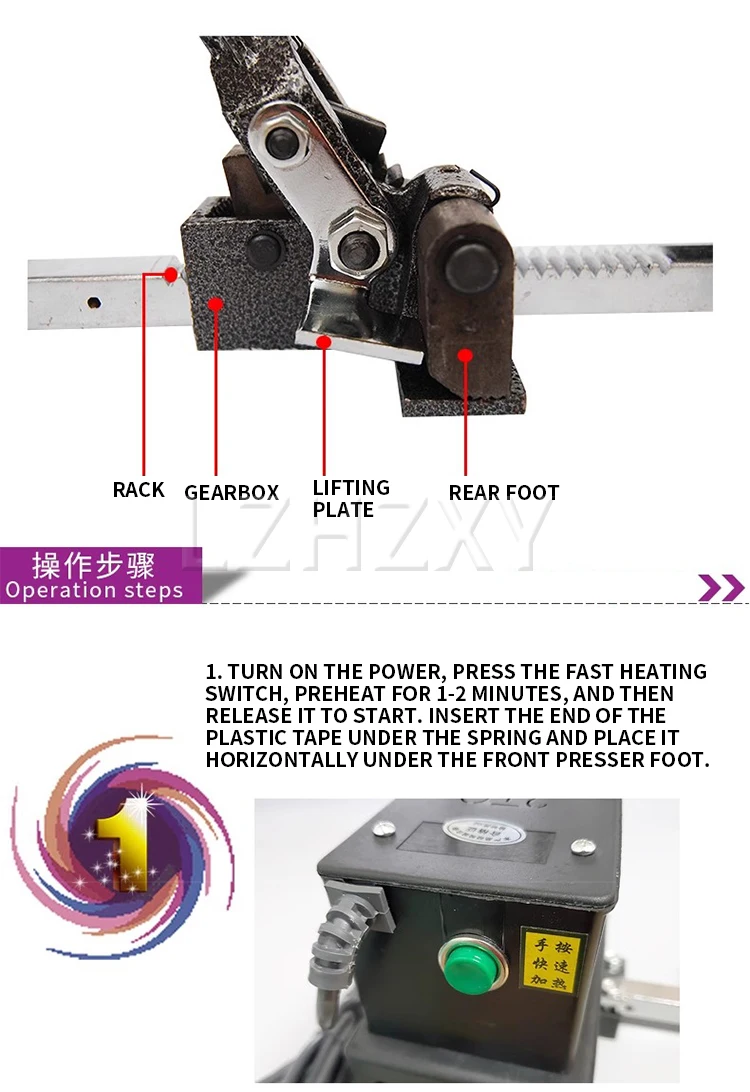

1. Turn on the power, press the quick heating switch, preheat for 1-2 minutes, and then release it to start. Insert the end of the plastic tape under the spring and place it horizontally under the front presser foot.

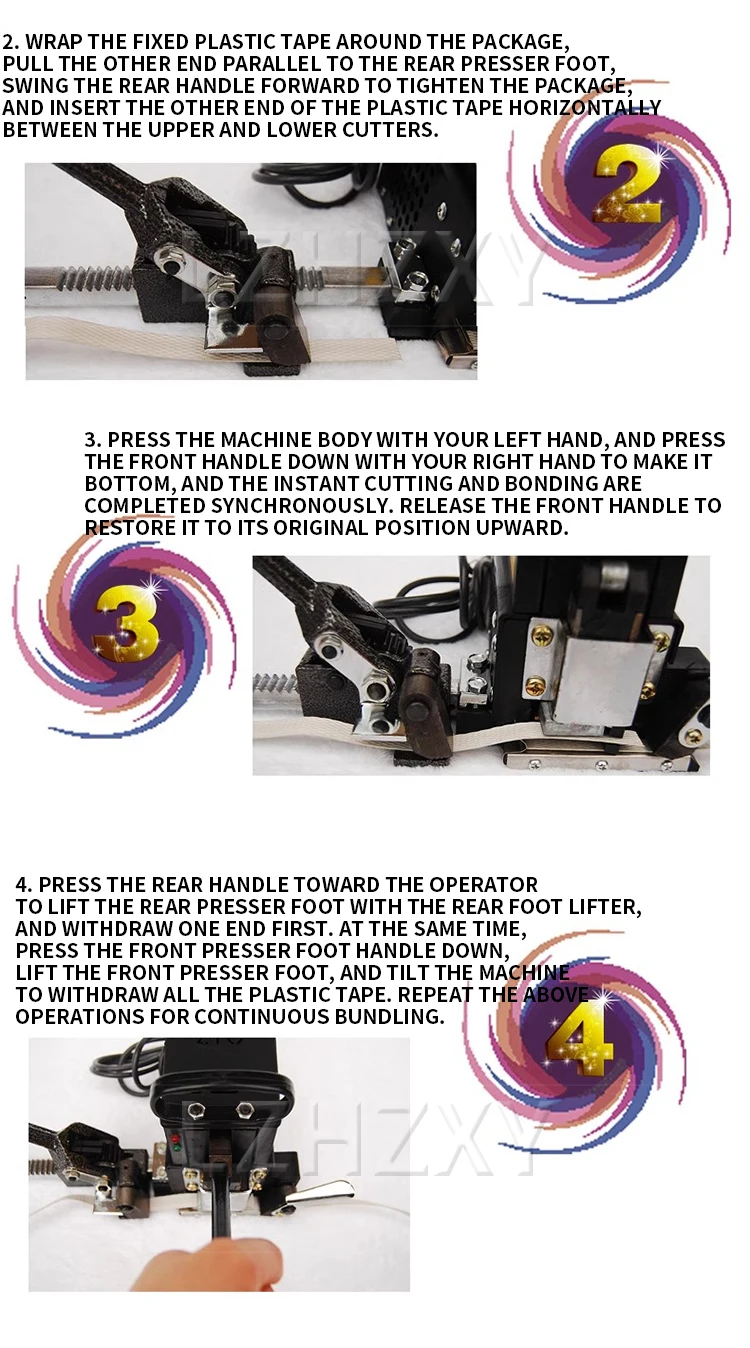

2. Wrap the fixed plastic tape around the package, pull the other end parallel to the rear presser foot, swing the rear handle forward, tighten the package, and insert the other end of the plastic tape horizontally between the upper and lower cutters.

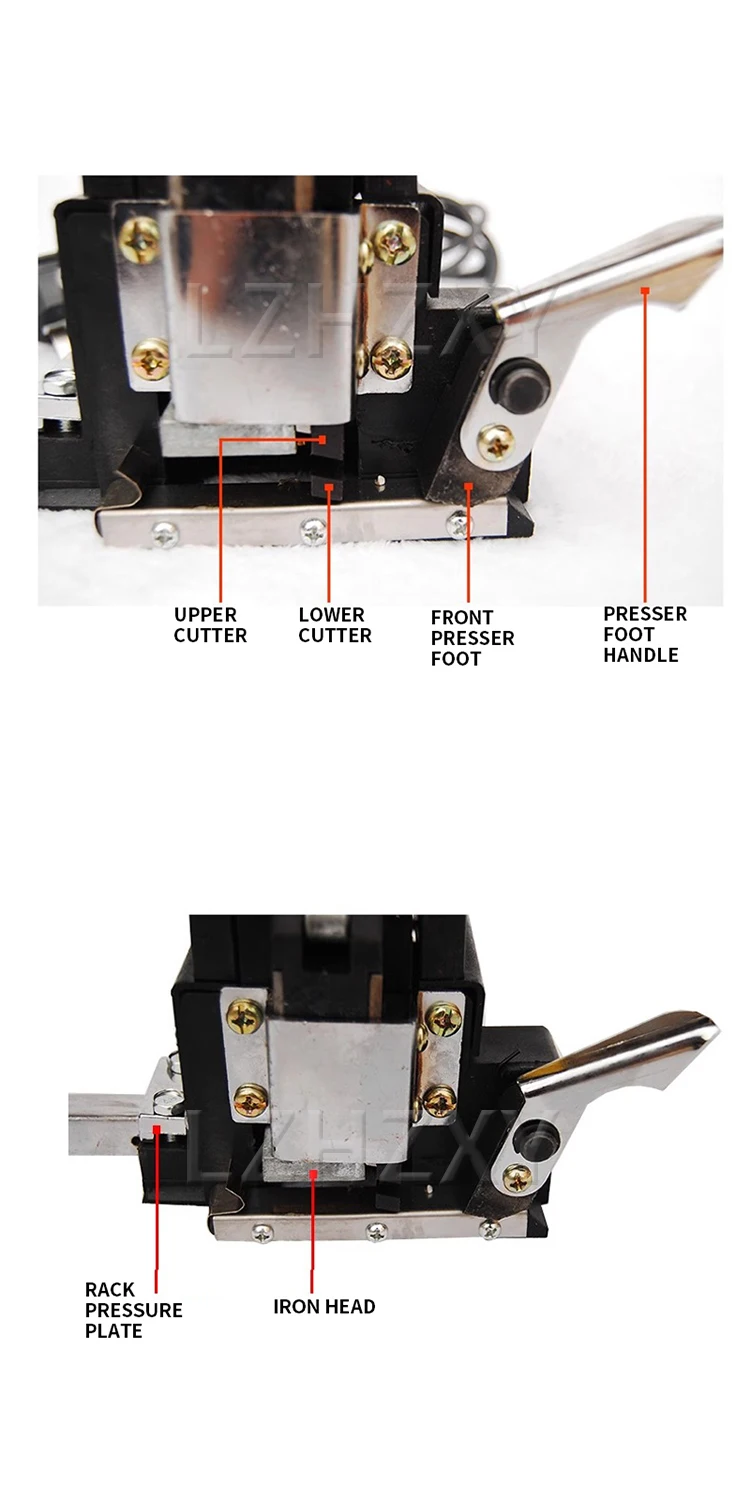

3. Press the fuselage with your left hand, and press the front handle down with your right hand to make it bottom, and the instant cutting and bonding are completed synchronously. Release the front handle and return it to its original position.
4. Press the rear handle toward the operator to lift the rear foot lifter and withdraw one end first. At the same time, press the front foot handle down to lift the front foot and tilt the machine to withdraw all the plastic belts. Repeat the above operation for continuous bundling.
