Reciprocating Cycle Linear Actuator Telescopic Motor DIY Multifunctional Automatic Push-Pull Rod Stroke 20MM-120MM Adjustable
Features:
The machine adopts aluminum alloy body with light weight and high strength
The shell part is made of nylon 3D printing, which is more durable and has special motor vent, which is suitable for long-time work

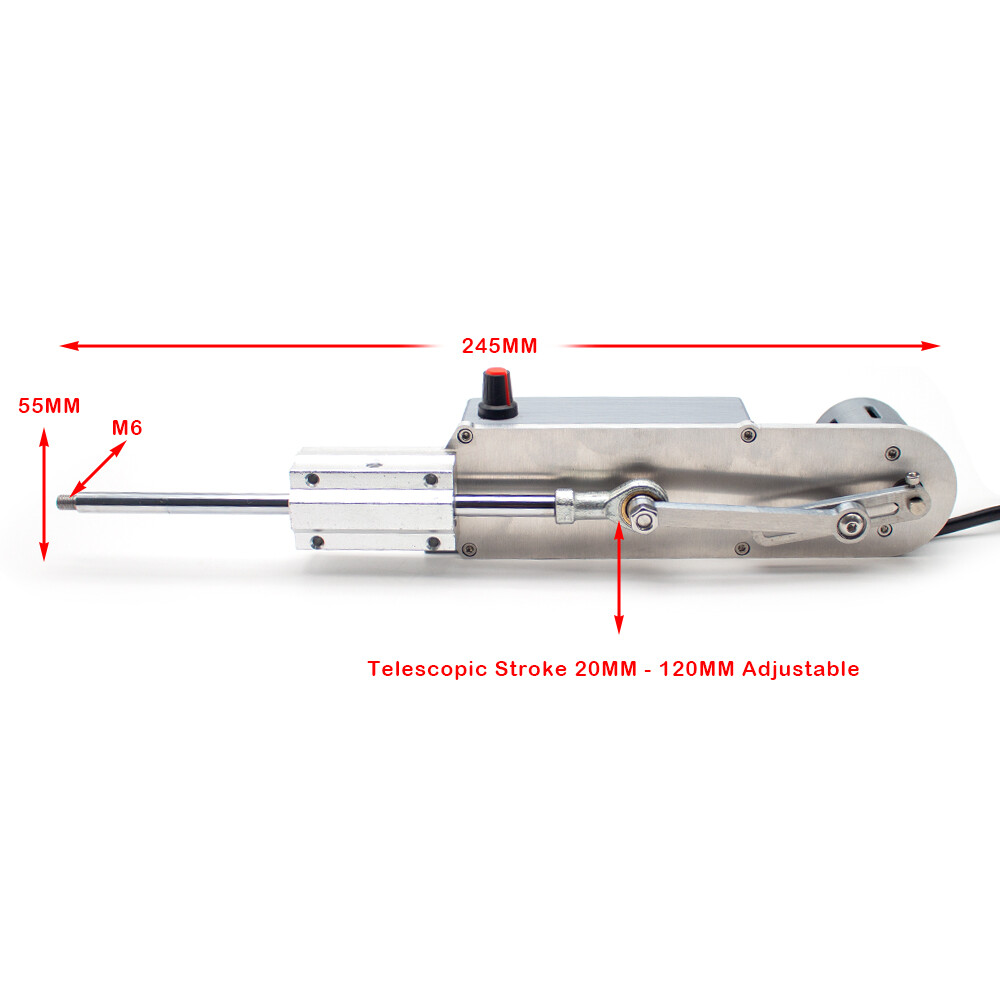

20-120mm adjustable stroke to meet the requirements under different working conditions
Integrated rotary button, adjustable speed, more convenient to use
M6 threaded metal rod is more suitable for external connection

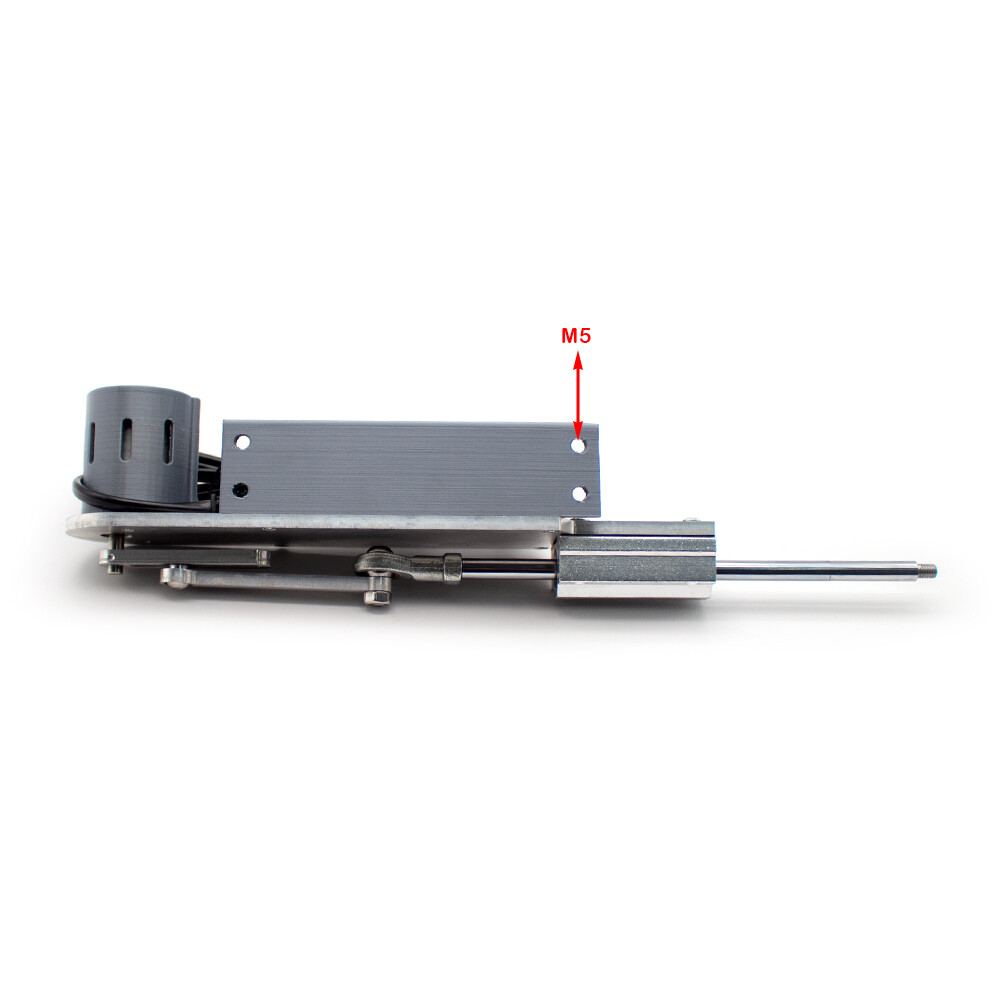

Four M5 through holes are set at the bottom to fix and support
Specifications:
Name: Electric telescopic reciprocating machine
Input voltage: AC 100-240V
Frame material: aluminum alloy
Stroke: 20-120CM (about 0.79-4.72inches adjustable)
Thrust: 2-25KG (according to different strokes)
Maximum speed: 70RPM/120RPM/210RPM (optional)
Speed control: stepless speed regulation
Fixed hole size: 5MM
Thread size: M6
Machine weight: 750G
