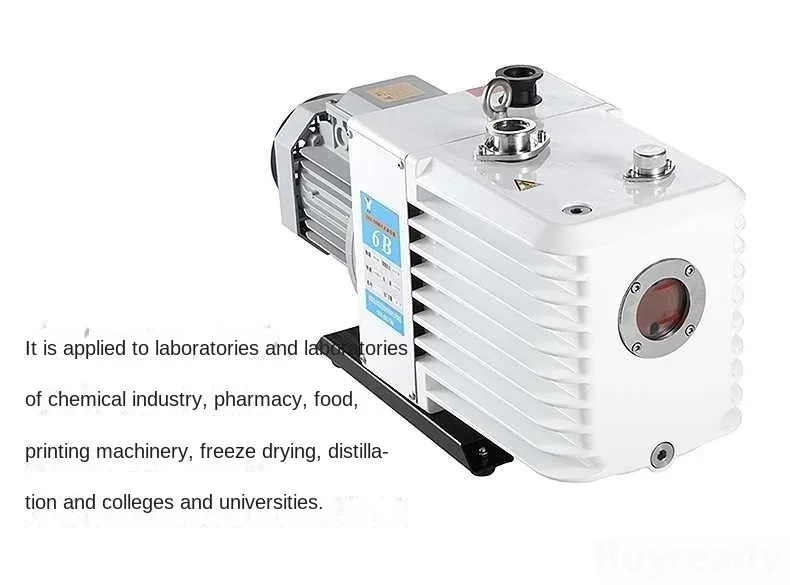

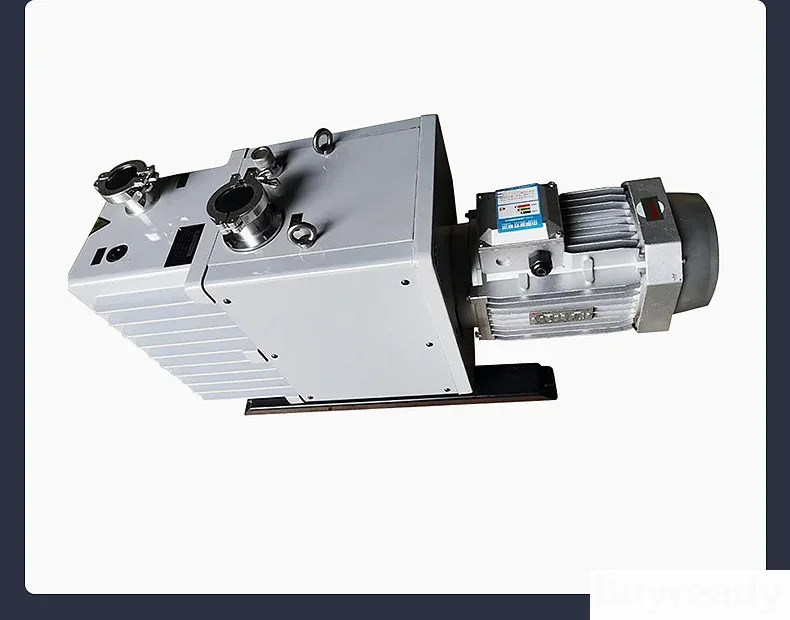

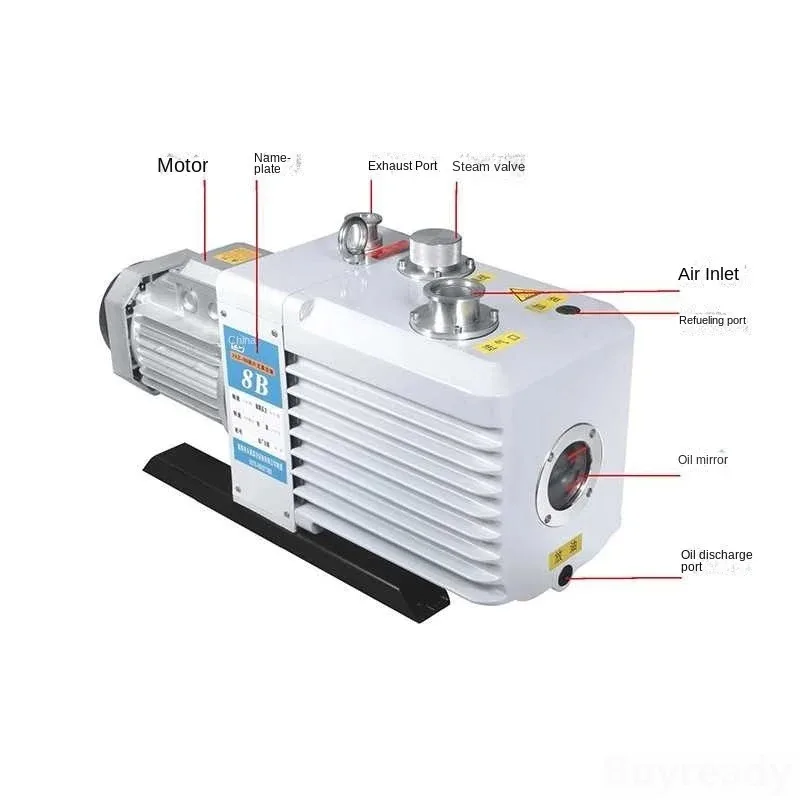

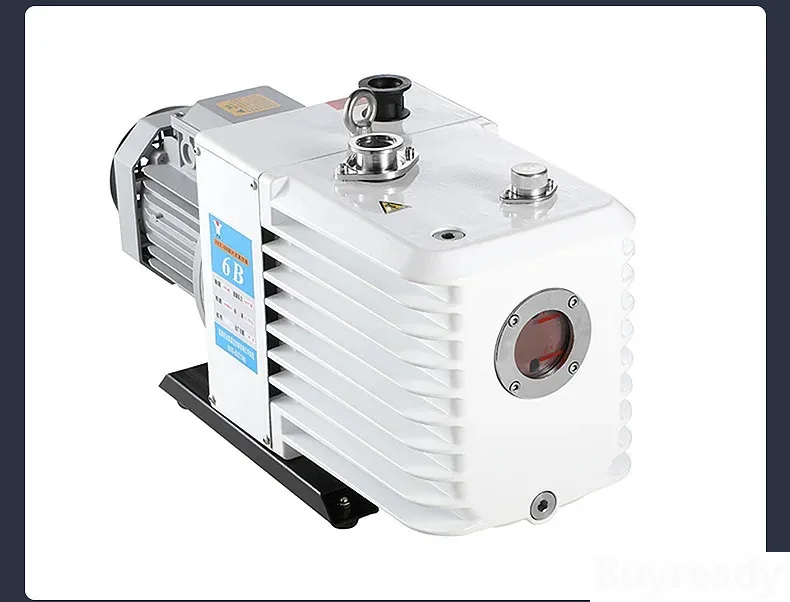

Rotary Vane Vacuum Pump Laboratory Pumping Real Air Oil Pumps
Model: 2XZ-6B

Pumping speed L/S (m2/h): 6（21.6）

Ultimate pressure (PA)

Partial pressure: ≤ 4 × 10-²

Full pressure: ≤ 1

Rotating speed (r/min) (50/60HZ): 1400 (1700)

Operating voltage (V): 220/380

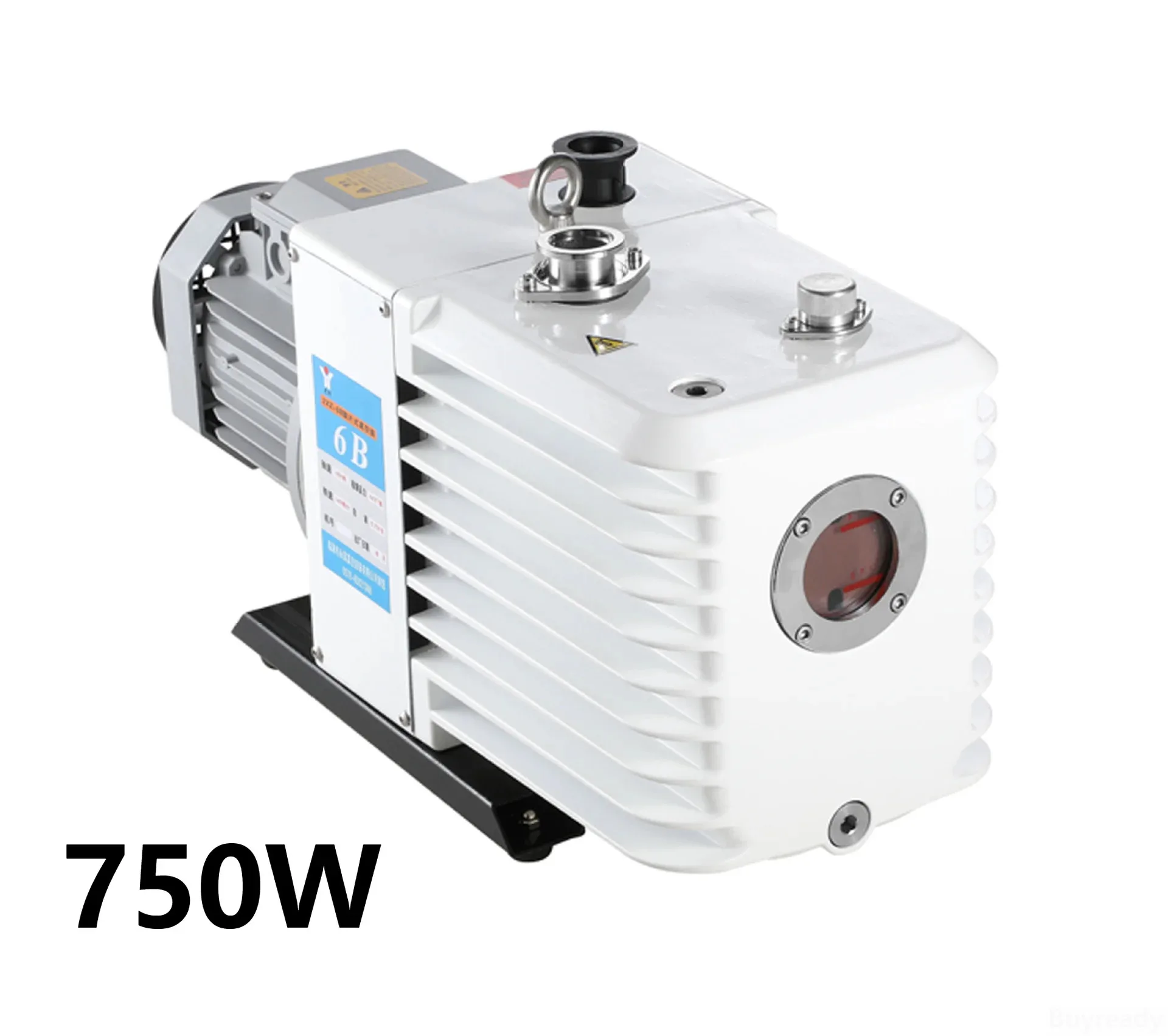

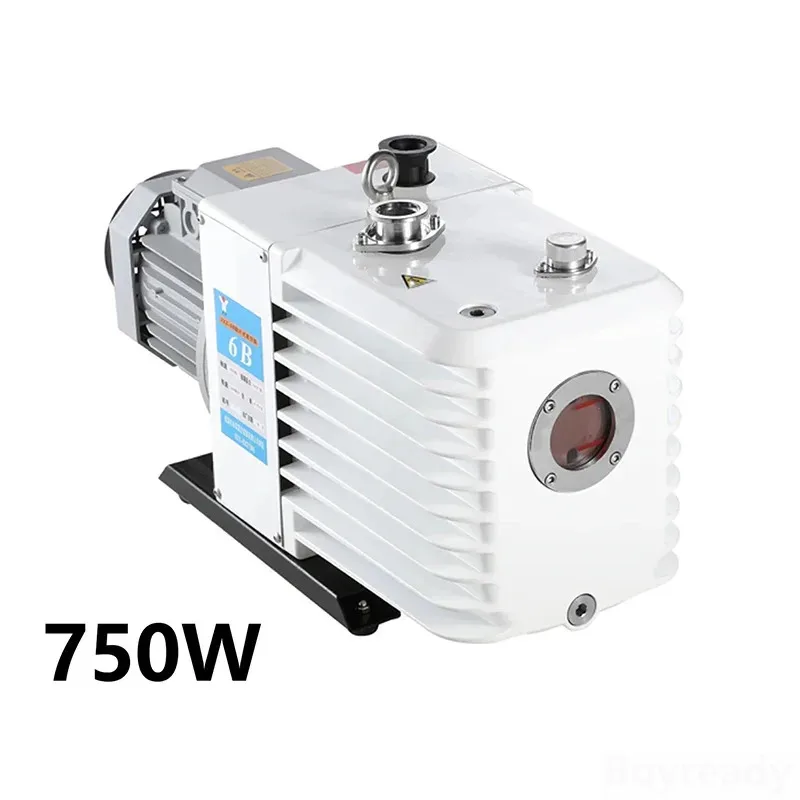

Motor power (KW):0.75

Inlet diameter (outer diameter) (mm): 30， KF-25

Noise (dBA): 68

Oil capacity (L): 1-1.2

Overall dimension (mm):560x200x340

Gross weight Net weight (KG): 46/40
