Details
1. Stable and reliable performance
2. Easy to use
3. Safe and reliable
4. The new smart switch can control one or more indoor devices. This product is based on electrical practices and adopts advanced electronic circuit design.
5. Products are widely used in remote control water pump switches, wireless remote control machine switches, wireless remote control sockets, wireless lamps, various wireless home appliances control, etc.
Working voltage: DC12V
Working frequency: 433mHz
Quiescent current: ≤10mA
Working temperature: -20℃/+60℃
Receiving sensitivity: >-105dB
Number of control circuits: 1 normally open (normally closed) contact, 2 normally open (normally closed) contacts
Coding Type: Learning Code
Matching method: intelligent learning type
Working mode: jog-self-locking-interlocking
1. -: 12V power supply negative pole
2. +: 12V power supply positive
3. NO: output terminal, normally open terminal of relay
4. COM: Common terminal of output terminal and relay
5. NC: output terminal, normally closed terminal of relay
1. Jog: press and hold the remote control to open, release to close
2. Self-locking: press the remote control to turn on, press the remote control again to turn off
3. Interlock: Press the first key of the remote control to open, press the second key of the remote control to close

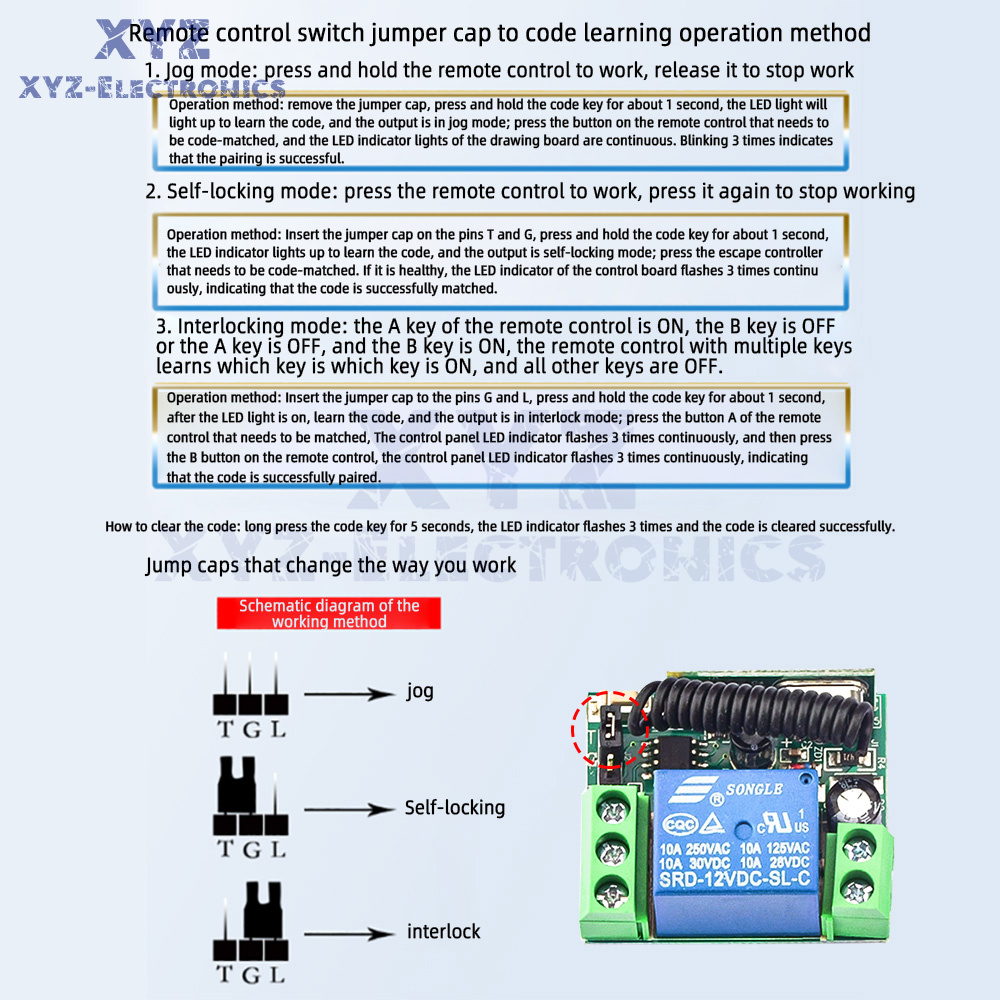

1. Set to jog: do not insert the jumper cap, press the learning pairing key (about 2 seconds), the red light can be paired within 15 seconds after the red light is off.
2. Set as self-locking: short the jumper cap to L, press the learning pairing key (about 2 seconds), the red light can be paired within 15 seconds after the red light is off.
3. Set as interlock: short the jumper cap to T, press the learning pairing key (about 2 seconds), the red light can be paired within 15 seconds after the red light is off.
4. Code clearing function: Press and hold the learning pairing key for 5 seconds, the LED indicator flashes 4 times, and the code is cleared successfully.

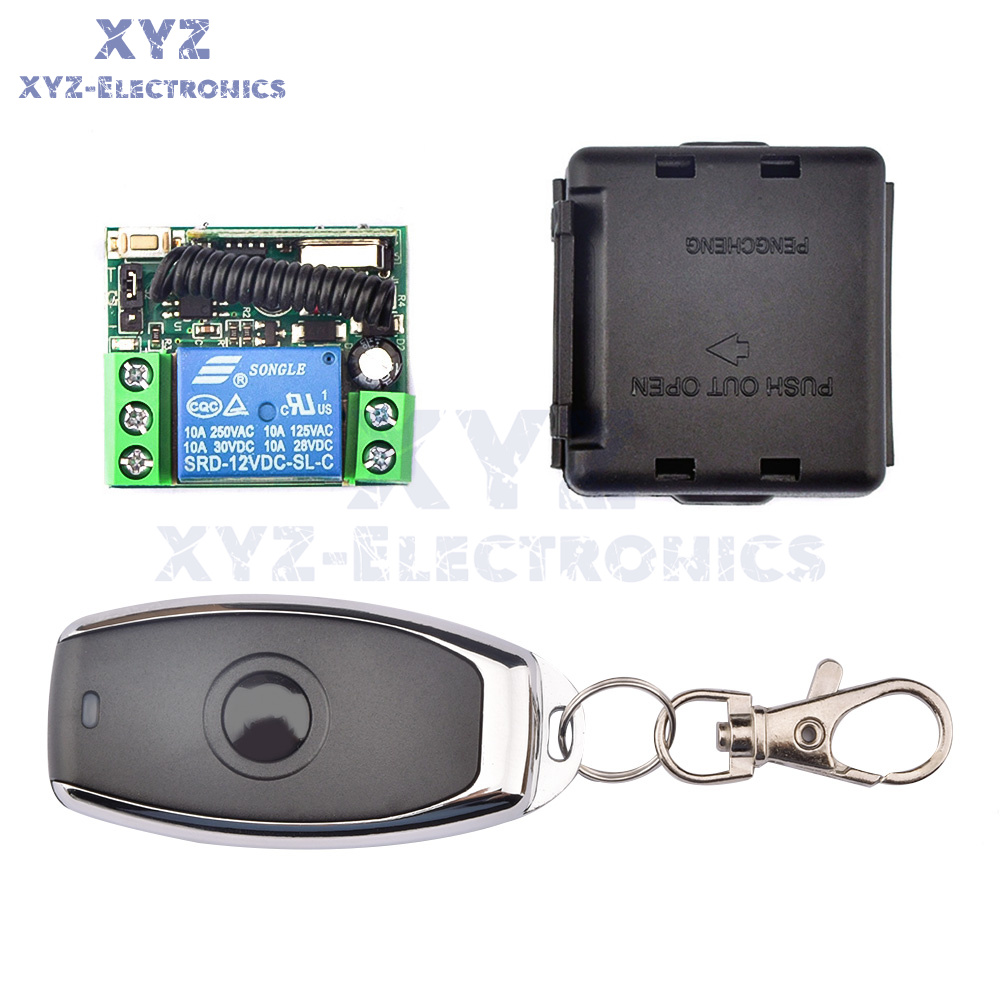

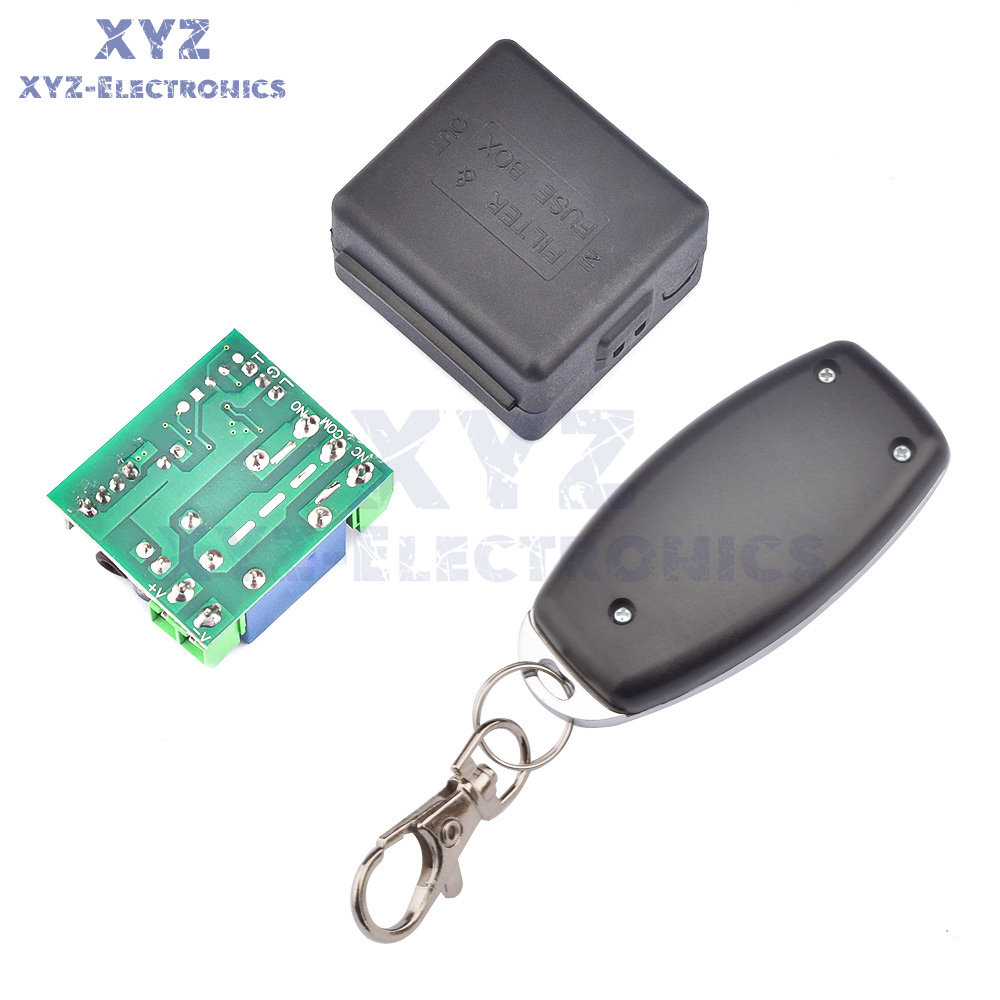

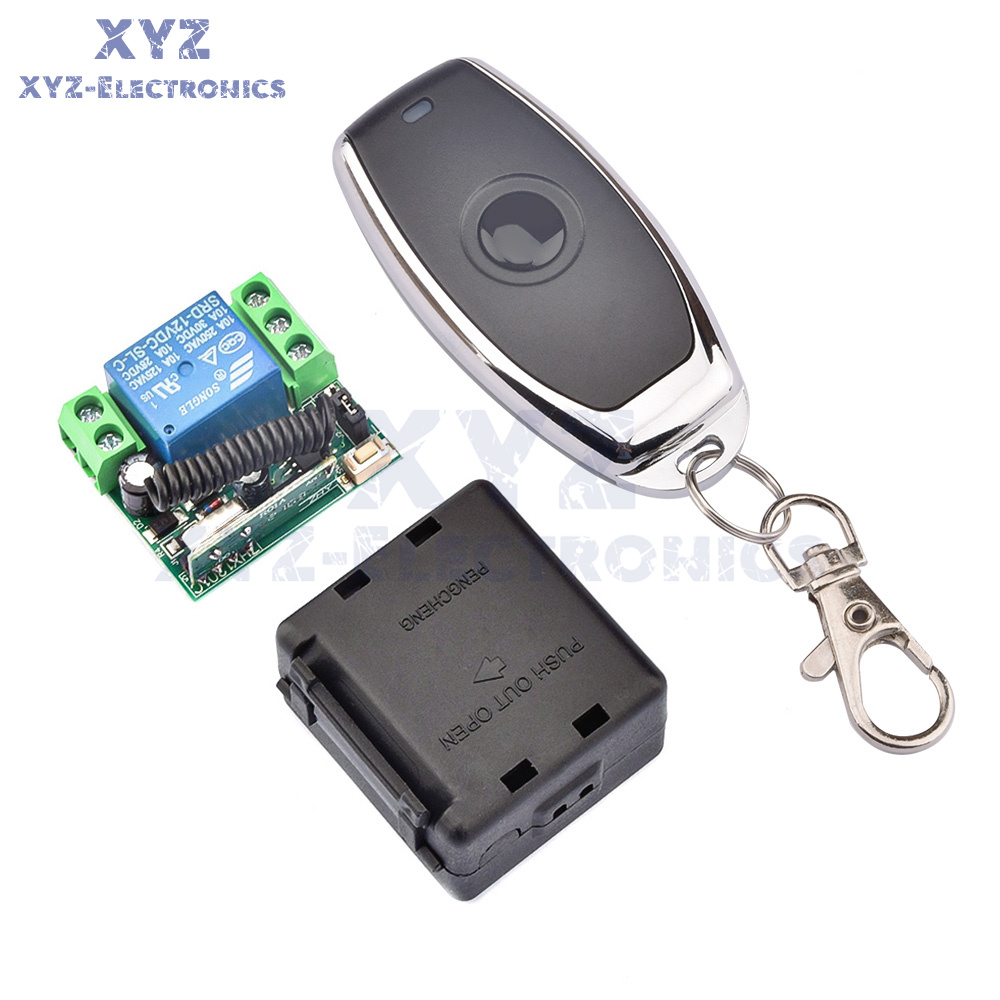

1x Receiving Relay Module + 1ch Remote Control
or

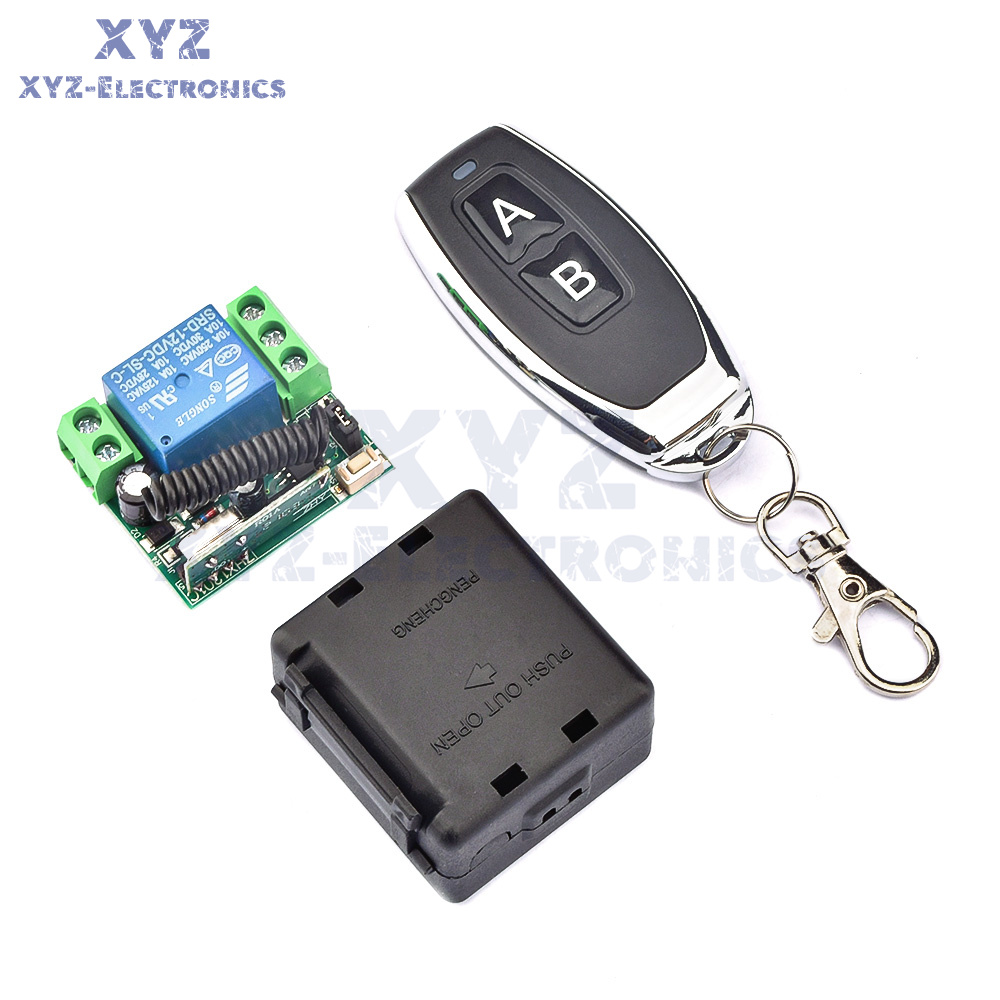

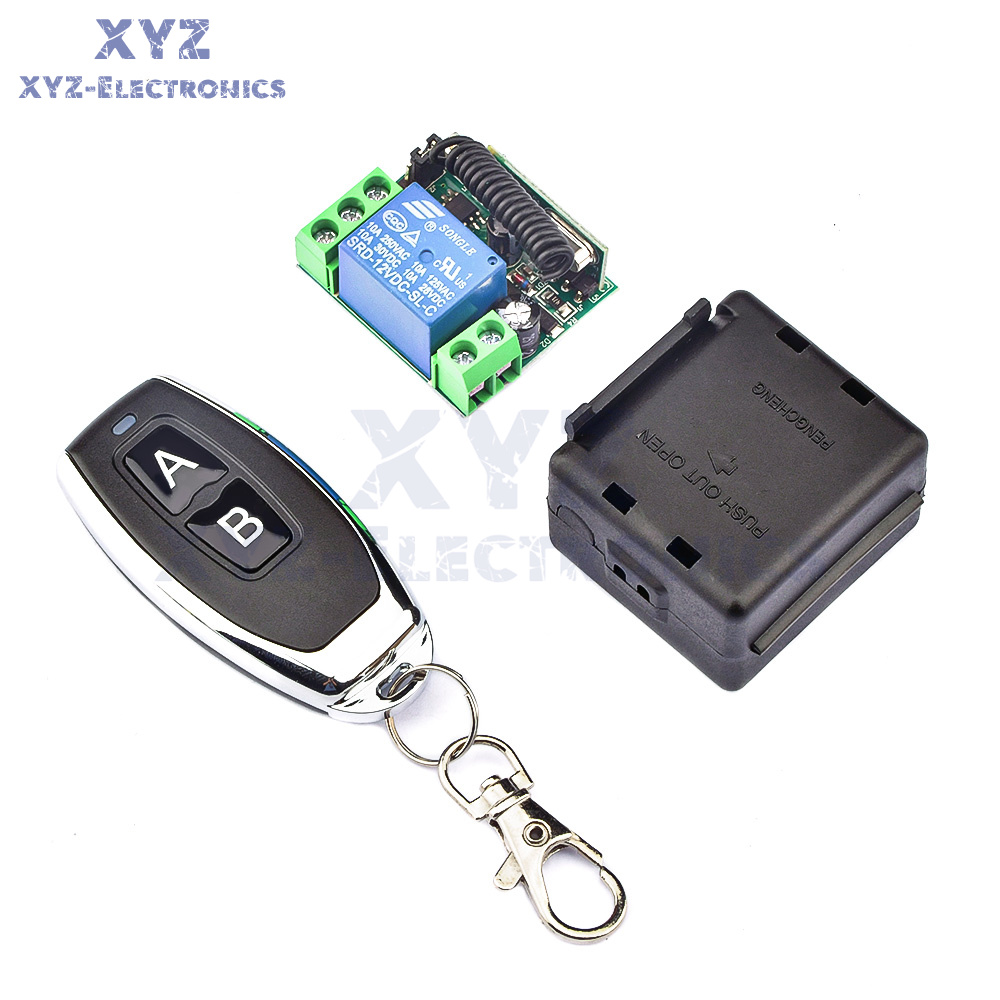

1x Receiving Relay Module + 2ch Remote Control
