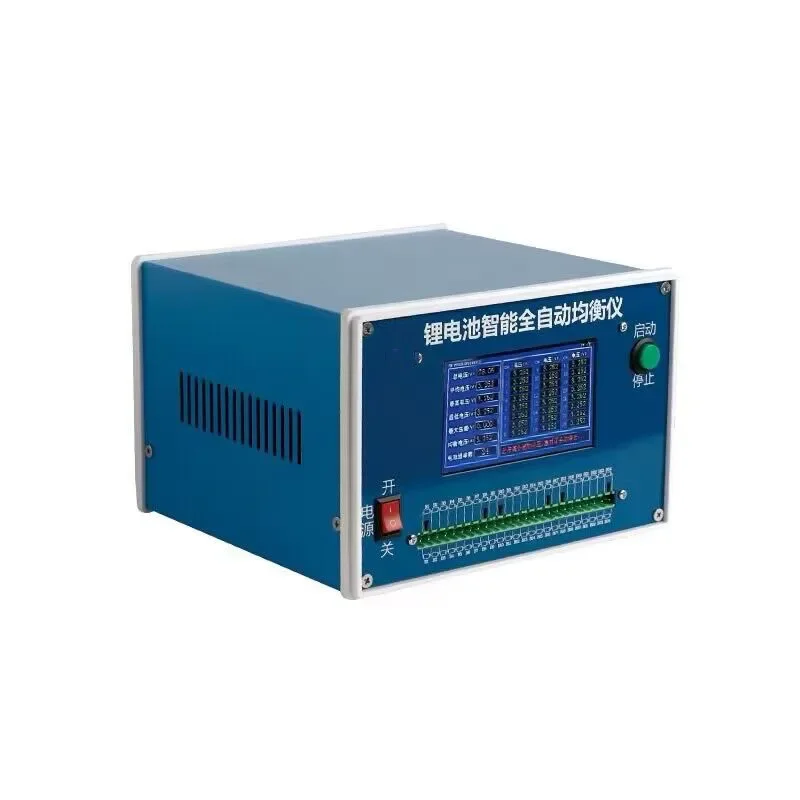

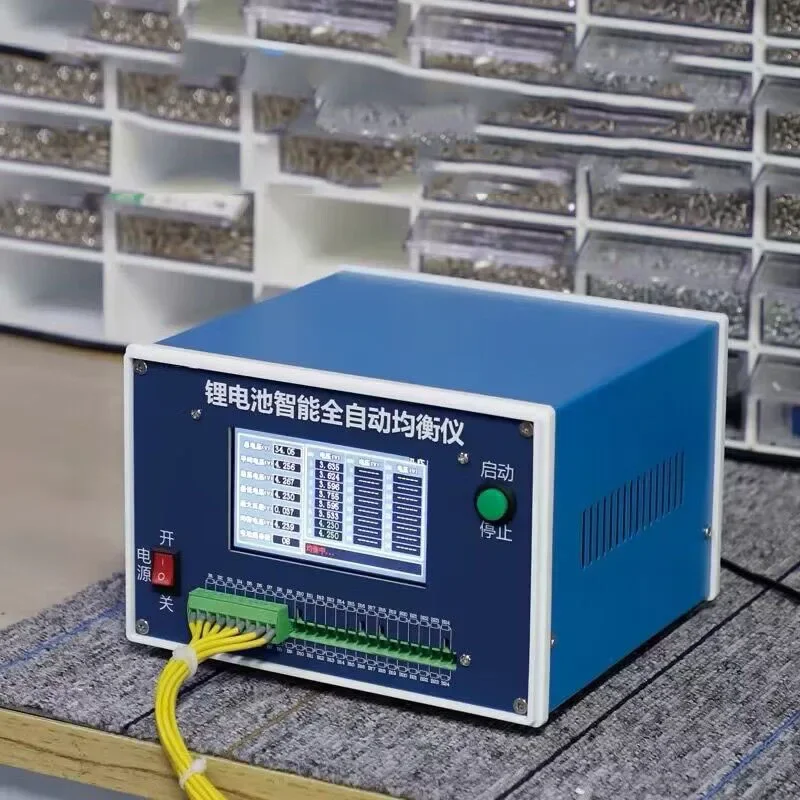

HD li-ion battery Equaliser Differential Pressure Balancer Battery Equaliser
Specification
Name: 2~24S battery automatic balancer
Voltage: 100-240V
Version: Chinese/English (optional)
Scope of application: lithium battery pack factory,
Electric vehicle repair shop, personal lithium battery DIY
Package Included:
1. 2~24S battery automatic balancer
2. 400mm test cable
3. Adapter board
4. 12V power adapter
Version:
Appearance color: blue
Language system: English, Chinese (switchable)
feature:
1.Support 2~24 series lithium battery packs
2. Support ternary lithium, lithium iron phosphate, and lithium titanate
3. Constant resistance 1 ohm discharge balance, large balance current;
Ternary lithium can reach 4A, and lithium iron phosphate can reach 3A.

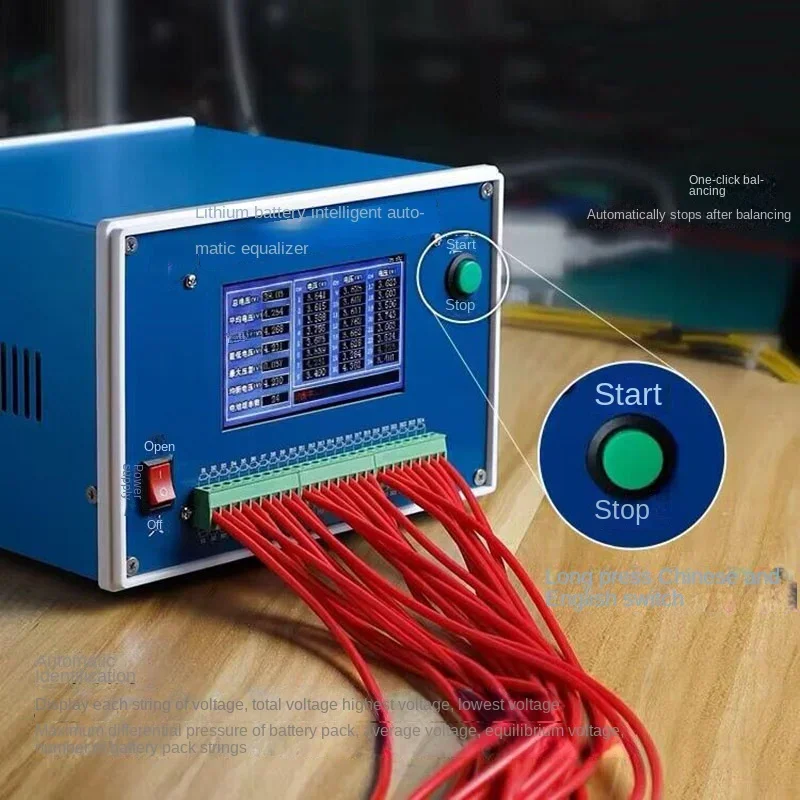

4. Display each string voltage, total voltage, maximum string voltage,
Minimum string voltage, maximum battery pack voltage difference,
Average voltage, balance voltage, number of battery packs
5. Automatically identify the number of strings and equalize the voltage, easy to use
6. Automatically stop and alarm after equalization is completed
Makes a sound to indicate equalization is complete;
7. Support 1.5V~4.5V battery, automatically alarm and display
When the voltage exceeds the range
8. Automatic alarm prompt for reverse connection
9. With reverse connection protection and overvoltage protection
(greater than 4.5V), low voltage (less than 1.5V) protection function
10. Time to complete equilibrium is incomparable
Power equalization and energy transfer equalization.
Three ways to balance (supplement balance, energy transfer
Balance, discharge balance), discharge balance is safer and more efficient
