Features:
1， The Kit Can be Directly Connect Propane Tank 5- 20lbs, and Start Flame Which Looks Pretty Nice Blue and Warm.
2, Regulator Hose 5FT, QCC Female Connector And 3/8"" Swivel Female Exit.
3, The Top of the Box with 4 Holes which help you can install on a patio heater plate. You can drill the hole and screwed them and fix this heating burner parts on the bottom.
4, Max 60000 BTU Round Ceramic Burner.
5, Pulse Igniter AAA (battery not included).
6, One Inlet and Two Exits Brass Safety Valve with Pilot Port.
7, 5FT Regulator Low Pressure with Hose.
8, Zinc Alloy ON-OFF Control Knob.
9, Ignition Spark Electrode.
10, This kit you can designed it for any other idea heaters, not only a replacemet of current patio heaters.

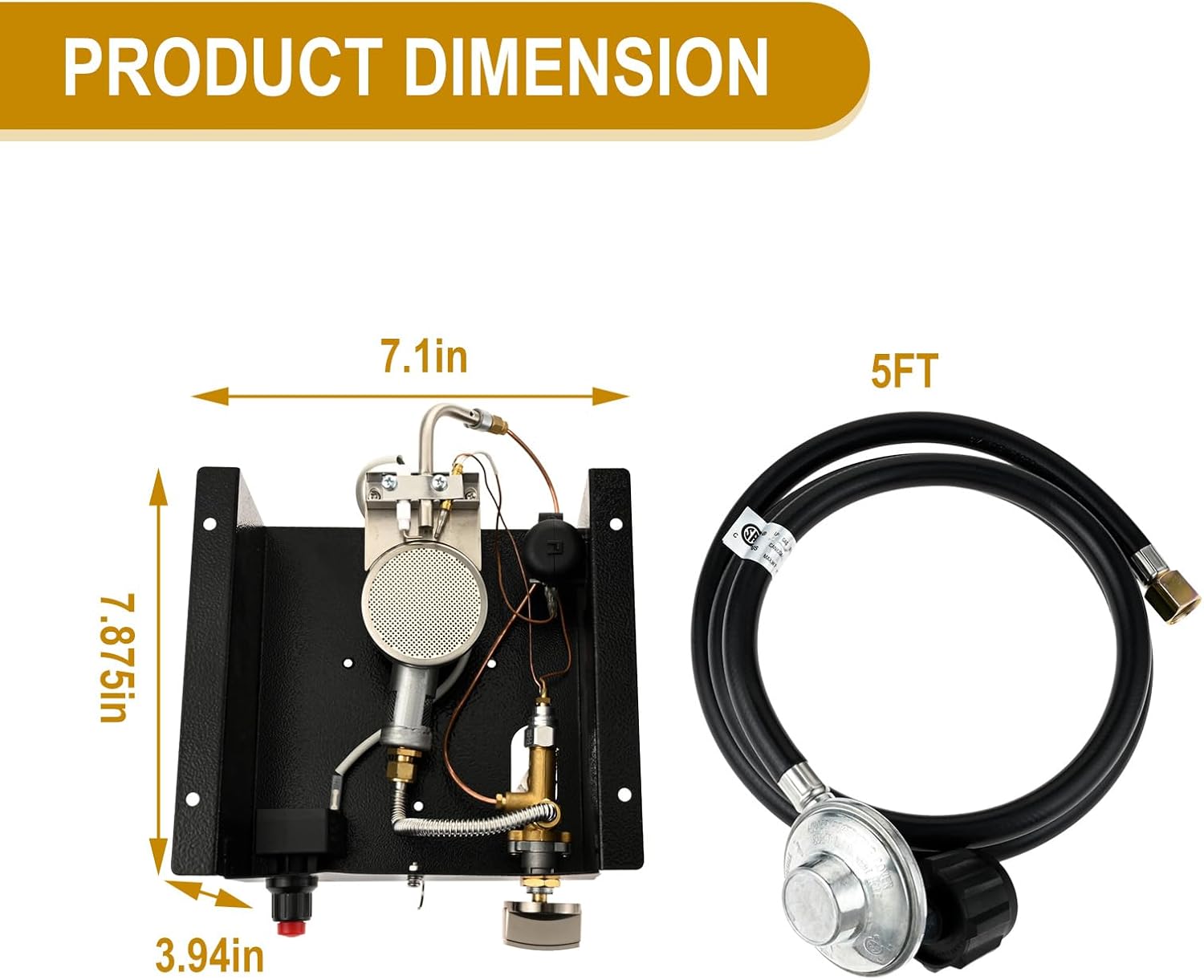

11, Before Ordering, Check carefully on the size and compare your current models, especially the bolt location.Dimension Map for Compare Before Ordering
Check carefully on the size and compare your current models, especially the bolt location.
12,If you need do some modification, you may need some welding to hook this box on your heater.
13, This is also good for you to make a cover or box out the burner and make an unique Heaters.
14, Applications: Because the flame on burner is straight top, So normally this kit is not goods for barbecue just for heatings. Max Working Pressure is 65mbar.
15, How to Operate to open ? After insert the AAA battery in the igniter, and connect it to the 20lbs propane tank , Push the valve down and turn around 90 degree, and the same time push the igniter and when the pilot burner start flame , and release your hand to adjust the flame.

16, How to Install ?
a, Open patio heater side and close propane gas tank assembly valve (closed)
b, Unload the propane regulator valve hose
c, Use screws to disassemble the old gas control Box Assy (4 Bolt Hole Pattern Burner)
d, Install the new 50,000 BTU Patio Heaters Glass Tube Burner Module Replacement use. （NOTE: Maintain a horizontal position, do not tilt; This Heaters Glass Tube Burner Module has safety flameout protection and Anti Tilt Safety Devices）
e, The valve inlet thread at the bottom of the gas control Box assembly is a 3/8"" flare male thread, which can be used with the American standard low-pressure propane adjustment hose with 3/8"" flare female thread nut
f, The igniter needs to install the AAA battery (not included) by itself
g, Connect the 5FT propane Regulator we provide with your 20lbs propane tanks

17,Warning:
a, Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
b, An LP-cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
c, If you smell gas: Shut off gas to the appliance; Extinguish any open flame; If odor continues, Shut off gas to the appliance immediately. If odor continues, call gas supplier or Fire.

Package list:
1 x 4 Bolts Propane Burner with Regulator Valve Assembly Kit
